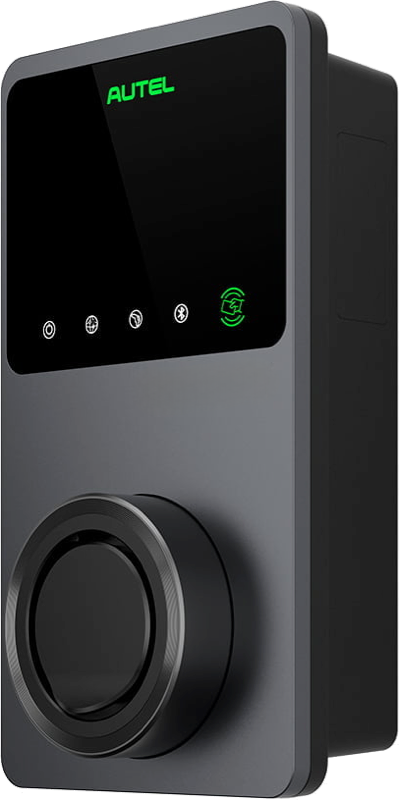

MaxiCharger 22kW Wallbox.
Ideal for commercial charging requirements, the MaxiCharger delivers powerful 11 kW or 22 kW charging speeds. This robust and aesthetically pleasing unit is suitable for all environments and can be installed as either a wall-mounted or pedestal-mounted device.

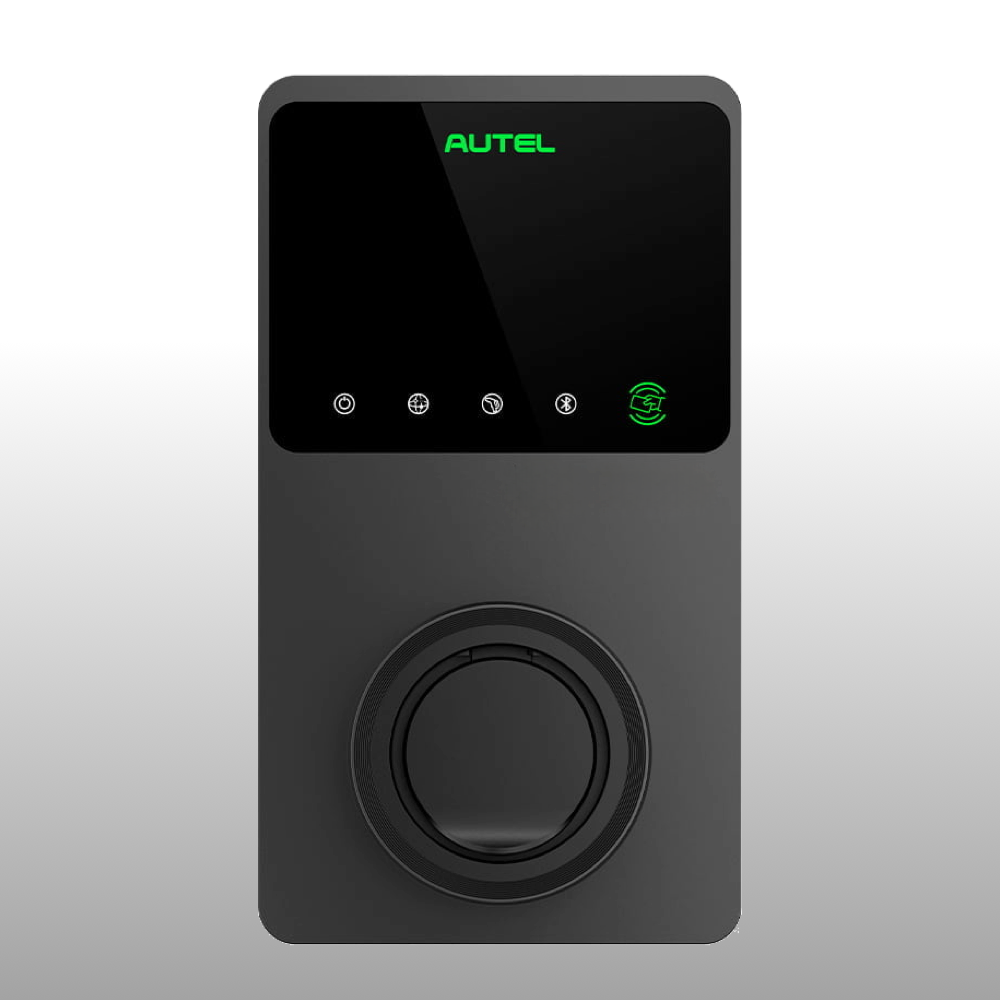

Autel MaxiCharger 22kW Wallbox.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The Autel 22kW MaxiCharger is a smart charger, is fully OCPP 1.6J compliant and features a universal Type 2 socket. Crucially, it incorporates advanced safety and efficiency capabilities, including built-in PME fault detection for single and three-phase connections, alongside both static and dynamic load balancing.
Power
- Manufacturer
- Autel
- Model
- MaxiCharger 22kW
- Colour
- Gray
- Warranty
- 36 months – extension available
Image Gallery
MaxiCharger 22kW Features.
The Autel MaxiCharger 22kW Wallbox is feature rich with everything you would expect from a commercial EV charger and more.
- High-Speed Three-Phase Charging
-
The MaxiCharger delivers 11 kW or 22 kW charging power on a three-phase connection. This allows for rapid charging of compatible electric vehicles, making it an ideal solution for commercial use.
- Built-in PME Fault Detection
-
For enhanced safety, the charger features PME (Protective Multiple Earthing) fault detection, which is incorporated directly within the unit. This feature provides critical protection on both single and three-phase connections.
- Intelligent Load Management
-
The unit is equipped with advanced capabilities for both static load management and dynamic load balancing. This enables the intelligent and efficient distribution of electrical power, which is particularly beneficial for sites with multiple chargers.
- Advanced Smart Connectivity
-
The charger offers a range of connectivity options, including Bluetooth, Wi-Fi, Ethernet, and 4G. This enables remote management and monitoring through the MaxiCharger App and a dedicated web portal.
- Flexible Mounting Options
-
Designed for versatility, the MaxiCharger can be installed as a wall-mounted unit or mounted on the floor using a pedestal. This ensures it can be suitably placed in a wide variety of locations.
- Robust & Weatherproof Design
-
The charger is built to be robust and is suitable for all environments. It features an IP54 rating for protection against dust and water ingress and an IK08 rating for impact resistance.
- OCPP 1.6 Compliance
-
As an OCPP 1.6/2.0 compliant charger, it can be integrated seamlessly with third-party management software. This open protocol ensures interoperability, which is essential for commercial charging networks.
- Versatile User Authentication
-
It offers multiple convenient methods for user authentication. Drivers can start a charging session using the companion App, an RFID card, or by scanning a QR code.
- Comprehensive Electrical Protection
-
The unit features integrated safety mechanisms, including 6mA DC and 30mA AC leakage detection. It also protects against overcurrent, overvoltage, undervoltage, ground faults, and has integrated surge protection.
Autel AC Ultra

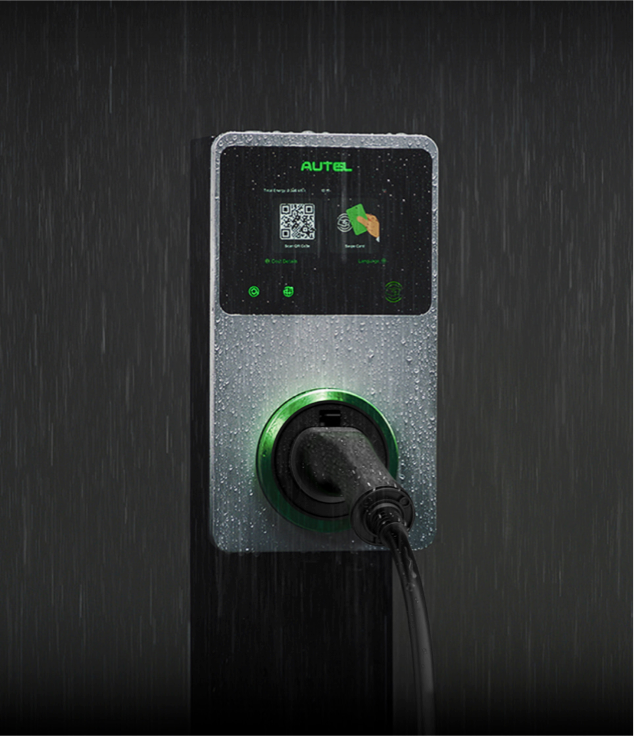

Smart Three-Phase Charging.
The Autel MaxiCharger is a smart, three-phase EV charger designed for versatility, with options for either wall or pedestal mounting. It is equipped with a single, universal Mode 3, Type 2 socket and can deliver 11 kW or 22 kW of charging power. Designed to be robust and suitable for all environments, the unit has an IP54 rating against dust and water and an IK08 rating for impact resistance. The charger is covered by a 36-month warranty and is certified with CE and UKCA marks.
As a smart charger, the MaxiCharger offers extensive connectivity through Bluetooth, Wi-Fi, Ethernet, and 4G, all of which can be managed via the dedicated app or a web portal. It is OCPP 1.6/2.1 compliant for seamless network integration, and user authentication is versatile, supporting the app, RFID cards, or a QR code. Safety is a key feature, with PME fault detection incorporated within the unit and an integrated RCD for 6mA DC and 30mA AC leakage detection. The unit also protects against overcurrent, overvoltage, undervoltage, and ground faults and is compliant with The Electric Vehicles (Smart Charge Points) Regulations 2021.
MaxiCharger 22kW Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 %
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ~ + 55°C
- Storage Temperature Range
- -40°C ~ + 85°C
- Noise
- ≤ 65 dB(A)
- EMC Compliance
- –
- Compliance and Safety
- EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LED Lights
- Languages
- English (UK Version)
- Credit Card Readers
- –
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- App/RFID/QR Code
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- –
General Specifications
- Dimensions (WxDxH)
- 187mm x 85mm x 336mm
- Colour
- Grey Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Bluetooth, Ethernet
- Screen Type
- –
- Current Type
- Mode 3 (AC)
- Cable Length
- –
- Standby Power
- –
- Enclosure Rating
- IP54; IK08
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Accessibility
- –
- Emergency Button
- No
- Design Life
- –
- Warranty
- 36 months, warranty extension possible
- Weight
- 3.92kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- AC 30mA, DC 6mA
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection, PME
Output
- Output Power
- 22kW
- Minimum Adjustable Power
- 3.4Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 1*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 1
- Charging Mode
- 1* IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | 2000m | 2000m |
Operating Temperature Range
|
-40°C ~ + 55°C | -40°C ro +55 ℃ | -30 ℃ to +50 ℃ |
Storage Temperature Range
|
-40°C ~ + 85°C | -40°C to +85 ℃ | -30 ℃ to +70 ℃ |
Noise
|
≤ 65 dB(A) | ≤ 65 dB(A) | ≤ 65 dB(A) |
Compliance and Safety
|
EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671 | IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955 | IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7 |
Certification
|
TÜV; CE; UKCA | TÜV; CE; UKCA | CE |
|
User Interface
|
|||
|
Status Indication
|
APP; LED Lights | APP; LCD (8-inch touch screen, 1280*720) | APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform |
Languages
|
English (UK Version) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Nayax Onyx | Payter Apollo |
RFID Protocols
|
ISO 15693; ISO 14443 | ISO 15693; ISO 14443 | ISO 15693; ISO 14443 |
Payment Terminal
|
App/RFID/QR Code | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
187mm x 85mm x 336mm | Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm | 310 × 200 x 1450 mm |
Colour
|
Grey Plastic | White Plastic | Gun Metal Gray Steel |
Connectivity
|
Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Bluetooth, Ethernet | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 |
Screen Type
|
8 inch touch screen, 1280*720 | 8 inch touch screen, 1280*720 |
Current Type
|
Mode 3 (AC) | Mode 3 (AC) | Mode 3 (AC) |
Enclosure Rating
|
IP54; IK08 | IP54; IK10 | IP54; IK10 |
Communication to the EV
|
ISO/IEC 15118 | ISO/IEC 15118 | ISO/IEC 15118 |
Software Update
|
OTA updates via web portal | OTA updates via web portal | OTA updates via web portal |
Emergency Button
|
No | No | No |
Warranty
|
36 months, warranty extension possible | 36 months, warranty extension possible | 36 months, warranty extension possible |
Weight
|
3.92kg | Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg | 42kg |
Mounting
|
Wall Mounted (Optional Pedestal) | Wall Mounted (Optional Pedestal) | Floor Standing |
Internal RCD
|
AC 30mA, DC 6mA | Installed Upstream | Installed Upstream |
Protection
|
Overcurrent, overvoltage, undervoltage, integrated surge protection, PME | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
|||
|
Output Power
|
22kW | 2 * 22kW | 2 * 22kW |
Minimum Adjustable Power
|
3.4Kw | 7Kw | 7Kw |
Output Voltage
|
400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE |
Output Current
|
1*22 kW/32 A | 2*22 kW/32 A | 2*22 kW/32 A |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
1 | 2 | 2 |
Charging Mode
|
1* IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter |
Supply Configuration
|
3P + N + PE | 3P + N + PE | 3P + N + PE |
|
Input
|
|||
|
Input Voltage
|
230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase |
Input Frequency
|
50 Hz | 50 Hz | 50 Hz |
Earthing System
|
TT; TN | TT; TN; IT | TT; TN |
Power Factor
|
≥0.99 | ≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
MaxiCharger 22kW
Environmental Specifications
- Humidity
- ≤95 %
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ~ + 55°C
- Storage Temperature Range
- -40°C ~ + 85°C
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LED Lights
- Languages
- English (UK Version)
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- App/RFID/QR Code
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 187mm x 85mm x 336mm
- Colour
- Grey Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Bluetooth, Ethernet
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK08
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 3.92kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- AC 30mA, DC 6mA
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection, PME
Output
- Output Power
- 22kW
- Minimum Adjustable Power
- 3.4Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 1*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 1
- Charging Mode
- 1* IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%

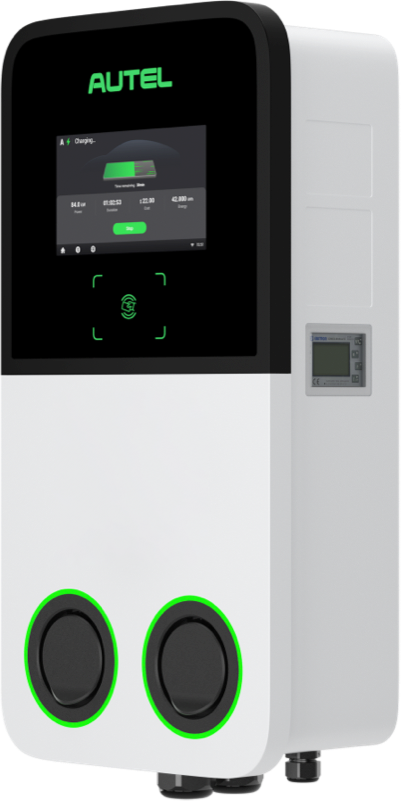

AC Ultra Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ro +55 ℃
- Storage Temperature Range
- -40°C to +85 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720)
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm
- Colour
- White Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN; IT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%

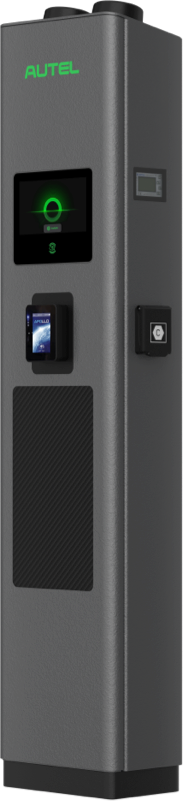

AC Ultra Street Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30 ℃ to +50 ℃
- Storage Temperature Range
- -30 ℃ to +70 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7
- Certification
- CE
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Payter Apollo
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 310 × 200 x 1450 mm
- Colour
- Gun Metal Gray Steel
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 42kg
- Mounting
- Floor Standing
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Contact Us
Speak with an Expert.
Got a Project? Accelerate your EV charging business with Intelli EV - your trusted Autel partner. We deliver tailored charging solutions and the right Autel products to power your success with efficiency, reliability, and innovation.
