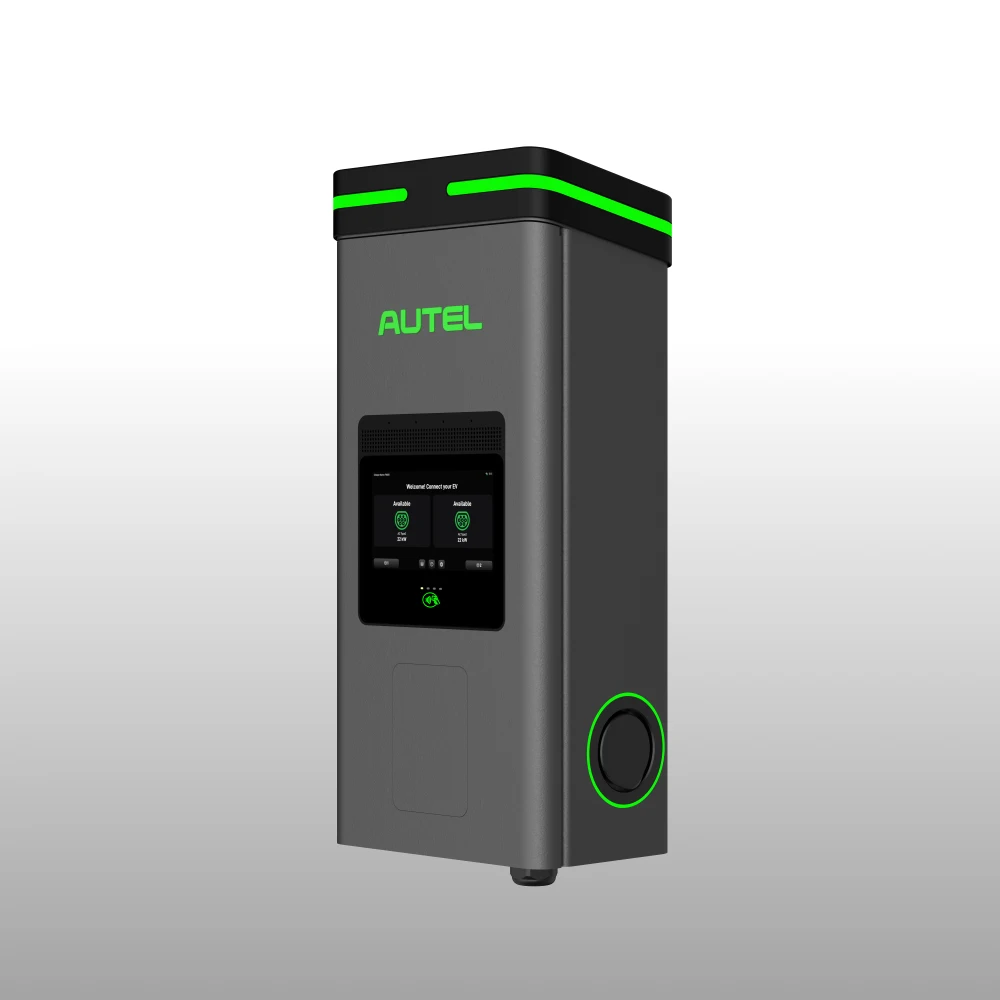

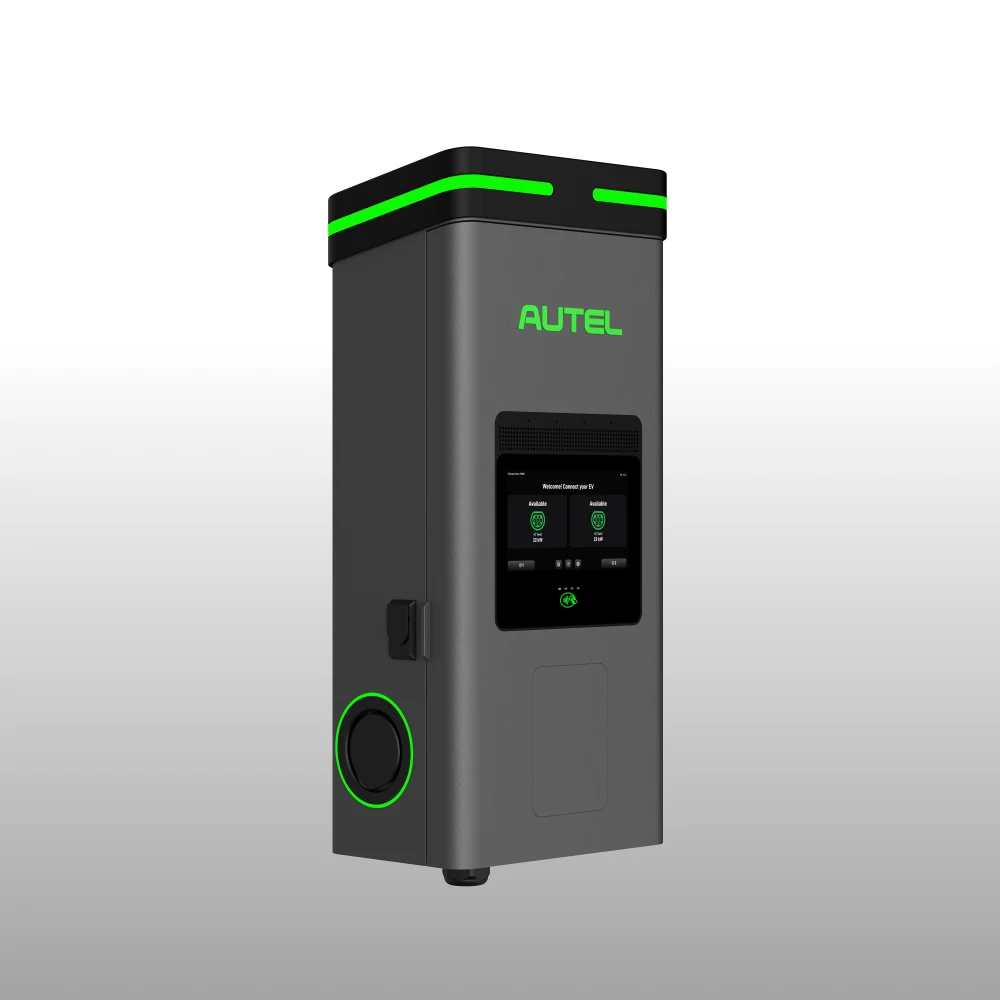

MaxiCharger Dual Charger 22kW.
The Autel MaxiCharger Dual Charger is a robust AC charging solution designed for commercial, public, residential and fleet environments. Its fully modular architecture, triple-network backup and Wi-Sun redundancy help deliver up to 98% uptime, while site-level mass commissioning can be completed in as little as ten minutes.

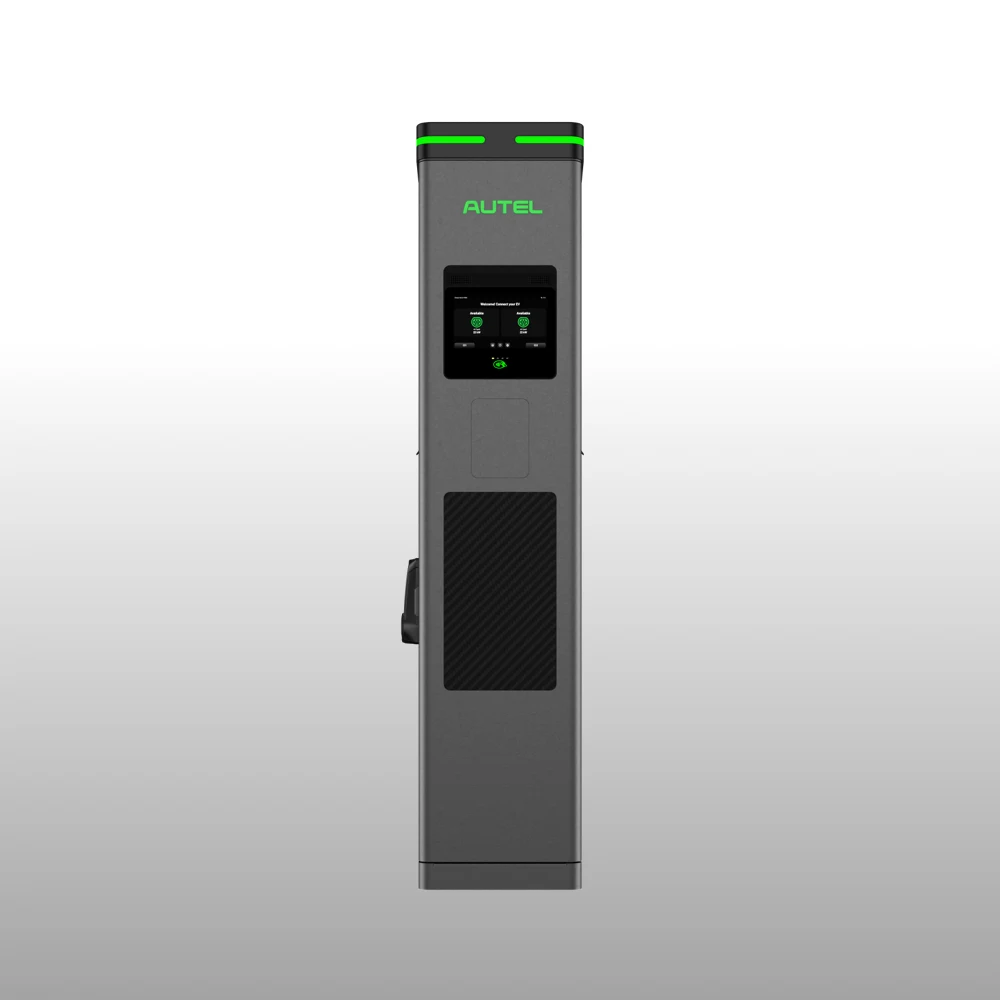

MaxiCharger AC Dual Charger 22kW.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The Autel Dual MaxiCharger also supports dynamic load balancing across up to 200 units, helping operators improve power utilisation and manage larger networks efficiently.
With two 22 kW outputs and a clear 8-inch touchscreen, it combines strong performance with a straightforward user experience. It supports several authentication and payment methods, including Plug & Charge, Autocharge, RFID, app access and optional card payments.
Its IP55 and IK10-rated enclosure makes it suitable for indoor or outdoor installation, while built-in electrical protection, remote software updates and compatibility with OCPP standards provide a reliable, future-ready platform.
Mounting
- Manufacturer
- Autel
- Model
- MaxiCharger AC Dual Charger 22kW
- Colour
- Gray
- Warranty
- 36 months – extension available

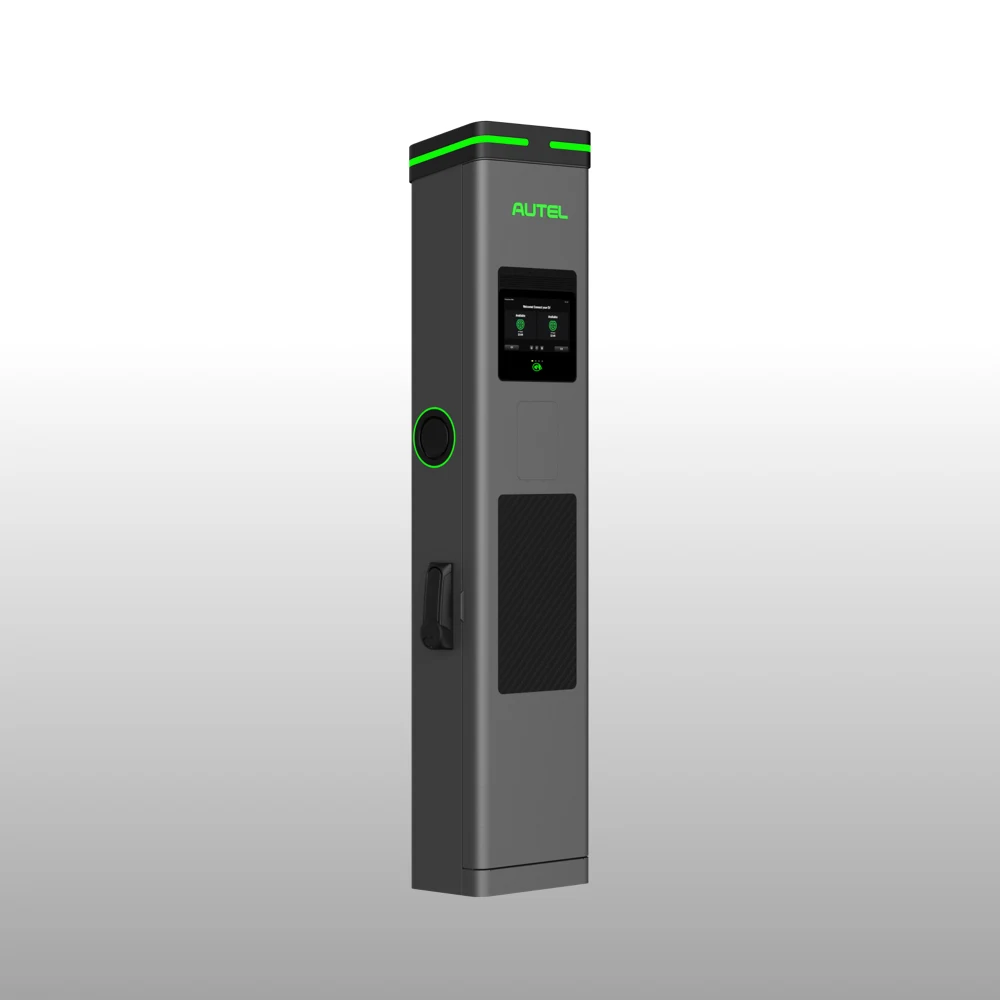

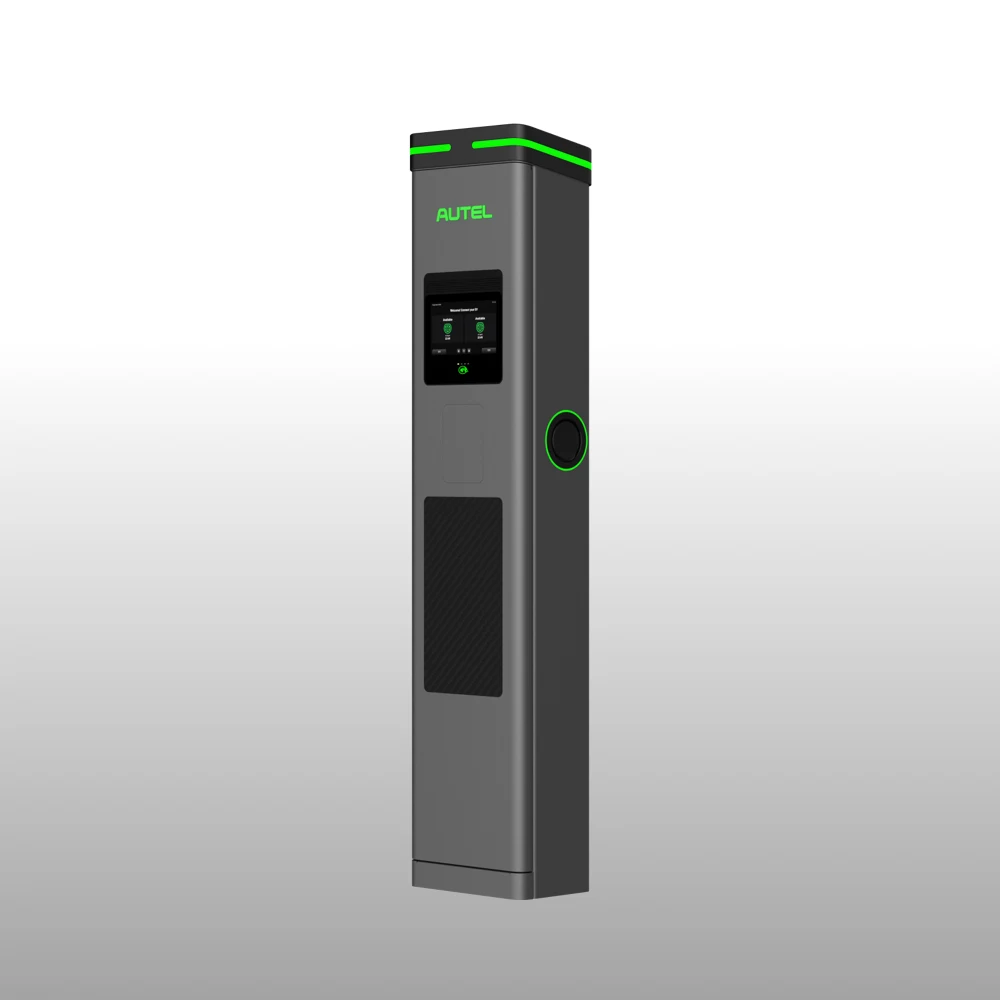

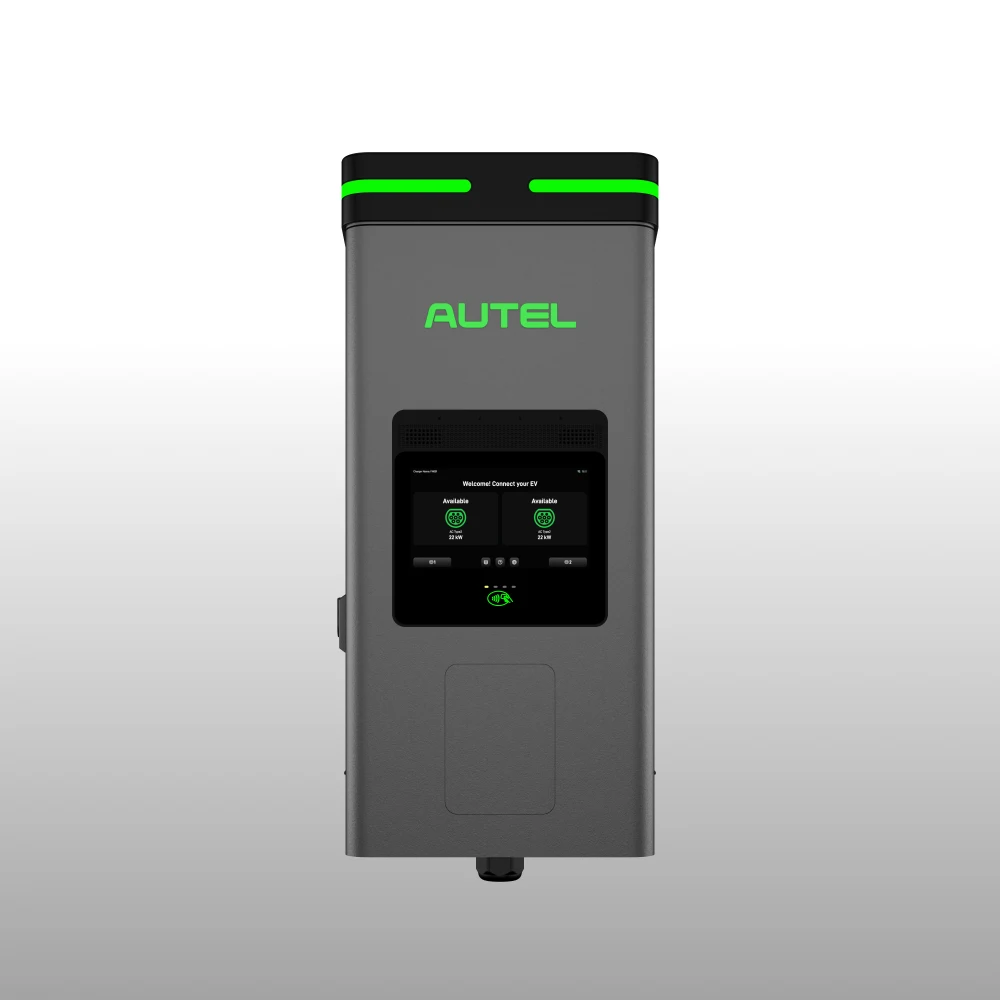

Image Gallery

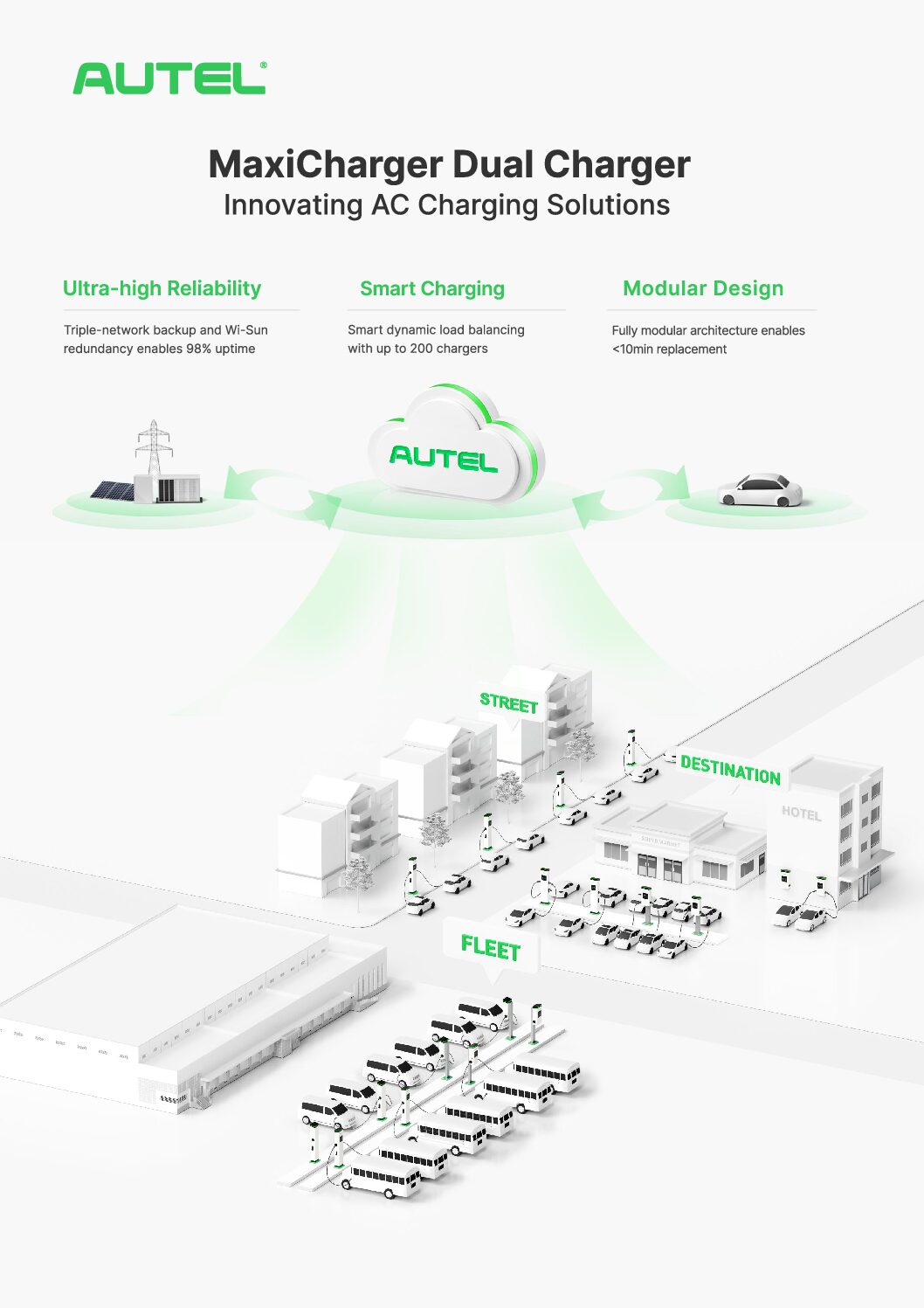

MaxiCharger 22kW Features.
The Autel MaxiCharger Dual Charger is feature rich with everything you would expect from a commercial EV charger and more.
- Ultra-High Reliability
-
The AC MaxiCharger Dual Charger is built for dependable operation, using triple network backup and Wi-Sun redundancy to help achieve 98% uptime. This makes it well suited to commercial, public and fleet charging environments where availability is critical.
- Smart Charging
-
With support for up to 200-unit Dynamic Load Balancing and phase balancing, the charger helps optimise available power across a charging site. This can increase power utilisation by up to 10% and support larger-scale EV charging deployments.
- Fully Modular Design
-
The charger uses a fully modular architecture that allows a single component to be replaced by one person in less than 10 minutes. This simplifies maintenance, reduces downtime and supports more efficient operations.
- PV-ESS-EVSE Collaboration
-
Designed for intelligent energy ecosystems, the charger enables PV-ESS-EVSE-Grid-Cloud integration and is V2G ready. This makes it suitable for current solar, storage and EV charging sites, as well as future bidirectional charging scenarios.
- Fast Site Commissioning
-
The system supports 10-minute site-level mass commissioning and one-click configuration. This helps installers and operators deploy charging infrastructure faster and with less manual setup.
- Seamless Payment Support
-
The MaxiCharger Dual Charger supports eight payment methods, including Plug & Charge, Autocharge, credit cards, RFID and app-based authentication. It is also compatible with major POS devices, making it suitable for public and commercial charging use cases.
- Future-Ready Protocols
-
The charger supports ISO 15118-2/20, OCPP 1.6J and OCPP 2.0.1, with future upgrade support for OCPP 2.1. This helps protect the investment as charging networks evolve and new standards become more widely adopted.
- User-Friendly Interface
-
An 8-inch touchscreen, Autel Charge App, Autel Charge Cloud and smart voice broadcast create a more intuitive user experience. Voice support with two speakers and a four-microphone array improves interaction at the charger.
22kW MaxiCharger Dual

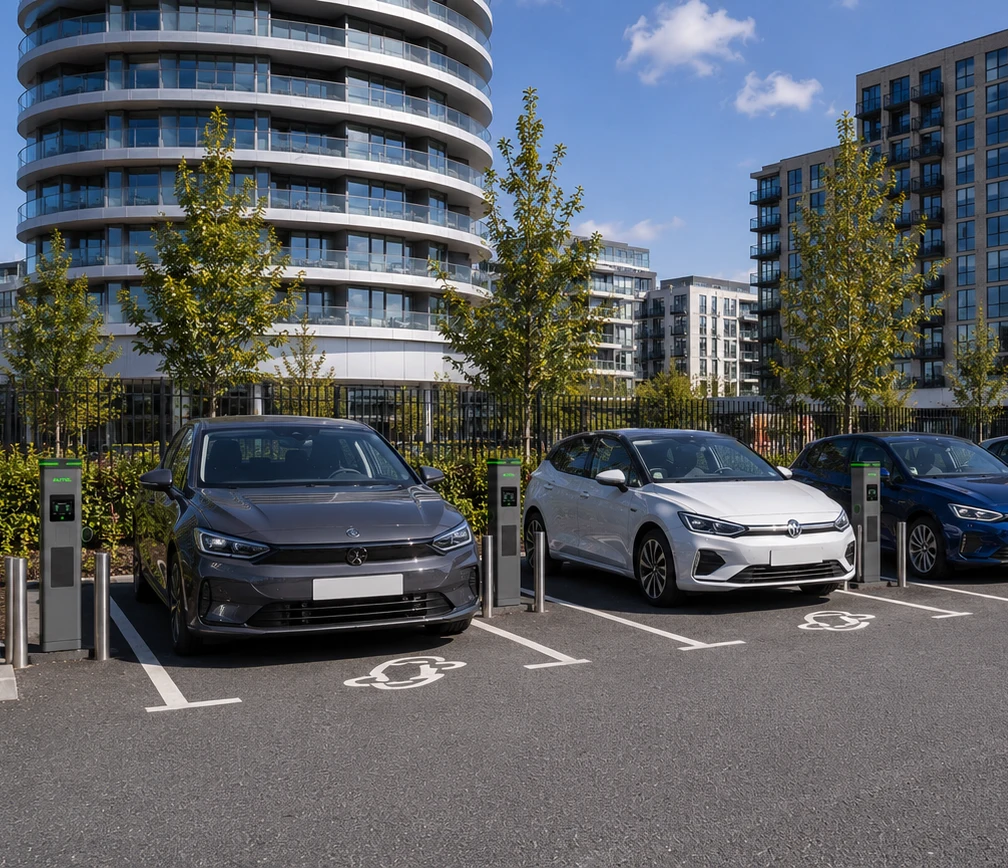

Dual 22kW Commercial EV Charging.
The AC Ultra MaxiCharger Dual Charger is a state-of-the-art EV charging solution designed to meet the needs of commercial users. With a dual output capacity of up to 22 kW, it offers fast and efficient charging for a wide range of electric vehicles, making it an ideal choice for workplaces, businesses, public and fleet operators.
Its sleek, compact design combines aesthetics with durability, ensuring it fits seamlessly into various environments while withstanding harsh weather conditions. The charger is user-friendly, featuring an intuitive interface and support for app-based management, allowing users to monitor charging sessions, set schedules, tariffs, and track energy usage effortlessly.

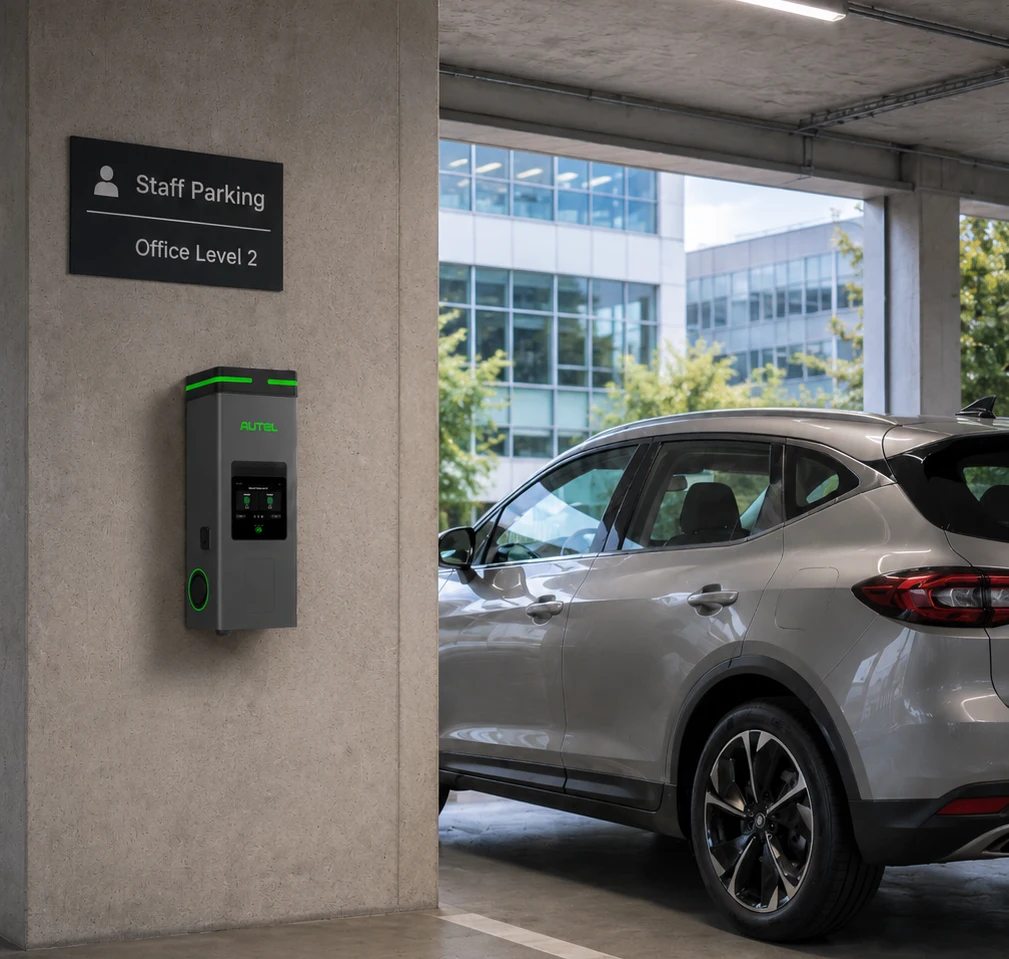

Built for All Environments.
With an IP54, IK10 Rating and an operating temperature of -30 to 50 °C the MaxiCharger AC Dual is built for every environmnet.
Nayax ePOS as Standard
Reduce your upfront CAPEX with integrated POS.
The MaxiCharger Dual Charger features an integrated Nayax MINI POS chipset, making payment acceptance simple, seamless and cost-effective.
With a small optional activation cost, operators can avoid the expense and complexity of bulky, non-integrated POS solutions.
This helps reduce upfront CAPEX by thousands, while making commercial charger deployment faster and easier. By combining charging and payment functionality in one streamlined solution, the Autel Dual Charger offers a smarter way to launch revenue-generating EV charging sites.
MaxiCharger AC Dual Charger 22kW Technical Specifications.
Environmental Specifications
- Humidity
- ≤ 95%, Non-Condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30°C ~ + 50°C
- Storage Temperature Range
- -40°C ~ + 70°C
- Noise
- ≤ 65 dB(A)
- EMC Compliance
- –
- Compliance and Safety
- EN IEC 61851-1, EN 62311, EN 62479, IEC 62955
- Certification
- CE
User Interface
- Status Indication
- APP; Screen; LED Lights; Voice
- Languages
- English (UK Version)
- Credit Card Readers
- Mini Nayax ePOS
- RFID Protocols
- ISO 15693, ISO 14443 A/B
- Payment Terminal
- App/RFID/QR Code/ePOS/POS
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- –
General Specifications

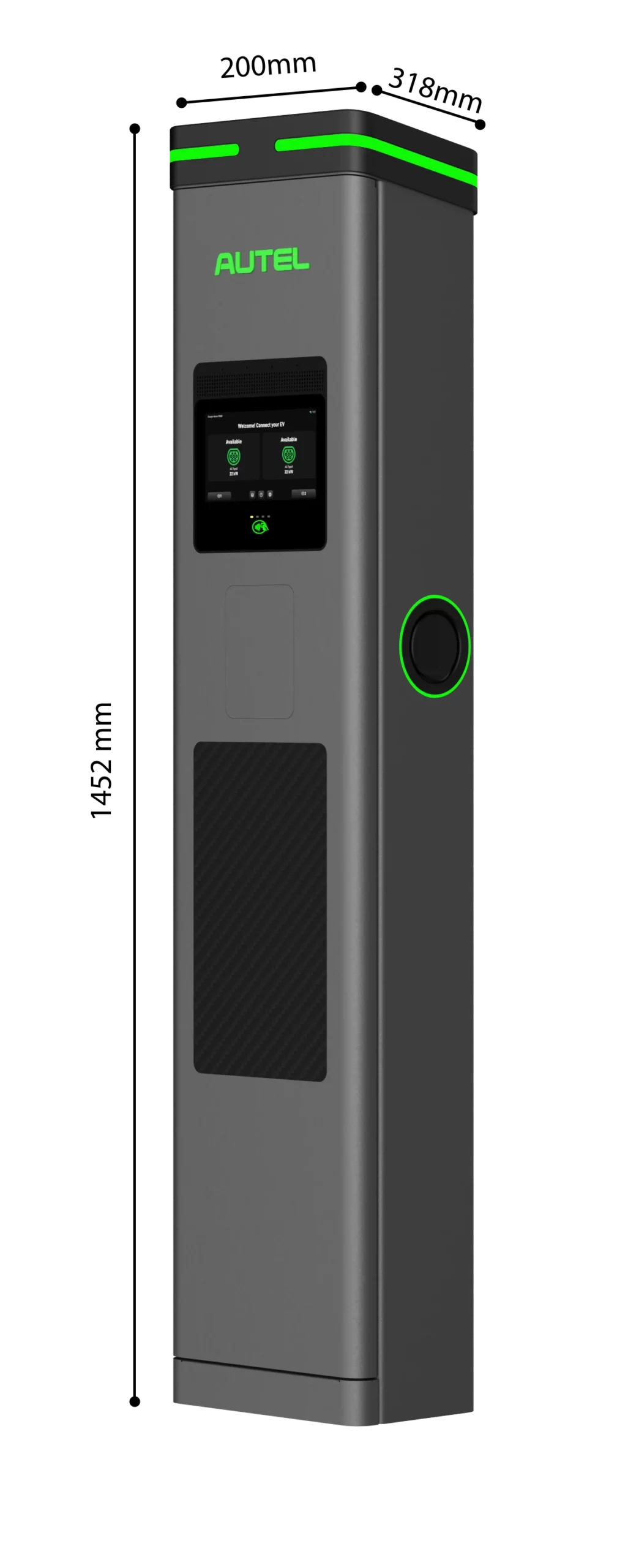

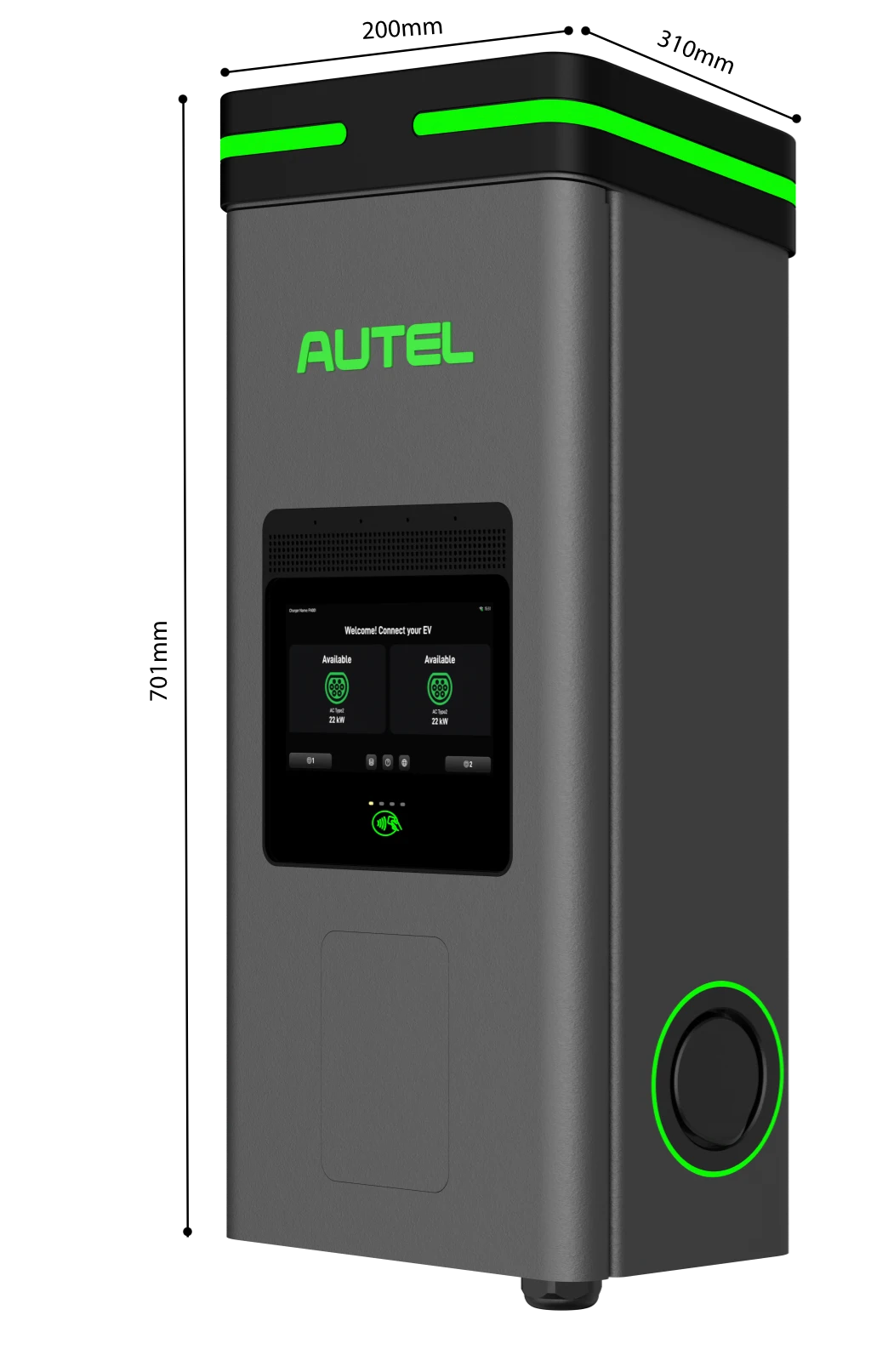

- Dimensions (HxDxW)
- 701mm x 318mm x 208 mm (Wall mounted), 1452mm x 310mm x 200 mm (Floor standing)
- Colour
- Grey Aluminum profile
- Connectivity
- 4G, Wi-Fi,Bluetooth, Ethernet,RS485,Wisun
- Screen Type
- 8 inch, 1280*720 touch screen
- Current Type
- Mode 3 (AC)
- Cable Length
- –
- Standby Power
- –
- Enclosure Rating
- IP55, IK10, Indoor or Outdoor installation
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Accessibility
- –
- Emergency Button
- No
- Design Life
- 10+ years
- Warranty
- 36 months, warranty extension possible
- Weight
- 45kg
- Mounting
- Wall or Pedestal Mounted
- Internal RCD
- Type A 30mA + DC 6mA
- Protection
- Overcurrent, Overvoltage, Undervoltage, Integrated Surge protection
Output
- Output Power
- 2 x 22kW/7.4kW
- Minimum Adjustable Power
- 3.4Kw
- Output Voltage
- 400V(3×230VAC)~±15%, 3-phase, 50/60Hz or 230V~±10%, 1-phase, 50/60Hz
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P+N+PE 50/60Hz or 1P+N+PE 50/60Hz
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TN, TT, IT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤ 95%, Non-Condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | 2000m | 2000m |
Operating Temperature Range
|
-30°C ~ + 50°C | -40°C ro +55 ℃ | -30 ℃ to +50 ℃ |
Storage Temperature Range
|
-40°C ~ + 70°C | -40°C to +85 ℃ | -30 ℃ to +70 ℃ |
Noise
|
≤ 65 dB(A) | ≤ 65 dB(A) | ≤ 65 dB(A) |
Compliance and Safety
|
IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955 | IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955 | IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7 |
Certification
|
TÜV; CE; UKCA | TÜV; CE; UKCA | CE |
|
User Interface
|
|||
|
Status Indication
|
APP; Screen; LED Lights | APP; LCD (8-inch touch screen, 1280*720) | APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform |
Languages
|
English (UK Version) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Mini Nayax ePOS | Nayax Onyx | Payter Apollo |
RFID Protocols
|
ISO 15693, ISO 14443 A/B | ISO 15693; ISO 14443 | ISO 15693; ISO 14443 |
Payment Terminal
|
App/RFID/QR Code | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
315mm x 117mm x 170mm | Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm | 310 × 200 x 1450 mm |
Colour
|
Grey Plastic | White Plastic | Gun Metal Gray Steel |
Connectivity
|
4G, Wi-Fi,Bluetooth, Ethernet,RS485,Wisun | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 |
Screen Type
|
5 inch,800*480 touch LCD screen | 8 inch touch screen, 1280*720 | 8 inch touch screen, 1280*720 |
Current Type
|
Mode 3 (AC) | Mode 3 (AC) | Mode 3 (AC) |
Enclosure Rating
|
IP54, IK10, Indoor or Outdoor installation | IP54; IK10 | IP54; IK10 |
Communication to the EV
|
ISO/IEC 15118 | ISO/IEC 15118 | ISO/IEC 15118 |
Software Update
|
OTA updates via web portal | OTA updates via web portal | OTA updates via web portal |
Emergency Button
|
No | No | No |
Design Life
|
10 years |
Warranty
|
36 months, warranty extension possible | 36 months, warranty extension possible | 36 months, warranty extension possible |
Weight
|
2.5kg | Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg | 42kg |
Mounting
|
Wall Mounted (Optional Pedestal) | Wall Mounted (Optional Pedestal) | Floor Standing |
Internal RCD
|
AC 30mA + DC 6mA | Installed Upstream | Installed Upstream |
Protection
|
Overcurrent, Overvoltage, Undervoltage, Integrated Surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
|||
|
Output Power
|
22kW/7.4kW | 2 * 22kW | 2 * 22kW |
Minimum Adjustable Power
|
3.4Kw | 7Kw | 7Kw |
Output Voltage
|
400VAC(3x230VAC)±15%, 3-phase,50/60Hz (230V~±15%,1-phase,50/60Hz | 400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE |
Output Current
|
1*22 kW/32 A | 2*22 kW/32 A | 2*22 kW/32 A |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
1 | 2 | 2 |
Charging Mode
|
1* IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter |
Supply Configuration
|
3P+N+PE 50/60Hz or 1P+N+PE 50/60Hz | 3P + N + PE | 3P + N + PE |
|
Input
|
|||
|
Input Voltage
|
230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase |
Input Frequency
|
50 Hz | 50 Hz | 50 Hz |
Earthing System
|
TT; TN | TT; TN; IT | TT; TN |
Power Factor
|
≥0.99 | ≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
MaxiCharger A22 Gen2 22kW
Environmental Specifications
- Humidity
- ≤ 95%, Non-Condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30°C ~ + 50°C
- Storage Temperature Range
- -40°C ~ + 70°C
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; Screen; LED Lights
- Languages
- English (UK Version)
- Credit Card Readers
- Mini Nayax ePOS
- RFID Protocols
- ISO 15693, ISO 14443 A/B
- Payment Terminal
- App/RFID/QR Code
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 315mm x 117mm x 170mm
- Colour
- Grey Plastic
- Connectivity
- 4G, Wi-Fi,Bluetooth, Ethernet,RS485,Wisun
- Screen Type
- 5 inch,800*480 touch LCD screen
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54, IK10, Indoor or Outdoor installation
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Design Life
- 10 years
- Warranty
- 36 months, warranty extension possible
- Weight
- 2.5kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- AC 30mA + DC 6mA
- Protection
- Overcurrent, Overvoltage, Undervoltage, Integrated Surge protection
Output
- Output Power
- 22kW/7.4kW
- Minimum Adjustable Power
- 3.4Kw
- Output Voltage
- 400VAC(3x230VAC)±15%, 3-phase,50/60Hz (230V~±15%,1-phase,50/60Hz
- Output Current
- 1*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 1
- Charging Mode
- 1* IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P+N+PE 50/60Hz or 1P+N+PE 50/60Hz
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
AC Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ro +55 ℃
- Storage Temperature Range
- -40°C to +85 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720)
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm
- Colour
- White Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN; IT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
AC Ultra Street Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30 ℃ to +50 ℃
- Storage Temperature Range
- -30 ℃ to +70 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7
- Certification
- CE
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Payter Apollo
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 310 × 200 x 1450 mm
- Colour
- Gun Metal Gray Steel
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 42kg
- Mounting
- Floor Standing
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Contact Us
Speak with an Expert.
Got a Project? Accelerate your EV charging business with Intelli EV - your trusted Autel partner. We deliver tailored charging solutions and the right Autel products to power your success with efficiency, reliability, and innovation.
