Autel MaxiCharger AC Ultra Street.
The AC Ultra Street Charger is a cutting-edge, dual-point AC charging solution designed to meet the demands of modern urban mobility. Built to withstand public environments with its robust IP54 and IK10-rated housing. Whether installed in city centres, retail parks, or workplace car parks, the AC Ultra Street Charger combines reliability, innovation, and user-friendliness in a compact, future-ready package.

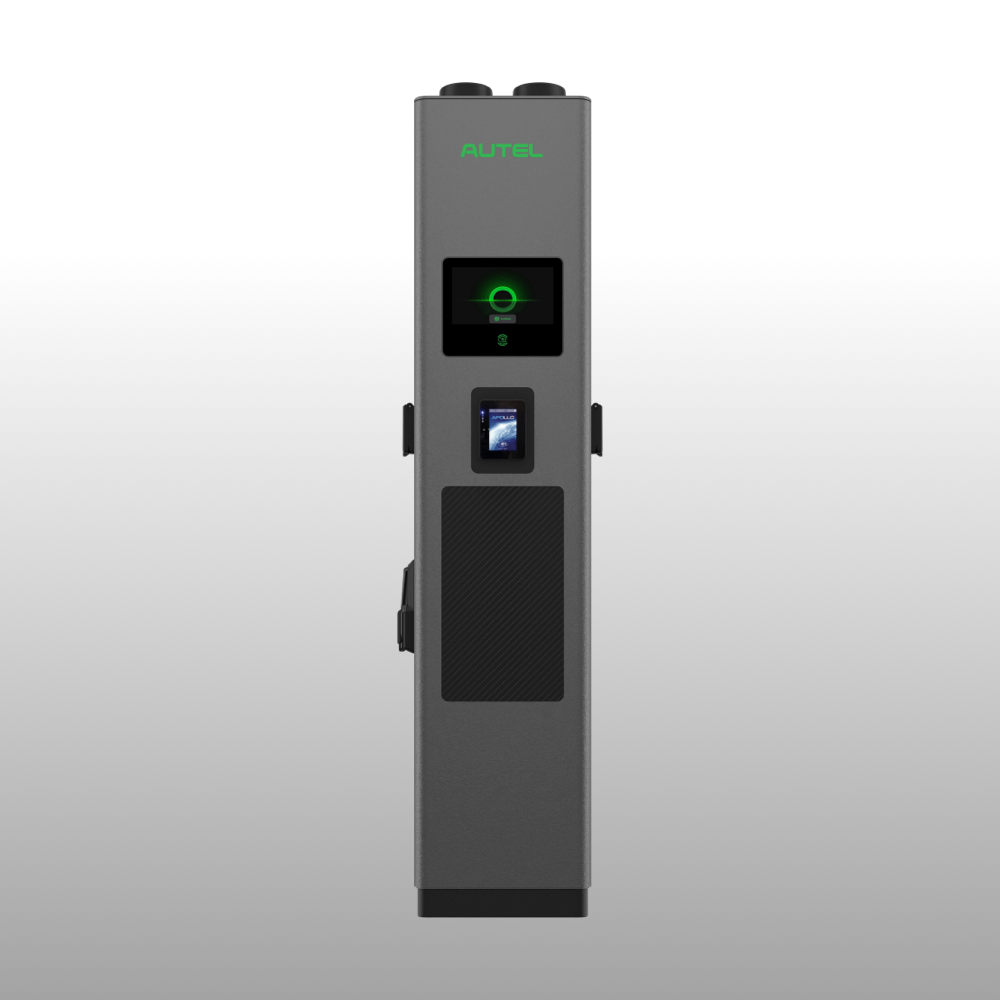

Autel MaxiCharger AC Ultra Street Dual 22kW.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The AC Ultra Street Charger is a high-performance AC charging station, expertly designed for public use. With dual 22kW charging points, it ensures efficient power delivery, making it suitable for a wide range of electric vehicles. Built with accessibility in mind, its user-friendly layout ensures that all drivers can use the charger with ease, including those with mobility challenges. Its robust construction guarantees reliable performance in high-traffic urban environments.
POS
- Manufacturer
- Autel
- Model
- AC Ultra Street
- Colour
- Steel Gray
- Warranty
- 36 months – extension available

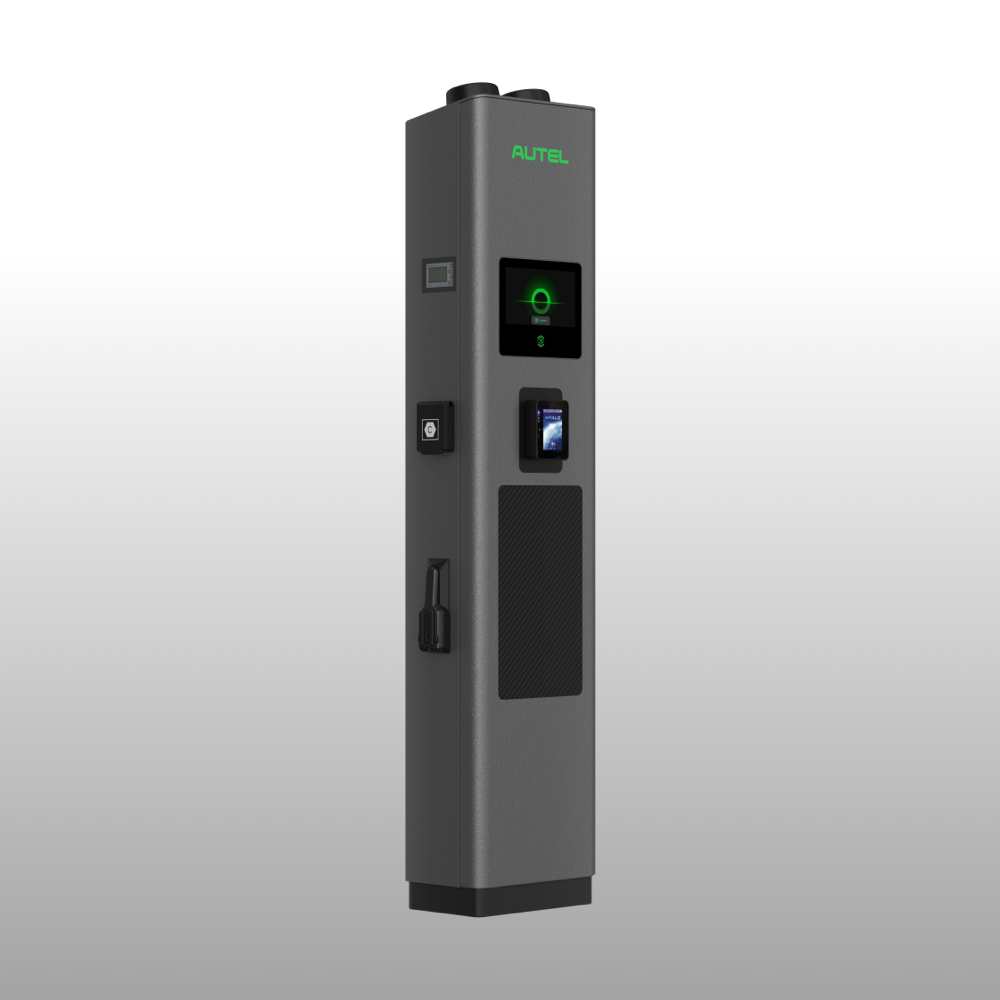

Image Gallery
MaxiCharger AC Ultra Street Features.
The Autel MaxiCharger AC Ultra Street is feature rich, rugged and has everything you would expect from commercial grade dual 22kW EV charger.
- Dual 22kW Fast Charging
-
Simultaneously provide 22kW of power to two vehicles, delivering up to 140 km of range in 60 minutes.
- Multiple Authentication & Payment Methods
-
Users can authenticate via the Autel Charge App, an RFID card, and optionally, credit cards.
- Smart Connectivity
-
Offers a range of connection options including Wi-Fi, Ethernet, 4G, and RS485 to connect to the cloud management platform.
- Large HD Touch Screen
-
The Ultra Street features an 8-inch HD touch screen with a resolution of 1280×720, which can also be used as an advertising screen.
- Durable & Weather Resistant
-
Built for outdoor use with an IP54 rating for weather resistance and a high IK10 impact rating.
- Plug & Charge Ready
-
Designed with ISO 15118 Plug & Charge capability for a simplified and hassle-free user experience.
- Comprehensive Safety Protection
-
Includes integrated protection against overcurrent, overvoltage, undervoltage, and surges, as well as PME protection. It also has Type A 30mA + DC 6mA residual current detection.
- Floor-Standing Design
-
The rugged, one-piece construction is designed to be floor-standing, which simplifies installation and helps lower costs.
- Remote Software Updates
-
The AC Ultra Street software can be kept up-to-date through Over-the-Air (OTA) updates via a web portal.
Autel AC Ultra Street
Built for Urban Environments.
One of the standout features of the AC Ultra Street Charger is its 8-inch touch screen display. This interface not only provides clear, real-time information about each charging session but also supports digital advertising – offering an opportunity for operators to generate additional revenue. The screen is AFIR-compliant and conforms to the latest ISO 15118 standard, enabling convenient Plug & Charge functionality for a seamless user experience.
The charger comes equipped with multiple connectivity options, including 4G, Wi-Fi, Ethernet, and Modbus, making it easily integrable into modern back-office systems. It supports OCPP 1.6J and 2.0.1 protocols for broad compatibility.
An optional MID-certified energy meter and payment terminal can be added to provide secure and accurate billing, enhancing usability for commercial operators.
Engineered for durability, the AC Ultra Street Charger features an IP54-rated and IK10-certified enclosure, offering excellent protection against dust, water, and physical impact. With a sleek pedestal design and a weight of just 45kg, it is easy to install in various public settings. Backed by a 36-month warranty, it is a dependable solution for forward-thinking municipalities and businesses looking to expand their EV infrastructure.
MaxiCharger AC Ultra Street Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30 ℃ to +50 ℃
- Storage Temperature Range
- -30 ℃ to +70 ℃
- Noise
- ≤ 65 dB(A)
- EMC Compliance
- –
- Compliance and Safety
- IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7
- Certification
- CE
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Payter Apollo
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- –
General Specifications
- Dimensions (WxDxH)
- 310 × 200 x 1450 mm
- Colour
- Gun Metal Gray Steel
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Cable Length
- –
- Standby Power
- –
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Accessibility
- –
- Emergency Button
- No
- Design Life
- –
- Warranty
- 36 months, warranty extension possible
- Weight
- 42kg
- Mounting
- Floor Standing
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % |
Operating Altitude
|
2000m | 2000m | 2000m |
Operating Temperature Range
|
-30 ℃ to +50 ℃ | -40°C ro +55 ℃ | -40°C ~ + 55°C |
Storage Temperature Range
|
-30 ℃ to +70 ℃ | -40°C to +85 ℃ | -40°C ~ + 85°C |
Noise
|
≤ 65 dB(A) | ≤ 65 dB(A) | ≤ 65 dB(A) |
Compliance and Safety
|
IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7 | IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955 | EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671 |
Certification
|
CE | TÜV; CE; UKCA | TÜV; CE; UKCA |
|
User Interface
|
|||
|
Status Indication
|
APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform | APP; LCD (8-inch touch screen, 1280*720) | APP; LED Lights |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English (UK Version) |
Credit Card Readers
|
Payter Apollo | Nayax Onyx |
RFID Protocols
|
ISO 15693; ISO 14443 | ISO 15693; ISO 14443 | ISO 15693; ISO 14443 |
Payment Terminal
|
AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | App/RFID/QR Code |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
310 × 200 x 1450 mm | Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm | 187mm x 85mm x 336mm |
Colour
|
Gun Metal Gray Steel | White Plastic | Grey Plastic |
Connectivity
|
Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Bluetooth, Ethernet |
Screen Type
|
8 inch touch screen, 1280*720 | 8 inch touch screen, 1280*720 |
Current Type
|
Mode 3 (AC) | Mode 3 (AC) | Mode 3 (AC) |
Enclosure Rating
|
IP54; IK10 | IP54; IK10 | IP54; IK08 |
Communication to the EV
|
ISO/IEC 15118 | ISO/IEC 15118 | ISO/IEC 15118 |
Software Update
|
OTA updates via web portal | OTA updates via web portal | OTA updates via web portal |
Emergency Button
|
No | No | No |
Warranty
|
36 months, warranty extension possible | 36 months, warranty extension possible | 36 months, warranty extension possible |
Weight
|
42kg | Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg | 3.92kg |
Mounting
|
Floor Standing | Wall Mounted (Optional Pedestal) | Wall Mounted (Optional Pedestal) |
Internal RCD
|
Installed Upstream | Installed Upstream | AC 30mA, DC 6mA |
Protection
|
Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection, PME |
|
Output
|
|||
|
Output Power
|
2 * 22kW | 2 * 22kW | 22kW |
Minimum Adjustable Power
|
7Kw | 7Kw | 3.4Kw |
Output Voltage
|
400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE |
Output Current
|
2*22 kW/32 A | 2*22 kW/32 A | 1*22 kW/32 A |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
2 | 2 | 1 |
Charging Mode
|
2 * IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter | 1* IEC 62196 Type 2 socket or socket with shutter |
Supply Configuration
|
3P + N + PE | 3P + N + PE | 3P + N + PE |
|
Input
|
|||
|
Input Voltage
|
230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase |
Input Frequency
|
50 Hz | 50 Hz | 50 Hz |
Earthing System
|
TT; TN | TT; TN; IT | TT; TN |
Power Factor
|
≥0.99 | ≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
AC Ultra Street Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30 ℃ to +50 ℃
- Storage Temperature Range
- -30 ℃ to +70 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7
- Certification
- CE
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Payter Apollo
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 310 × 200 x 1450 mm
- Colour
- Gun Metal Gray Steel
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 42kg
- Mounting
- Floor Standing
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
AC Ultra Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ro +55 ℃
- Storage Temperature Range
- -40°C to +85 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720)
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm
- Colour
- White Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN; IT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger 22kW
Environmental Specifications
- Humidity
- ≤95 %
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ~ + 55°C
- Storage Temperature Range
- -40°C ~ + 85°C
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671
- Certification

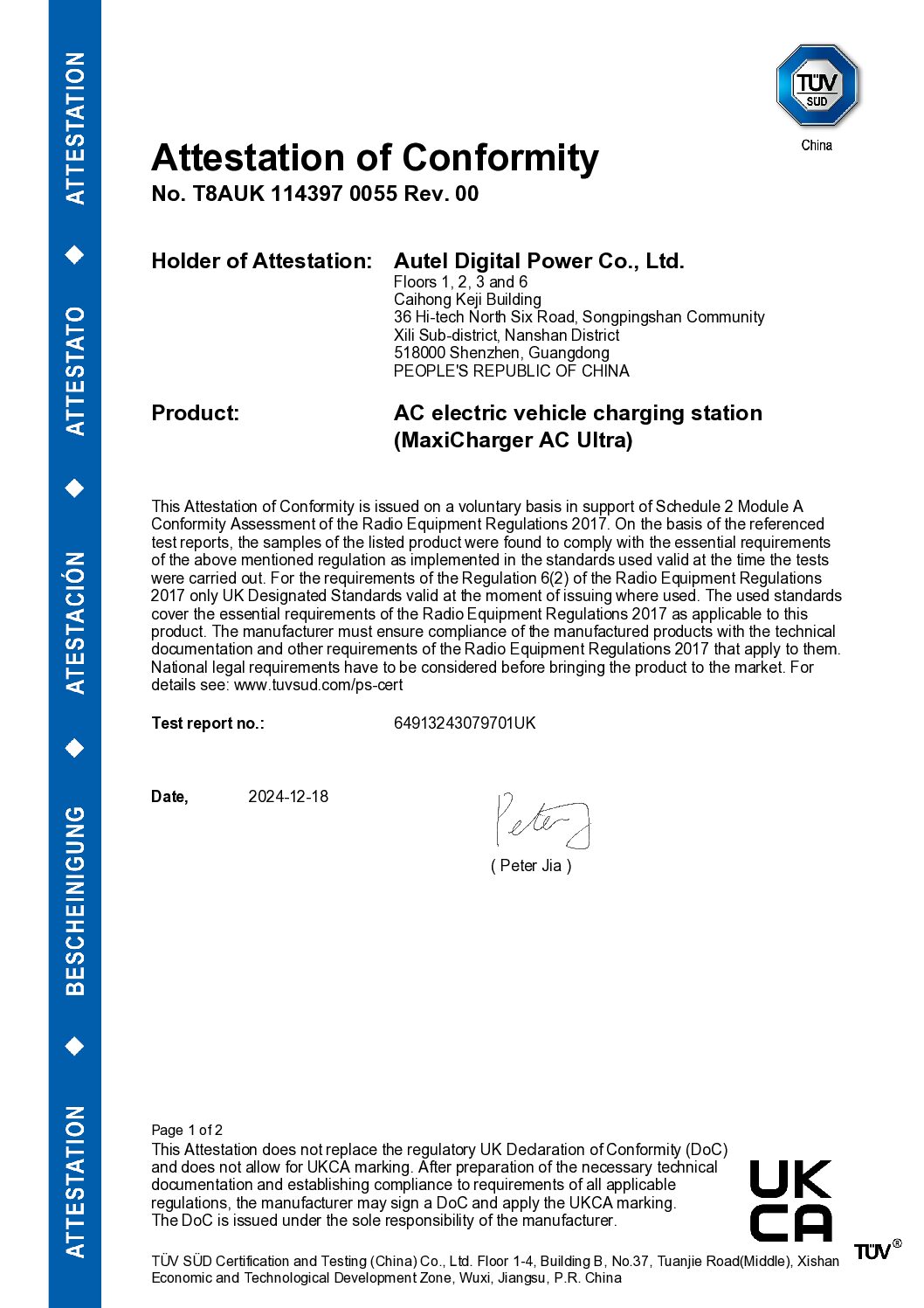

- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LED Lights
- Languages
- English (UK Version)
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- App/RFID/QR Code
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 187mm x 85mm x 336mm
- Colour
- Grey Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Bluetooth, Ethernet
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK08
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 3.92kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- AC 30mA, DC 6mA
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection, PME
Output
- Output Power
- 22kW
- Minimum Adjustable Power
- 3.4Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 1*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 1
- Charging Mode
- 1* IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Contact Us
Speak with an Expert.
Got a Project? Accelerate your EV charging business with Intelli EV - your trusted Autel partner. We deliver tailored charging solutions and the right Autel products to power your success with efficiency, reliability, and innovation.
