Autel MaxiCharger AC Ultra.
Introducing the Autel MaxiCharger AC Ultra – the most powerful dual-port AC charger available on the market. Perfectly balancing form and function, this charger is designed for limited space applications, making it an ideal solution for commercial charging sites.

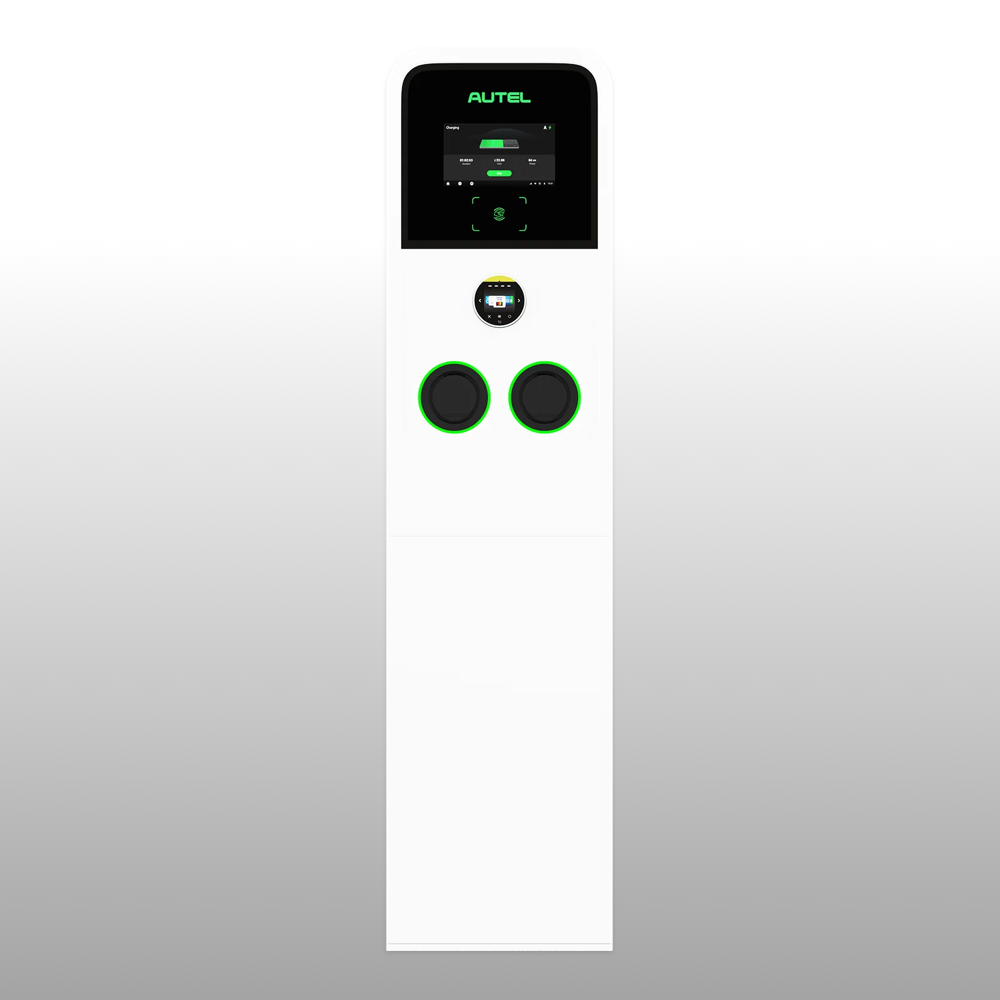

Autel MaxiCharger AC Ultra Dual 22kW.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
Introducing the Autel MaxiCharger AC Ultra – the pinnacle of AC charging technology, delivering a remarkable 22 kilowatts of power. With the capability to charge two vehicles simultaneously at a swift 22 kilowatts each, it’s the ultimate choice for businesses aiming to offer a top-tier EV charging experience for employees, customers, and visitors.
The MaxiCharger AC Ultra fully complies with OCPP standards and boasts a sleek eight-inch LCD touchscreen, a robust IP54-rated enclosure, and an RFID card reader. Plus, it offers a host of customisable options, such as a credit card reader, a pedestal, energy meters, and even the ability to brand the charger with your own logo.

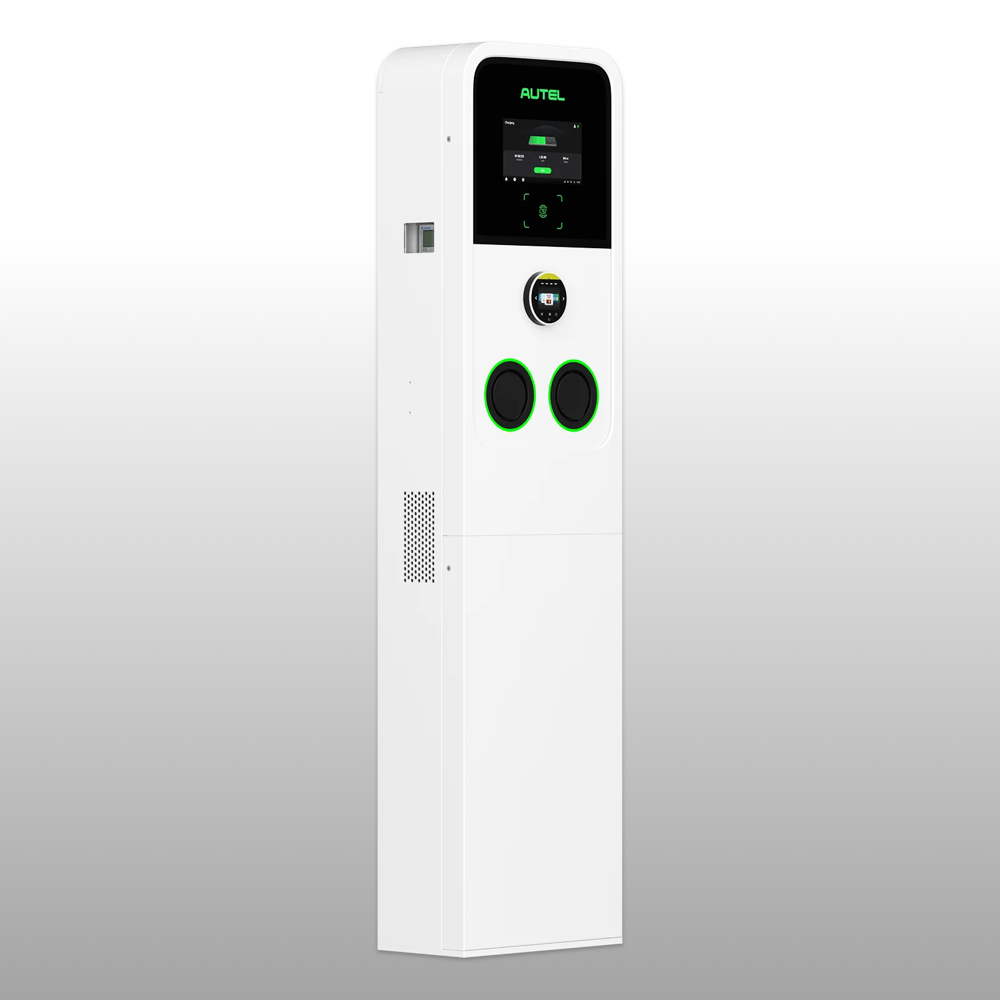

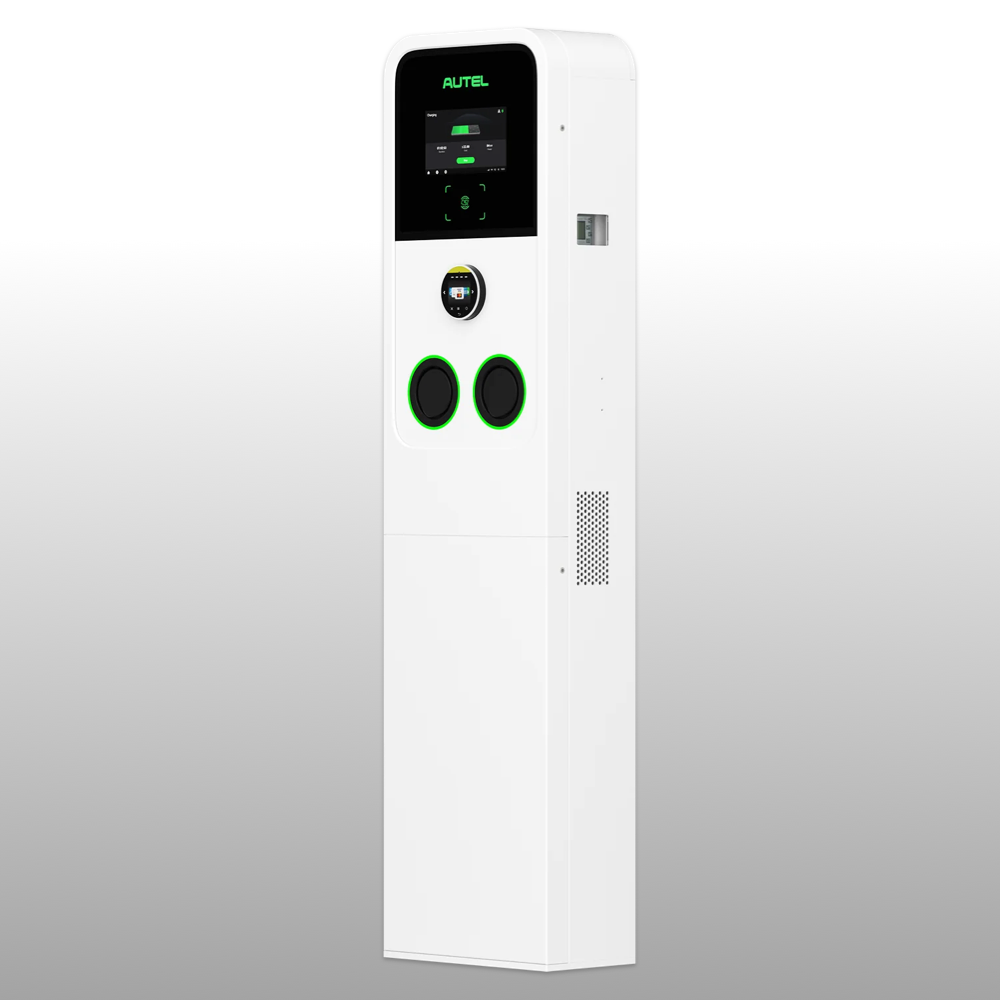

Pedestal
POS
- Manufacturer
- Autel
- Model
- AC Ultra Street
- Colour
- Steel Gray
- Warranty
- 36 months – extension available

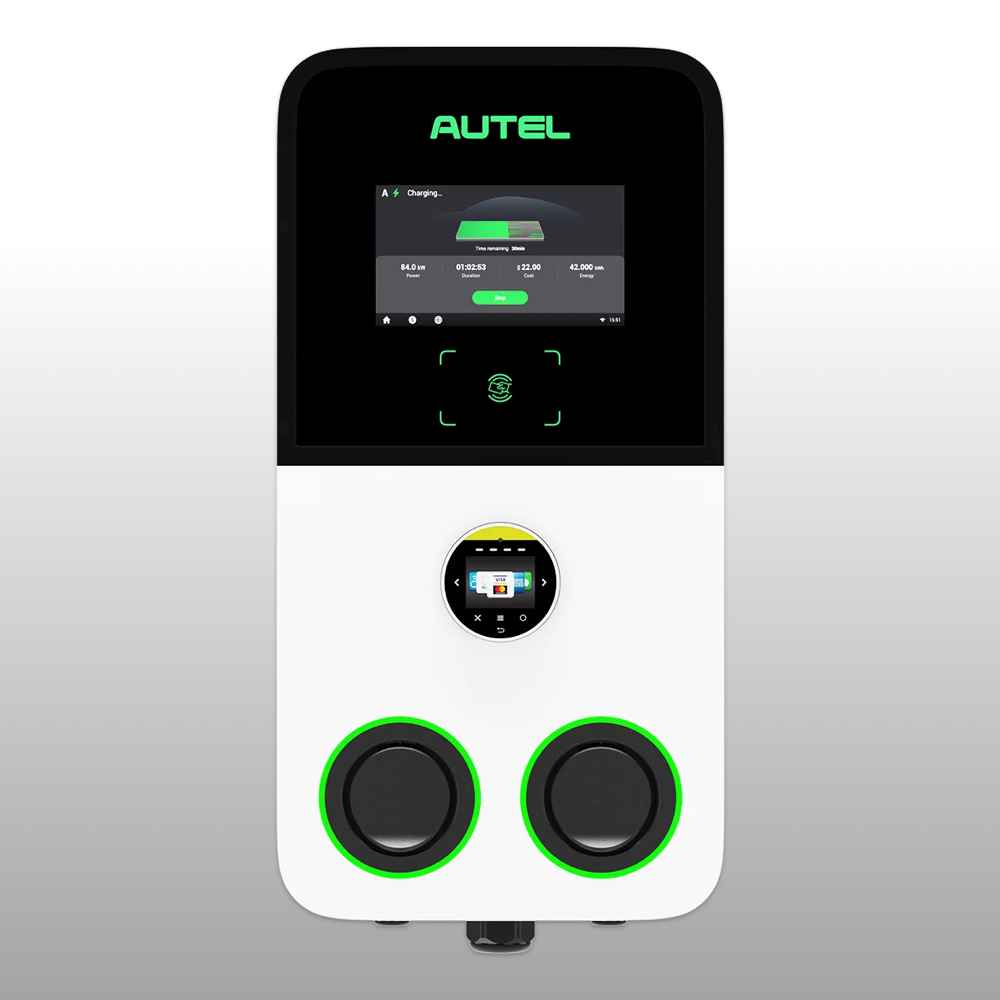

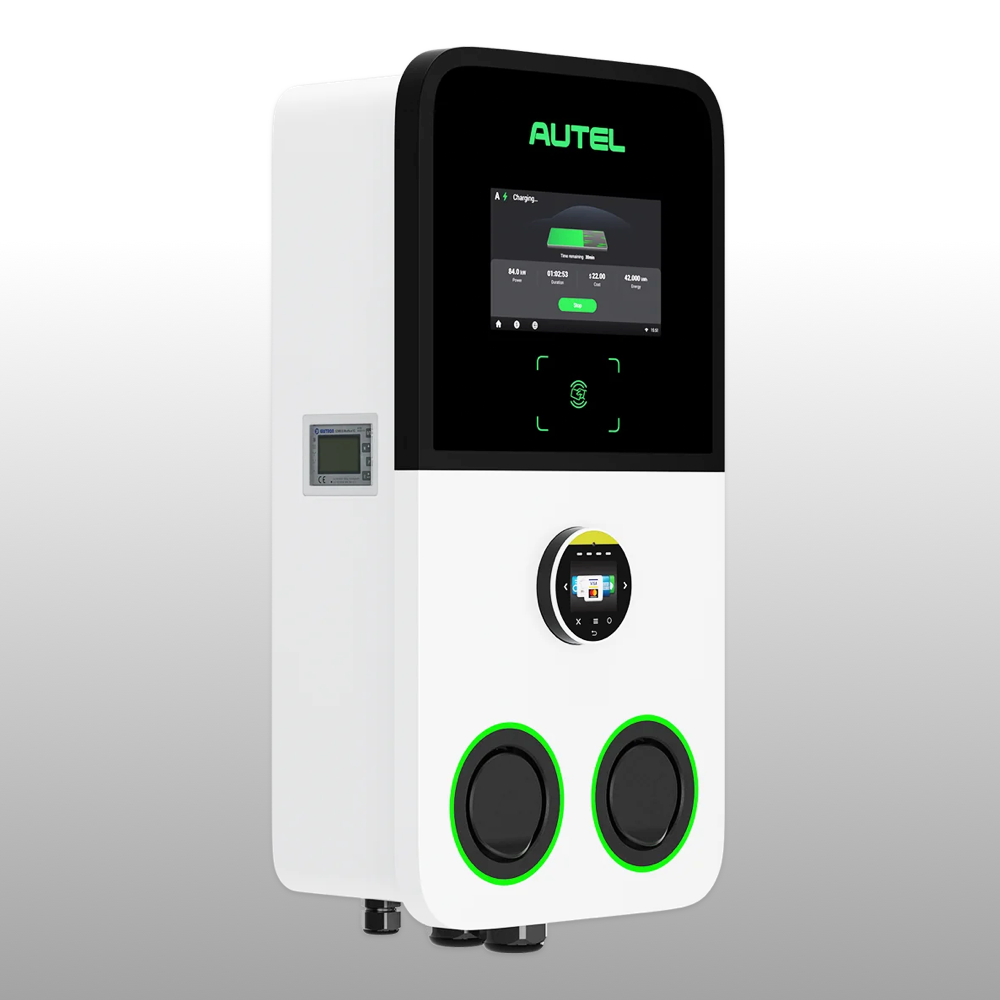

Image Gallery
MaxiCharger AC Ultra Features.
The Autel MaxiCharger AC Ultra is feature rich with everything you would expect from a 22kW EV charger and more.
- Dual 22kW Charging Ports
-
- Provides fast AC charging for two electric vehicles simultaneously, ideal for public use.
- Robust and Weather-Resistant Design
-
- Rated IP54 and IK10 for protection against dust, water, and vandalism.
- Optional Payment Terminal
-
Enables secure, user-friendly payment functionality, ideal for commercial installations.
- Compact Pedestal Mounting
-
- Space-efficient design with integrated space for a meter box, easy to install in public locations.
- 8-Inch Touchscreen Display
-
- Offers an intuitive user interface for session information and supports advertising content for added revenue.
- Flexible Connectivity
-
- Includes 4G, Wi-Fi, Ethernet, and Modbus to suit a wide range of network environments.
- Back Office Compatible
-
- Supports OCPP 1.6J and 2.0.1 protocols for smooth integration with compliant management systems.
- MID-Certified Energy Meter
-
- Ensures accurate energy measurement and billing compliance.
- AFIR-Compliant
-
- Meets UK & EU requirements for accessibility, information provision, and interoperability.
Autel AC Ultra

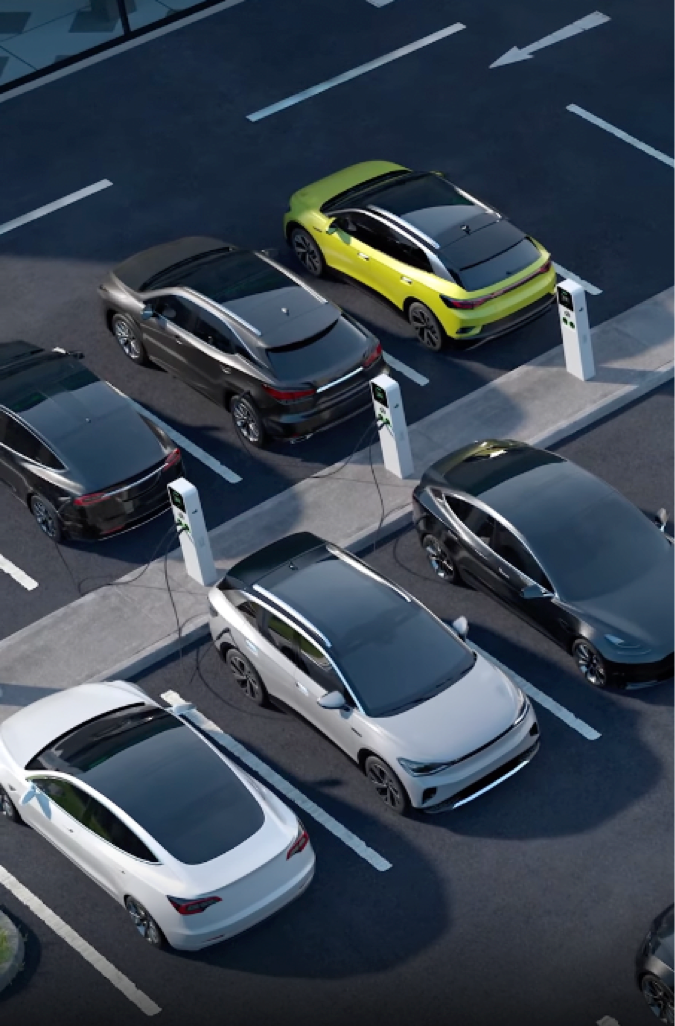

Fast, Effective & Efficient Charging.
The Autel MaxiCharger AC Ultra redefines fast charging with its impressive 22kW per port capability, allowing it to charge two vehicles simultaneously.
This industry-leading performance translates to 75 miles of range within just 60 minutes. Designed with ISO 15118 Plug & Charge technology, it ensures a seamless and hassle-free charging experience for all users, making it a top choice for commercial deployment.
The MaxiCharger AC Ultra is tailored for commercial applications, offering a rugged design that can be both wall-mounted and floor-mounted.
Its one-piece construction simplifies installation, reducing overall costs and delivering a faster return on investment. The charger’s robust build ensures longevity and reliability, making it a valuable addition to any commercial charging site.
Equipped with smart functionality, the MaxiCharger AC Ultra is compliant with OCPP 1.6 and 2.0.1, allowing it to adapt its power usage for optimal charging today and in the future. This smart capability helps reduce capital investment in power capacity and operating expenses related to demand charges.
The dynamic load balancing feature further enhances efficiency, ensuring a smooth and cost-effective operation.

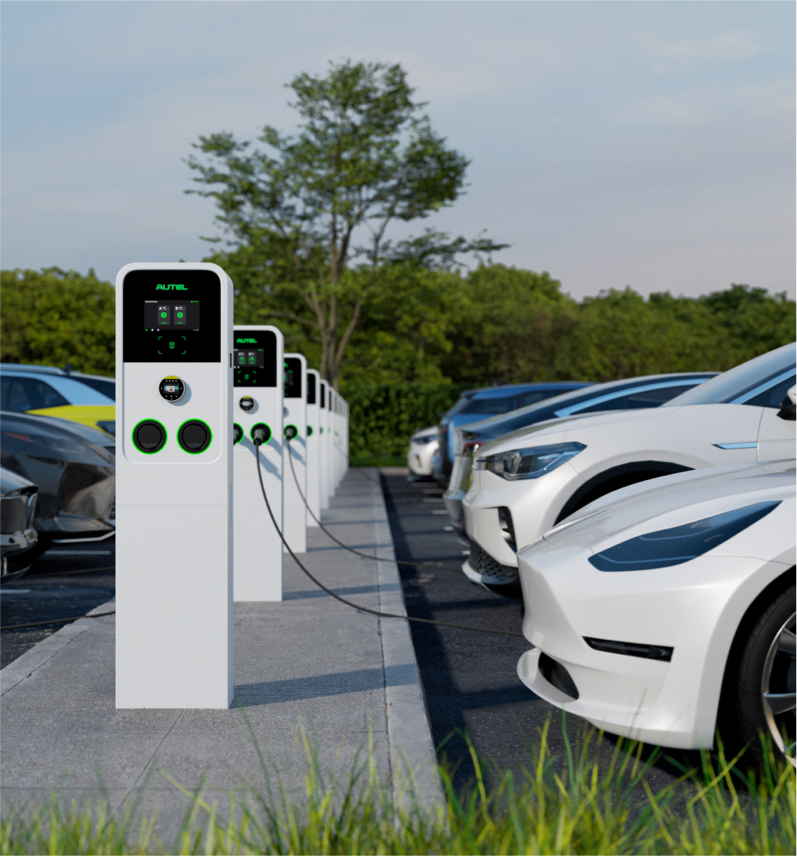

Perfect for All Environments.
Designed for all environments—from workplaces to retail – the AC Ultra is the ideal solution for destination charging, delivering dual 22 kW output.
Autel MaxiCharger AC Ultra

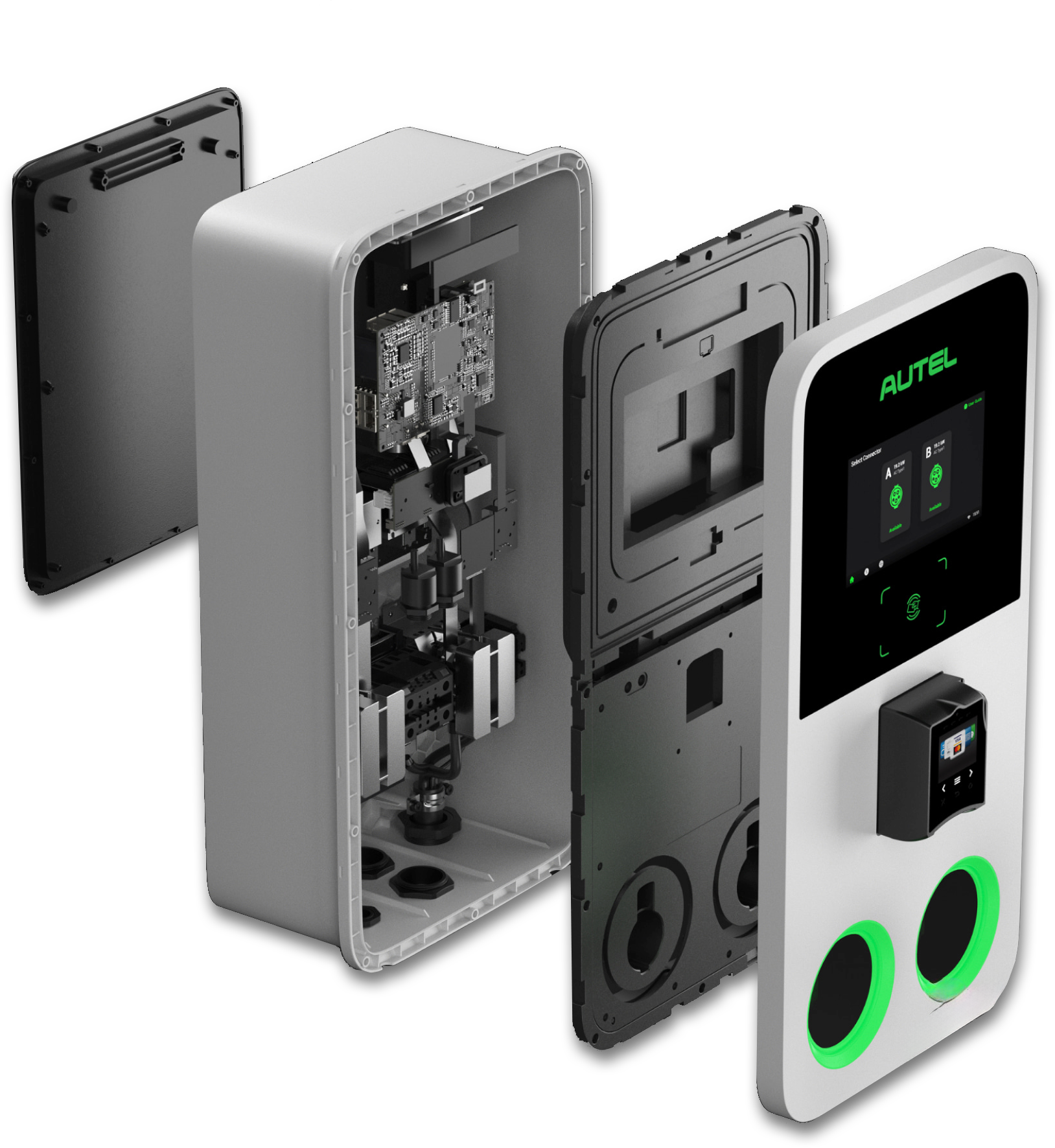

Redefining Destination Charging .
The Autel MaxiCharger AC Ultra is designed to be the fastest AC charger for two vehicles, delivering an exceptional and efficient charging experience. Each of its two ports provides 22kW of power, allowing it to charge two vehicles simultaneously and generate up to 140 km of range in just one hour. For a hassle-free user experience, the charger is designed with ISO 15118 Plug & Charge and supports authentication via an app, RFID card, and optional credit card payment.
Tailored specifically for commercial deployment, the AC Ultra is a future-proof solution designed to improve your bottom line. Its rugged, one-piece construction is easy to install on a wall or a floor pedestal, which helps lower costs and achieve a faster return on investment. The charger’s smart functionality includes OCPP 1.6J compliance, which allows it to adapt its power usage for optimal charging. The unit features an 8-inch HD touchscreen, is weather-resistant with an IP54 rating, and offers multiple connectivity options, including Wi-Fi, Ethernet, and 4G.
Designed to IP54/IK08.
The Autel AC Ultra MaxiCharger is IP54/IK08 rated, meaning it is perfect for all outside weather. Come rain, sleet or snow, the Autel AC Ultra is designed to function without issues in the most adverse of environmental conditions.
AC Ultra Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ro +55 ℃
- Storage Temperature Range
- -40°C to +85 ℃
- Noise
- ≤ 65 dB(A)
- EMC Compliance
- –
- Compliance and Safety
- IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720)
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- –
General Specifications
- Dimensions (WxDxH)
- Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm
- Colour
- White Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Cable Length
- –
- Standby Power
- –
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Accessibility
- –
- Emergency Button
- No
- Design Life
- –
- Warranty
- 36 months, warranty extension possible
- Weight
- Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN; IT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % |
Operating Altitude
|
2000m | 2000m | 2000m |
Operating Temperature Range
|
-40°C ro +55 ℃ | -30 ℃ to +50 ℃ | -40°C ~ + 55°C |
Storage Temperature Range
|
-40°C to +85 ℃ | -30 ℃ to +70 ℃ | -40°C ~ + 85°C |
Noise
|
≤ 65 dB(A) | ≤ 65 dB(A) | ≤ 65 dB(A) |
Compliance and Safety
|
IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955 | IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7 | EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671 |
Certification
|
TÜV; CE; UKCA | CE | TÜV; CE; UKCA |
|
User Interface
|
|||
|
Status Indication
|
APP; LCD (8-inch touch screen, 1280*720) | APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform | APP; LED Lights |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English (UK Version) |
Credit Card Readers
|
Nayax Onyx | Payter Apollo |
RFID Protocols
|
ISO 15693; ISO 14443 | ISO 15693; ISO 14443 | ISO 15693; ISO 14443 |
Payment Terminal
|
AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | App/RFID/QR Code |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm | 310 × 200 x 1450 mm | 187mm x 85mm x 336mm |
Colour
|
White Plastic | Gun Metal Gray Steel | Grey Plastic |
Connectivity
|
Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Bluetooth, Ethernet |
Screen Type
|
8 inch touch screen, 1280*720 | 8 inch touch screen, 1280*720 |
Current Type
|
Mode 3 (AC) | Mode 3 (AC) | Mode 3 (AC) |
Enclosure Rating
|
IP54; IK10 | IP54; IK10 | IP54; IK08 |
Communication to the EV
|
ISO/IEC 15118 | ISO/IEC 15118 | ISO/IEC 15118 |
Software Update
|
OTA updates via web portal | OTA updates via web portal | OTA updates via web portal |
Emergency Button
|
No | No | No |
Warranty
|
36 months, warranty extension possible | 36 months, warranty extension possible | 36 months, warranty extension possible |
Weight
|
Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg | 42kg | 3.92kg |
Mounting
|
Wall Mounted (Optional Pedestal) | Floor Standing | Wall Mounted (Optional Pedestal) |
Internal RCD
|
Installed Upstream | Installed Upstream | AC 30mA, DC 6mA |
Protection
|
Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection, PME |
|
Output
|
|||
|
Output Power
|
2 * 22kW | 2 * 22kW | 22kW |
Minimum Adjustable Power
|
7Kw | 7Kw | 3.4Kw |
Output Voltage
|
400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE |
Output Current
|
2*22 kW/32 A | 2*22 kW/32 A | 1*22 kW/32 A |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
2 | 2 | 1 |
Charging Mode
|
2 * IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter | 1* IEC 62196 Type 2 socket or socket with shutter |
Supply Configuration
|
3P + N + PE | 3P + N + PE | 3P + N + PE |
|
Input
|
|||
|
Input Voltage
|
230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase |
Input Frequency
|
50 Hz | 50 Hz | 50 Hz |
Earthing System
|
TT; TN; IT | TT; TN | TT; TN |
Power Factor
|
≥0.99 | ≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |

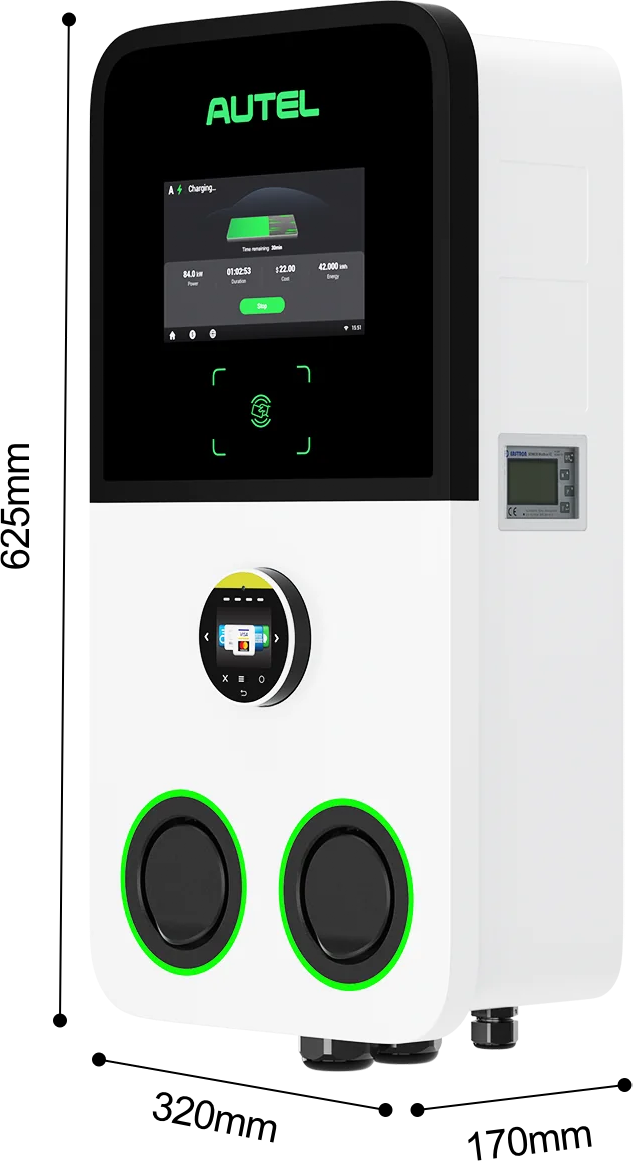

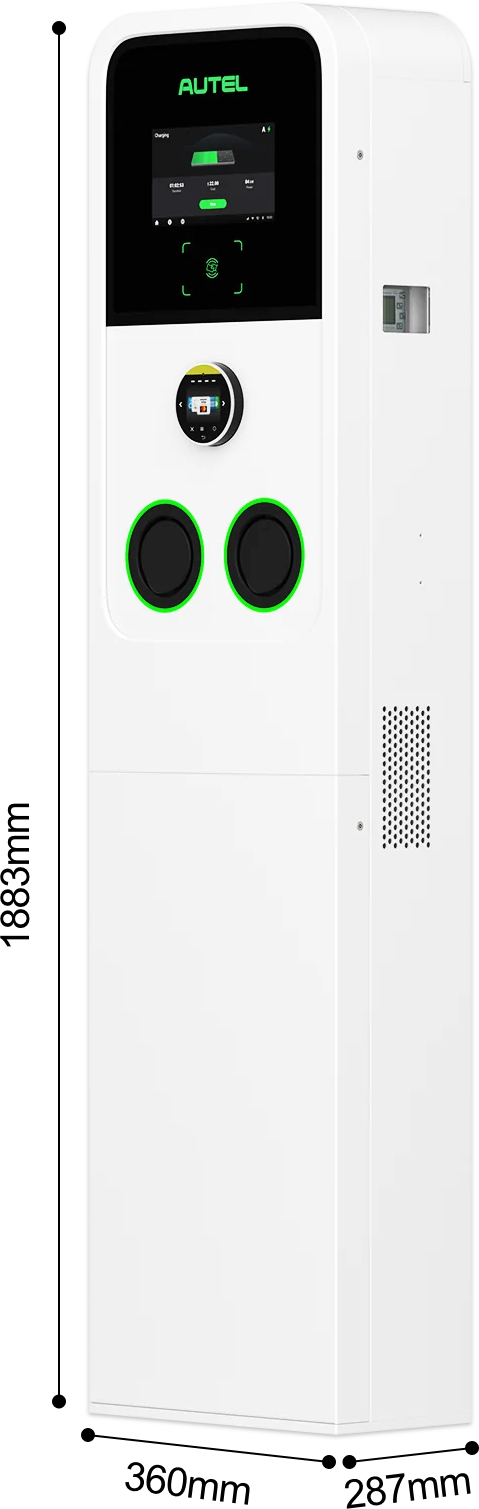

AC Ultra Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ro +55 ℃
- Storage Temperature Range
- -40°C to +85 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720)
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm
- Colour
- White Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN; IT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%

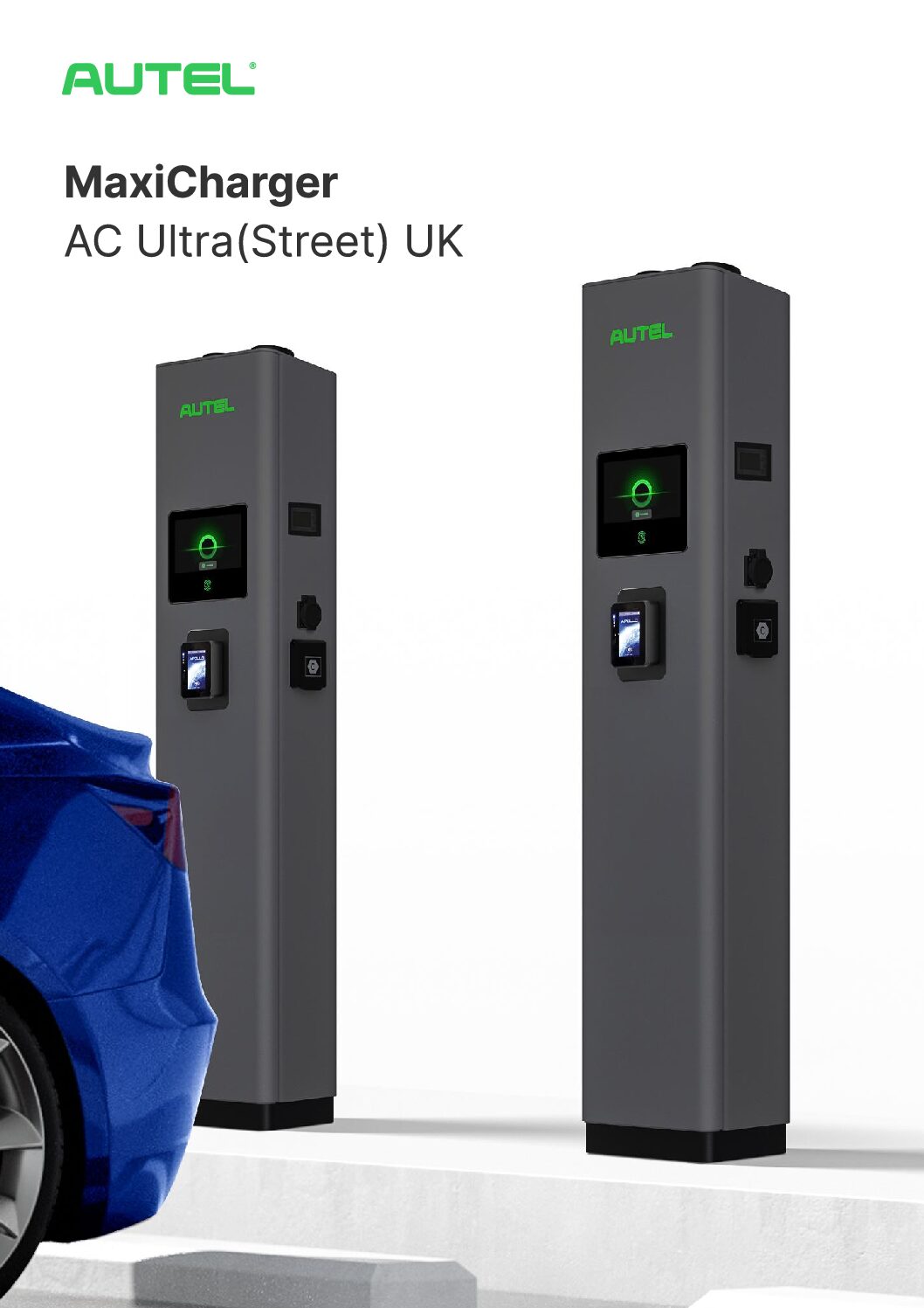

AC Ultra Street Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30 ℃ to +50 ℃
- Storage Temperature Range
- -30 ℃ to +70 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7
- Certification
- CE
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Payter Apollo
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 310 × 200 x 1450 mm
- Colour
- Gun Metal Gray Steel
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 42kg
- Mounting
- Floor Standing
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger 22kW
Environmental Specifications
- Humidity
- ≤95 %
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ~ + 55°C
- Storage Temperature Range
- -40°C ~ + 85°C
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LED Lights
- Languages
- English (UK Version)
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- App/RFID/QR Code
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 187mm x 85mm x 336mm
- Colour
- Grey Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Bluetooth, Ethernet
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK08
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 3.92kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- AC 30mA, DC 6mA
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection, PME
Output
- Output Power
- 22kW
- Minimum Adjustable Power
- 3.4Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 1*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 1
- Charging Mode
- 1* IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Contact Us
Speak with an Expert.
Got a Project? Accelerate your EV charging business with Intelli EV - your trusted Autel partner. We deliver tailored charging solutions and the right Autel products to power your success with efficiency, reliability, and innovation.
