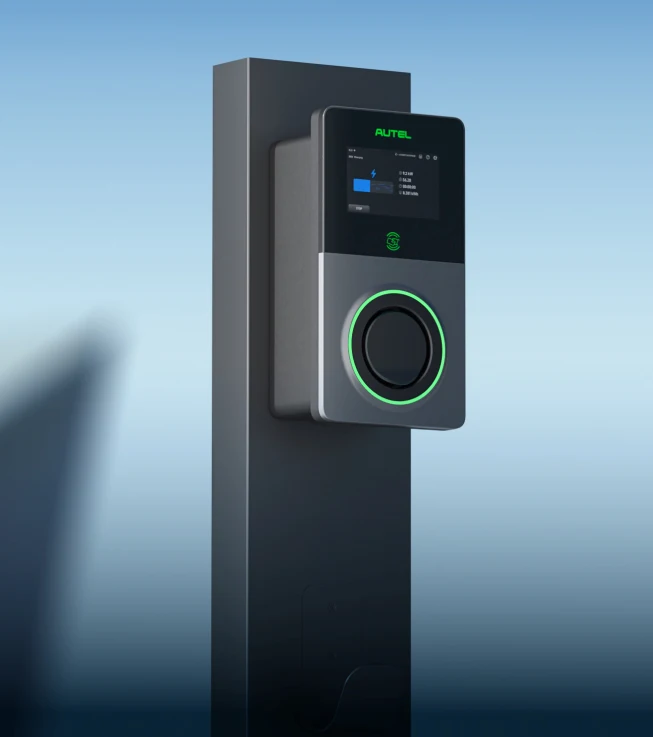

MaxiCharger A22 22kW Wallbox.
Introducing Autel’s New MaxiCharger AC Single Charger, the A22 is a reliable, intelligent AC charging solution designed for residential, destination and commercial charging environments. With streamlined commissioning, smart load balancing, multi-layer safety protection and scalable connectivity, it offers a future-ready platform for efficient EV charging deployment.

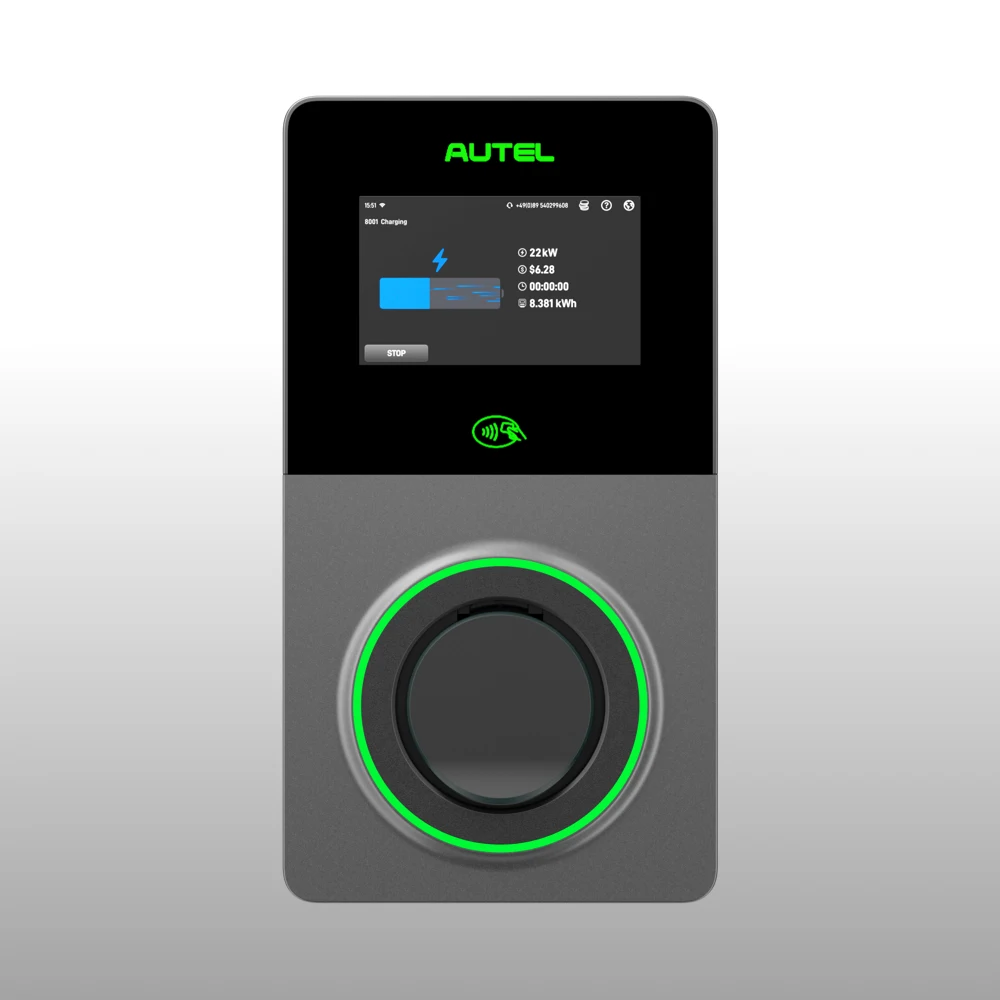

MaxiCharger Gen2 AC A22 22kW.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
Built for scalable and future-ready charging networks, the MaxiCharger AC Single Charger supports smart load balancing for over 200 chargers, Wi-SUN networking, 99.9% online reliability and intelligent O&M monitoring.
The Autel MaxiCharger AC Single Charger 22kW delivers reliable, intelligent charging for residential, destination and commercial environments.
Its optimised design, multi-layer safety protection and 3-year warranty help provide long-term durability, while 10-minute commissioning and one-click setup make installation fast and efficient. This 22kW chargers offers flexible deployment options for a range of EV charging sites.
Built for scalable and future-ready charging networks, the MaxiCharger AC Single Charger supports smart load balancing for over 200 chargers, Wi-SUN networking, 99.9% online reliability and intelligent O&M monitoring.
It also enables green energy collaboration through PV, ESS and EVSE integration, while supporting OCPP 1.6, OCPP 2.0.1, OCPP 2.1 upgradeability and ISO 15118 compatibility. The result is a robust AC charging solution designed to simplify deployment, improve energy use and support the next generation of smart EV charging
Power
- Manufacturer
- Autel
- Model
- MaxiCharger 22kW Gen2 A22
- Colour
- Gray
- Warranty
- 36 months – extension available
Image Gallery
MaxiCharger 22kW Features.
The Autel A22 Gen 2 MaxiCharger 22kW Wallbox is feature rich with everything you would expect from a commercial EV charger and more.
- 22kW Charging
-
The MaxiCharger AC Single Charger 22kW is suitable for a wide range of workplace, destination and commercial charging applications.
- Smart Load Balancing
-
Cloud-based or local Dynamic Load Balancing allows power to be allocated on demand across more than 200 chargers. Three-phase balancing can also increase grid power utilisation by up to 15%, helping sites charge more efficiently.
- Multi-Layer Safety Protection
-
The charger is built with a focus on long-term durability and safety, using multi-layer protection and rigorous testing to support reliable full-load operation, even at +40°C. It is backed by a 3-year warranty.
- High Online Reliability
-
Multiple communication options, including Wi-Fi, 4G, Ethernet and Wi-SUN, provide network redundancy and help ensure uninterrupted connectivity. Autel states the charger can achieve a 99.9% online rate.
- Intelligent O&M Platform
-
The charger integrates with nine intelligent sensors and a visualised intelligent operations and maintenance platform. This enables remote real-time monitoring, early warnings and proactive protection for stable site operation.
- Future-Ready Protocol Support
-
The MaxiCharger AC Single Charger supports OCPP 1.6 and OCPP 2.0.1, including Smart Charging, and is upgradeable to OCPP 2.1. It is also compatible with ISO 15118-2 and ISO 15118-20, supporting future smart energy applications.
- Built-In Safety Protections
-
The charger features multi-layer safety protection and is engineered for stable full-load operation, even at +40°C. This helps protect the charger, the vehicle and the wider electrical installation during everyday operation.
- 3-Year Warranty
-
Autel backs the MaxiCharger AC Single Charger with a 3-year warranty, giving installers, operators and end users added confidence in long-term performance and reliability.
- Reliable Connectivity
-
The unit features integrated safety mechanisms, including 6mA DC and 30mA AC leakage detection. It also protects against overcurrent, overvoltage, undervoltage, ground faults, and has integrated surge protection.
A22 22kW Gen 2 Autel Wallbox

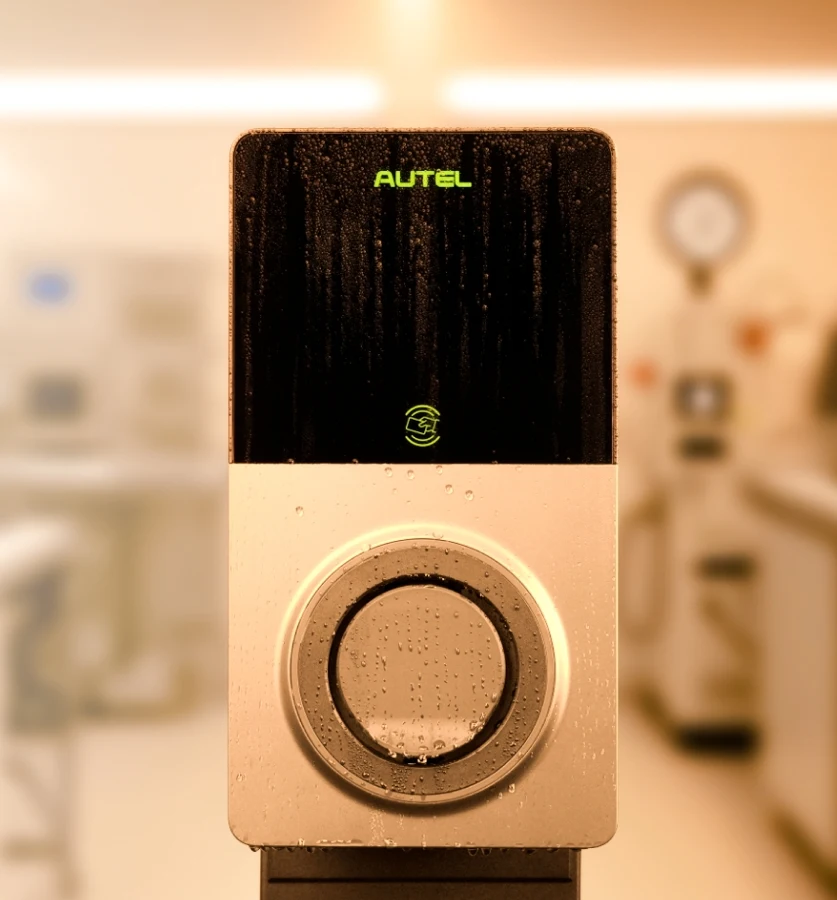

Award Winning EV Charging Solutions.
The Autel MaxiCharger Range has earned global recognition as an award-winning EV charging solution, celebrated for its innovative design and superior functionality.
The AC MaxiCharger range has received prestigious accolades such as the Red Dot Design Award and the iF Design Award, highlighting its sleek aesthetics, user-friendly interface, and cutting-edge technology.
These awards affirm Autel’s commitment to delivering state-of-the-art solutions for a sustainable future.
Take a closer look.
The Autel MaxiCharger Gen-2 A22 really is a game changer. Smart deployment design enables one-click installation in 5 minutes and station-level mass commissioning in 10 minutes.
Integrated Nayax ePOS EV Charging
Nayax Integrated ePOS.
The A22 MaxiCharger features an integrated Nayax MINI POS chipset, making payment acceptance simple, seamless and cost-effective.
With a small optional activation cost, operators can avoid the expense and complexity of bulky, non-integrated POS solutions.
This helps reduce upfront CAPEX by thousands, while making commercial charger deployment faster and easier. By combining charging and payment functionality in one streamlined solution, the A22 MaxiCharger offers a smarter way to launch revenue-generating EV charging sites.
Cloud Based Load Balancing.
The Autel MaxiCharger Gen-2 A22 really is a game changer. Smart deployment design enables one-click installation in 5 minutes and station-level mass commissioning in 10 minutes.
Simple Rapid Charger Installation
Pre-configured Installation.
The new Autel Gen2 A22 is supplied pre-installed and pre-configured with a purpose-designed backplate, helping installers complete deployments faster and with greater consistency. Its modular design simplifies mounting, wiring, commissioning, maintenance, and future charger replacement or upgrades.
By reducing on-site installation time and configuration requirements, the Gen2 A22 lowers labour costs, minimises disruption, and supports faster project rollouts across residential, commercial, workplace, and fleet charging applications.
The result is a scalable, future-ready EV charging solution that delivers quicker deployment, simplified servicing, and a lower total cost of ownership.
MaxiCharger A22 22kW Technical Specifications.
Environmental Specifications
- Humidity
- ≤ 95%, Non-Condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30°C ~ + 50°C
- Storage Temperature Range
- -40°C ~ + 70°C
- Noise
- ≤ 65 dB(A)
- EMC Compliance
- –
- Compliance and Safety
- IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; Screen; LED Lights
- Languages
- English (UK Version)
- Credit Card Readers
- Mini Nayax ePOS
- RFID Protocols
- ISO 15693, ISO 14443 A/B
- Payment Terminal
- App/RFID/QR Code
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- –
General Specifications
- Dimensions (WxDxH)
- 315mm x 117mm x 170mm
- Colour
- Grey Plastic
- Connectivity
- 4G, Wi-Fi,Bluetooth, Ethernet,RS485,Wisun
- Screen Type
- 5 inch,800*480 touch LCD screen
- Current Type
- Mode 3 (AC)
- Cable Length
- –
- Standby Power
- –
- Enclosure Rating
- IP54, IK10, Indoor or Outdoor installation
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Accessibility
- –
- Emergency Button
- No
- Design Life
- 10 years
- Warranty
- 36 months, warranty extension possible
- Weight
- 2.5kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- AC 30mA + DC 6mA
- Protection
- Overcurrent, Overvoltage, Undervoltage, Integrated Surge protection
Output
- Output Power
- 22kW/7.4kW
- Minimum Adjustable Power
- 3.4Kw
- Output Voltage
- 400VAC(3x230VAC)±15%, 3-phase,50/60Hz (230V~±15%,1-phase,50/60Hz
- Output Current
- 1*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 1
- Charging Mode
- 1* IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P+N+PE 50/60Hz or 1P+N+PE 50/60Hz
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%

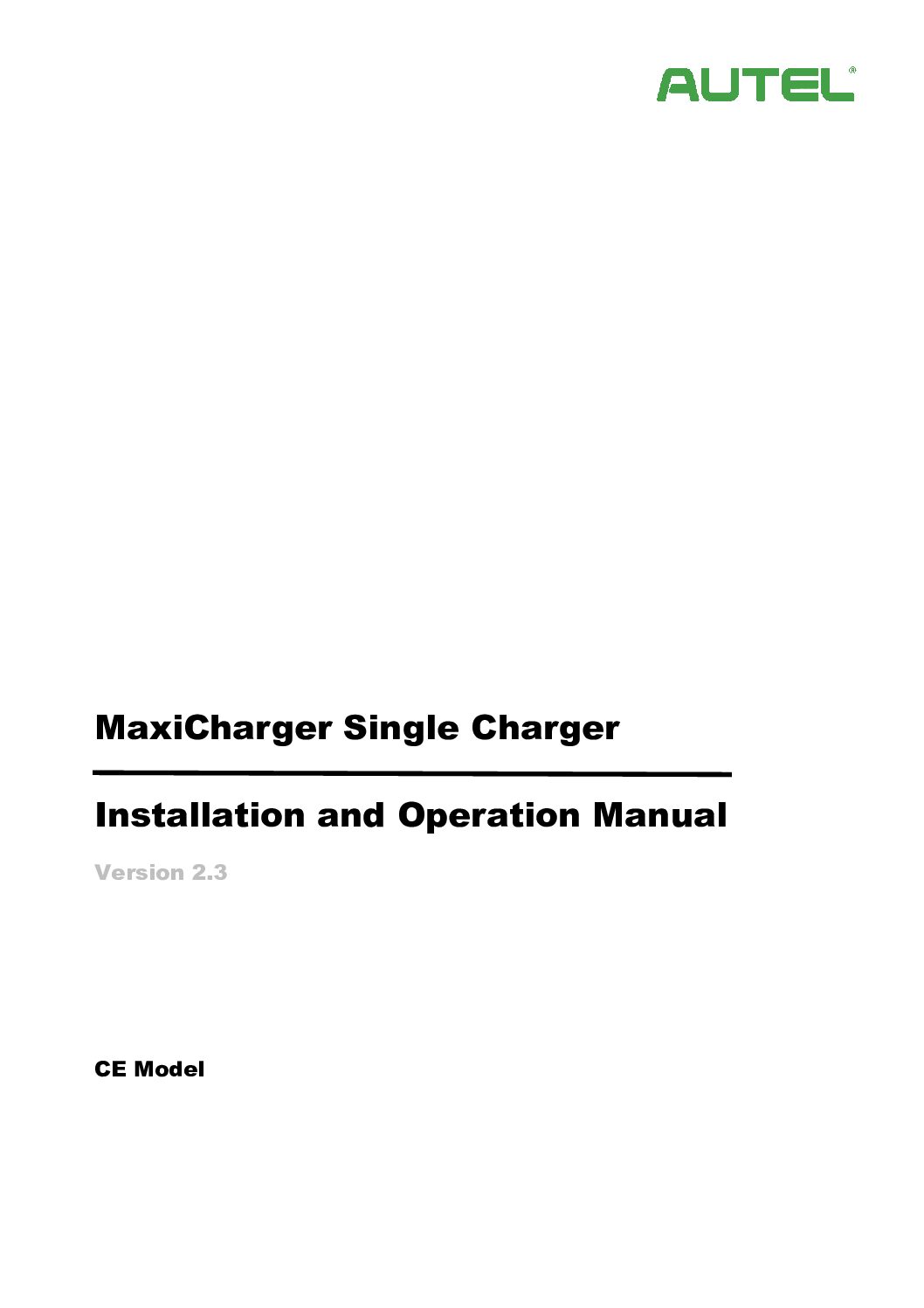

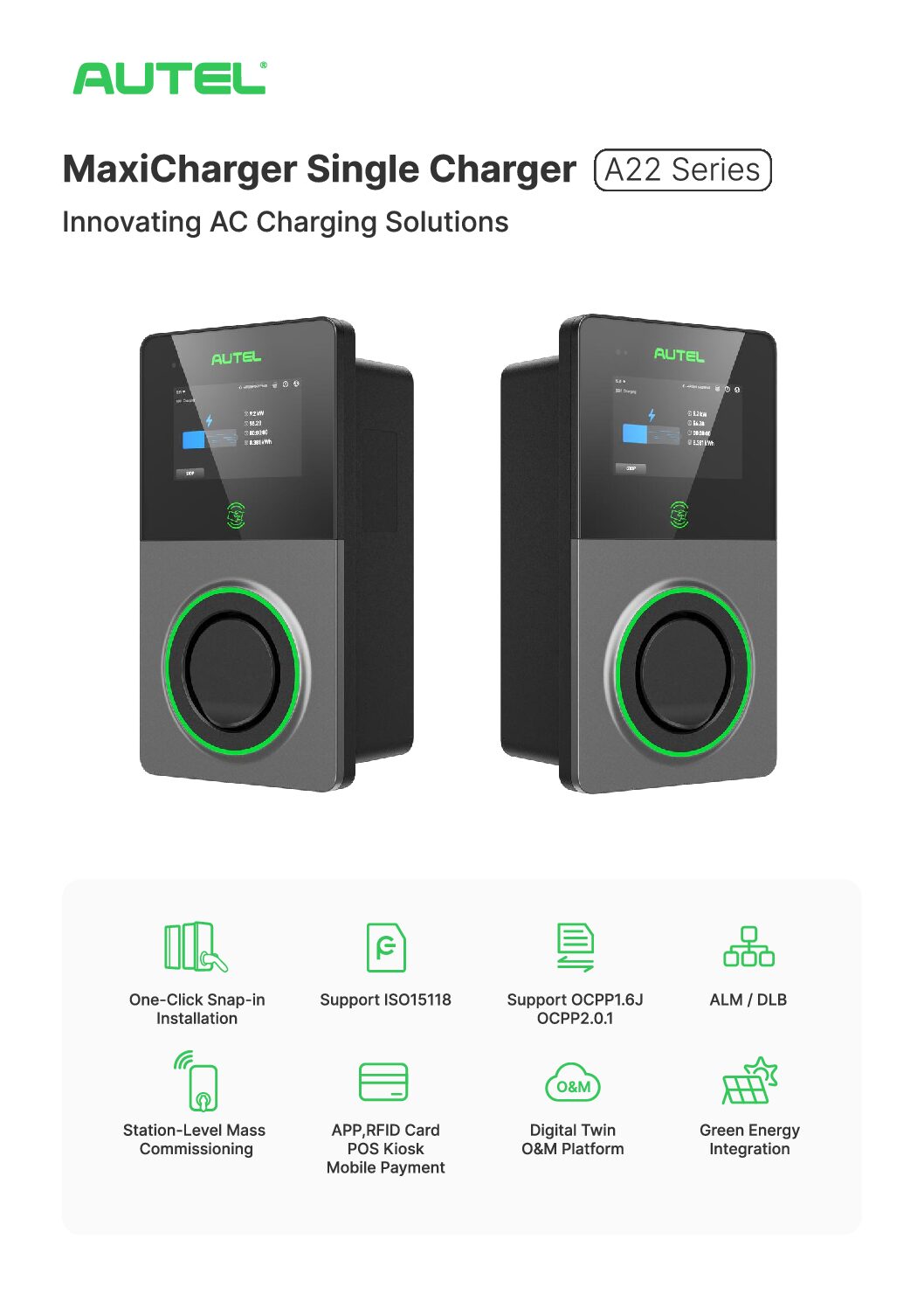

Manuals and Datasheets
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤ 95%, Non-Condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | 2000m | 2000m |
Operating Temperature Range
|
-30°C ~ + 50°C | -40°C ro +55 ℃ | -30 ℃ to +50 ℃ |
Storage Temperature Range
|
-40°C ~ + 70°C | -40°C to +85 ℃ | -30 ℃ to +70 ℃ |
Noise
|
≤ 65 dB(A) | ≤ 65 dB(A) | ≤ 65 dB(A) |
Compliance and Safety
|
IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955 | IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955 | IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7 |
Certification
|
TÜV; CE; UKCA | TÜV; CE; UKCA | CE |
|
User Interface
|
|||
|
Status Indication
|
APP; Screen; LED Lights | APP; LCD (8-inch touch screen, 1280*720) | APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform |
Languages
|
English (UK Version) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Mini Nayax ePOS | Nayax Onyx | Payter Apollo |
RFID Protocols
|
ISO 15693, ISO 14443 A/B | ISO 15693; ISO 14443 | ISO 15693; ISO 14443 |
Payment Terminal
|
App/RFID/QR Code | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
315mm x 117mm x 170mm | Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm | 310 × 200 x 1450 mm |
Colour
|
Grey Plastic | White Plastic | Gun Metal Gray Steel |
Connectivity
|
4G, Wi-Fi,Bluetooth, Ethernet,RS485,Wisun | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 |
Screen Type
|
5 inch,800*480 touch LCD screen | 8 inch touch screen, 1280*720 | 8 inch touch screen, 1280*720 |
Current Type
|
Mode 3 (AC) | Mode 3 (AC) | Mode 3 (AC) |
Enclosure Rating
|
IP54, IK10, Indoor or Outdoor installation | IP54; IK10 | IP54; IK10 |
Communication to the EV
|
ISO/IEC 15118 | ISO/IEC 15118 | ISO/IEC 15118 |
Software Update
|
OTA updates via web portal | OTA updates via web portal | OTA updates via web portal |
Emergency Button
|
No | No | No |
Design Life
|
10 years |
Warranty
|
36 months, warranty extension possible | 36 months, warranty extension possible | 36 months, warranty extension possible |
Weight
|
2.5kg | Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg | 42kg |
Mounting
|
Wall Mounted (Optional Pedestal) | Wall Mounted (Optional Pedestal) | Floor Standing |
Internal RCD
|
AC 30mA + DC 6mA | Installed Upstream | Installed Upstream |
Protection
|
Overcurrent, Overvoltage, Undervoltage, Integrated Surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
|||
|
Output Power
|
22kW/7.4kW | 2 * 22kW | 2 * 22kW |
Minimum Adjustable Power
|
3.4Kw | 7Kw | 7Kw |
Output Voltage
|
400VAC(3x230VAC)±15%, 3-phase,50/60Hz (230V~±15%,1-phase,50/60Hz | 400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE |
Output Current
|
1*22 kW/32 A | 2*22 kW/32 A | 2*22 kW/32 A |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
1 | 2 | 2 |
Charging Mode
|
1* IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter |
Supply Configuration
|
3P+N+PE 50/60Hz or 1P+N+PE 50/60Hz | 3P + N + PE | 3P + N + PE |
|
Input
|
|||
|
Input Voltage
|
230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase |
Input Frequency
|
50 Hz | 50 Hz | 50 Hz |
Earthing System
|
TT; TN | TT; TN; IT | TT; TN |
Power Factor
|
≥0.99 | ≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
MaxiCharger A22 Gen2 22kW
Environmental Specifications
- Humidity
- ≤ 95%, Non-Condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30°C ~ + 50°C
- Storage Temperature Range
- -40°C ~ + 70°C
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; Screen; LED Lights
- Languages
- English (UK Version)
- Credit Card Readers
- Mini Nayax ePOS
- RFID Protocols
- ISO 15693, ISO 14443 A/B
- Payment Terminal
- App/RFID/QR Code
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 315mm x 117mm x 170mm
- Colour
- Grey Plastic
- Connectivity
- 4G, Wi-Fi,Bluetooth, Ethernet,RS485,Wisun
- Screen Type
- 5 inch,800*480 touch LCD screen
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54, IK10, Indoor or Outdoor installation
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Design Life
- 10 years
- Warranty
- 36 months, warranty extension possible
- Weight
- 2.5kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- AC 30mA + DC 6mA
- Protection
- Overcurrent, Overvoltage, Undervoltage, Integrated Surge protection
Output
- Output Power
- 22kW/7.4kW
- Minimum Adjustable Power
- 3.4Kw
- Output Voltage
- 400VAC(3x230VAC)±15%, 3-phase,50/60Hz (230V~±15%,1-phase,50/60Hz
- Output Current
- 1*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 1
- Charging Mode
- 1* IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P+N+PE 50/60Hz or 1P+N+PE 50/60Hz
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
AC Ultra Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ro +55 ℃
- Storage Temperature Range
- -40°C to +85 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720)
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm
- Colour
- White Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN; IT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
AC Ultra Street Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30 ℃ to +50 ℃
- Storage Temperature Range
- -30 ℃ to +70 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7
- Certification
- CE
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Payter Apollo
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 310 × 200 x 1450 mm
- Colour
- Gun Metal Gray Steel
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 42kg
- Mounting
- Floor Standing
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Contact Us
Speak with an Expert.
Got a Project? Accelerate your EV charging business with Intelli EV - your trusted Autel partner. We deliver tailored charging solutions and the right Autel products to power your success with efficiency, reliability, and innovation.
