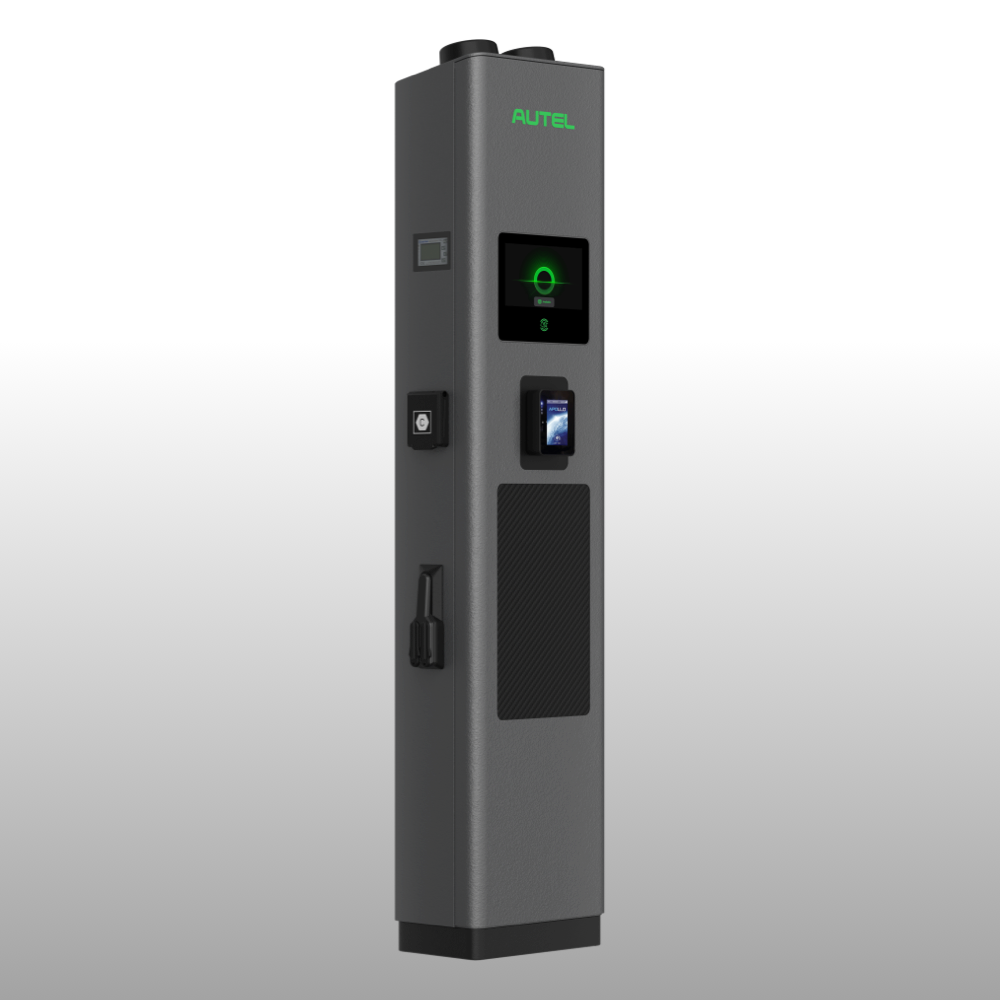

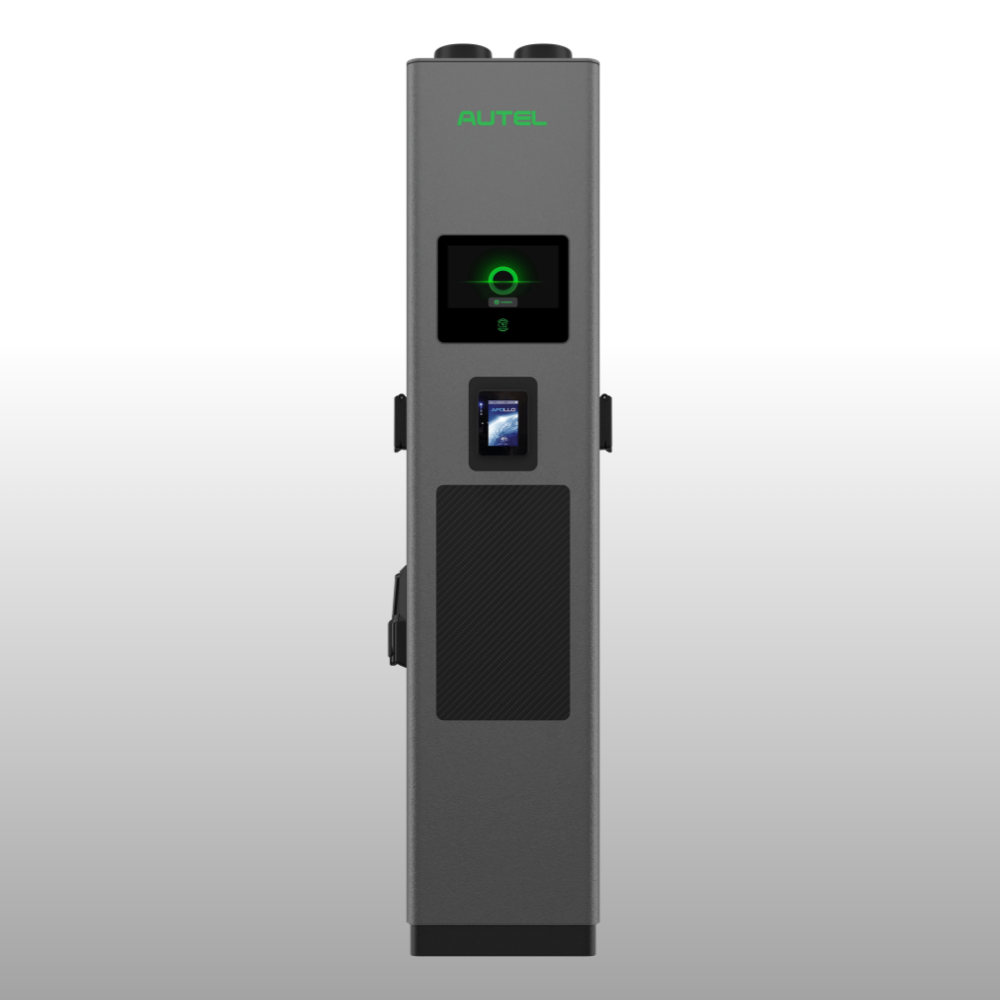

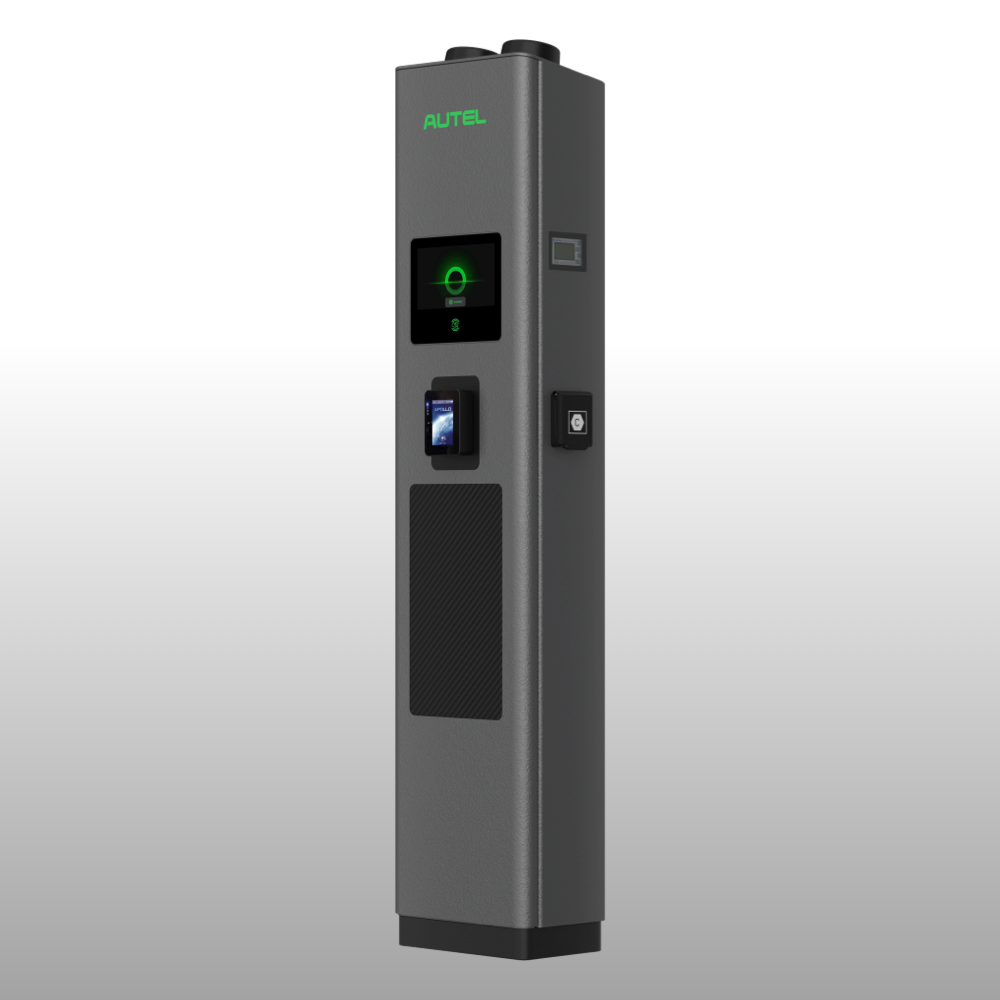

Autel MaxiCharger AC Ultra Street.

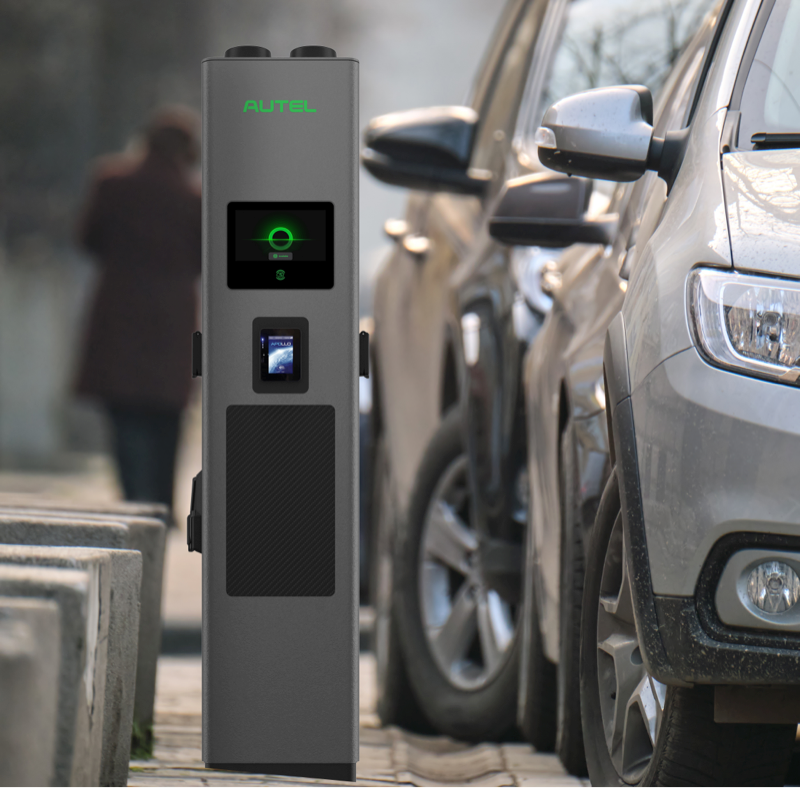

The AC Ultra Street Charger is a cutting-edge, dual-point AC charging solution designed to meet the demands of modern urban mobility. Built to withstand public environments with its robust IP54 and IK10-rated housing. Whether installed in city centres, retail parks, or workplace car parks, the AC Ultra Street Charger combines reliability, innovation, and user-friendliness in a compact, future-ready package.
Autel MaxiCharger AC Ultra Street Dual 22kW
Product information
£{{ getActivePrice }}2,300.00 excl. VAT (RRP)
Description
The AC Ultra Street Charger is a high-performance AC charging station, expertly designed for public use. With dual 22kW charging points, it ensures efficient power delivery, making it suitable for a wide range of electric vehicles. Built with accessibility in mind, its user-friendly layout ensures that all drivers can use the charger with ease, including those with mobility challenges. Its robust construction guarantees reliable performance in high-traffic urban environments.
POS
Product Description
One of the standout features of the AC Ultra Street Charger is its 8-inch touch screen display. This interface not only provides clear, real-time information about each charging session but also supports digital advertising - offering an opportunity for operators to generate additional revenue. The screen is AFIR-compliant and conforms to the latest ISO 15118 standard, enabling convenient Plug & Charge functionality for a seamless user experience.
The charger comes equipped with multiple connectivity options, including 4G, Wi-Fi, Ethernet, and Modbus, making it easily integrable into modern back-office systems. It supports OCPP 1.6J and 2.0.1 protocols for broad compatibility. An optional MID-certified energy meter and payment terminal can be added to provide secure and accurate billing, enhancing usability for commercial operators.
Engineered for durability, the AC Ultra Street Charger features an IP54-rated and IK10-certified enclosure, offering excellent protection against dust, water, and physical impact. With a sleek pedestal design and a weight of just 45kg, it is easy to install in various public settings. Backed by a 36-month warranty, it is a dependable solution for forward-thinking municipalities and businesses looking to expand their EV infrastructure.
Key Product Features
- Dual 22kW Charging Points
-
- Provides fast AC charging for two electric vehicles simultaneously, ideal for public use.
- 8-Inch Touchscreen Display
-
- Offers an intuitive user interface for session information and supports advertising content for added revenue.
- Plug & Charge Support (ISO 15118)
-
- Enables seamless authentication and charging without the need for a card or app.
- Robust and Weather-Resistant Design
-
- Rated IP54 and IK10 for protection against dust, water, and vandalism.
- Flexible Connectivity Options
-
- Includes 4G, Wi-Fi, Ethernet, and Modbus to suit a wide range of network environments.
- Back-Office Compatibility
-
- Supports OCPP 1.6J and 2.0.1 protocols for smooth integration with most management systems.
- Optional Payment Terminal
-
- Enables secure, user-friendly payment functionality, ideal for commercial installations.
- MID-Certified Energy Meter
-
- Ensures accurate energy measurement and billing compliance.
- AFIR-Compliant
-
-
Meets EU requirements for accessibility, information provision, and interoperability.
-
- Compact Pedestal Mounting
-
- Space-efficient design with integrated space for a meter box, easy to install in public locations.

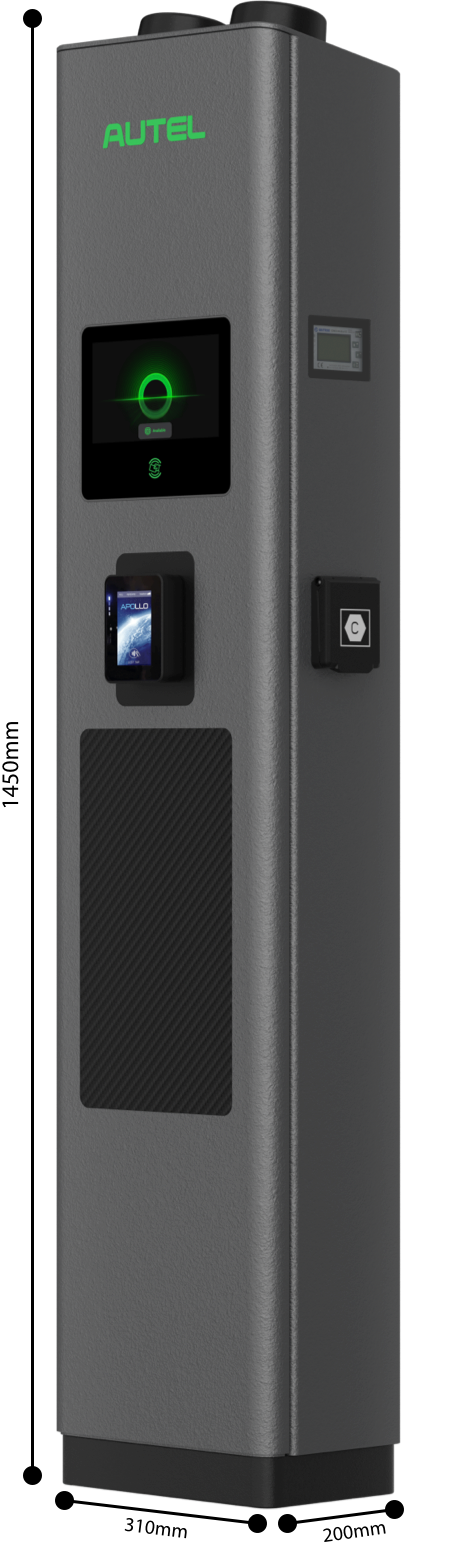

Product Specification
Below you will find an in-depth specification. Alternatively download a more detailed specification below.
General
- IP & IK Rating
- IP54; IK10
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
- Operating altitude
- 2000m
- Operating temperature range
- -30℃ ~ +50℃
- Storage temperature range
- -30℃ ~ +70℃
- Mounting
- Floor Standing
- Dimensions (H × W × D)
- 1467 × 310 × 200 mm
Output connector
- Charging mode
- Mode 3
- AC/DC
- AC
- Connection
- IEC 62196 Type 2 Socket or Socket with shutter
- Rated Power
- Three-phase up to 2*22kW/32A
- Output voltage
- 50Hz
- Output current
- 2 x 22kW
- Number of outputs
- 2*Sockets
- Peak efficiency
- At full power ≥ 95.0%
Input connector
- Grounding system
- =/- 1.0%; Build-in MID Certified meter
- Input voltage
- 400V±15%, three-phase
- Input frequency
- 50Hz
- Power factor
- ≥0.99
- Harmonic distortion
- ≤ 5%
User interface
- Screen type
- 8 inch touch screen, 1280*720
- Status display
- APP/LCD
- Connectivity
- Wi-Fi, Ethernet, 4G, RS485
- Communication protocols
- OCPP 1.6J, OCPP 2.0.1
- User authentication
- APP, RFID card, Credit Cards (Optional)
- Software update
- Over the Air
- Advertising cloud
- Yes
- Custom branding
- Optional
- Card Reader
- Optional Payter Apollo
Certificates and standards
- Safety and compliance
- IEC/EN 61851 1, EN 62311, EN 62479, IEC/ EN 62955,NEN EN IEC 61439-7
- Certification
- CE
- Warranty
- 36 months, warranty extension possible

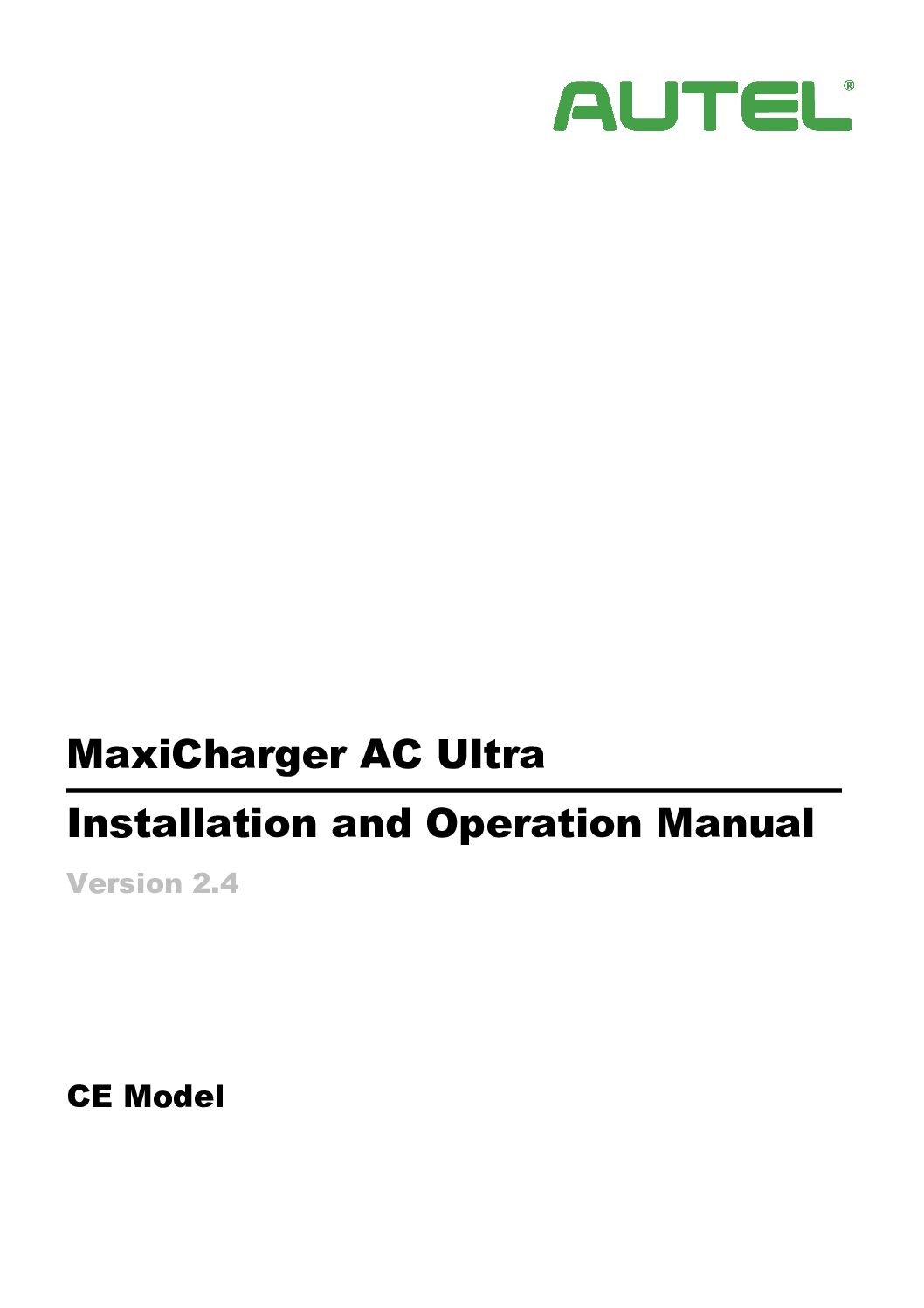

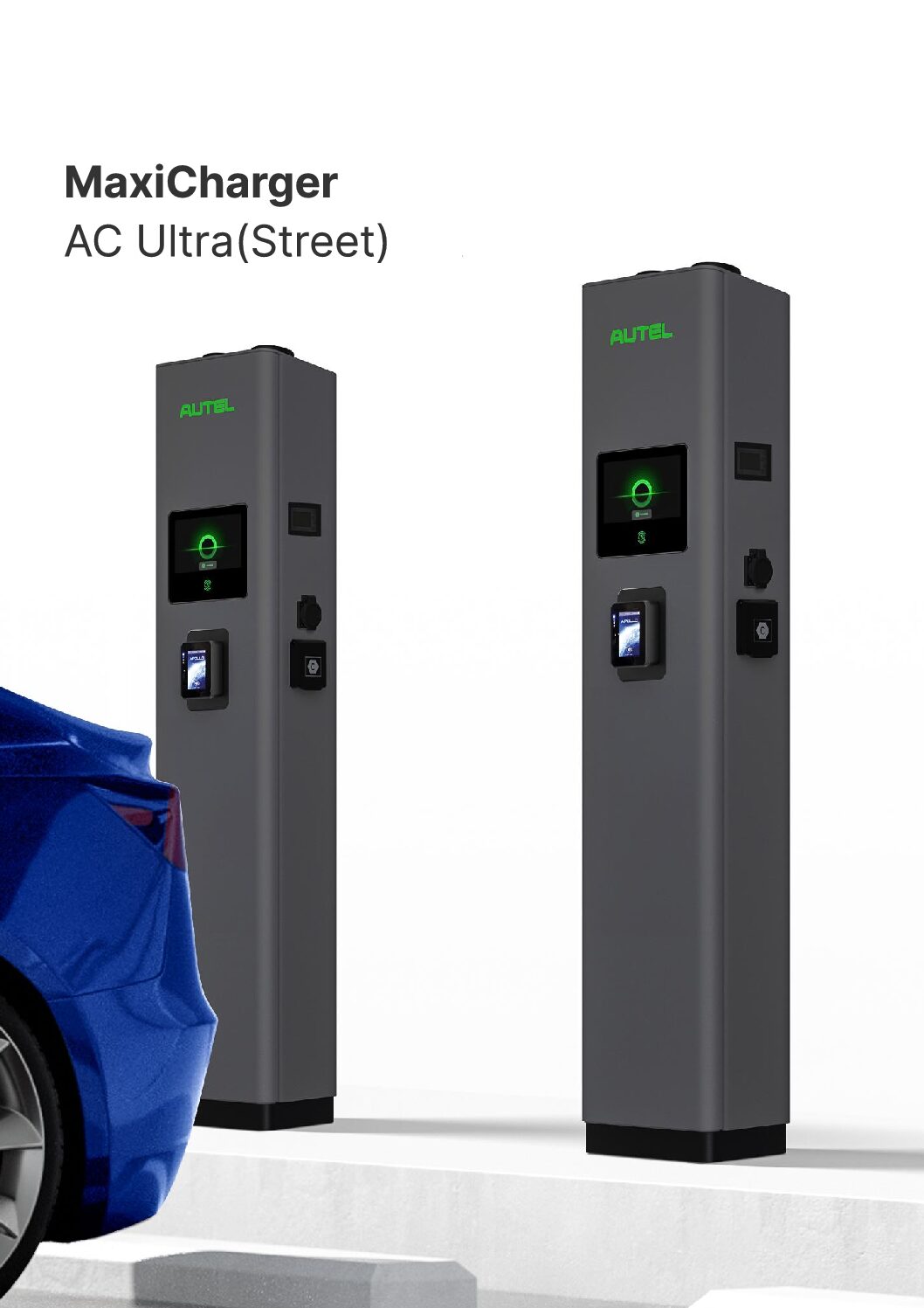

Datasheets
