The Ultimate Autel EV Comparison Guide.
Compare Autel EV chargers side by side to see which model best fits your charging needs. Whether you’re looking for a smart workplace charger with app control or a powerful commercial solution built for reliability and scale, Autel offers flexible options designed for performance, safety, and future-ready EV charging. Explore key features, charging speeds, connectivity, and installation considerations to make a confident, informed choice.
Compare the Autel AC Charging Range.
Compare Autel’s AC charging models to find the ideal balance of performance, convenience, and smart functionality – tailored to suit workplace, commercial, and fleet applications.
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | 2000m | 2000m |
Operating Temperature Range
|
-40°C ~ + 55°C | -40°C ro +55 ℃ | -30 ℃ to +50 ℃ |
Storage Temperature Range
|
-40°C ~ + 85°C | -40°C to +85 ℃ | -30 ℃ to +70 ℃ |
Noise
|
≤ 65 dB(A) | ≤ 65 dB(A) | ≤ 65 dB(A) |
Compliance and Safety
|
EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671 | IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955 | IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7 |
Certification
|
TÜV; CE; UKCA | TÜV; CE; UKCA | CE |
|
User Interface
|
|||
|
Status Indication
|
APP; LED Lights | APP; LCD (8-inch touch screen, 1280*720) | APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform |
Languages
|
English (UK Version) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Nayax Onyx | Payter Apollo |
RFID Protocols
|
ISO 15693; ISO 14443 | ISO 15693; ISO 14443 | ISO 15693; ISO 14443 |
Payment Terminal
|
App/RFID/QR Code | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
187mm x 85mm x 336mm | Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm | 310 × 200 x 1450 mm |
Colour
|
Grey Plastic | White Plastic | Gun Metal Gray Steel |
Connectivity
|
Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Bluetooth, Ethernet | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 | Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485 |
Screen Type
|
8 inch touch screen, 1280*720 | 8 inch touch screen, 1280*720 |
Current Type
|
Mode 3 (AC) | Mode 3 (AC) | Mode 3 (AC) |
Enclosure Rating
|
IP54; IK08 | IP54; IK10 | IP54; IK10 |
Communication to the EV
|
ISO/IEC 15118 | ISO/IEC 15118 | ISO/IEC 15118 |
Software Update
|
OTA updates via web portal | OTA updates via web portal | OTA updates via web portal |
Emergency Button
|
No | No | No |
Warranty
|
36 months, warranty extension possible | 36 months, warranty extension possible | 36 months, warranty extension possible |
Weight
|
3.92kg | Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg | 42kg |
Mounting
|
Wall Mounted (Optional Pedestal) | Wall Mounted (Optional Pedestal) | Floor Standing |
Internal RCD
|
AC 30mA, DC 6mA | Installed Upstream | Installed Upstream |
Protection
|
Overcurrent, overvoltage, undervoltage, integrated surge protection, PME | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
|||
|
Output Power
|
22kW | 2 * 22kW | 2 * 22kW |
Minimum Adjustable Power
|
3.4Kw | 7Kw | 7Kw |
Output Voltage
|
400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE | 400 V±15%, L1, L2, L3, N, PE |
Output Current
|
1*22 kW/32 A | 2*22 kW/32 A | 2*22 kW/32 A |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
1 | 2 | 2 |
Charging Mode
|
1* IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter | 2 * IEC 62196 Type 2 socket or socket with shutter |
Supply Configuration
|
3P + N + PE | 3P + N + PE | 3P + N + PE |
|
Input
|
|||
|
Input Voltage
|
230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase | 230 V ± 10%, single-phase; 400 V ± 15%, three-phase |
Input Frequency
|
50 Hz | 50 Hz | 50 Hz |
Earthing System
|
TT; TN | TT; TN; IT | TT; TN |
Power Factor
|
≥0.99 | ≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
MaxiCharger 22kW
Environmental Specifications
- Humidity
- ≤95 %
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ~ + 55°C
- Storage Temperature Range
- -40°C ~ + 85°C
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LED Lights
- Languages
- English (UK Version)
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- App/RFID/QR Code
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 187mm x 85mm x 336mm
- Colour
- Grey Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Bluetooth, Ethernet
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK08
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 3.92kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- AC 30mA, DC 6mA
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection, PME
Output
- Output Power
- 22kW
- Minimum Adjustable Power
- 3.4Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 1*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 1
- Charging Mode
- 1* IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
AC Ultra Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -40°C ro +55 ℃
- Storage Temperature Range
- -40°C to +85 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851-1; EN 62311; EN 62479; IEC/EN 62955
- Certification
- TÜV; CE; UKCA
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720)
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- Wall Mounted 320 × 170 x 625 mm ; Pedestal 360 x 197 mm x 1440mm
- Colour
- White Plastic
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- Wall Mounted – 15.4 kg; Pedestal Mounted – 33.6kg
- Mounting
- Wall Mounted (Optional Pedestal)
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN; IT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
AC Ultra Street Dual 22kW
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -30 ℃ to +50 ℃
- Storage Temperature Range
- -30 ℃ to +70 ℃
- Noise
- ≤ 65 dB(A)
- Compliance and Safety
- IEC/EN 61851 1; EN 62311; EN 62479; IEC/ EN 62955; NEN EN IEC 61439-7
- Certification
- CE
User Interface
- Status Indication
- APP; LCD (8-inch touch screen, 1280*720); MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Payter Apollo
- RFID Protocols
- ISO 15693; ISO 14443
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 310 × 200 x 1450 mm
- Colour
- Gun Metal Gray Steel
- Connectivity
- Wi-Fi (802.11 a/b/g/n; frequency: 2.4 GHz), 4G, Ethernet, RS485
- Screen Type
- 8 inch touch screen, 1280*720
- Current Type
- Mode 3 (AC)
- Enclosure Rating
- IP54; IK10
- Communication to the EV
- ISO/IEC 15118
- Software Update
- OTA updates via web portal
- Emergency Button
- No
- Warranty
- 36 months, warranty extension possible
- Weight
- 42kg
- Mounting
- Floor Standing
- Internal RCD
- Installed Upstream
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 2 * 22kW
- Minimum Adjustable Power
- 7Kw
- Output Voltage
- 400 V±15%, L1, L2, L3, N, PE
- Output Current
- 2*22 kW/32 A
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2 * IEC 62196 Type 2 socket or socket with shutter
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 230 V ± 10%, single-phase; 400 V ± 15%, three-phase
- Input Frequency
- 50 Hz
- Earthing System
- TT; TN
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%

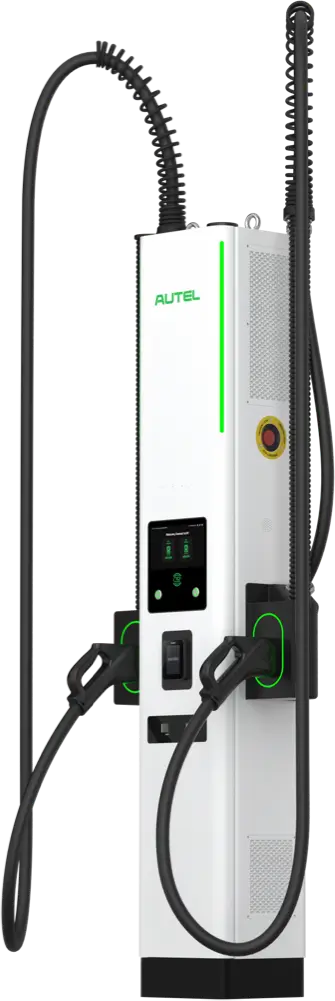

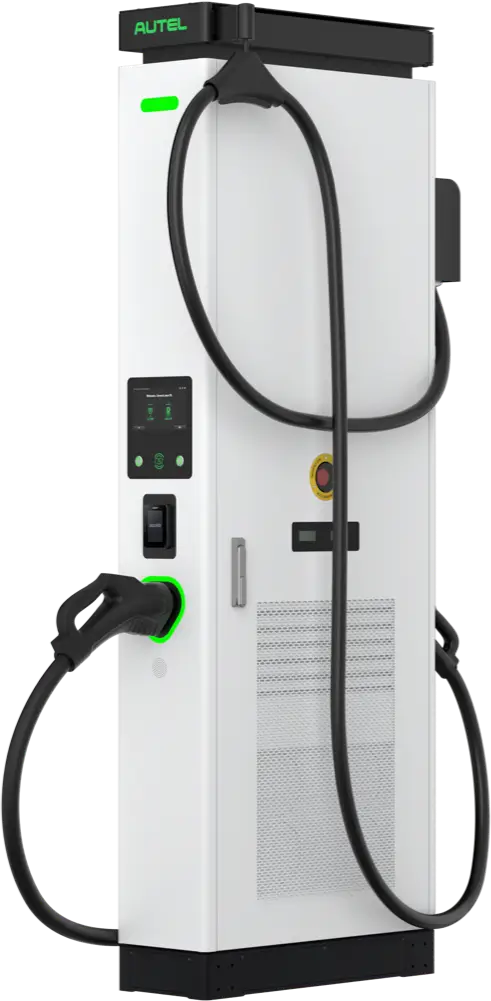

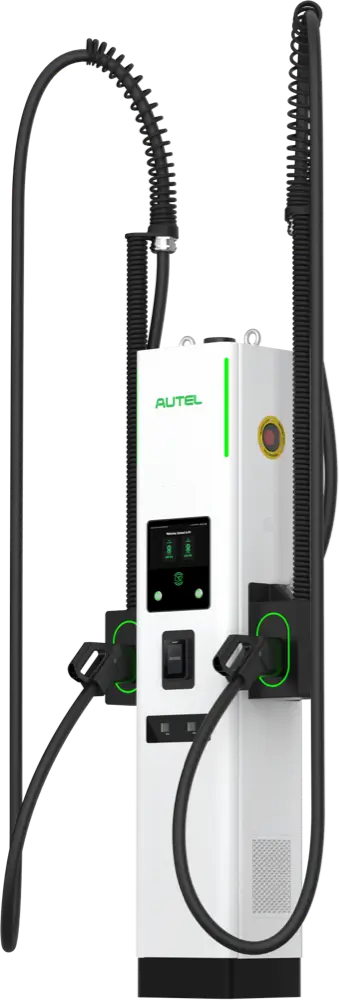

Compare the Autel DC Charging Range.
Compare key specifications, power ratings, and features across Autel’s DC charging range to identify the perfect solution for your business, fleet, or public charging network.
|
Environmental Specifications
|
||||
|---|---|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
< 2000 m (2000m to 3000m with power de-rating) | 2000m | 2000m | 2000m |
Operating Temperature Range
|
-30 °C to +55 °C | -35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ |
Storage Temperature Range
|
-40 °C to +70 °C | -40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ |
Noise
|
≤ 65 dB(A) | ≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) |
EMC Compliance
|
EMC Class A | EMC Class A | EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118 | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht |
Certification
|
CE | CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV |
|
User Interface
|
||||
|
Status Indication
|
APP; 21.5-inch LCD touchscreen; MaxiCloud Patform | APP; 27-inch LCD touchscreen; MaxiCloud Patform | APP; 21.5-inch LCD touchscreen; MaxiCloud Patform | Standard |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo |
RFID Protocols
|
ISO 14443 A/B; ISO/IEC 15693; MIFARE; NFC | ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE |
Payment Terminal
|
AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
Cable management System
|
Standard | Standard | Standard | Standard |
|
General Specifications
|
||||
|
Dimensions (WxDxH)
|
550 x 265 x 1000 mm | 782mm x 480mm x 2150mm | 782mm x 782mm x 2287mm | 782mm x 782mm x 2287mm |
Colour
|
White Galvanised Steel | White Galvanised Steel | White Galvanised Steel | White Galvanised Steel |
Connectivity
|
Wi-Fil; Ethernet; CAN; RS485; Cellular Network | Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G, 5G, Wi-Fi, Ethernet |
Screen Type
|
21.5-inch LCD touchscreen | 27 inch LCD Touch Screen | 15.6 inch LCD Touch Screen (1920*1080) | 15.6 inch LCD Touch Screen (1920*1080) |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) | Mode 4 (DC) | Mode 4 (DC) |
Cable Length
|
5m; 7.5m (Optional) | 5m; 7.5m(Optional) | 5m; 7.5m(Optional) | 5m; 7.5m(Optional) |
Standby Power
|
40 W | < 85W | < 85W | <85W (Depending on configuration) |
Enclosure Rating
|
IP54/IK10 | IP54/IK10 | IP54/IK10 | IP54/IK10 |
Communication to the EV
|
ISO 15118, DIN 70121, CHAdeMO 1.2 | ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Accessibility
|
Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface |
Emergency Button
|
No | Yes | Yes | Yes |
Design Life
|
10 Years | 10 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible | 24 months, warranty extension possible | 24 months, warranty extension possible |
Weight
|
120 kg | 630 kg | 880 kg | 900kg |
Mounting
|
Pedestal Mounted / Portable Trolley Mounted | Floor Standing | Floor Standing | Floor Standing |
Protection
|
Overcurrent, overvoltage, under-voltage, ground fault, over-temperature, short circuit, insulation monitor, surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
||||
|
Output Power
|
50kW | 80kW; 120kW; 160kW; 200kW; 240kW | 240kW; 280kW; 320kW; 360kW; 400kW; 440kW; 480kW | 300kW;350kW;400kW;450kW;500kW;550kW;600kW |
Minimum Adjustable Power
|
22 kW | 40 kW | 40 kW | 50kW |
Output Voltage
|
150 to 950V | 150-1000V | 150-1000v | 150-1000v |
Output Current
|
Uncooled Cable: 380A (Max. 500A); | Uncooled Cable: 380A (Max. 500A) | Liquid-cooled Cable: 500A (Max. 650A); Uncooled Cable: 380A (Max. 500A) | Liquid-cooled Cable: 500A (Max. 650A); Uncooled Cable: 380A (Max. 500A) |
Peak Efficiency
|
96% | 96% | 96% | 97% |
Number of Outputs (Max.)
|
2 | 2 | 2 | 2 |
Charging Mode
|
2*CCS2 | 2*CCS2 | 2*CCS2 | 2*CCS2 |
Supply Configuration
|
3P + N + PE | 3P+PE | 3P+PE | 3P+PE |
|
Input
|
||||
|
Input Voltage
|
3-phase 400V AC ±10% | 3-phase 400V AC ±10% | 3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) |
Input Frequency
|
50/60 Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
Earthing System
|
TN-S; TN-C; TN-C-S; TT (Requires external RCD) | TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT | TN-S, TN-C, TN-C-S, TT |
Power Factor
|
≥0.99 | ≥0.99 | ≥ 0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% | <5% |
MaxiCharger DC Compact
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- < 2000 m (2000m to 3000m with power de-rating)
- Operating Temperature Range
- -30 °C to +55 °C
- Storage Temperature Range
- -40 °C to +70 °C
- Noise
- ≤ 65 dB(A)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
- Certification
- CE
User Interface
- Status Indication
- APP; 21.5-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE; NFC
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 550 x 265 x 1000 mm
- Colour
- White Galvanised Steel
- Connectivity
- Wi-Fil; Ethernet; CAN; RS485; Cellular Network
- Screen Type
- 21.5-inch LCD touchscreen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m (Optional)
- Standby Power
- 40 W
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO 15118, DIN 70121, CHAdeMO 1.2
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- No
- Warranty
- 24 months, warranty extension possible
- Weight
- 120 kg
- Mounting
- Pedestal Mounted / Portable Trolley Mounted
- Protection
- Overcurrent, overvoltage, under-voltage, ground fault, over-temperature, short circuit, insulation monitor, surge protection
Output
- Output Power
- 50kW
- Minimum Adjustable Power
- 22 kW
- Output Voltage
- 150 to 950V
- Output Current
- Uncooled Cable: 380A (Max. 500A);
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 3-phase 400V AC ±10%
- Input Frequency
- 50/60 Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT (Requires external RCD)
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DH240
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 27-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 782mm x 480mm x 2150mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 27 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- < 85W
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 630 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 80kW; 120kW; 160kW; 200kW; 240kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000V
- Output Current
- Uncooled Cable: 380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10%
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DH480
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 21.5-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 782mm x 782mm x 2287mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 15.6 inch LCD Touch Screen (1920*1080)
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- < 85W
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 880 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 240kW; 280kW; 320kW; 360kW; 400kW; 440kW; 480kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 500A (Max. 650A); Uncooled Cable: 380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DH600
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- Standard
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 782mm x 782mm x 2287mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G, 5G, Wi-Fi, Ethernet
- Screen Type
- 15.6 inch LCD Touch Screen (1920*1080)
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- <85W (Depending on configuration)
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 900kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 300kW;350kW;400kW;450kW;500kW;550kW;600kW
- Minimum Adjustable Power
- 50kW
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 500A (Max. 650A); Uncooled Cable: 380A (Max. 500A)
- Peak Efficiency
- 97%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S, TN-C, TN-C-S, TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Compare the Autel Hi-Power Dispenser Range.
Compare the Autel Hi-Power Dispenser range to find the optimal solution for scalable, high-performance EV charging.
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | 2000m | 2000m |
Operating Temperature Range
|
-35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ |
Storage Temperature Range
|
-40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ |
Noise
|
≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) |
EMC Compliance
|
EMC Class A | EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht |
Certification
|
CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV |
|
User Interface
|
|||
|
Status Indication
|
APP; 8-inch LCD touchscreen; MaxiCloud Patform | APP; 8-inch LCD touchscreen; MaxiCloud Patform | APP; 8-inch LCD touchscreen; MaxiCloud Patform |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo |
RFID Protocols
|
ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE |
Payment Terminal
|
AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
Cable management System
|
Standard | Standard | Standard |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
280mm x 780mm x 2285mm | 322mm x 322mm x 1950mm | 322mm x 322mm x 1650mm |
Colour
|
White Galvanised Steel | White Galvanised Steel | White Galvanised Steel |
Connectivity
|
Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet |
Screen Type
|
8 inch LCD Touch Screen | 8 inch LCD Touch Screen | 8 inch LCD Touch Screen |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) | Mode 4 (DC) |
Cable Length
|
MCS: 3m; CCS2: 5m | 5m; 7.5m(Optional) | 5m; 7.5m(Optional) |
Standby Power
|
<65W | <65W | <65W |
Enclosure Rating
|
IP55; IK10 | IP55; IK10 | IP55; IK10 |
Communication to the EV
|
ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Accessibility
|
Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface |
Emergency Button
|
Yes | Yes | Yes |
Design Life
|
10 Years | 10 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible | 24 months, warranty extension possible |
Weight
|
160 kg | 160 kg | 160 kg |
Mounting
|
Floor Standing | Floor Standing | Floor Standing |
Protection
|
Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
|||
|
Output Voltage
|
150-1000v | 150-1000v | 150-1000v |
Output Current
|
Liquid-cooled Cable: 1500A+500A (Max. 650A) | Liquid-cooled Cable: 500A (Max. 780A) | Uncooled Cable:380A (Max. 500A) |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
2 | 2 or 1 | 2 |
Charging Mode
|
1*MCS+1*CCS2 | 2*CCS2; 1*CCS2 | 2*CCS2 |
Supply Configuration
|
3P+PE | 3P+PE | 3P+PE |
|
Input
|
|||
|
Input Voltage
|
3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) |
Input Frequency
|
50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
Earthing System
|
TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT |
Power Factor
|
≥ 0.99 | ≥ 0.99 | ≥ 0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
MaxiCharger DT1500
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 280mm x 780mm x 2285mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- MCS: 3m; CCS2: 5m
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 1500A+500A (Max. 650A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 1*MCS+1*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DT800
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 322mm x 322mm x 1950mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 500A (Max. 780A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2 or 1
- Charging Mode
- 2*CCS2; 1*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DT500
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 322mm x 322mm x 1650mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Uncooled Cable:380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
Compare the Autel Distribution Cabinet Range.
Compare Autel’s full range of distribution cabinets to identify the ideal high-power solution for your commercial EV charging project.
|
Environmental Specifications
|
||
|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | ≤ 2000 m |
Operating Temperature Range
|
-35℃ to 55℃ | –35 °C to +55 °C (+40 °C to +55 °C with power de-rating, de-rating strategy TBD) |
Storage Temperature Range
|
-40℃ to 70℃ | –40 °C to +70 °C |
Noise
|
≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) |
EMC Compliance
|
EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht | IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht |
Certification
|
CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; T.V |
|
User Interface
|
||
|
Status Indication
|
Yes | Standard |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
RFID Protocols
|
ISO 14443 A/B, ISO/IEC 15693, MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
|
General Specifications
|
||
|
Dimensions (WxDxH)
|
900mm x 1050mm x 2250mm | 782 x 782 x 2150 mm |
Colour
|
Zinc Aluminum Magnesium Alloy | Zinc Aluminum Magnesium Alloy |
Connectivity
|
Double SIM 4G, 5G, Wi-Fi, Ethernet | 4G/5G (Dual SIM Card); Wi-Fi; Ethernet |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) |
Standby Power
|
< 85 W (Depending on configuration) | < 85 W (Depending on configuration) |
Enclosure Rating
|
IP54/IK10 | IP54/IK10 |
Communication to the EV
|
ISO/IEC 15118 with PnC; DIN 70121 | ISO/IEC 15118 with PnC; DIN 70121 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Emergency Button
|
Yes | Yes |
Design Life
|
15 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible |
Mounting
|
Floor Standing | Floor Standing |
Accessibility
|
Meets ADA requirements for height, reach, and user interface |
Anti-corrosion Degree
|
C5-M |
|
Output
|
||
|
Output Power
|
360kW – 600kW | 480 kW |
Minimum Adjustable Power
|
60kW granularity | 40 kW |
Output Voltage
|
200 – 1000V | 150-1000 V |
Peak Efficiency
|
97% | 96% |
Number of Outputs
|
10 | 8 |
Supply Configuration
|
3P+PE | 3P+PE |
|
Input
|
||
|
Input Voltage
|
3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) |
Input Frequency
|
50 Hz/60 Hz | 50 Hz/60 Hz |
Earthing System
|
TN-S, TN-C, TN-C-S, TT | TN-S, TN-C, TN-C-S, TT |
Power Factor
|
≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
< 3% | < 5% |
Overvoltage Category
|
AC side (Input) OVC: III | AC side (Input) OVC: III |
Input Capacity
|
520 kVA |
MaxiCharger DS600L
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35℃ to 55℃
- Storage Temperature Range
- -40℃ to 70℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- Yes
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- RFID Protocols
- ISO 14443 A/B, ISO/IEC 15693, MIFARE
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 900mm x 1050mm x 2250mm
- Colour
- Zinc Aluminum Magnesium Alloy
- Connectivity
- Double SIM 4G, 5G, Wi-Fi, Ethernet
- Current Type
- Mode 4 (DC)
- Standby Power
- < 85 W (Depending on configuration)
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC; DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- Yes
- Design Life
- 15 Years
- Warranty
- 24 months, warranty extension possible
- Mounting
- Floor Standing
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Anti-corrosion Degree
- C5-M
Output
- Output Power
- 360kW – 600kW
- Minimum Adjustable Power
- 60kW granularity
- Output Voltage
- 200 – 1000V
- Peak Efficiency
- 97%
- Number of Outputs
- 10
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50 Hz/60 Hz
- Earthing System
- TN-S, TN-C, TN-C-S, TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- < 3%
- Overvoltage Category
- AC side (Input) OVC: III
MaxiCharger DS480
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- ≤ 2000 m
- Operating Temperature Range
- –35 °C to +55 °C (+40 °C to +55 °C with power de-rating, de-rating strategy TBD)
- Storage Temperature Range
- –40 °C to +70 °C
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; T.V
User Interface
- Status Indication
- Standard
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 782 x 782 x 2150 mm
- Colour
- Zinc Aluminum Magnesium Alloy
- Connectivity
- 4G/5G (Dual SIM Card); Wi-Fi; Ethernet
- Current Type
- Mode 4 (DC)
- Standby Power
- < 85 W (Depending on configuration)
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC; DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Mounting
- Floor Standing
Output
- Output Power
- 480 kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000 V
- Peak Efficiency
- 96%
- Supply Configuration
- 3P+PE
- Number of Outputs
- 8
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50 Hz/60 Hz
- Earthing System
- TN-S, TN-C, TN-C-S, TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- < 5%
- Input Capacity
- 520 kVA
- Overvoltage Category
- AC side (Input) OVC: III
Contact Us
Speak with an Expert.
Got a Project? Accelerate your EV charging business with Intelli EV - your trusted Autel partner. We deliver tailored charging solutions and the right Autel products to power your success with efficiency, reliability, and innovation.
