MaxiCharger 50kW DC Compact.
Built for any Environment, with an output of up to 50kW, this charger is ideal for businesses seeking efficient and effective charging solutions without requiring high-speed capabilities.

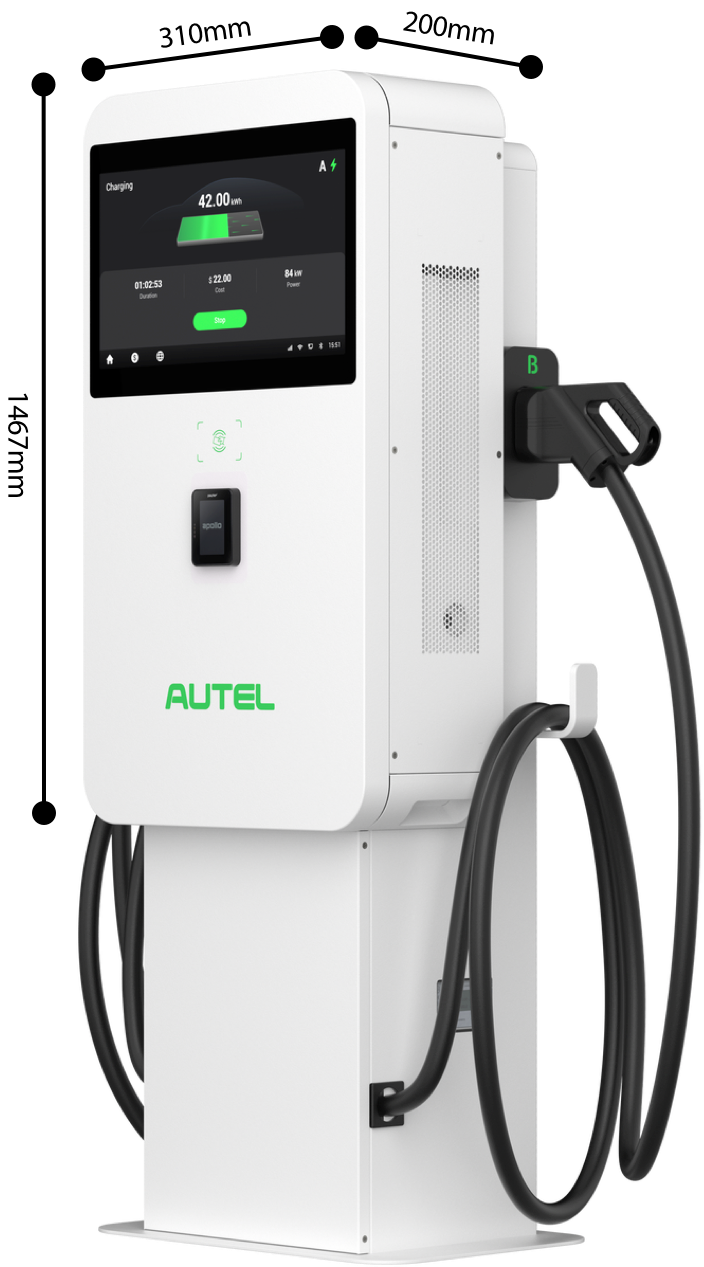

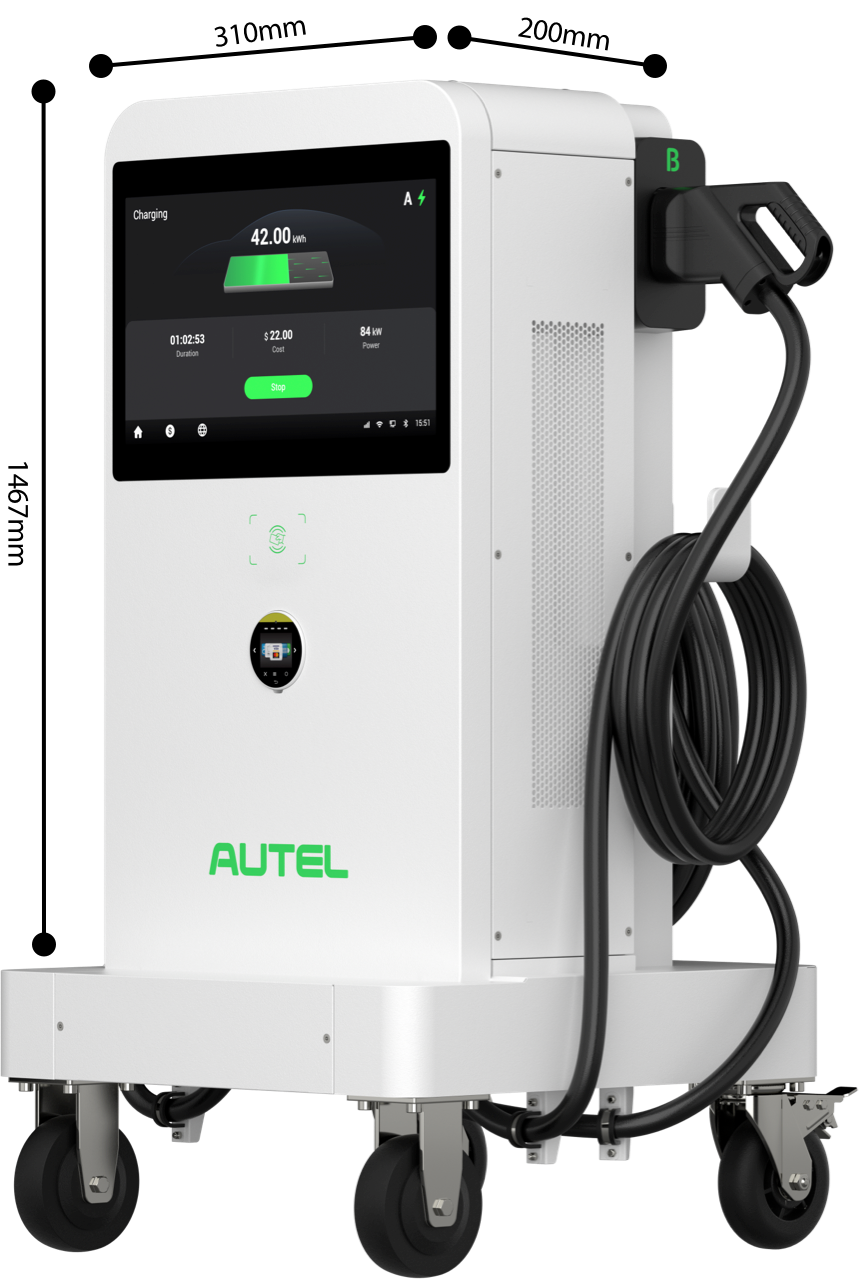

MaxiCharger DC Compact 50kW.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
Introducing the Autel MaxiCharger 50kW DC Fast Charger, a state-of-the-art solution designed to meet the demanding needs of modern electric vehicle (EV) charging.
With a robust charging rate of 50kW DC, this charger ensures your vehicles are ready to go in the shortest possible time, making it an ideal choice for commercial spaces, workshops, and fleet operations.
Mounting
POS
- Manufacturer
- Autel
- Model
- DC Compact 50kW
- Colour
- Ice White
- Warranty
- 24 months – extension available
Image Gallery
MaxiCharger DC Compact Features.
The Autel MaxiCharger DC Compact is feature rich with everything you would expect from a 50kW EV charger and more.
- Compact Design
-
- Remarkably compact.
- Small package delivering substantial DC power (47kW).
- Extensive Cabling
-
- Dual tethered CCS cables that are 4 metres each
- Dual Charging Ports
-
- Simultaneously charge two vehicles.
- Total power output up to 47kw.
- High-Speed DC Charging
-
- Provides a 130km range in just 30 minutes.
- Suitable for all electric vehicles currently available on the market.
- 21.5-Inch Touchscreen
-
- Equipped with advertising display capabilities.
- Potential for additional revenue generation.
- Business and High-Volume Charging
-
- Designed to meet the demands of charge point operators.
- Caters to businesses with high-volume charging needs.
- Revenue Generation
-
- Supports tailored charge rate discounts for different customer profiles.
- Enables segmentation of drivers (e.g., first-time users, loyal patrons, taxi, or ride-hailing services).
- Facilitates the monetisation of programmatic advertising.
- Cloud-Based Management
-
- Access to Autel’s cloud-based portal for comprehensive management.
- Seamless management of driver groups and charging schedules.
- Flexibility to offer free, discounted, or paid charging services.
- Ease of Installation
-
- Hassle-free installation process.
- Flexible positioning for both fixed and mobile setups

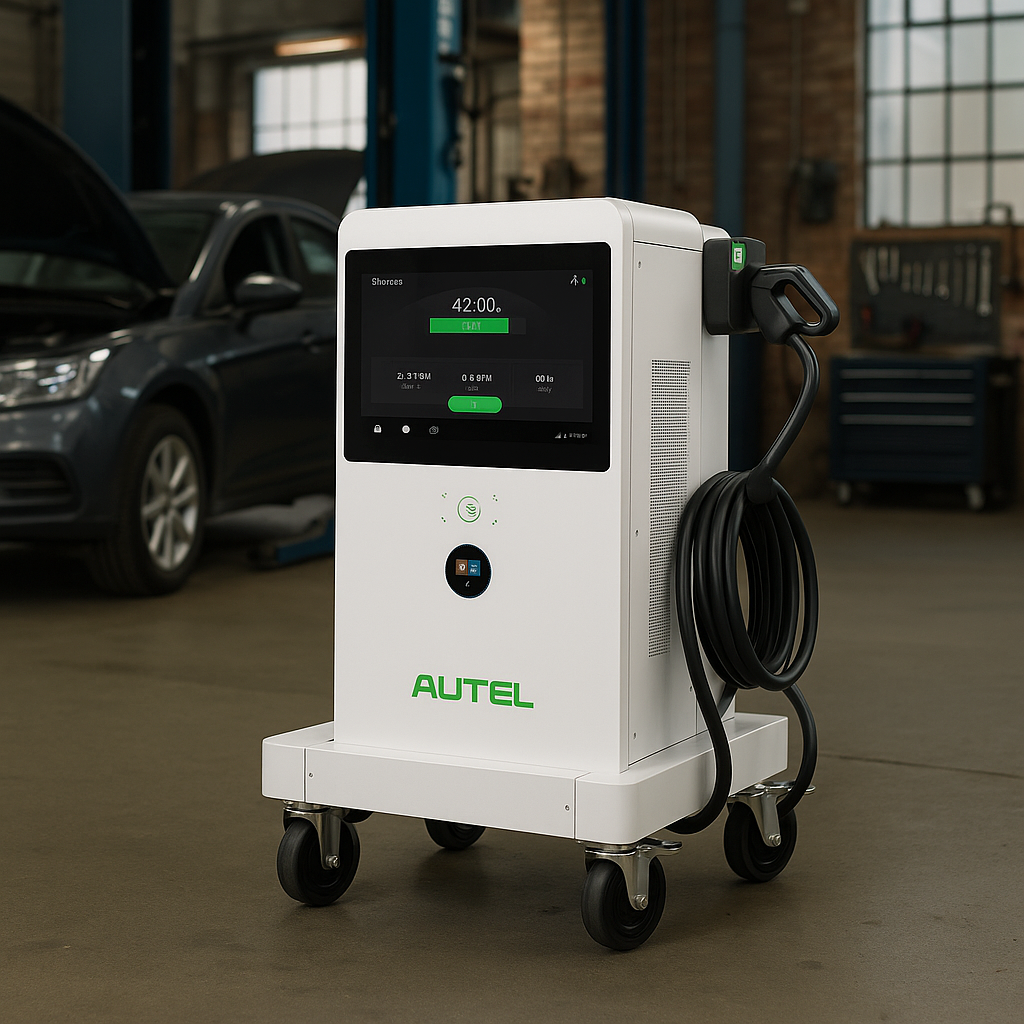

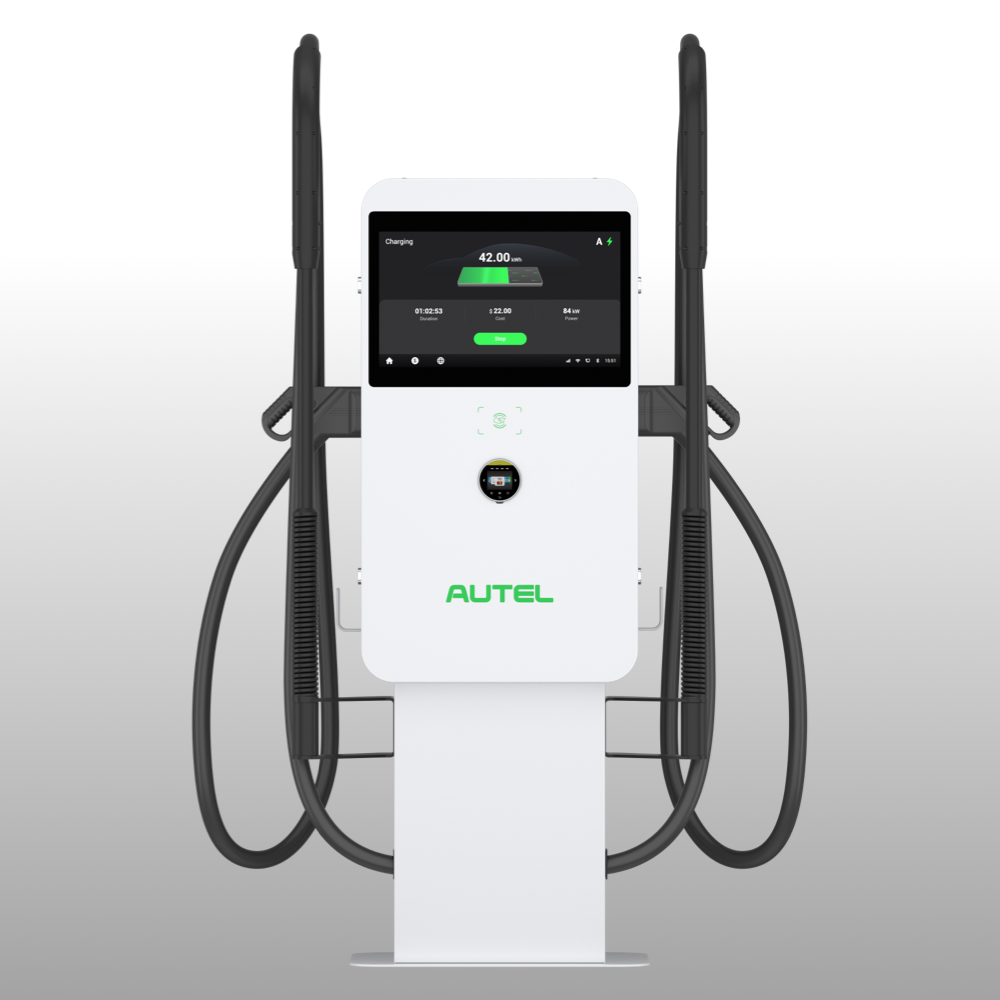

Autel DC Compact
Packed with Industry leading features.
Equipped with dual tethered CCS cables, each measuring 4 metres in length, the Autel MaxiCharger DC Compact provides unparalleled convenience and flexibility, allowing two vehicles to be charged simultaneously.
Its comprehensive protection features, including overcurrent, overvoltage, under-voltage, ground fault, over-temperature, short-circuit, insulation monitor, and surge protection, guarantee the highest level of safety for both users and vehicles. Additionally, it requires an external Residual Current Device (RCD) to enhance operational safety.
The charger is fully compliant with OCPP1.6, facilitating seamless integration with various network management systems. The large 21.5-inch LCD touchscreen offers an intuitive user interface, complemented by advertising display capabilities that can generate additional revenue. Connectivity options such as 4G, WiFi, and Ethernet ensure robust and reliable communication, while the integrated LED light provides easy visibility and status indication.
For user convenience, the Autel MaxiCharger supports secure authorisation through the Autel App and RFID, offering multiple access options. Its sleek white design, crafted from stainless steel 430, not only looks modern but also ensures durability.
The charger is weather-rated at IP54, making it suitable for outdoor installations. CE certified and backed by a 2-year warranty, the Autel MaxiCharger 50kW DC Fast Charger is a reliable and efficient solution for all your EV charging needs.

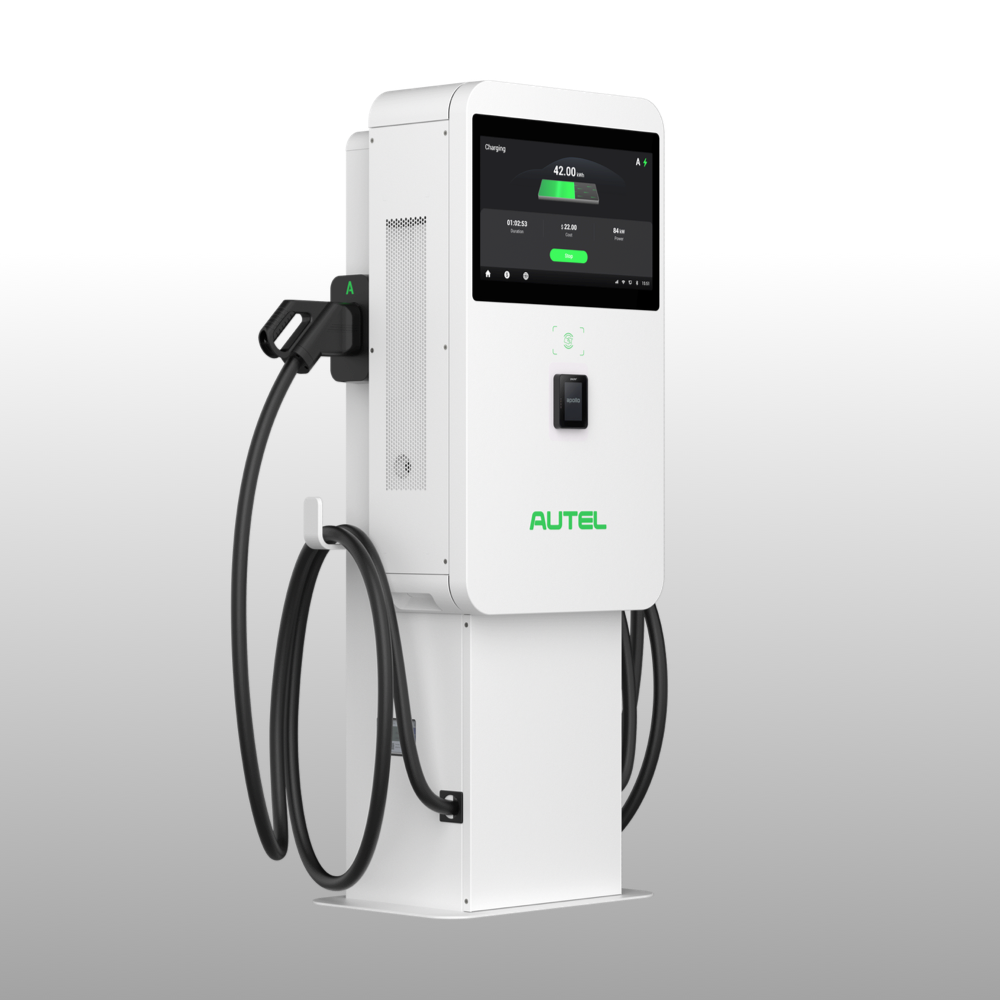

DC Compact is Versatile.
From Workplaces to Workshops and beyond. The DC Compact has a tiny footprint compared to its competitors, making it perfect for every situation.

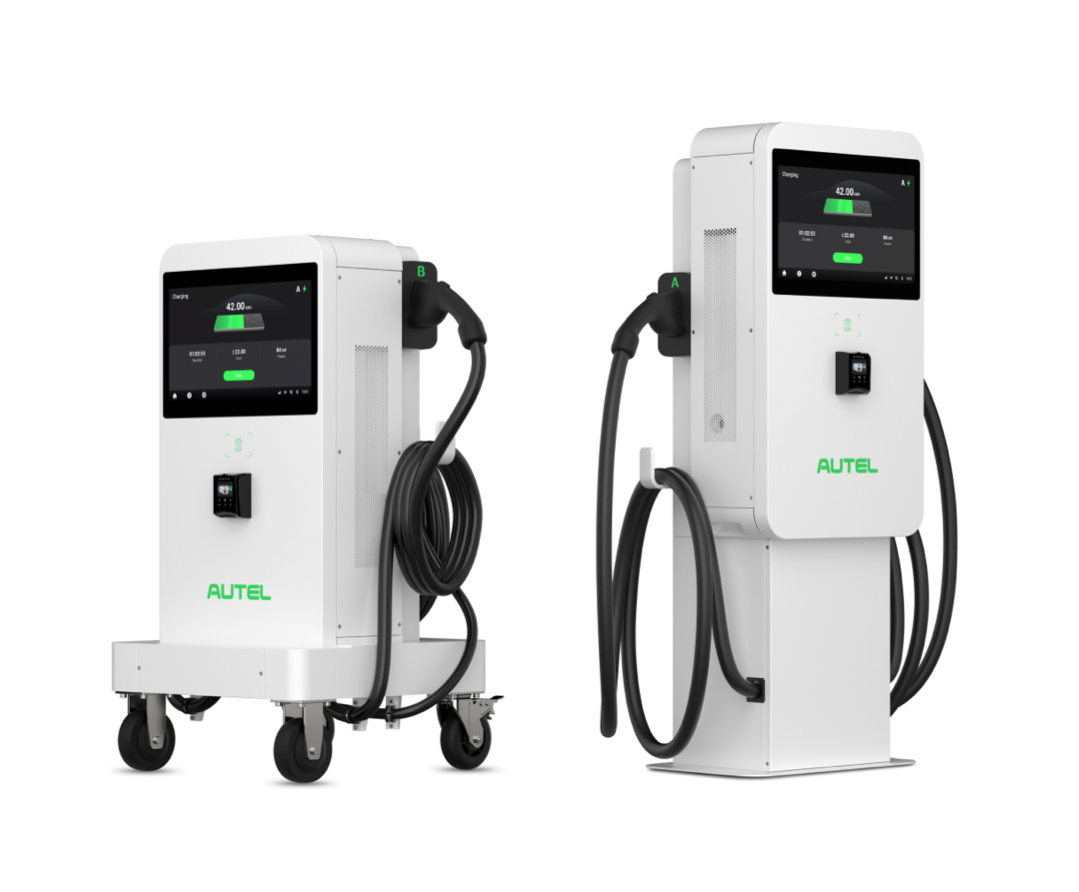

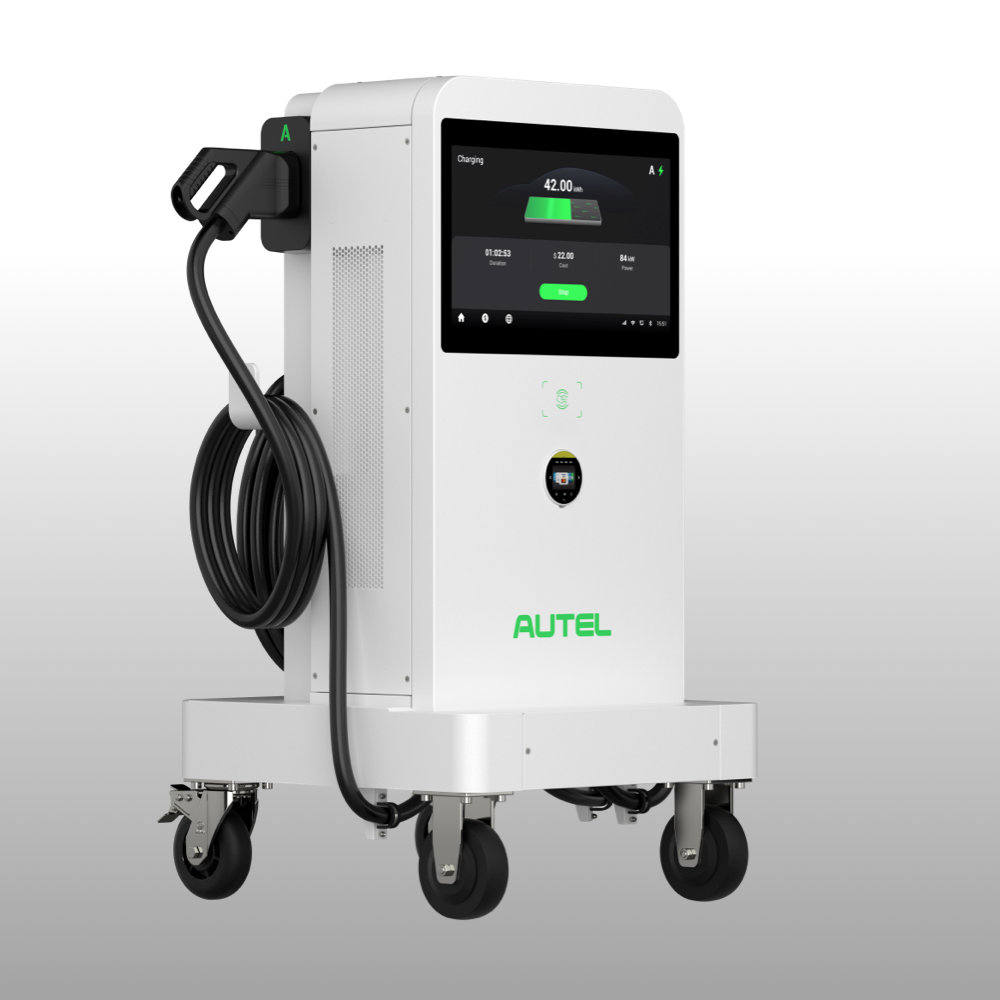

DC Compact is Portable
Choose between pedestal or portable.
Optimised for versatility, the MaxiCharger DC Compact boasts an ultra-compact design that fits seamlessly into any environment.
Its small footprint does not compromise its powerful performance, making it suitable for various locations, from urban settings to rural areas.
Additionally, the trolley version design provides portability, allowing businesses to adapt to changing needs and locations with ease.
Whether mounted on a pedestal or wheels, the DC Compact delivers powerful charging in a sleek, space-saving package.
Built for Every Environment.
The MaxiCharger DC Compact is IP54 and IK10 rated, making it built for the toughest environments, with an operational temperature range of -35℃ to 55℃ / -31℉ to 131℉.
Autel DC Compact Safety
Redefining Industry Standards.
Safety and compliance are paramount with the MaxiCharger DC Compact, which meets IEC 61851 standards and holds CE and EMC Class A certifications.
With an IP54 and IK10 rating, the charger is protected against dust, water, and physical impact, ensuring reliable operation in various environments.
The charger operates efficiently within a temperature range of -35℃ to +55℃ and can be stored between -40℃ and +70℃.
Offering a standard 24-month warranty with the option for extension, the MaxiCharger DC Compact guarantees dependable performance and peace of mind for businesses and users alike.
Additionally, the MaxiCharger DC Compact’s smart advertising and communication platform (as an optional extra) lets you generate advertising revenue.
Featuring a user-friendly 21.5-inch LCD touch screen powered by Android 10, this charger offers enhanced advertising placements that can help attract and engage customers.

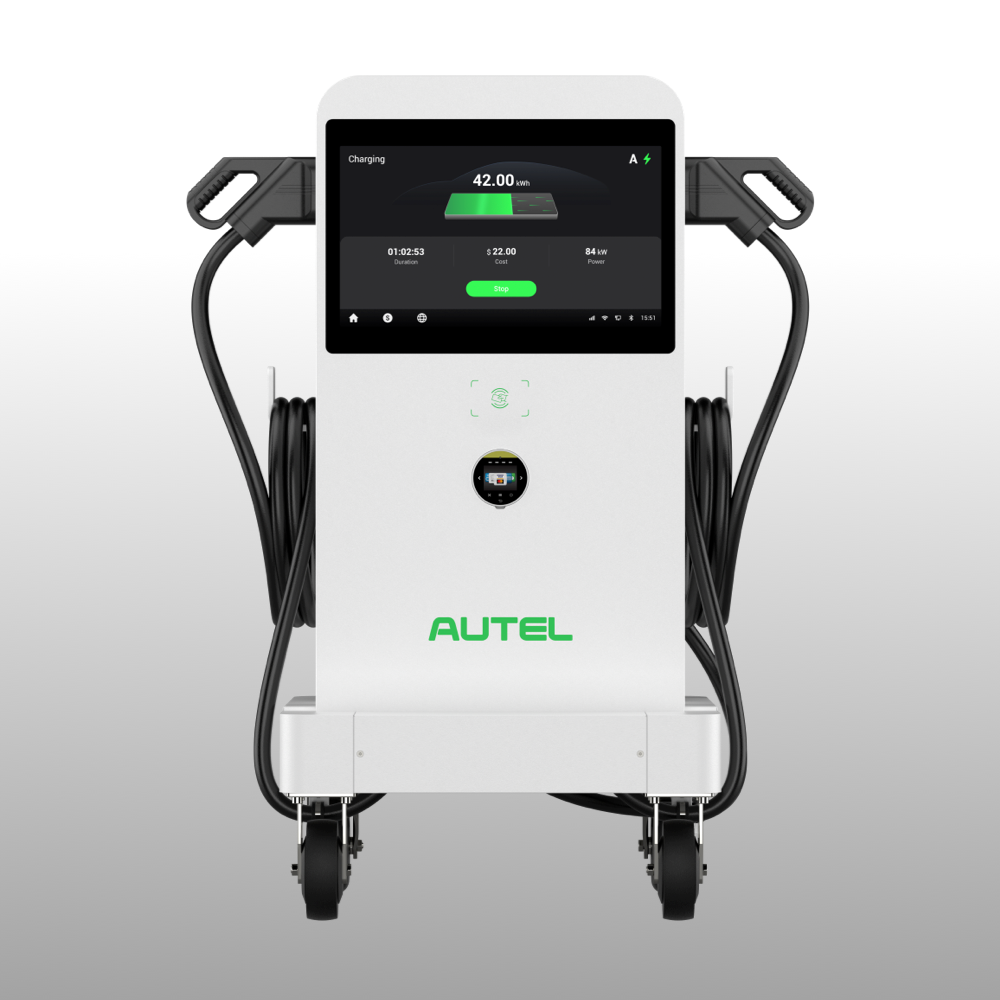

Portable and Powerful.
The MaxiCharger DC Compact is available in a fully portable trolley version, allowing you to move the charger around a busy workshop wherever an electric vehicle needs charging.

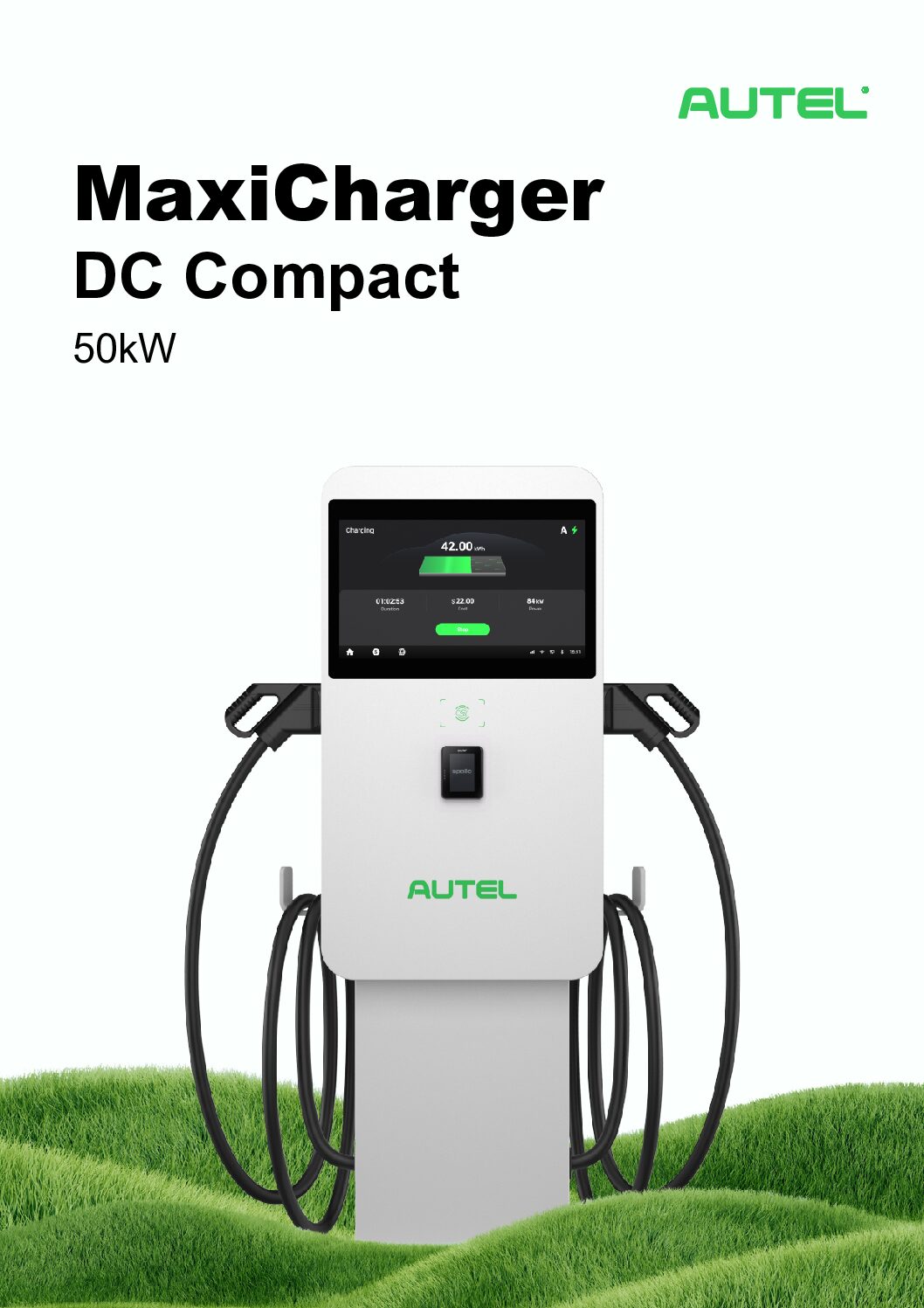

MaxiCharger DC Compact Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- < 2000 m (2000m to 3000m with power de-rating)
- Operating Temperature Range
- -30 °C to +55 °C
- Storage Temperature Range
- -40 °C to +70 °C
- Noise
- ≤ 65 dB(A)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118

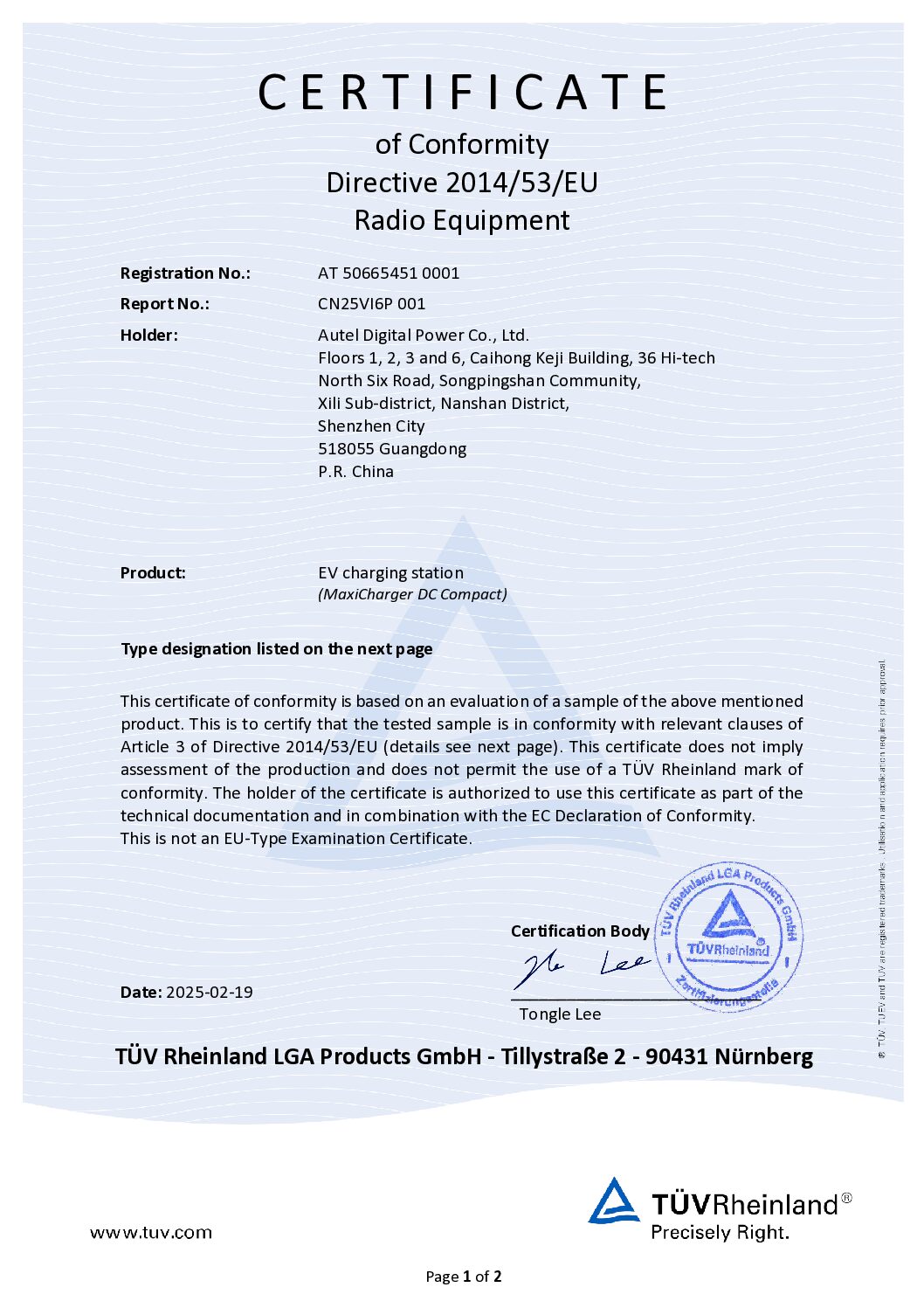

- Certification
- CE
User Interface
- Status Indication
- APP; 21.5-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE; NFC
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 550 x 265 x 1000 mm
- Colour
- White Galvanised Steel
- Connectivity
- Wi-Fil; Ethernet; CAN; RS485; Cellular Network
- Screen Type
- 21.5-inch LCD touchscreen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m (Optional)
- Standby Power
- 40 W
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO 15118, DIN 70121, CHAdeMO 1.2
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- –
- Emergency Button
- No
- Design Life
- –
- Warranty
- 24 months, warranty extension possible
- Weight
- 120 kg
- Mounting
- Pedestal Mounted / Portable Trolley Mounted
- Internal RCD
- –
- Protection
- Overcurrent, overvoltage, under-voltage, ground fault, over-temperature, short circuit, insulation monitor, surge protection
Output
- Output Power
- 50kW
- Minimum Adjustable Power
- 22 kW
- Output Voltage
- 150 to 950V
- Output Current
- Uncooled Cable: 380A (Max. 500A);
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 3-phase 400V AC ±10%
- Input Frequency
- 50/60 Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT (Requires external RCD)
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
< 2000 m (2000m to 3000m with power de-rating) | 2000m | 2000m |
Operating Temperature Range
|
-30 °C to +55 °C | -35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ |
Storage Temperature Range
|
-40 °C to +70 °C | -40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ |
Noise
|
≤ 65 dB(A) | ≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) |
EMC Compliance
|
EMC Class A | EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118 | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht |
Certification
|
CE | CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV |
|
User Interface
|
|||
|
Status Indication
|
APP; 21.5-inch LCD touchscreen; MaxiCloud Patform | APP; 27-inch LCD touchscreen; MaxiCloud Patform | APP; 21.5-inch LCD touchscreen; MaxiCloud Patform |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo |
RFID Protocols
|
ISO 14443 A/B; ISO/IEC 15693; MIFARE; NFC | ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE |
Payment Terminal
|
AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
Cable management System
|
Standard | Standard | Standard |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
550 x 265 x 1000 mm | 782mm x 480mm x 2150mm | 782mm x 782mm x 2287mm |
Colour
|
White Galvanised Steel | White Galvanised Steel | White Galvanised Steel |
Connectivity
|
Wi-Fil; Ethernet; CAN; RS485; Cellular Network | Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet |
Screen Type
|
21.5-inch LCD touchscreen | 27 inch LCD Touch Screen | 15.6 inch LCD Touch Screen (1920*1080) |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) | Mode 4 (DC) |
Cable Length
|
5m; 7.5m (Optional) | 5m; 7.5m(Optional) | 5m; 7.5m(Optional) |
Standby Power
|
40 W | < 85W | < 85W |
Enclosure Rating
|
IP54/IK10 | IP54/IK10 | IP54/IK10 |
Communication to the EV
|
ISO 15118, DIN 70121, CHAdeMO 1.2 | ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Accessibility
|
Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface |
Emergency Button
|
No | Yes | Yes |
Design Life
|
10 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible | 24 months, warranty extension possible |
Weight
|
120 kg | 630 kg | 880 kg |
Mounting
|
Pedestal Mounted / Portable Trolley Mounted | Floor Standing | Floor Standing |
Protection
|
Overcurrent, overvoltage, under-voltage, ground fault, over-temperature, short circuit, insulation monitor, surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
|||
|
Output Power
|
50kW | 80kW; 120kW; 160kW; 200kW; 240kW | 240kW; 280kW; 320kW; 360kW; 400kW; 440kW; 480kW |
Minimum Adjustable Power
|
22 kW | 40 kW | 40 kW |
Output Voltage
|
150 to 950V | 150-1000V | 150-1000v |
Output Current
|
Uncooled Cable: 380A (Max. 500A); | Uncooled Cable: 380A (Max. 500A) | Liquid-cooled Cable: 500A (Max. 650A); Uncooled Cable: 380A (Max. 500A) |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
2 | 2 | 2 |
Charging Mode
|
2*CCS2 | 2*CCS2 | 2*CCS2 |
Supply Configuration
|
3P + N + PE | 3P+PE | 3P+PE |
|
Input
|
|||
|
Input Voltage
|
3-phase 400V AC ±10% | 3-phase 400V AC ±10% | 3-phase 400V AC ±10% (2 Routes) |
Input Frequency
|
50/60 Hz | 50Hz/60Hz | 50Hz/60Hz |
Earthing System
|
TN-S; TN-C; TN-C-S; TT (Requires external RCD) | TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT |
Power Factor
|
≥0.99 | ≥0.99 | ≥ 0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
