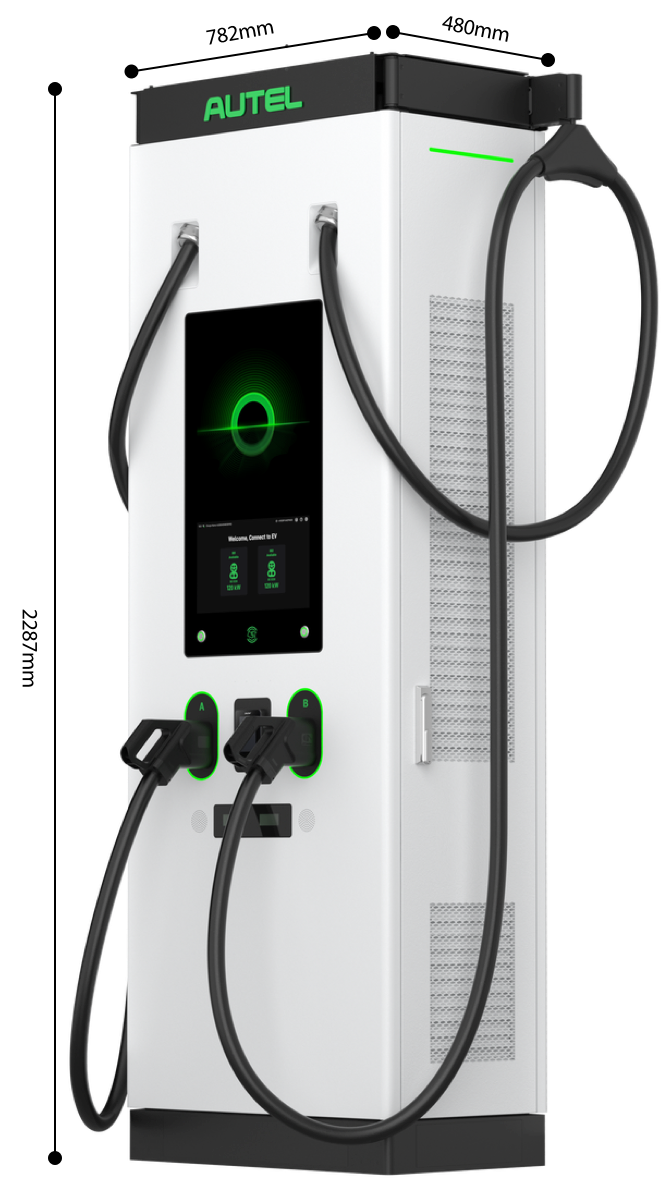

Autel MaxiCharger DH240.
The Autel MaxiCharger DH240 is a next-generation DC fast charging solution engineered for high-traffic commercial sites, fleets, and public charging networks. Delivering up to 240 kW of power, it can recharge compatible EVs to 80% in minutes, adding up to 62 miles of range in just 5 minutes with optional 400 A boost cables.
Autel MaxiCharger DH240.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The DH240 is built for flexibility, supporting multiple connector configurations to serve a wide variety of electric vehicles. With its 27-inch high-resolution touchscreen, intuitive user interface, and ISO 15118 Plug & Charge capability, it offers drivers a seamless, hassle-free charging experience while giving operators a powerful, scalable platform.
Power
POS
- Manufacturer
- Autel
- Model
- DH240
- Colour
- Ice White
- Warranty
- 24 months – extension available

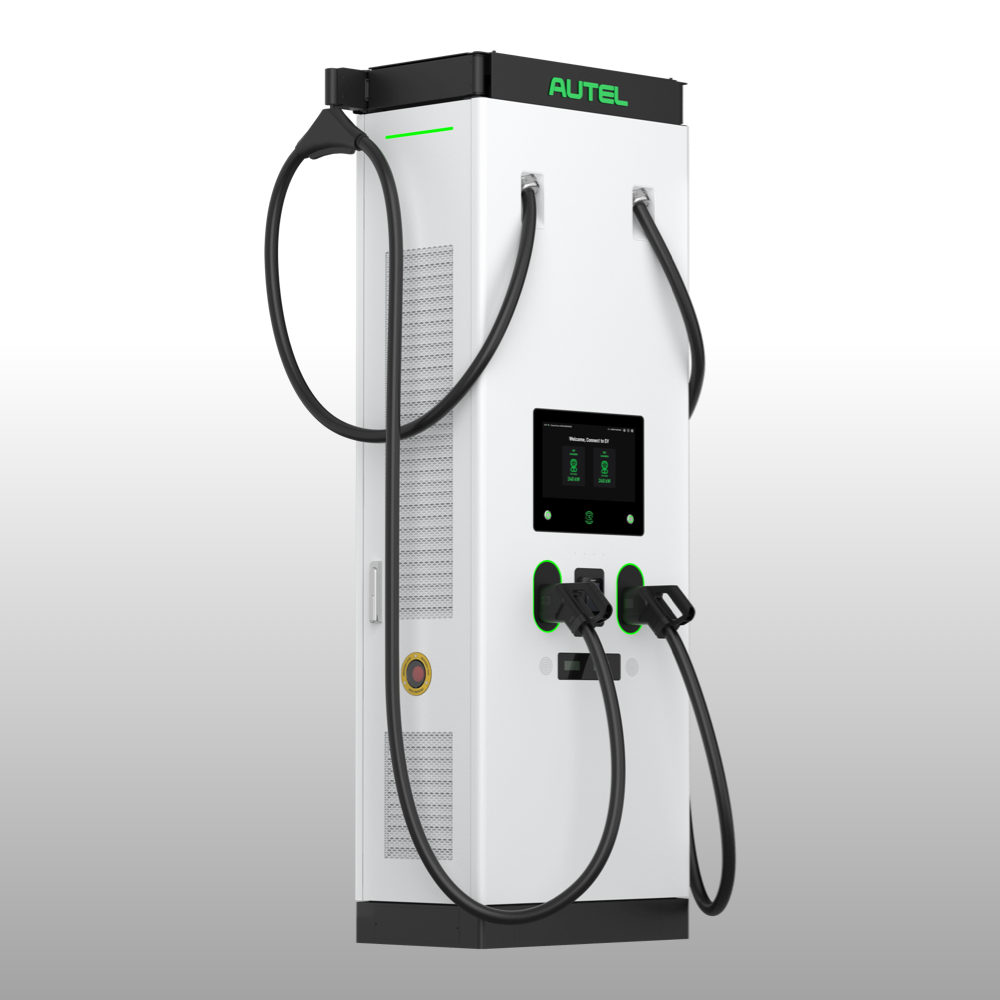

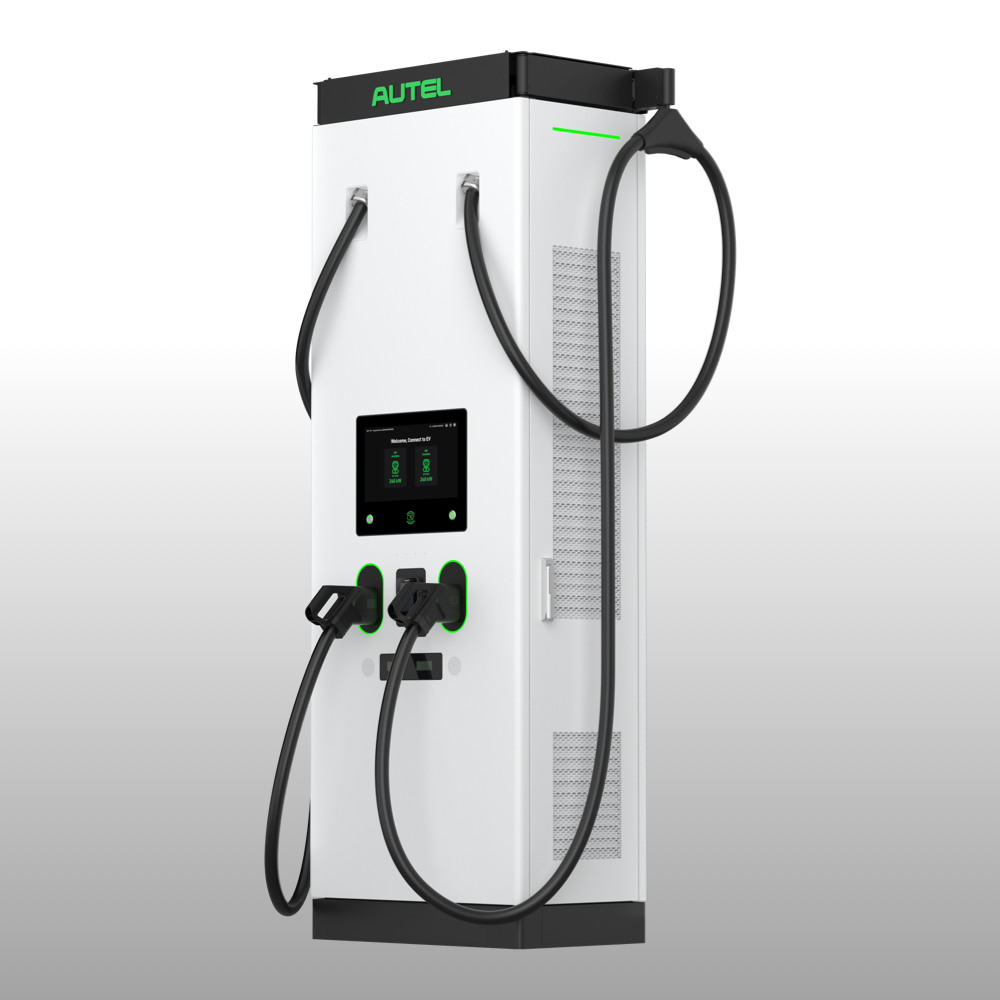

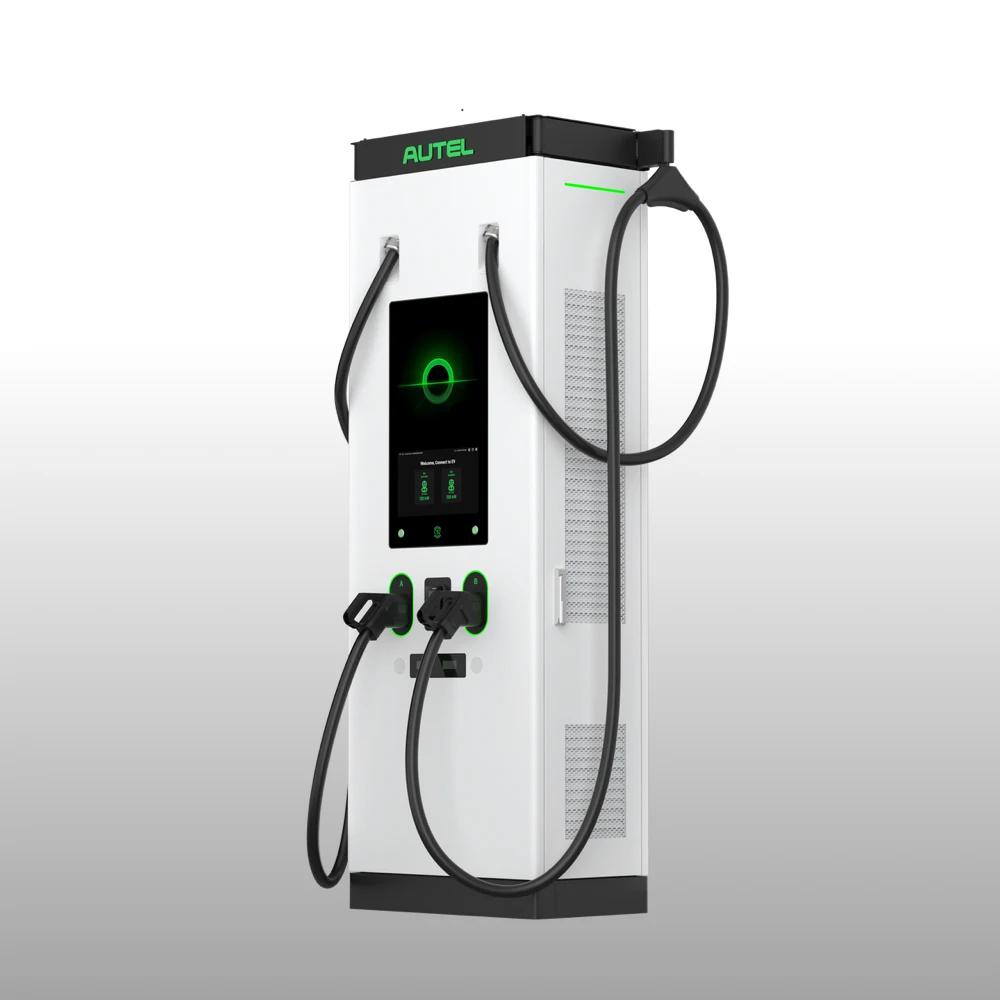

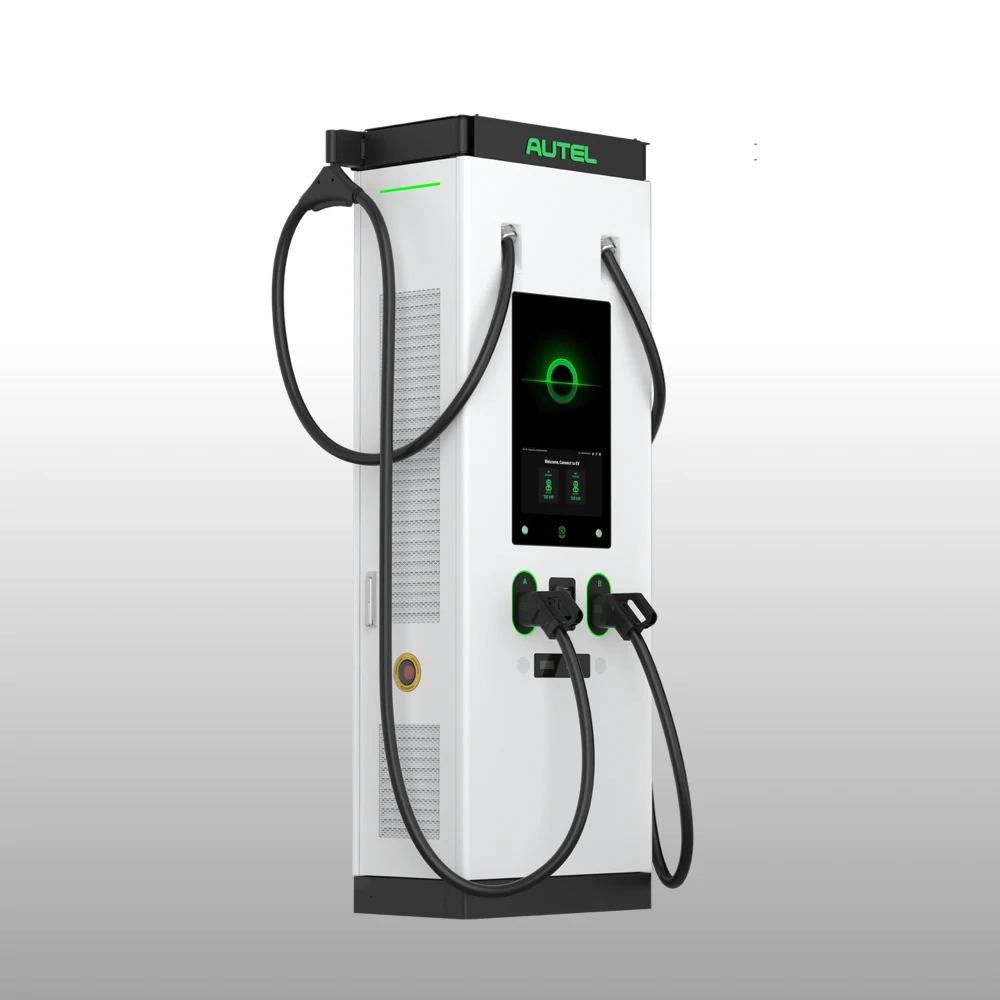

Image Gallery
MaxiCharger DH240 Features.
The Autel MaxiCharger DH240 delivers an elite charging experience by combining up to 240kW of power with a large 27-inch touchscreen.
- Ultra-Fast DC Charging
-
Delivers up to 240 kW of power, enabling rapid EV charging and minimising wait times for drivers.
- ISO 15118 Plug & Charge
-
Allows for seamless vehicle authentication and payment without the need for cards or apps.
- 27-Inch Interactive Touchscreen
-
Large, high-resolution display provides an intuitive interface for easy operation, branding, and instructional content.
- Dynamic Load Balancing
-
Automatically distributes available power between connected vehicles to optimise efficiency and reduce costs.
- OCPP Compliance
-
Fully compatible with the Open Charge Point Protocol (OCPP) for integration with multiple network operators.
- Remote Monitoring & Diagnostics
-
Enables operators to track performance, troubleshoot issues, and perform updates without onsite visits.
- Weather-Resistant Design
-
Built with a NEMA 3R-rated enclosure, ensuring durability and reliable operation in diverse climates.
- Safety-Certified Construction
-
UL and CSA certifications guarantee adherence to stringent safety and performance standards.
- High-Power Boost Cables
-
Optional 400 A liquid-cooled cables deliver extra-fast charging for high-demand EVs.
- Modular Power System
-
Designed with scalable 40 kW power modules, making it easy to upgrade or service in the future.
- Rugged Outdoor Performance
-
Engineered to operate in challenging environments, from extreme heat to freezing temperatures, with minimal maintenance.
Autel MaxiCharger DH480

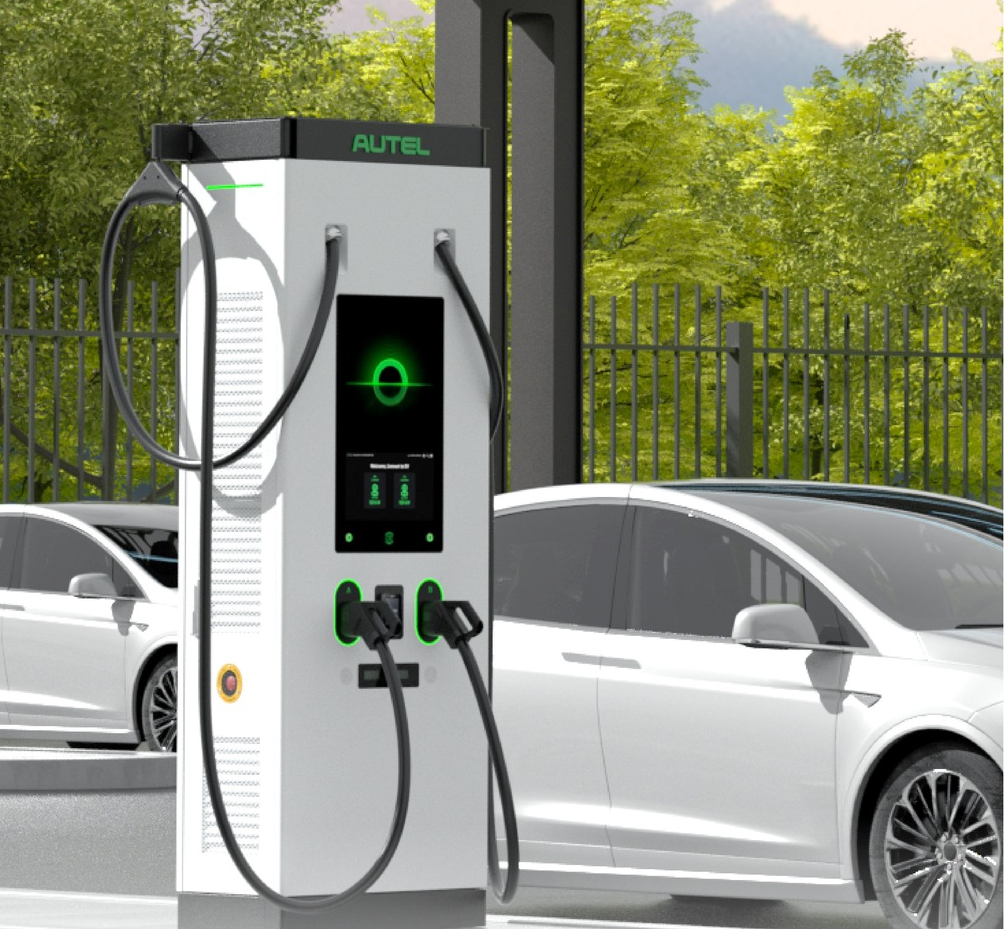

Unmatched Power and Charging Performance.
Designed for reliability and long-term performance, the MaxiCharger DH240 features dynamic load balancing to optimise energy usage across multiple stations, OCPP compliance for easy network integration, and remote diagnostics for minimal downtime. Its NEMA 3R-rated, weather-resistant enclosure ensures dependable operation in all climates, while UL and CSA certifications guarantee safety and compliance.
Whether installed at a busy service plaza, a retail parking lot, or a fleet depot, the DH240 combines speed, durability, and intelligence to keep vehicles moving and businesses growing.
Reliable Performance.
The MaxiCharger DH240 operates at a whisper-quiet level below 55 dB and delivers a robust lifespan of over 10 years with minimal maintenance.
Autel MaxiCharger Dh240
Dual Connectivity & Cable Management.
The DH240 can achieve an online rate of 99.9% with dual backup networks (WiFi and Wi-SUN) and 5G/4G connectivity, ensuring seamless communication and uninterrupted charging even in low or no network conditions.
The DH Series Cable Management System offers flexible swing-arm options for effortless cable management, enhanced usability, extended cable lifespan, and optimised space utilisation for a reliable charging experience.
Built for Every Environment.
Utilising EcoCool Airflow technology to enhance cooling efficiency, coupled with its heat dissipation structure and die-cast process, the Autel DH240 ensures stable high-temperature performance.

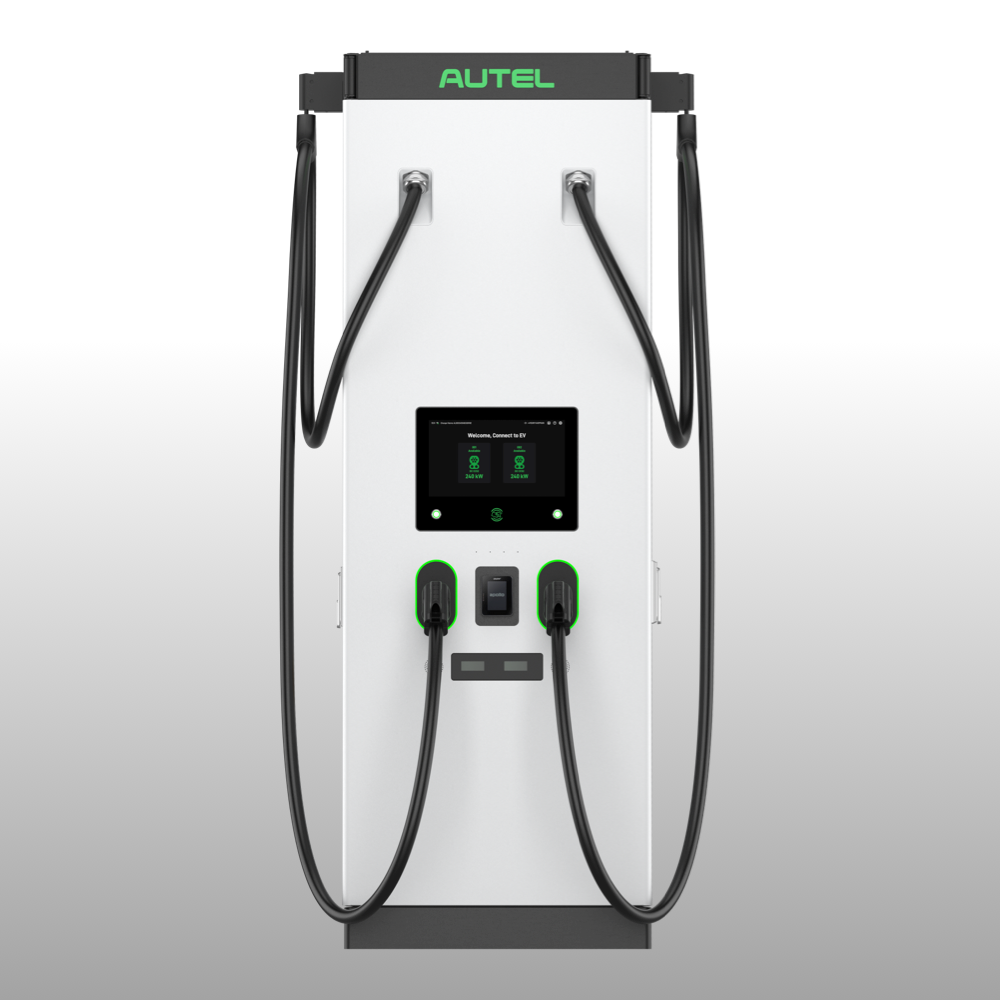

Autel MaxiCharger DH240
Scalable Power Meets Modular Architecture.
The MaxiCharger DH240 & DH480 are built on a scalable power output range of 120kW to 480kW, delivered in an all-in-one platform. This platform features intelligent matrix scheduling and 40kW granularity for flexible power adjustments, enabling rapid upgrades and minimising reinvestment.
This integrated modular design and charging control modules reduce failure rates and achieve over 98% uptime, supported by a modular architecture of industry-leading craftsmanship, enabling maintenance within 5 minutes per person for efficient charging.
MaxiCharger DH240 Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 27-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 782mm x 480mm x 2150mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 27 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- < 85W
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 630 kg
- Mounting
- Floor Standing
- Internal RCD
- –
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 80kW; 120kW; 160kW; 200kW; 240kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000V
- Output Current
- Uncooled Cable: 380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10%
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%

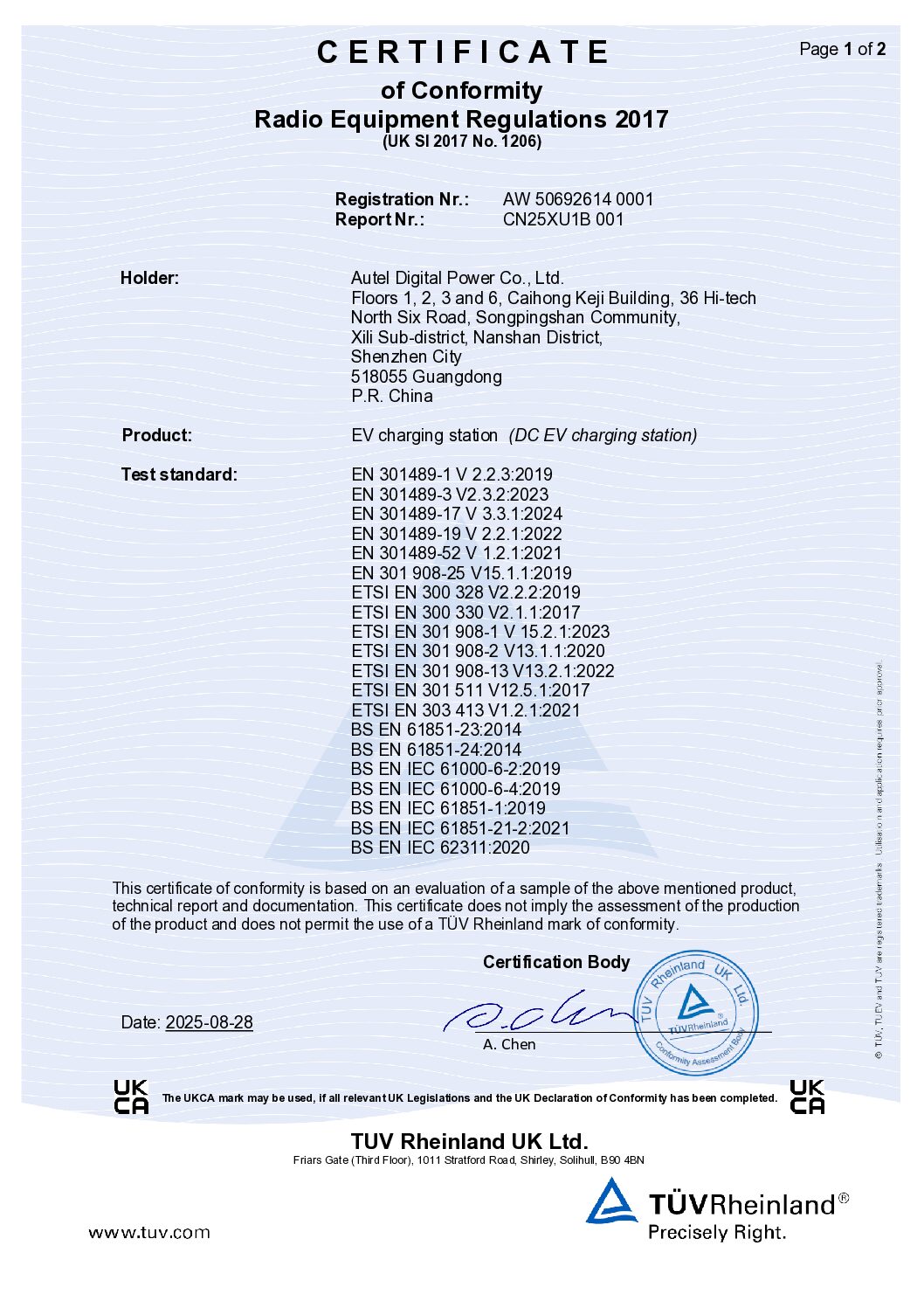

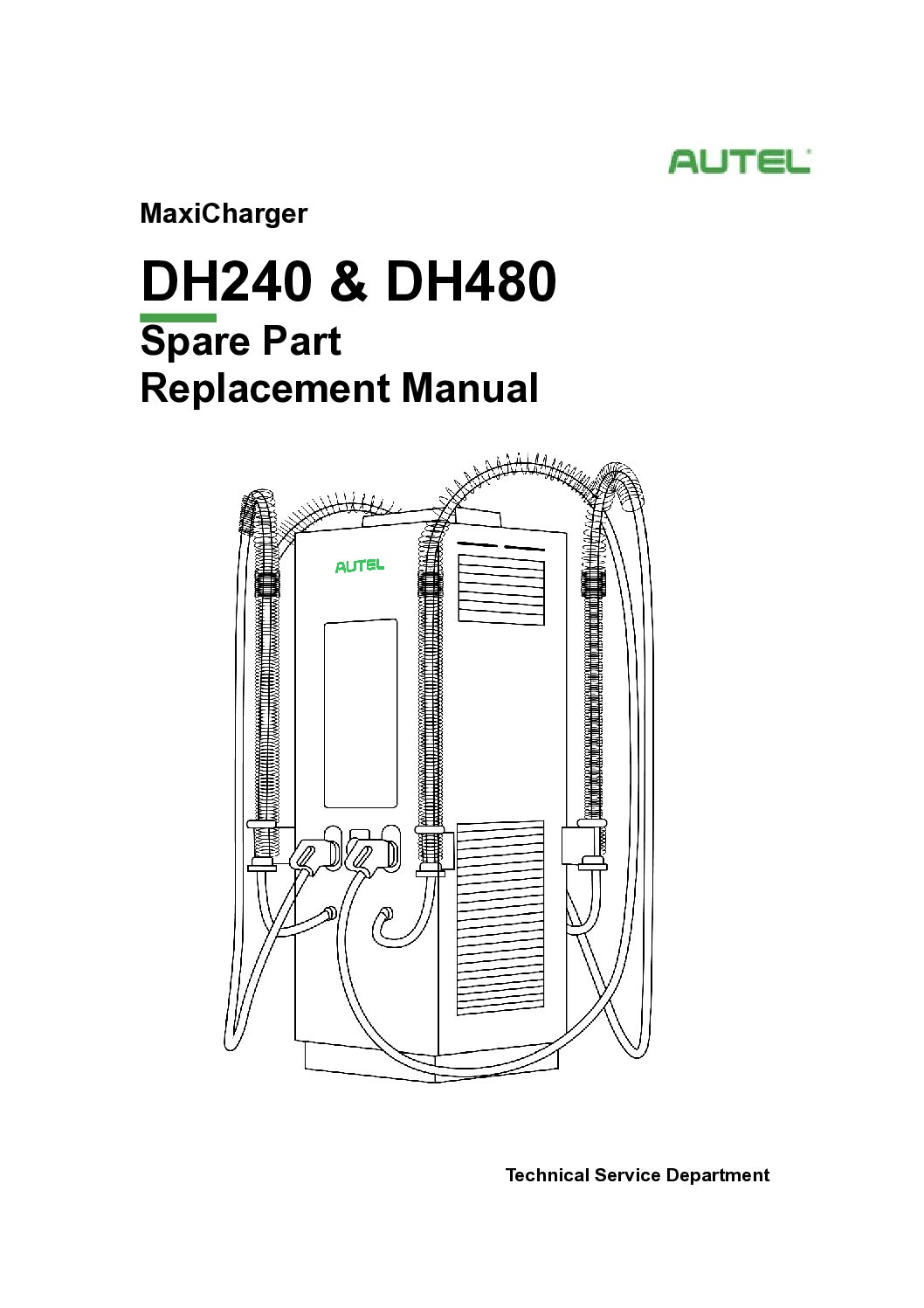

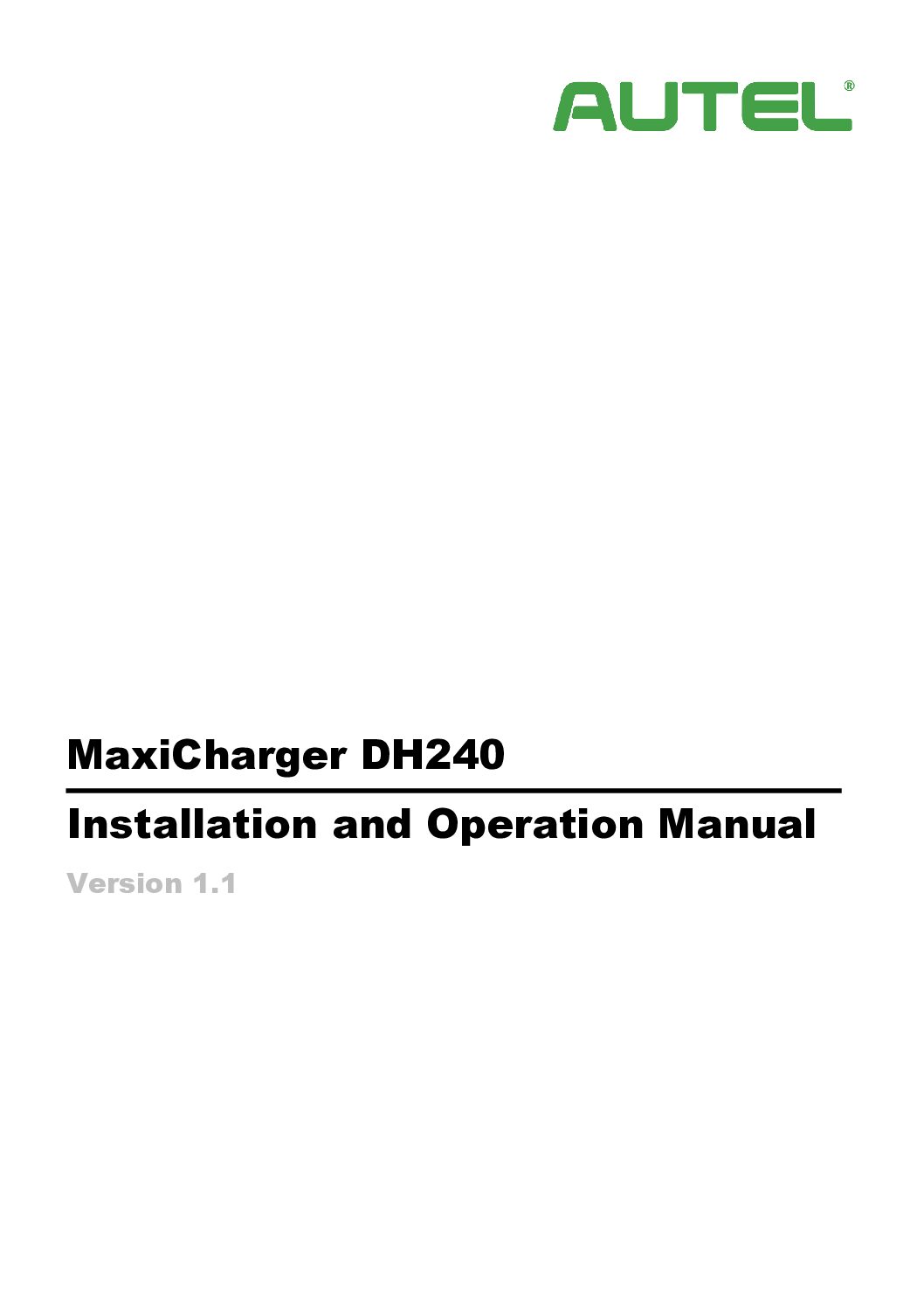

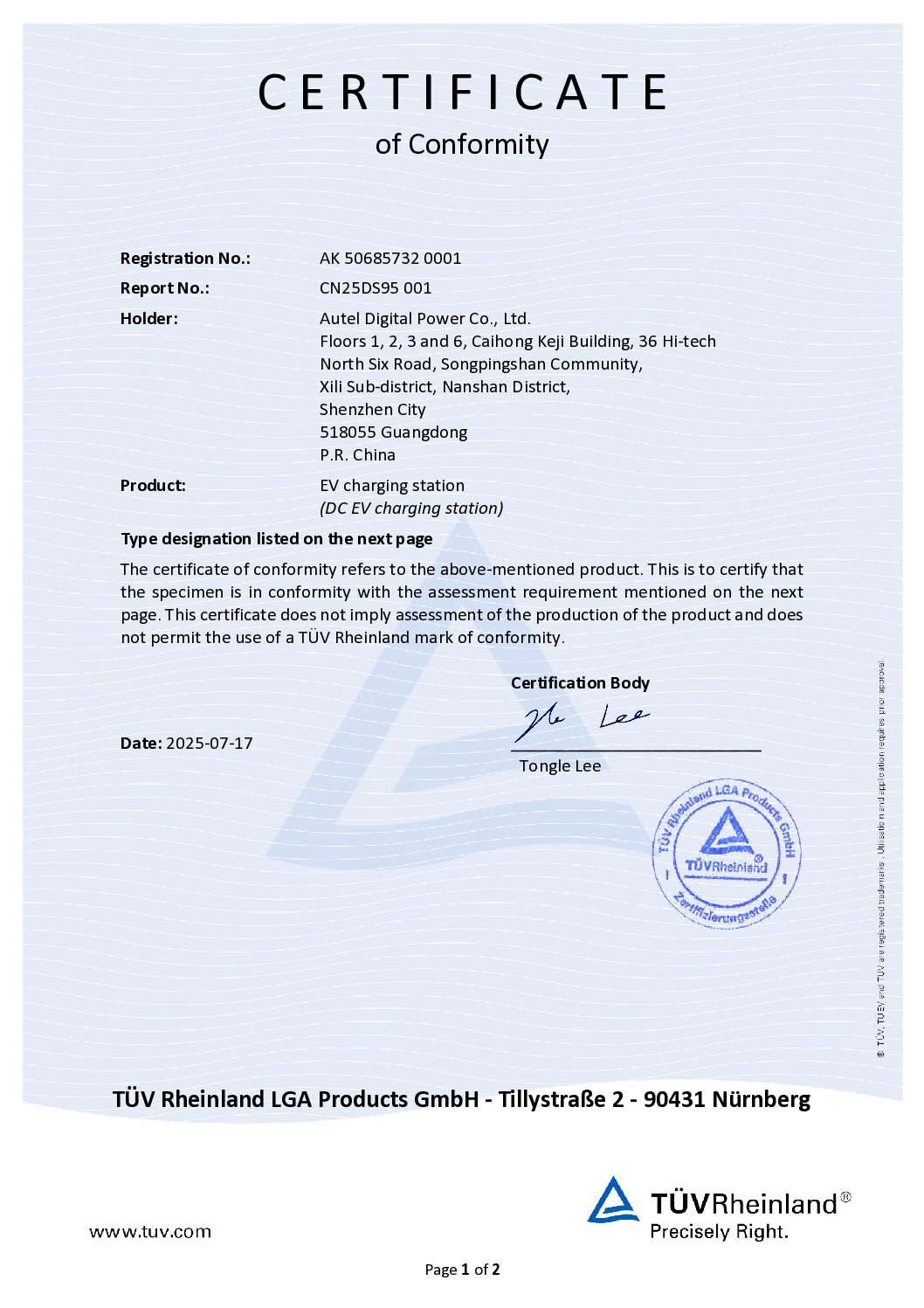

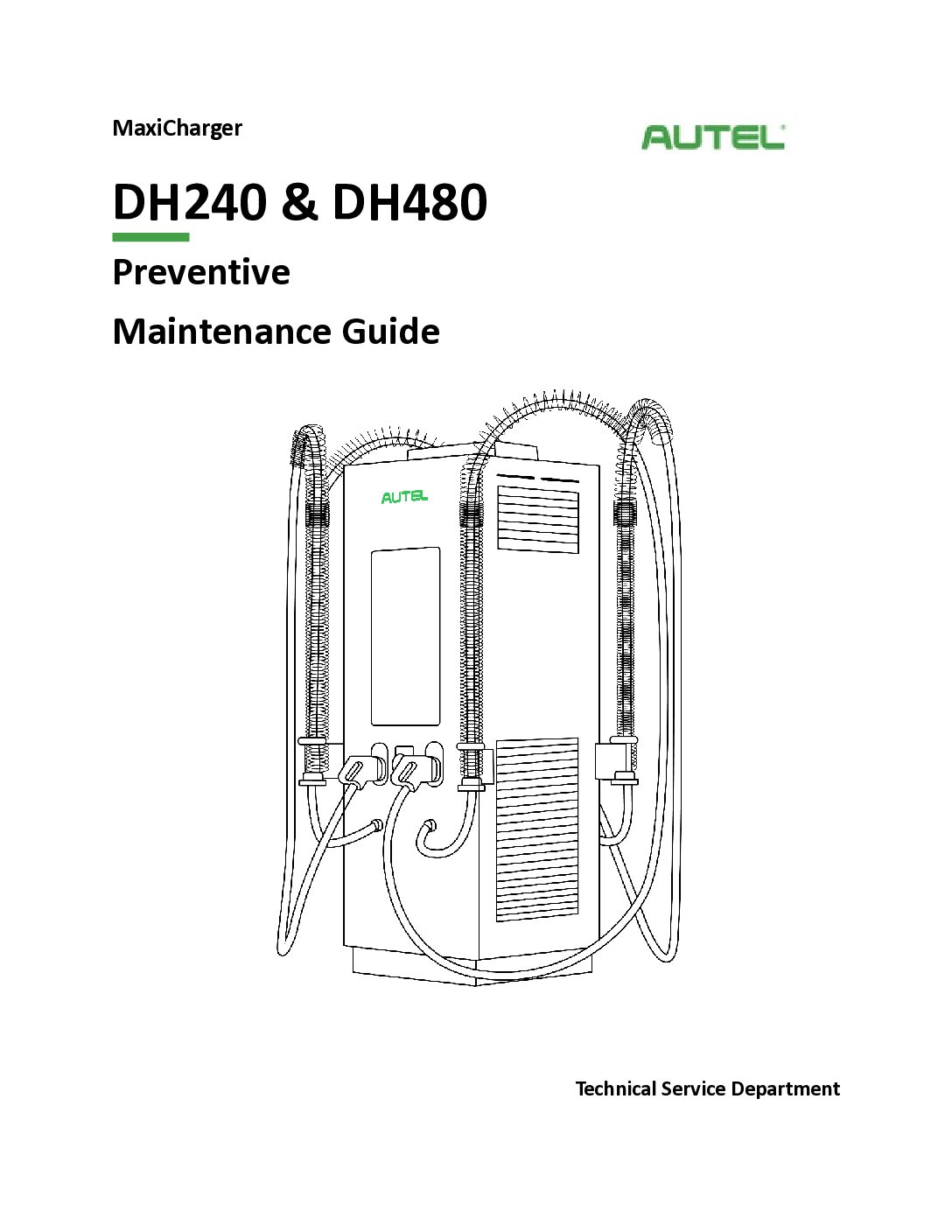

Manuals and Datasheets
Autel MaxiCloud
One-Stop MaxiCloud Platform Management.
The Autel MaxiCloud Cloud supports OCPP 1.6 & 2.0, giving site hosts complete control and visibility across their entire charging network. Through our cloud platform, operators can efficiently manage energy costs, optimise revenue, oversee media assets, and much more.
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
< 2000 m (2000m to 3000m with power de-rating) | 2000m | 2000m |
Operating Temperature Range
|
-30 °C to +55 °C | -35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ |
Storage Temperature Range
|
-40 °C to +70 °C | -40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ |
Noise
|
≤ 65 dB(A) | ≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) |
EMC Compliance
|
EMC Class A | EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118 | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht |
Certification
|
CE | CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV |
|
User Interface
|
|||
|
Status Indication
|
APP; 21.5-inch LCD touchscreen; MaxiCloud Patform | APP; 27-inch LCD touchscreen; MaxiCloud Patform | APP; 21.5-inch LCD touchscreen; MaxiCloud Patform |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo |
RFID Protocols
|
ISO 14443 A/B; ISO/IEC 15693; MIFARE; NFC | ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE |
Payment Terminal
|
AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
Cable management System
|
Standard | Standard | Standard |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
550 x 265 x 1000 mm | 782mm x 480mm x 2150mm | 782mm x 782mm x 2287mm |
Colour
|
White Galvanised Steel | White Galvanised Steel | White Galvanised Steel |
Connectivity
|
Wi-Fil; Ethernet; CAN; RS485; Cellular Network | Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet |
Screen Type
|
21.5-inch LCD touchscreen | 27 inch LCD Touch Screen | 15.6 inch LCD Touch Screen (1920*1080) |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) | Mode 4 (DC) |
Cable Length
|
5m; 7.5m (Optional) | 5m; 7.5m(Optional) | 5m; 7.5m(Optional) |
Standby Power
|
40 W | < 85W | < 85W |
Enclosure Rating
|
IP54/IK10 | IP54/IK10 | IP54/IK10 |
Communication to the EV
|
ISO 15118, DIN 70121, CHAdeMO 1.2 | ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Accessibility
|
Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface |
Emergency Button
|
No | Yes | Yes |
Design Life
|
10 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible | 24 months, warranty extension possible |
Weight
|
120 kg | 630 kg | 880 kg |
Mounting
|
Pedestal Mounted / Portable Trolley Mounted | Floor Standing | Floor Standing |
Protection
|
Overcurrent, overvoltage, under-voltage, ground fault, over-temperature, short circuit, insulation monitor, surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
|||
|
Output Power
|
50kW | 80kW; 120kW; 160kW; 200kW; 240kW | 240kW; 280kW; 320kW; 360kW; 400kW; 440kW; 480kW |
Minimum Adjustable Power
|
22 kW | 40 kW | 40 kW |
Output Voltage
|
150 to 950V | 150-1000V | 150-1000v |
Output Current
|
Uncooled Cable: 380A (Max. 500A); | Uncooled Cable: 380A (Max. 500A) | Liquid-cooled Cable: 500A (Max. 650A); Uncooled Cable: 380A (Max. 500A) |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
2 | 2 | 2 |
Charging Mode
|
2*CCS2 | 2*CCS2 | 2*CCS2 |
Supply Configuration
|
3P + N + PE | 3P+PE | 3P+PE |
|
Input
|
|||
|
Input Voltage
|
3-phase 400V AC ±10% | 3-phase 400V AC ±10% | 3-phase 400V AC ±10% (2 Routes) |
Input Frequency
|
50/60 Hz | 50Hz/60Hz | 50Hz/60Hz |
Earthing System
|
TN-S; TN-C; TN-C-S; TT (Requires external RCD) | TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT |
Power Factor
|
≥0.99 | ≥0.99 | ≥ 0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
MaxiCharger DC Compact
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- < 2000 m (2000m to 3000m with power de-rating)
- Operating Temperature Range
- -30 °C to +55 °C
- Storage Temperature Range
- -40 °C to +70 °C
- Noise
- ≤ 65 dB(A)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
- Certification
- CE
User Interface
- Status Indication
- APP; 21.5-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE; NFC
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 550 x 265 x 1000 mm
- Colour
- White Galvanised Steel
- Connectivity
- Wi-Fil; Ethernet; CAN; RS485; Cellular Network
- Screen Type
- 21.5-inch LCD touchscreen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m (Optional)
- Standby Power
- 40 W
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO 15118, DIN 70121, CHAdeMO 1.2
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- No
- Warranty
- 24 months, warranty extension possible
- Weight
- 120 kg
- Mounting
- Pedestal Mounted / Portable Trolley Mounted
- Protection
- Overcurrent, overvoltage, under-voltage, ground fault, over-temperature, short circuit, insulation monitor, surge protection
Output
- Output Power
- 50kW
- Minimum Adjustable Power
- 22 kW
- Output Voltage
- 150 to 950V
- Output Current
- Uncooled Cable: 380A (Max. 500A);
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P + N + PE
Input
- Input Voltage
- 3-phase 400V AC ±10%
- Input Frequency
- 50/60 Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT (Requires external RCD)
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DH240
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 27-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 782mm x 480mm x 2150mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 27 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- < 85W
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 630 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 80kW; 120kW; 160kW; 200kW; 240kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000V
- Output Current
- Uncooled Cable: 380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10%
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DH480
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 21.5-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 782mm x 782mm x 2287mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 15.6 inch LCD Touch Screen (1920*1080)
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- < 85W
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 880 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 240kW; 280kW; 320kW; 360kW; 400kW; 440kW; 480kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 500A (Max. 650A); Uncooled Cable: 380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
Dynamic Power Sharing
Autel MaxiCloud Digital Load Balancing.
Autel’s Dynamic Load Balancing (DLB) ensures chargers can dynamically share power according to demand. If two vehicles are using the same charger, power output is cut in half for each vehicle, ensuring safe power management for the network. If more than two vehicles are charging, power is shared further among the chargers in use.
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
Contact Us
Speak with an Expert.
Got a Project? Accelerate your EV charging business with Intelli EV - your trusted Autel partner. We deliver tailored charging solutions and the right Autel products to power your success with efficiency, reliability, and innovation.
