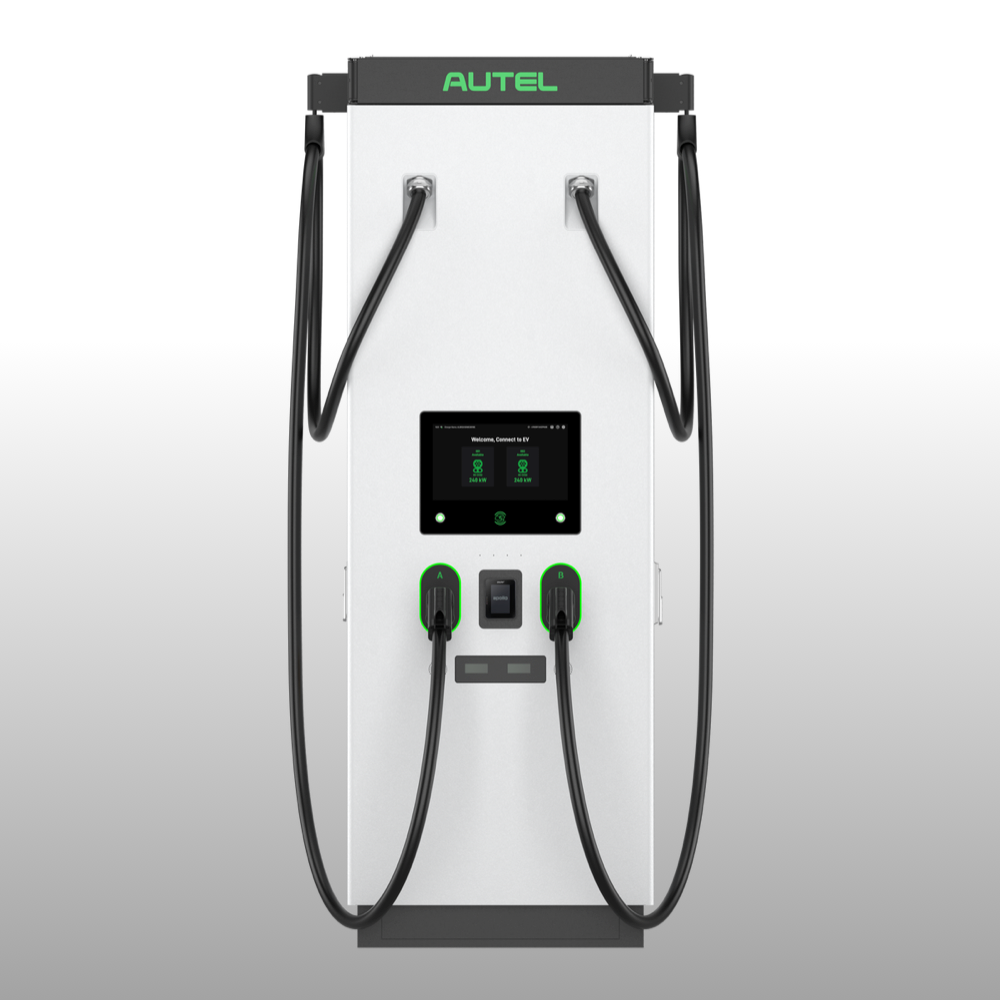

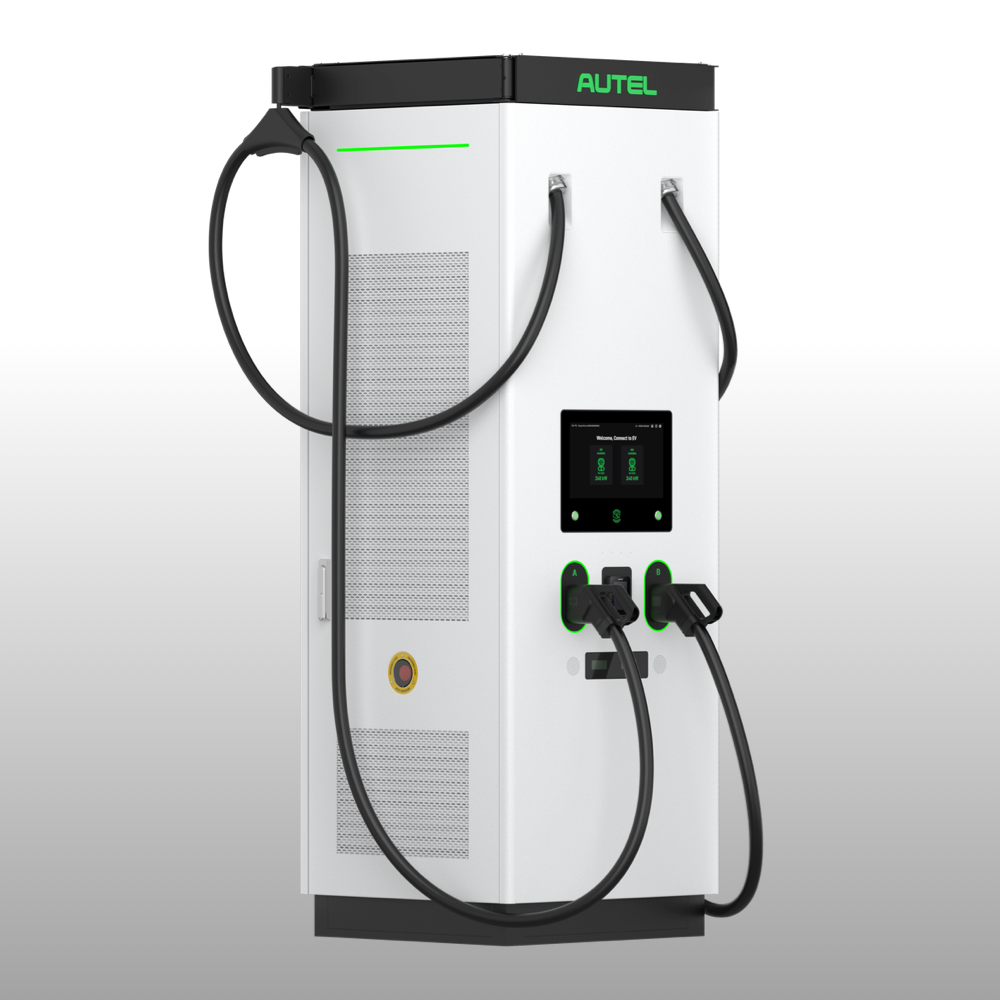

Autel MaxiCharger DH480.
The Autel MaxiCharger DH480 is a powerful all-in-one DC fast charging station, delivering up to 480kW of configurable power with advanced liquid-cooled cables and a user-friendly 15.6-inch touch screen for a seamless, ultra-fast charging experience.
Autel MaxiCharger DH480.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The Autel MaxiCharger DH480 is an all-in-one DC fast charging unit engineered for superior performance and speed. It delivers a formidable, configurable output power ranging from 240kW up to 480kW, making it one of the faster charging solutions available.
The unit supports a broad output voltage of 150-1000V and can charge two vehicles at once via dual CCS2 connectors. To achieve its ultra-fast speeds, the DH480 utilizes an advanced liquid-cooled cable that can handle a current of 500A, with a maximum capacity of 650A. This powerful performance is delivered with a peak efficiency of 96%, ensuring optimal power usage and minimizing energy waste during the charging process.
Power
POS
- Manufacturer
- Autel
- Model
- DH480
- Colour
- Ice White
- Warranty
- 24 months – extension available
Image Gallery
MaxiCharger DH480 Features.
The Autel MaxiCharger DH480 delivers an elite charging experience by combining up to 480kW of liquid-cooled power with a large 15.6-inch touchscreen.
- High-Power DC Charging
-
-
Features a configurable output power ranging from 240kW, up to 480kW.
-
Supports a wide DC output voltage of 150-1000V to accommodate a variety of electric vehicles.
-
- Advanced Cable System
-
- Utilises a optional liquid-cooled cable system to deliver a continuous current of 500A and a peak current of 650A.
- Includes a standard cable management system to ensure cables are stored safely and conveniently.
- Dual Vehicle Charging
-
-
Equipped with two charging outputs to service multiple vehicles.
-
Comes with two CCS2 connectors as its charging mode.
-
- Intuitive User Interface
-
-
Features a large 15.6-inch LCD touch screen with a 1920×1080 resolution.
-
Supports multiple languages including English, French, Spanish, German, and Italian, with others available via software updates.
-
- Flexible Authentication & Payment
-
- Offers a wide array of user authentication methods, including AutoCharge, Plug & Charge, APP, RFID card, and QR code.
- Can be equipped with optional credit card readers from providers such as Payter Apollo and Worldline.
- Robust Connectivity
-
-
Ensures a reliable network connection with Double SIM 4G, 5G, Wi-Fi, and Ethernet capabilities.
-
Supports Over-the-Air (OTA) software updates via a web portal to keep the system current.
-
- Durable All-Weather Design
-
-
Features an IP54 enclosure rating for protection against environmental elements.
-
Built with a high impact resistance rating of IK10, making it suitable for public spaces.
-
- Wide Operational Range
-
-
Designed to operate reliably in a broad temperature range from -35°C to 55°C.
-
Can be installed at high altitudes, with a certified operating altitude of up to 2000m.
-
- Certified and Compliant
-
-
Adheres to key safety and compliance standards, including IEC 61851-1 and Eichrecht.
-
Holds major certifications such as CE, UKCA, and TÜV.
-

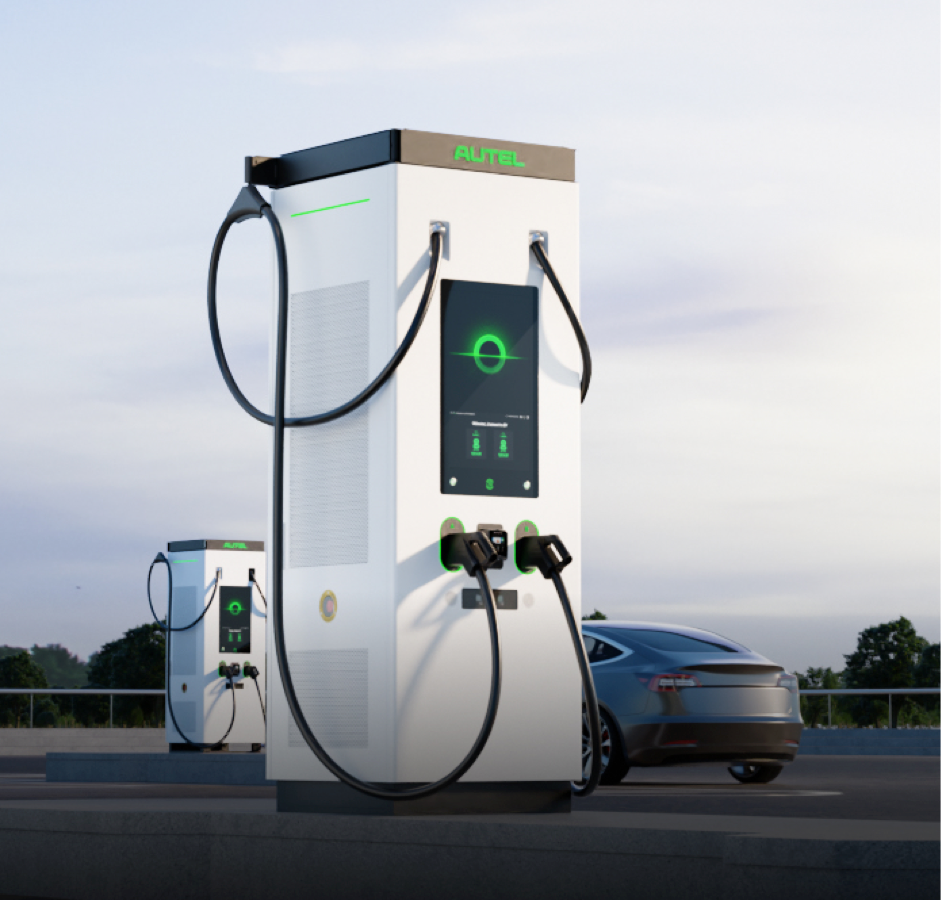

Autel MaxiCharger DH480

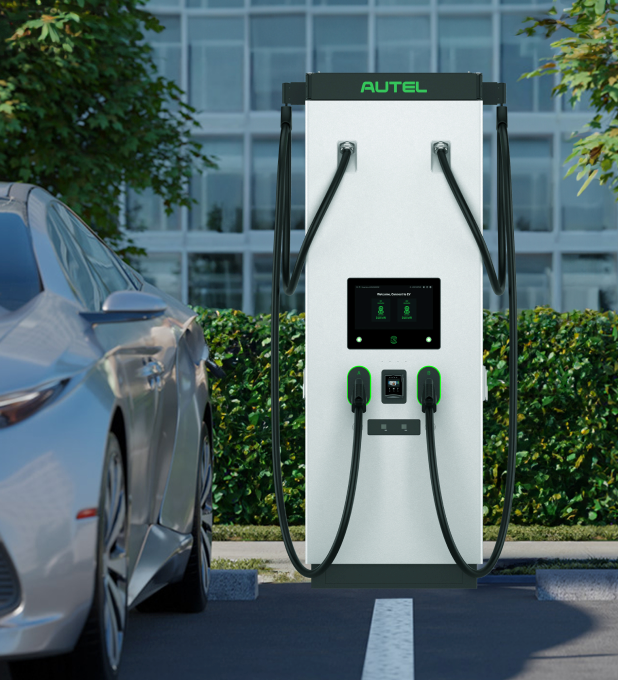

Unmatched Power and Charging Performance.
The Autel MaxiCharger DH480 is an all-in-one DC fast charging unit designed to deliver an exceptional charging experience through superior performance. It offers a highly configurable output power of 320kW, 400kW, or up to 480kW, ensuring it can meet the demands of high-traffic charging locations. This power is delivered across a wide DC output voltage range of 150-1000V , providing compatibility with a full range of electric vehicles. The unit is equipped with two CCS2 outputs , allowing for the simultaneous charging of two vehicles with a high peak efficiency of 96%.
This “Fastest Charging” capability, which can add up to 1 km of range per second, is enabled by advanced technology. The DH480 utilizes a liquid-cooled cable system capable of delivering a continuous 500A current with a peak of 650A , significantly higher than the 380A provided by its uncooled counterpart. The unit draws power from the grid cleanly and efficiently, with a power factor of ≥0.99 and harmonic distortion (THDI) of less than 5%. For user convenience and to protect the high-power cables, a cable management system comes as a standard feature.
Reliable Performance.
Operates at a whisper-quiet level below 55dB, and delivers a robust lifespan over 10 years with minimal maintenance.
Autel MaxiCharger DH480

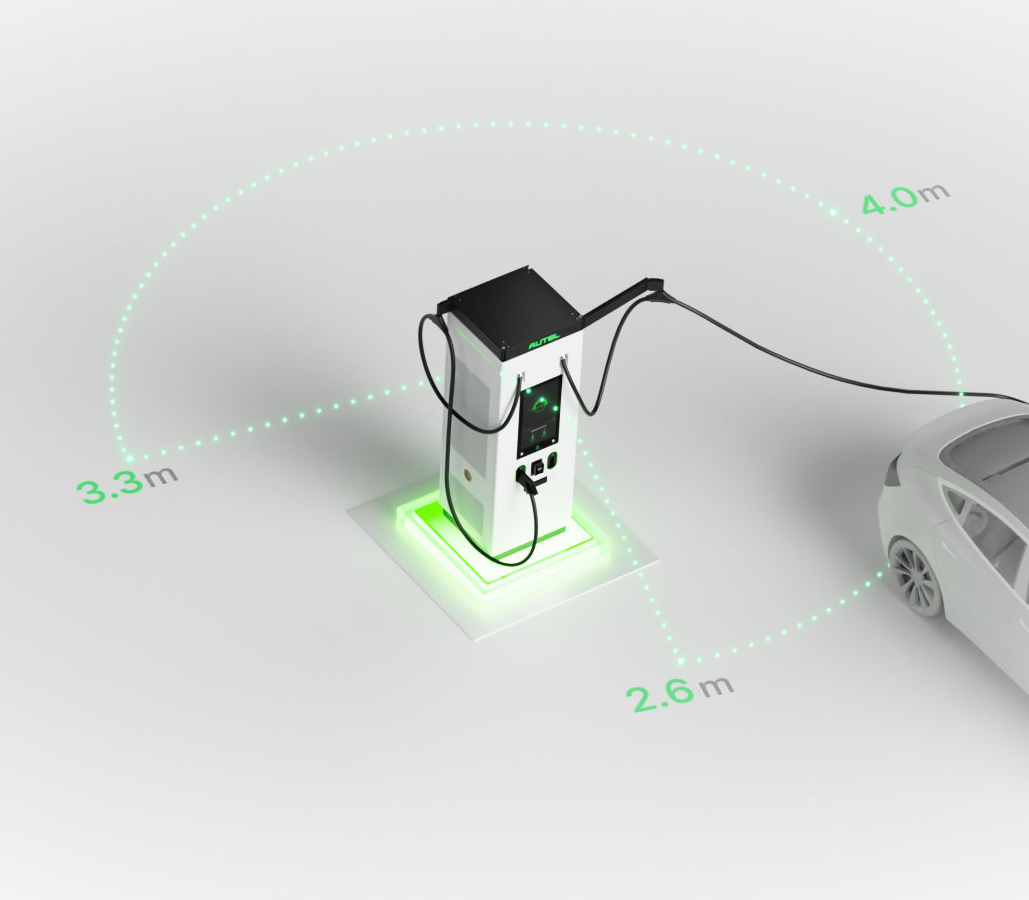

Dual Connectivity & Cable Management.
Achieve 99.9% online rate with dual backup networks (WiFi and Wi-SUN) and 5G/4G connectivity, ensuring seamless communication and uninterrupted charging even in low or no network conditions.

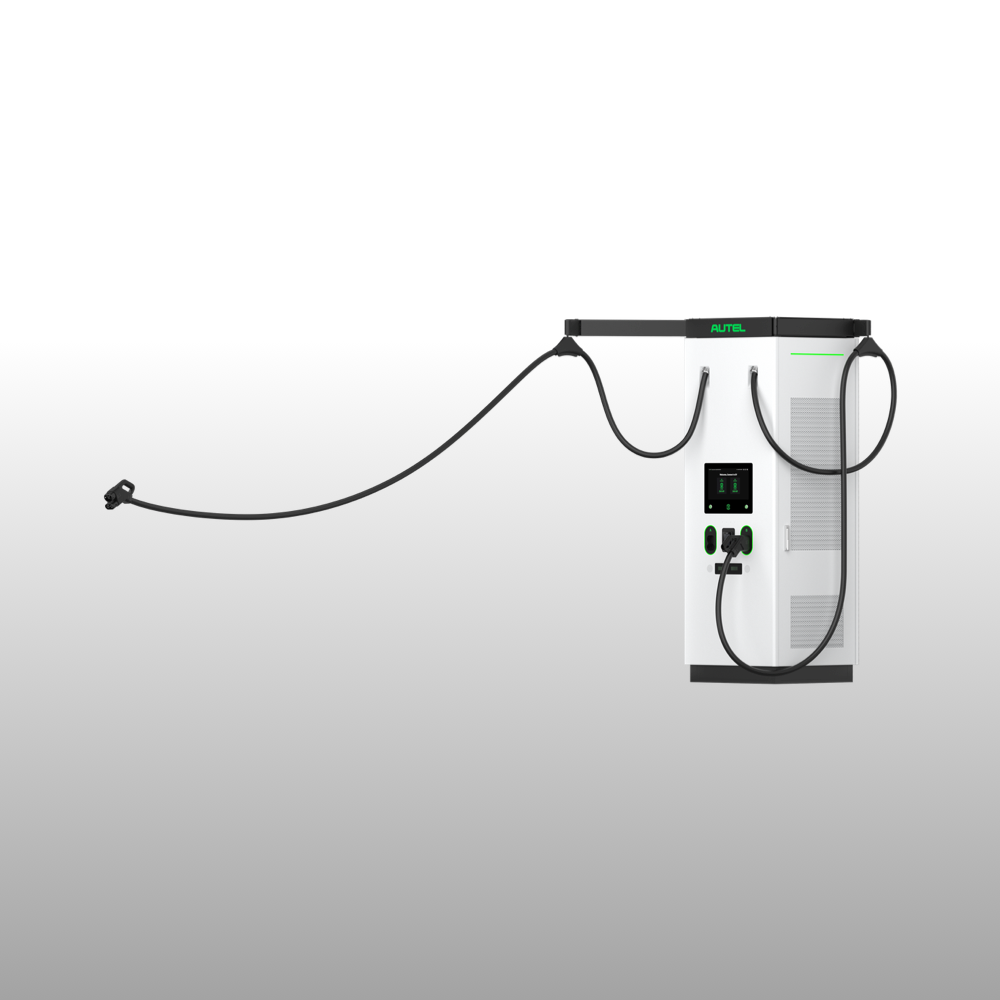

The DH Series Cable Management System offers flexible swing-arm options for effortless cable management, enhanced usability, extended cable lifespan, and optimised space utilisation for a reliable charging experience.
Built for Every Environment.
Utilising EcoCool Airflow technology to enhance cooling efficiency, its heat dissipation structure and die-cast process ensure stable high-temperature performance.
Autel MaxiCharger DH480

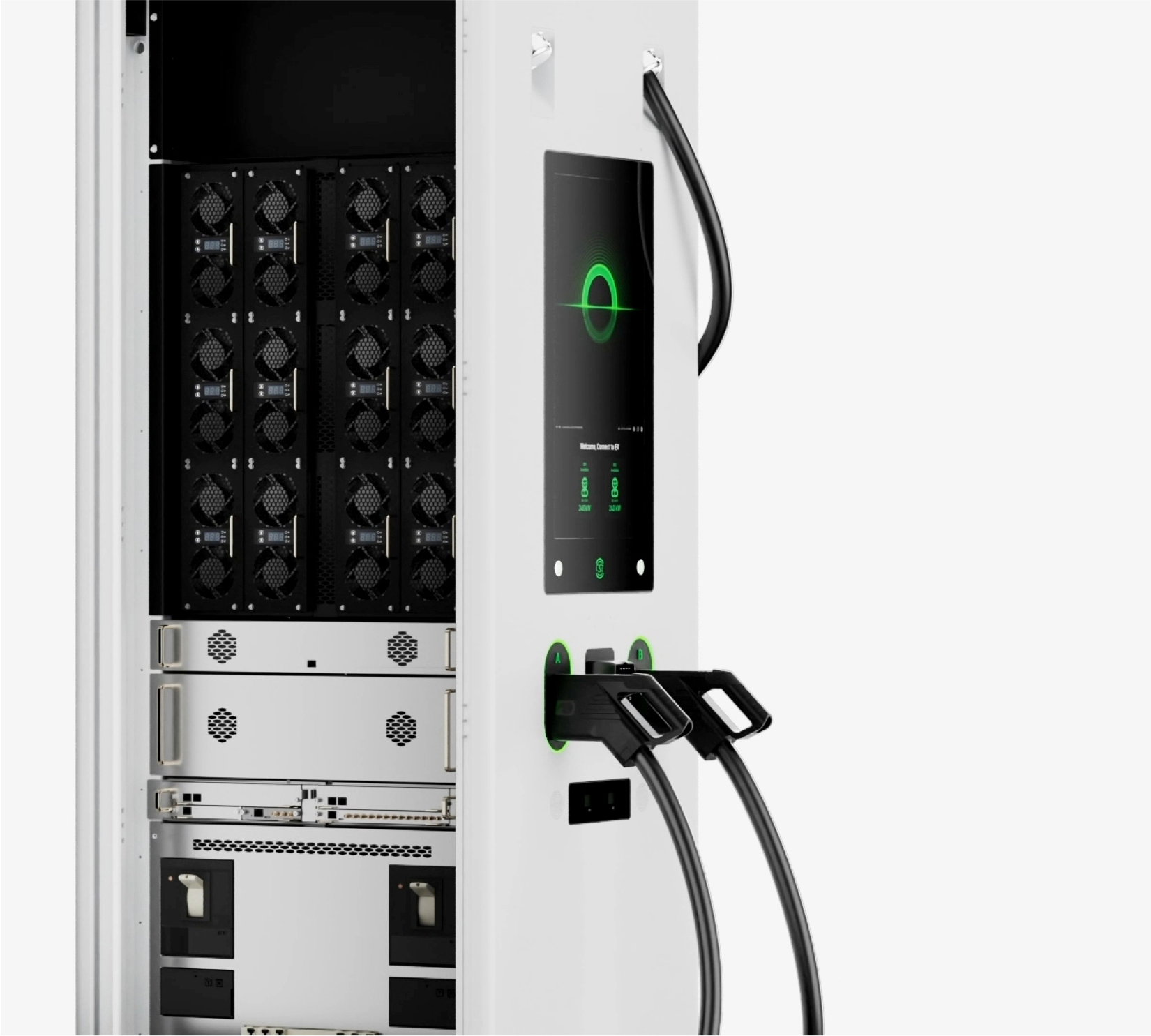

Scalable Power Meets Modular Architecture.

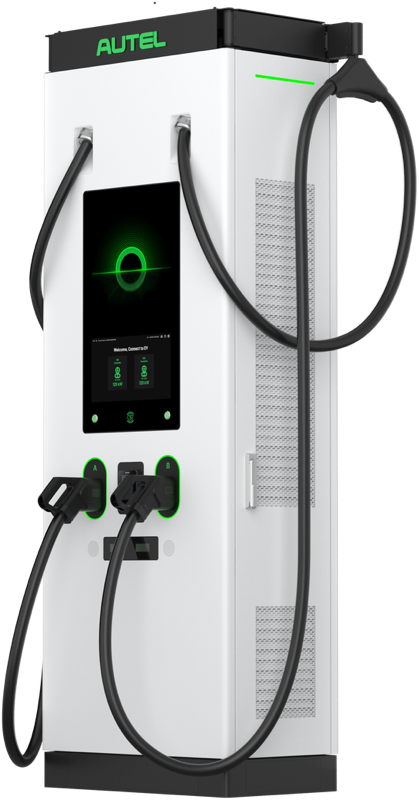

The MaxiCharger DH240 & DH480 are built on a scalable power output range of 120kW to 480kW, delivered in an all-in-one platform. This platform features intelligent matrix scheduling and 40kW granularity for flexible power adjustments, enabling rapid upgrades and minimising reinvestment.
This integrated modular design and charging control modules reduce failure rates and achieve over 98% uptime, supported by a modular architecture of industry-leading craftsmanship, enabling maintenance within 5 minutes per person for efficient charging.
Small Footprint, Large Output.
Occupying just 0.61m² the DH480 has an incredibly small footprint for the amount of power it generates. Making it perfect for small environments.
MaxiCharger DH480 Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 21.5-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 782mm x 782mm x 2287mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 15.6 inch LCD Touch Screen (1920*1080)
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- < 85W
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 880 kg
- Mounting
- Floor Standing
- Internal RCD
- –
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 240kW; 280kW; 320kW; 360kW; 400kW; 440kW; 480kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 500A (Max. 650A); Uncooled Cable: 380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%

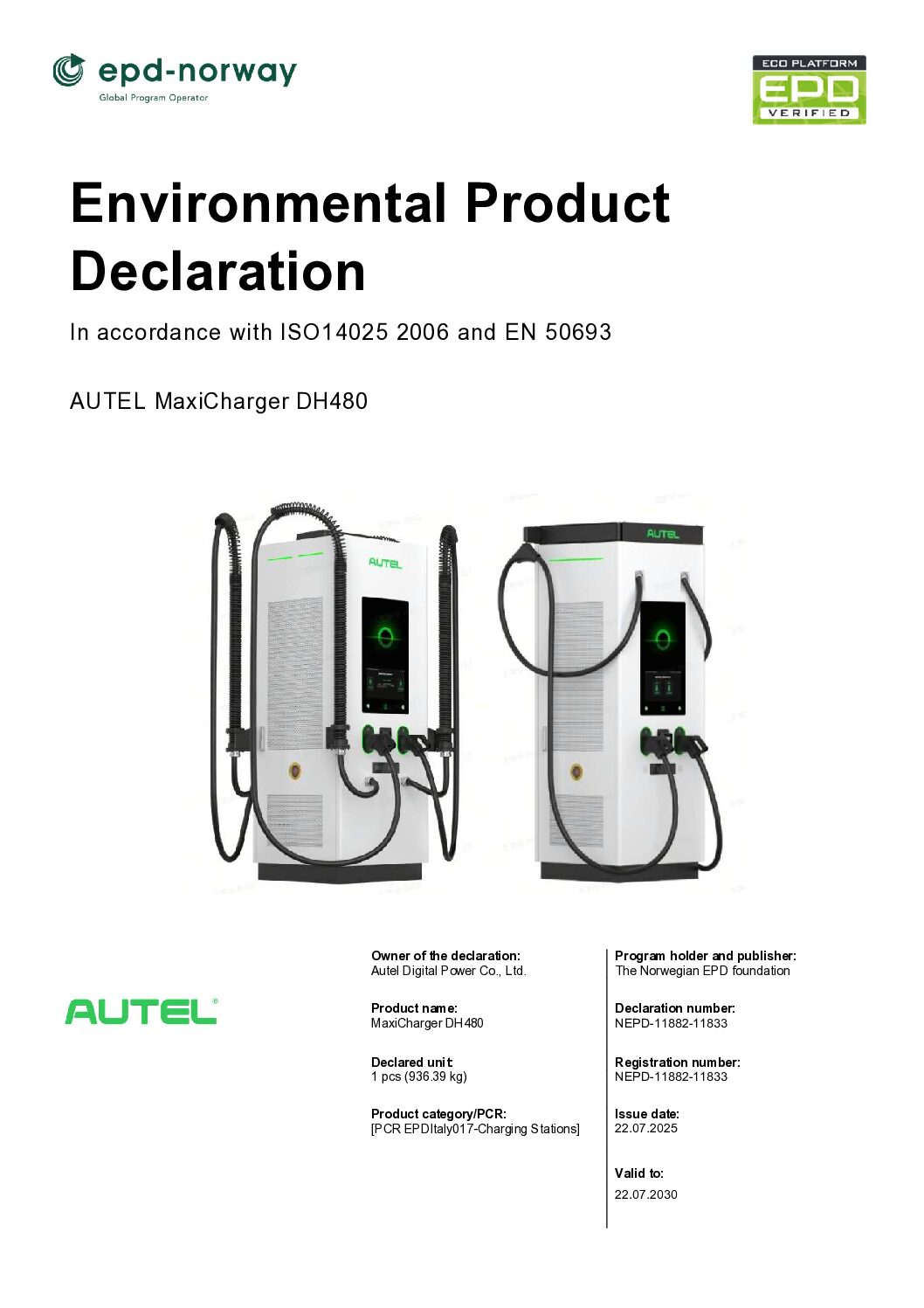

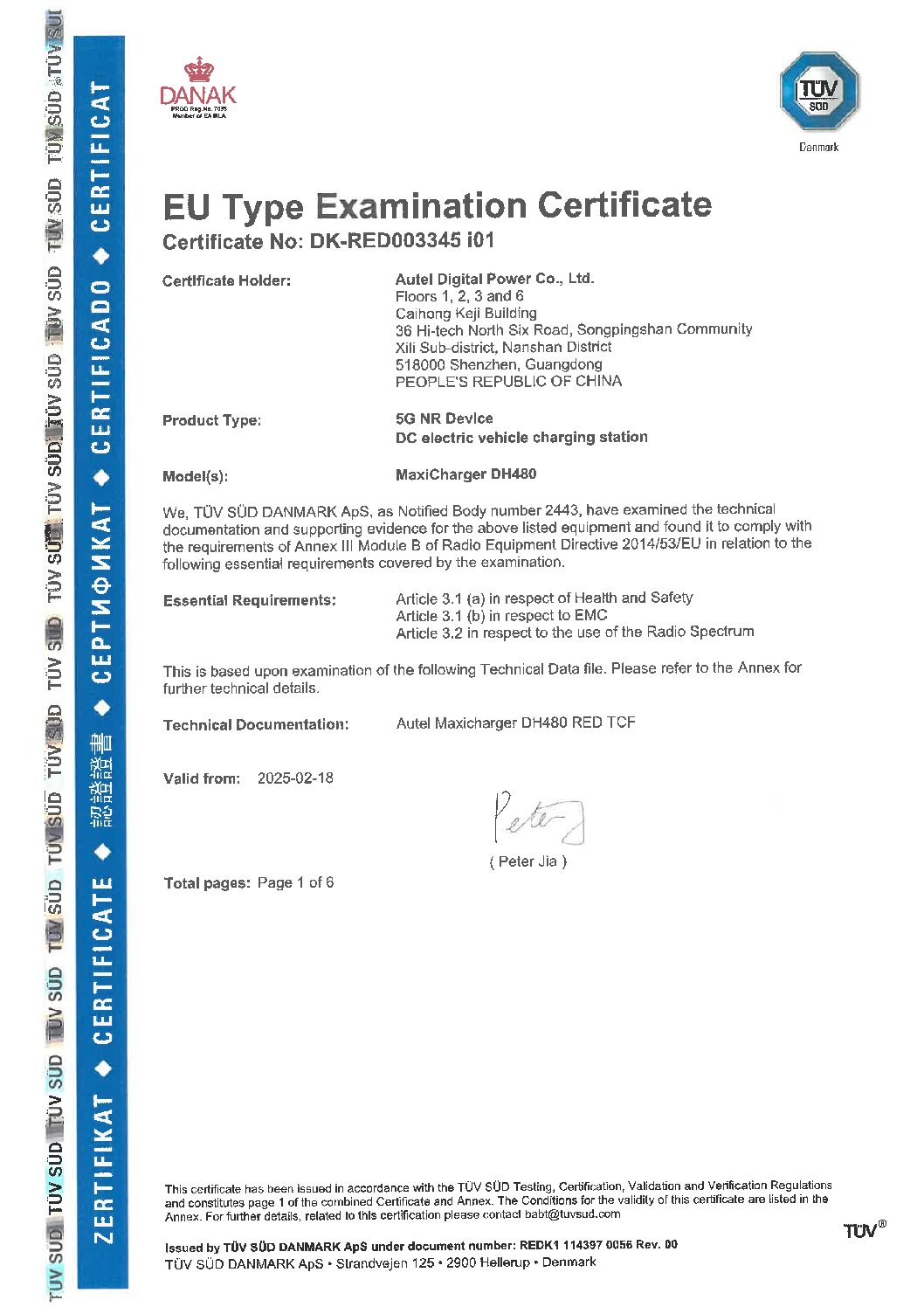

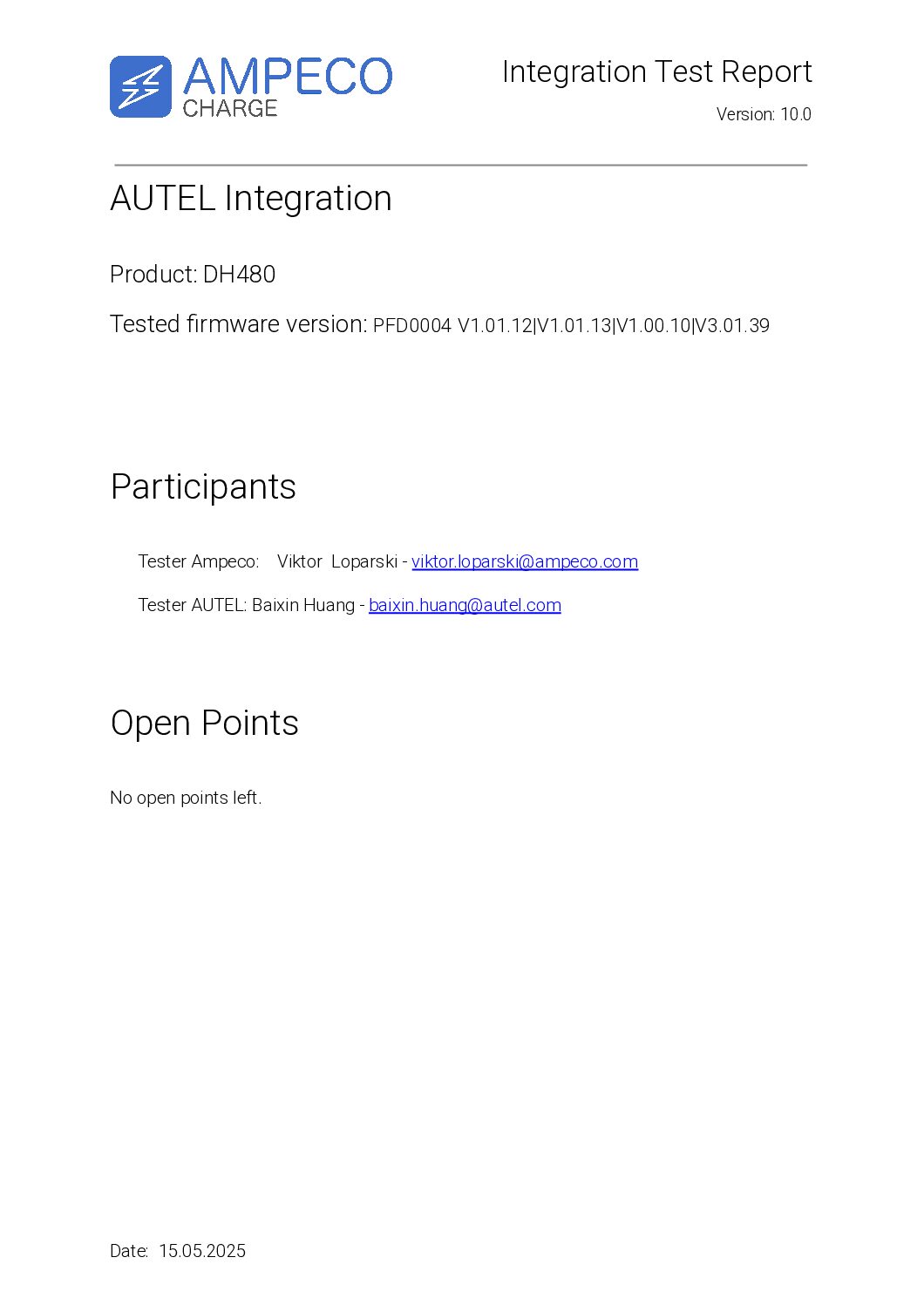

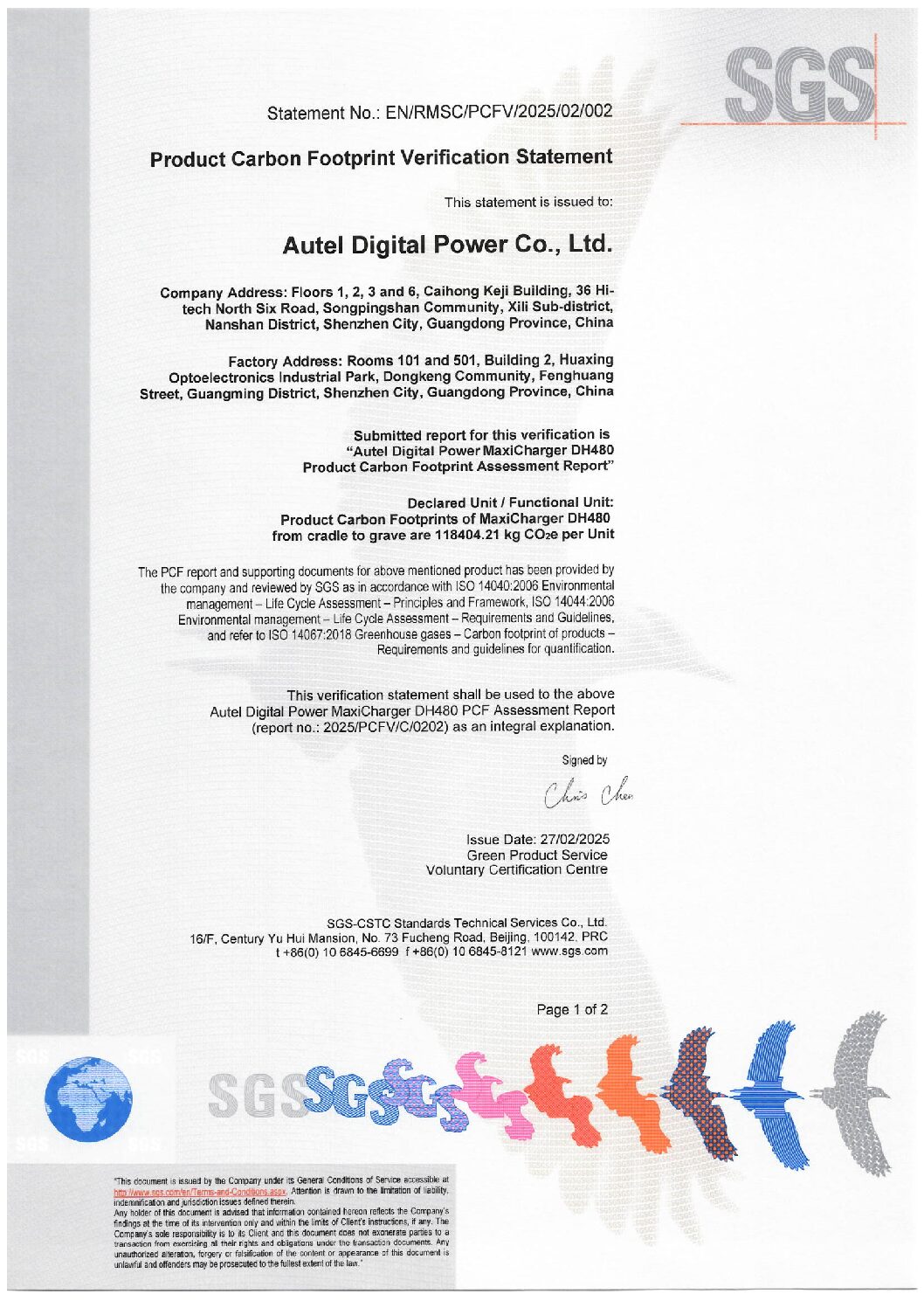

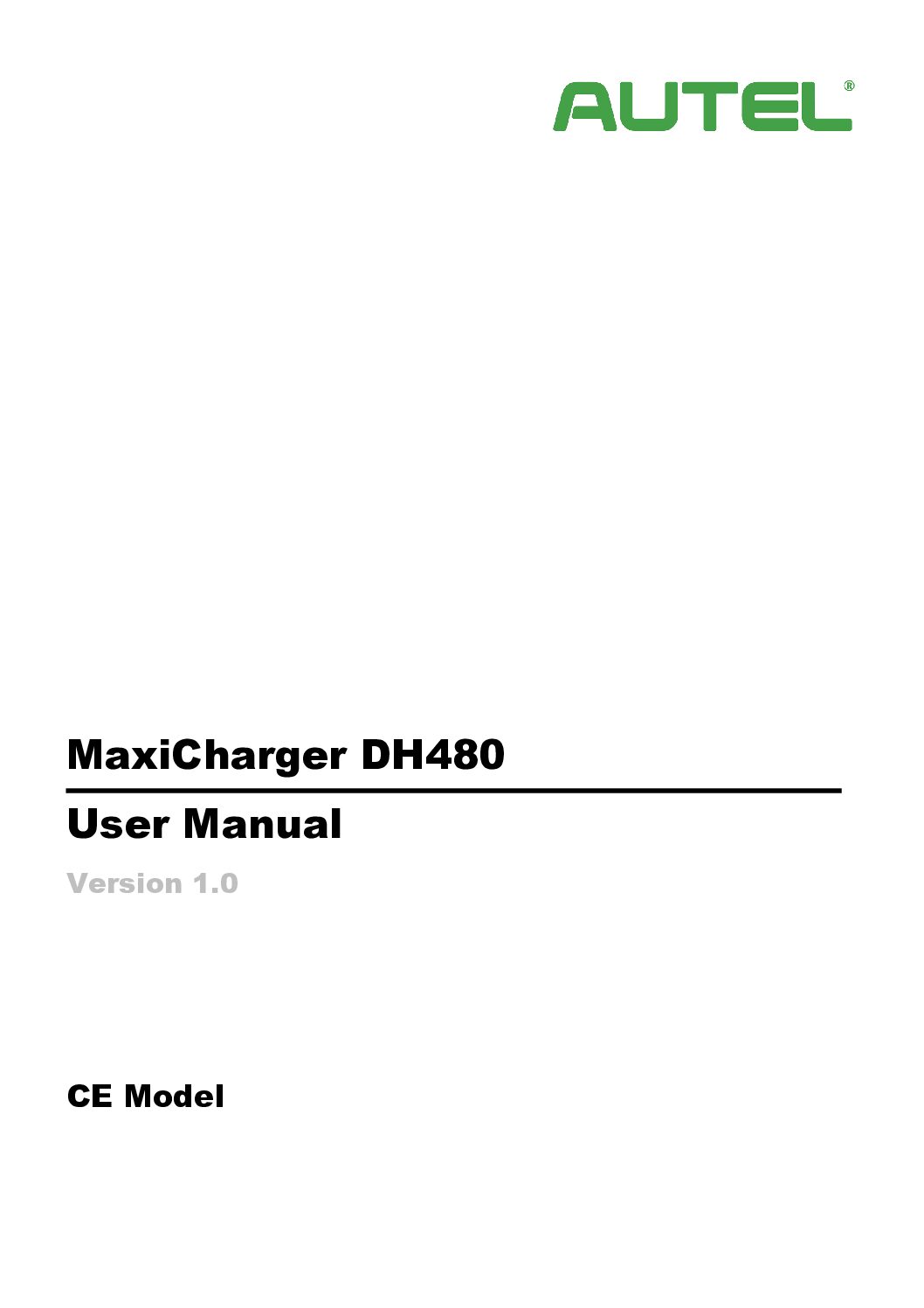

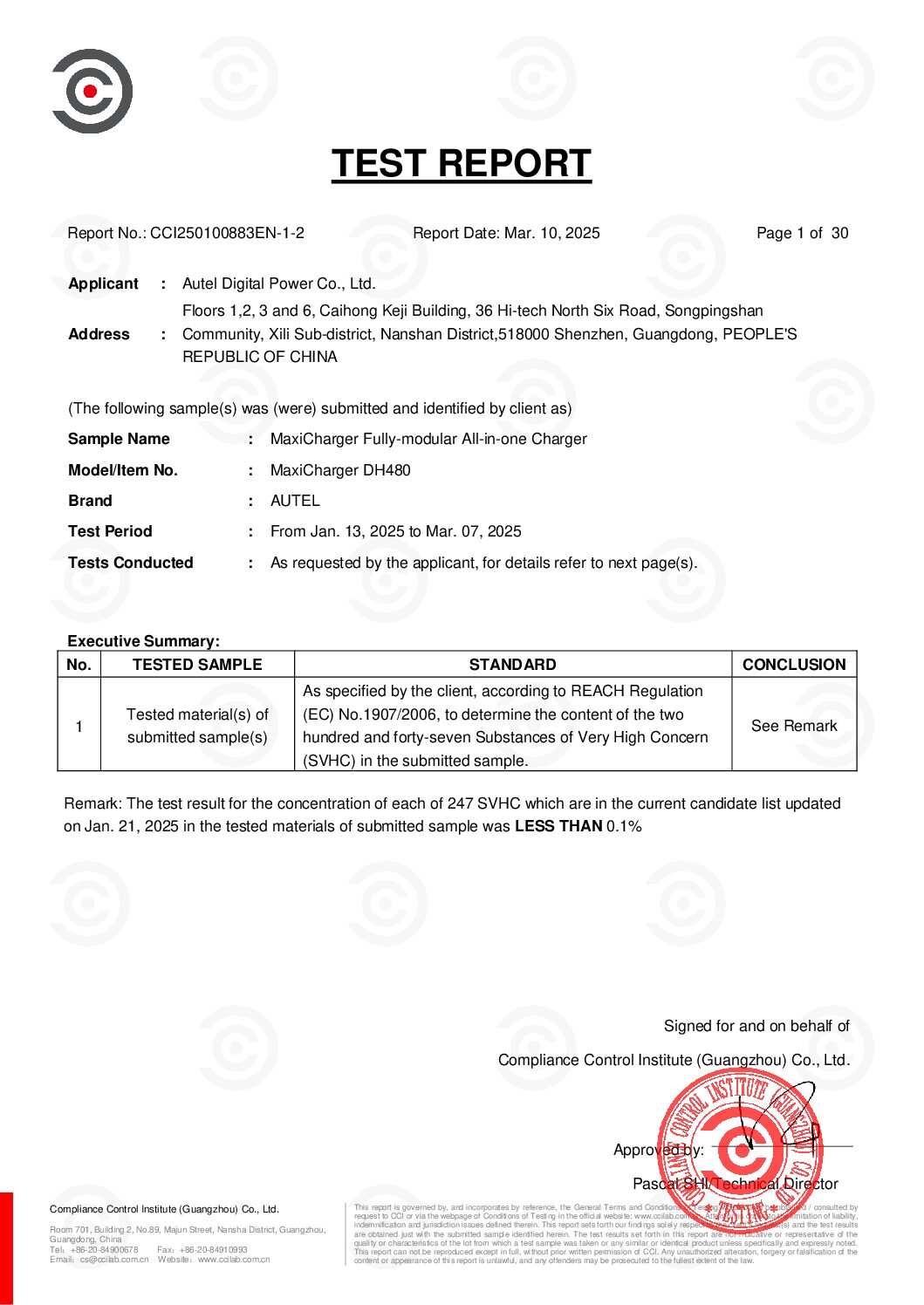

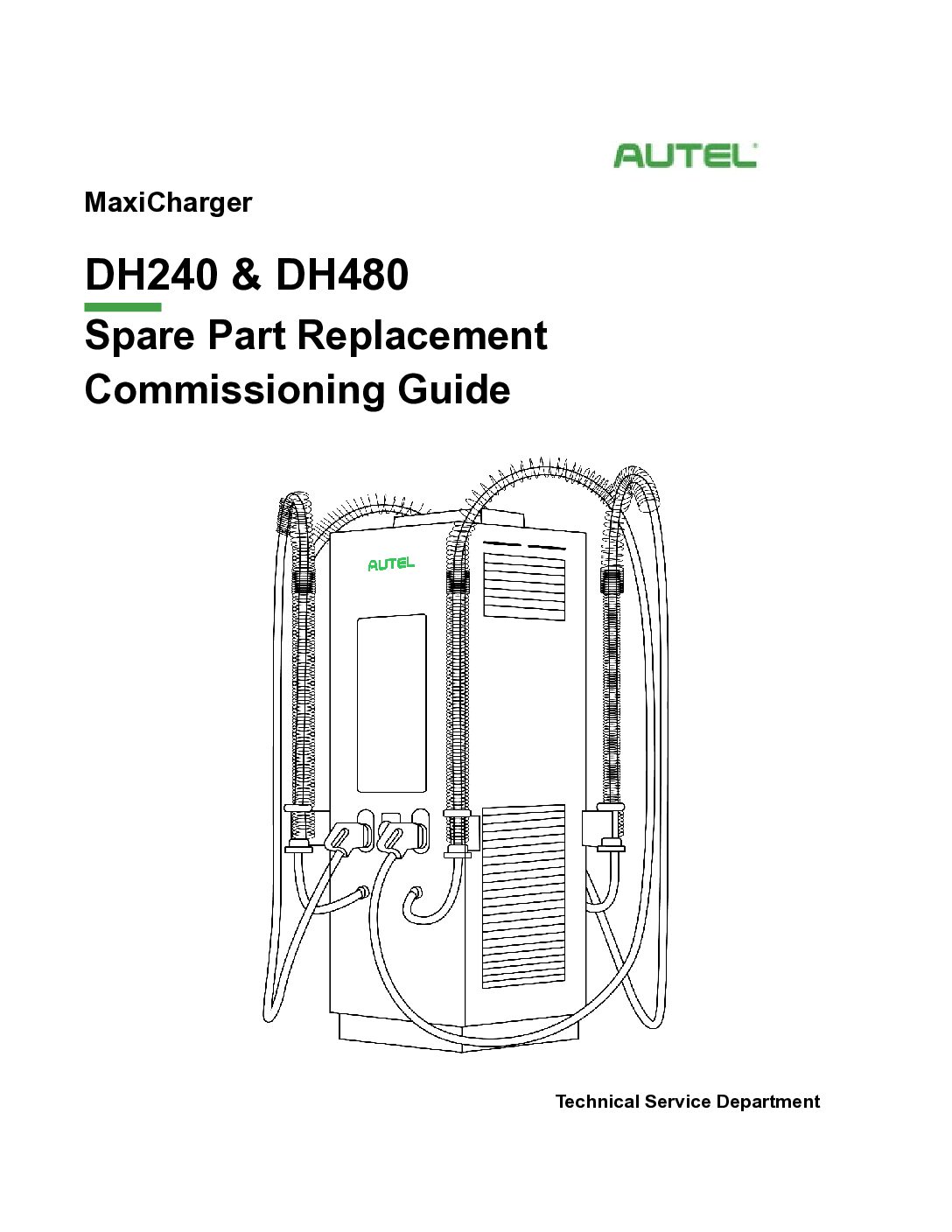

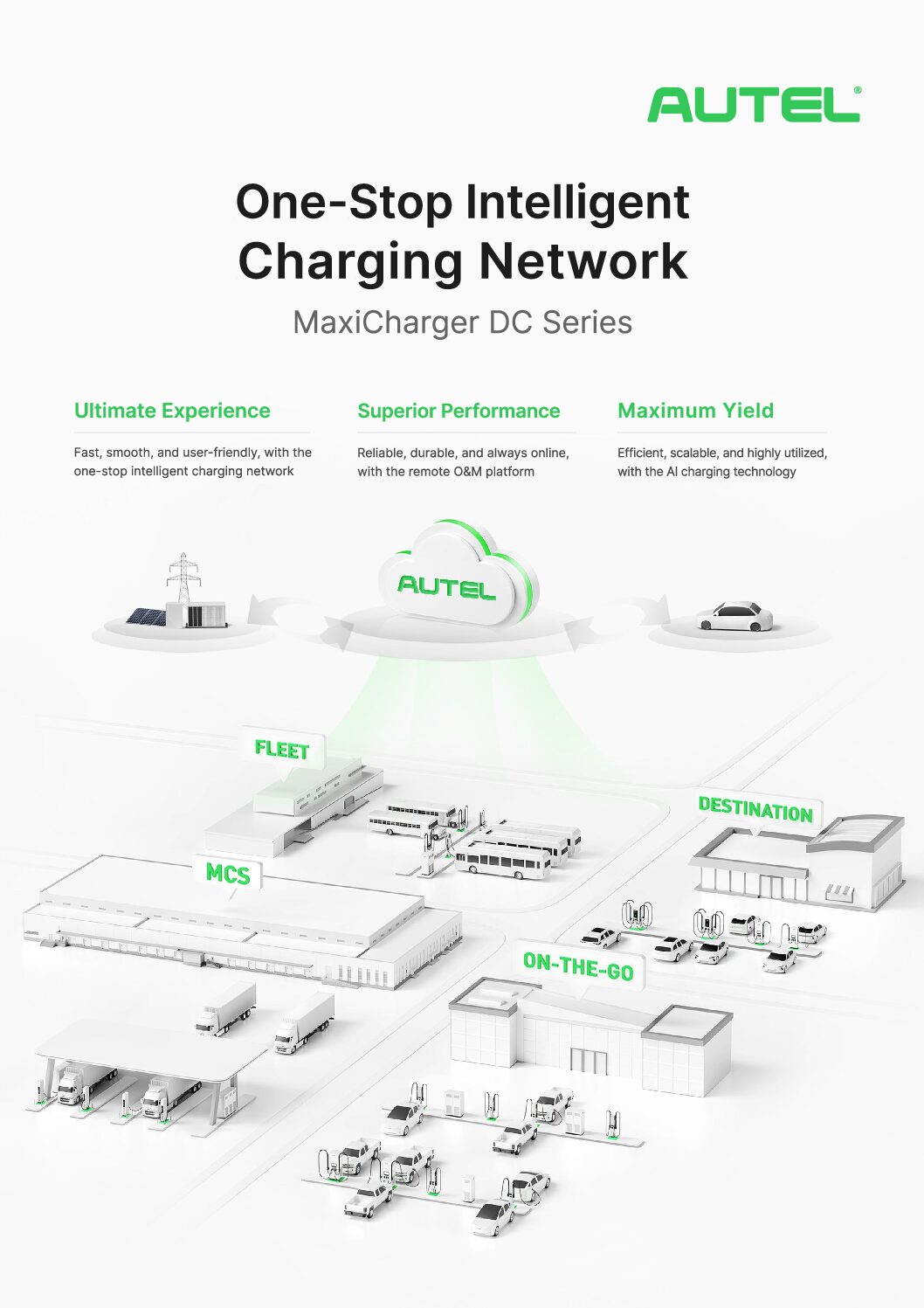

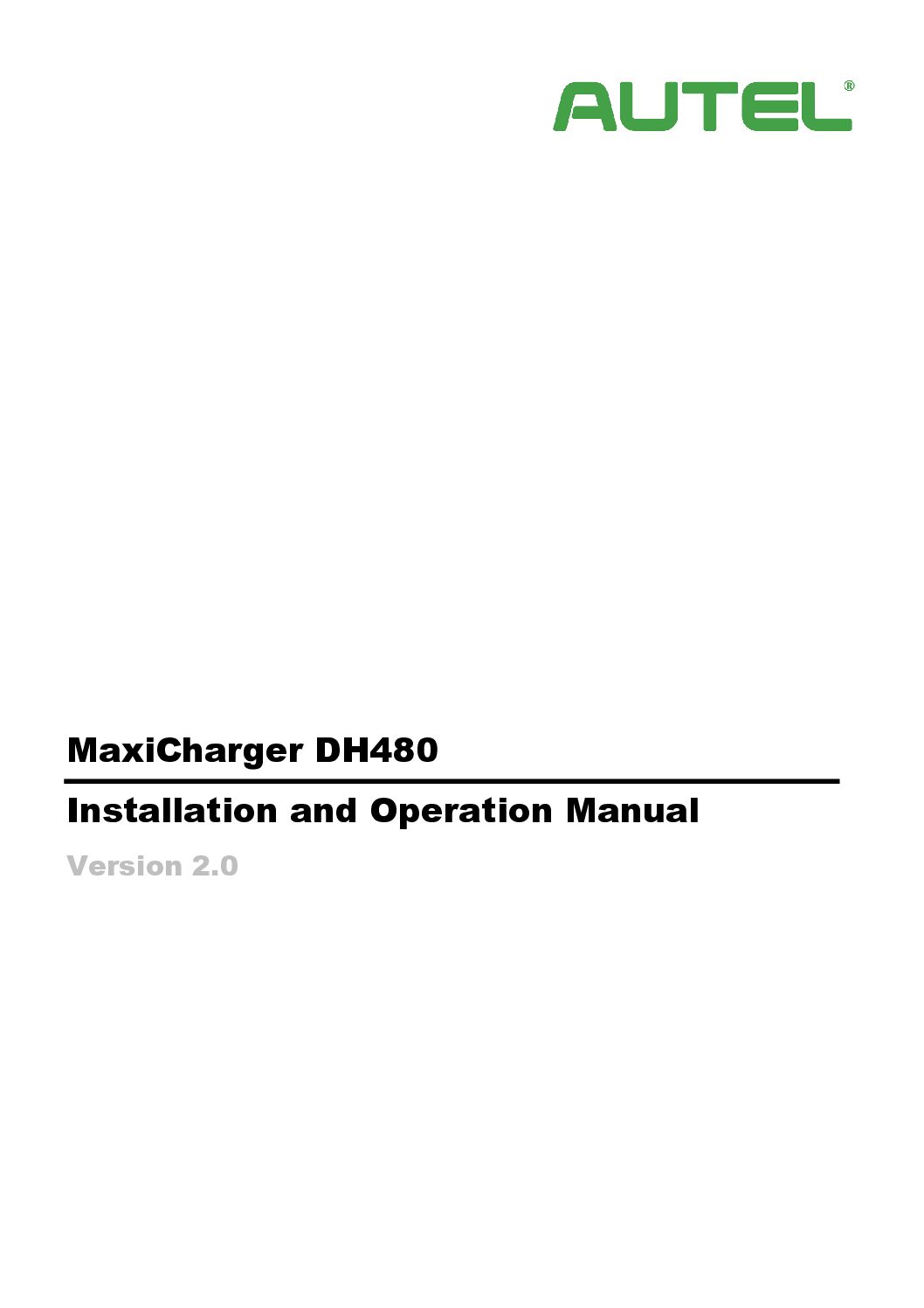

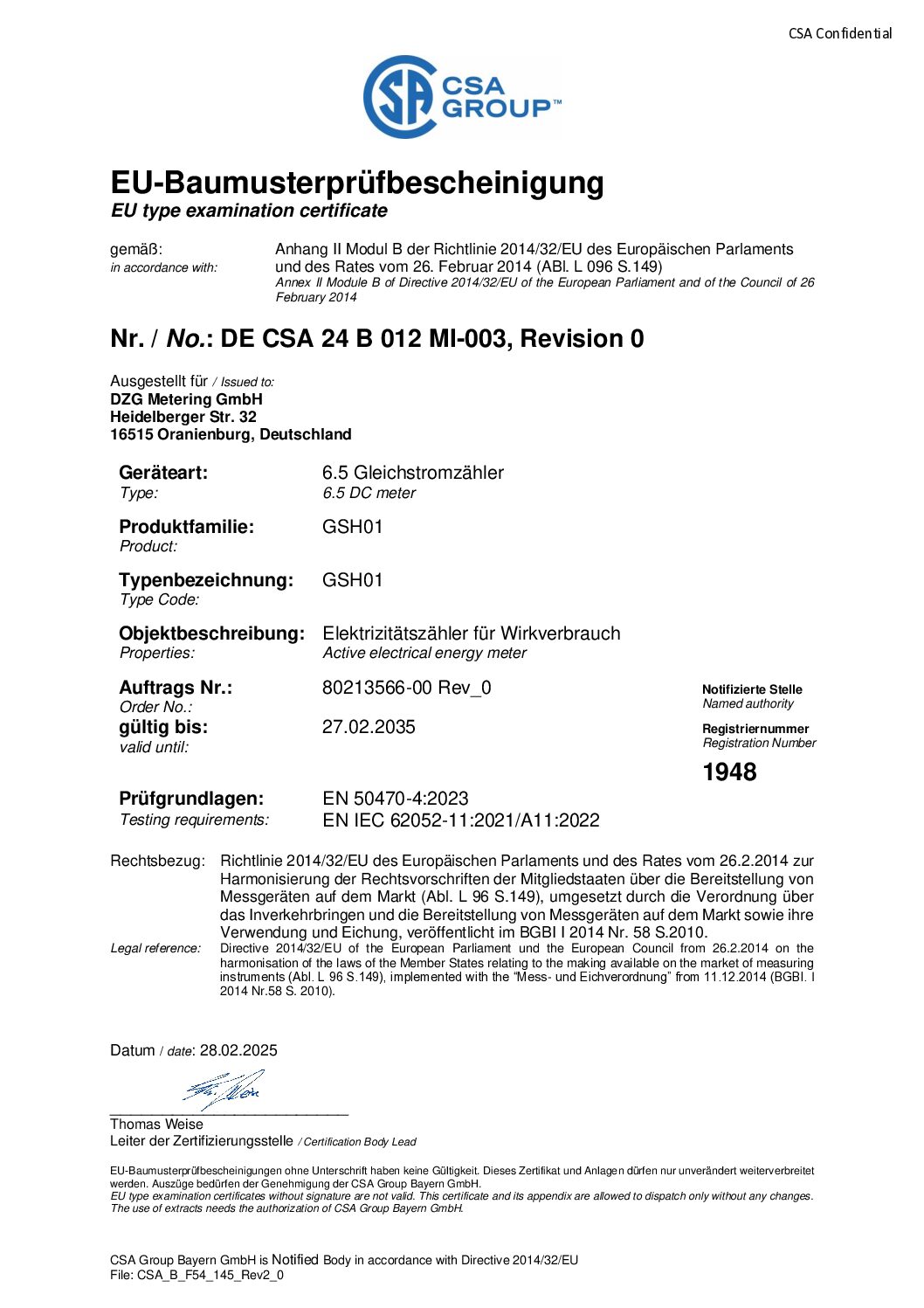

Manuals and Datasheets
Autel MaxiCloud
One-Stop MaxiCloud Platform Management.
The Autel MaxiCloud Cloud supports OCPP 1.6 & 2.0, giving site hosts complete control and visibility across their entire charging network. Through our cloud platform, operators can efficiently manage energy costs, optimise revenue, oversee media assets, and much more.
Dynamic Power Sharing
Autel MaxiCloud Digital Load Balancing.
Autel’s Dynamic Load Balancing (DLB) ensures chargers can dynamically share power according to demand. If two vehicles are using the same charger, power output is cut in half for each vehicle, ensuring safe power management for the network. If more than two vehicles are charging, power is shared further among the chargers in use.
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | 2000m | < 2000 m (2000m to 3000m with power de-rating) |
Operating Temperature Range
|
-35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ | -30 °C to +55 °C |
Storage Temperature Range
|
-40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ | -40 °C to +70 °C |
Noise
|
≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) | ≤ 65 dB(A) |
EMC Compliance
|
EMC Class A | EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118 |
Certification
|
CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV | CE |
|
User Interface
|
|||
|
Status Indication
|
APP; 21.5-inch LCD touchscreen; MaxiCloud Patform | APP; 27-inch LCD touchscreen; MaxiCloud Patform | APP; 21.5-inch LCD touchscreen; MaxiCloud Patform |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo |
RFID Protocols
|
ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE; NFC |
Payment Terminal
|
AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
Cable management System
|
Standard | Standard | Standard |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
782mm x 782mm x 2287mm | 782mm x 480mm x 2150mm | 550 x 265 x 1000 mm |
Colour
|
White Galvanised Steel | White Galvanised Steel | White Galvanised Steel |
Connectivity
|
Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet | Wi-Fil; Ethernet; CAN; RS485; Cellular Network |
Screen Type
|
15.6 inch LCD Touch Screen (1920*1080) | 27 inch LCD Touch Screen | 21.5-inch LCD touchscreen |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) | Mode 4 (DC) |
Cable Length
|
5m; 7.5m(Optional) | 5m; 7.5m(Optional) | 5m; 7.5m (Optional) |
Standby Power
|
< 85W | < 85W | 40 W |
Enclosure Rating
|
IP54/IK10 | IP54/IK10 | IP54/IK10 |
Communication to the EV
|
ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 | ISO 15118, DIN 70121, CHAdeMO 1.2 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Accessibility
|
Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface |
Emergency Button
|
Yes | Yes | No |
Design Life
|
10 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible | 24 months, warranty extension possible |
Weight
|
880 kg | 630 kg | 120 kg |
Mounting
|
Floor Standing | Floor Standing | Pedestal Mounted / Portable Trolley Mounted |
Protection
|
Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, under-voltage, ground fault, over-temperature, short circuit, insulation monitor, surge protection |
|
Output
|
|||
|
Output Power
|
240kW; 280kW; 320kW; 360kW; 400kW; 440kW; 480kW | 80kW; 120kW; 160kW; 200kW; 240kW | 50kW |
Minimum Adjustable Power
|
40 kW | 40 kW | 22 kW |
Output Voltage
|
150-1000v | 150-1000V | 150 to 950V |
Output Current
|
Liquid-cooled Cable: 500A (Max. 650A); Uncooled Cable: 380A (Max. 500A) | Uncooled Cable: 380A (Max. 500A) | Uncooled Cable: 380A (Max. 500A); |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
2 | 2 | 2 |
Charging Mode
|
2*CCS2 | 2*CCS2 | 2*CCS2 |
Supply Configuration
|
3P+PE | 3P+PE | 3P + N + PE |
|
Input
|
|||
|
Input Voltage
|
3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% | 3-phase 400V AC ±10% |
Input Frequency
|
50Hz/60Hz | 50Hz/60Hz | 50/60 Hz |
Earthing System
|
TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT (Requires external RCD) |
Power Factor
|
≥ 0.99 | ≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
