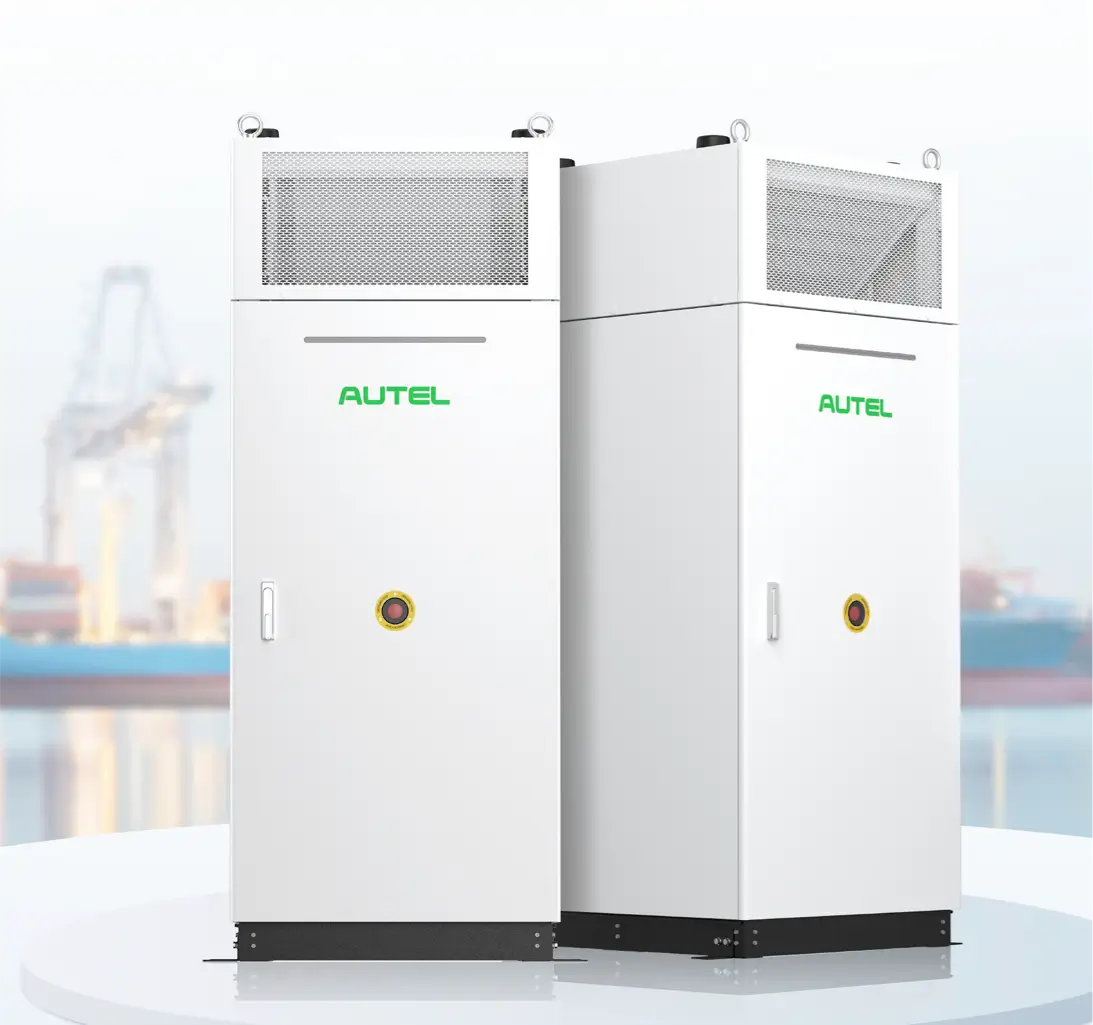

Autel MaxiCharger DS600L.
The Autel MaxiCharger DS600L is a liquid-cooled charging system with a E2E Charging Efficiency of 97% and a Scalable Power Cluster up to 3mW. Save more than 30% with Autel’s integrated PV, ESS, and EVSE solution by harnessing peak-valley arbitrage and optimising demand charges.

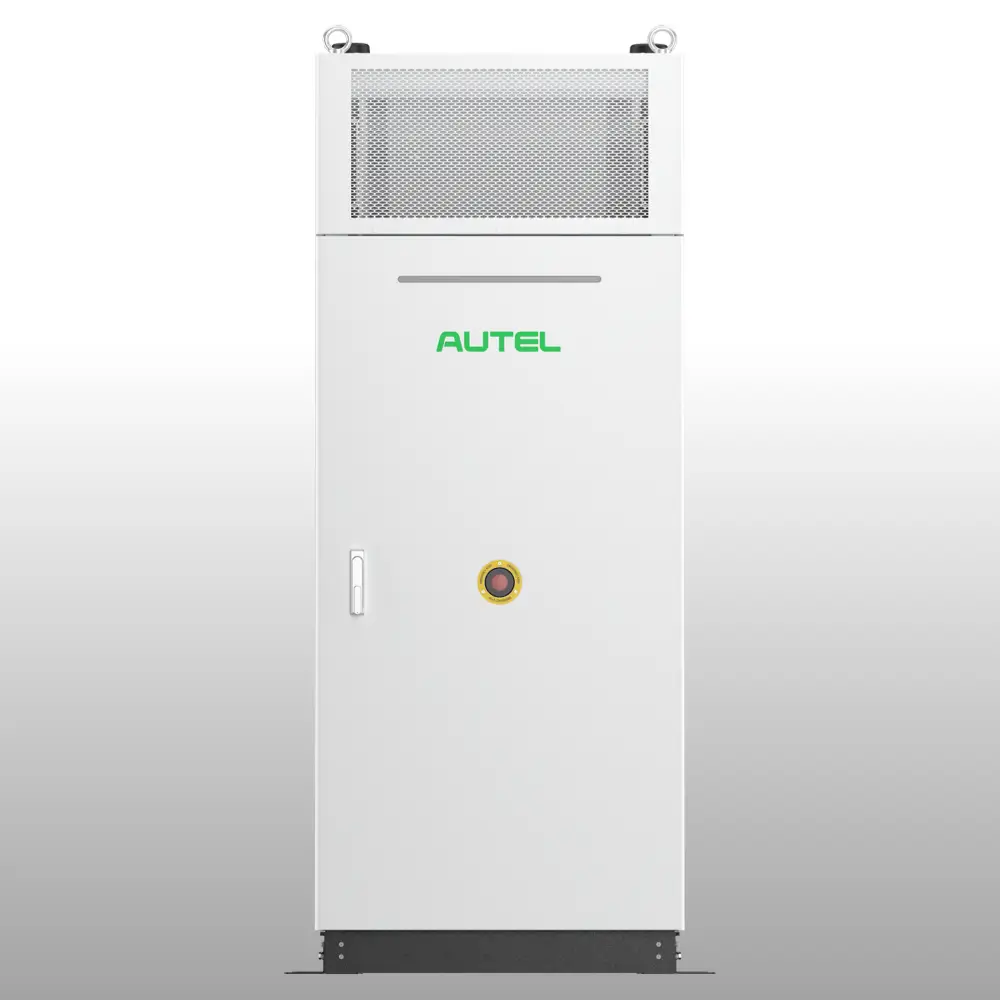

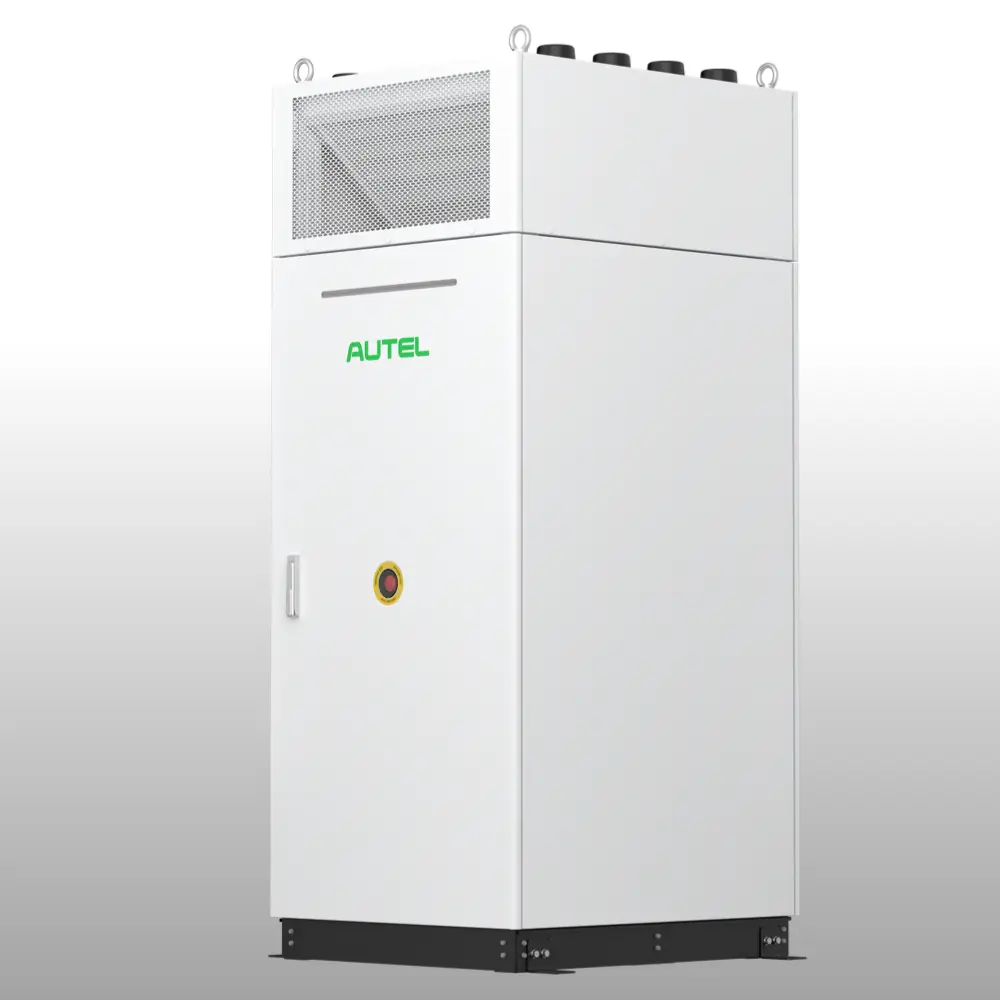

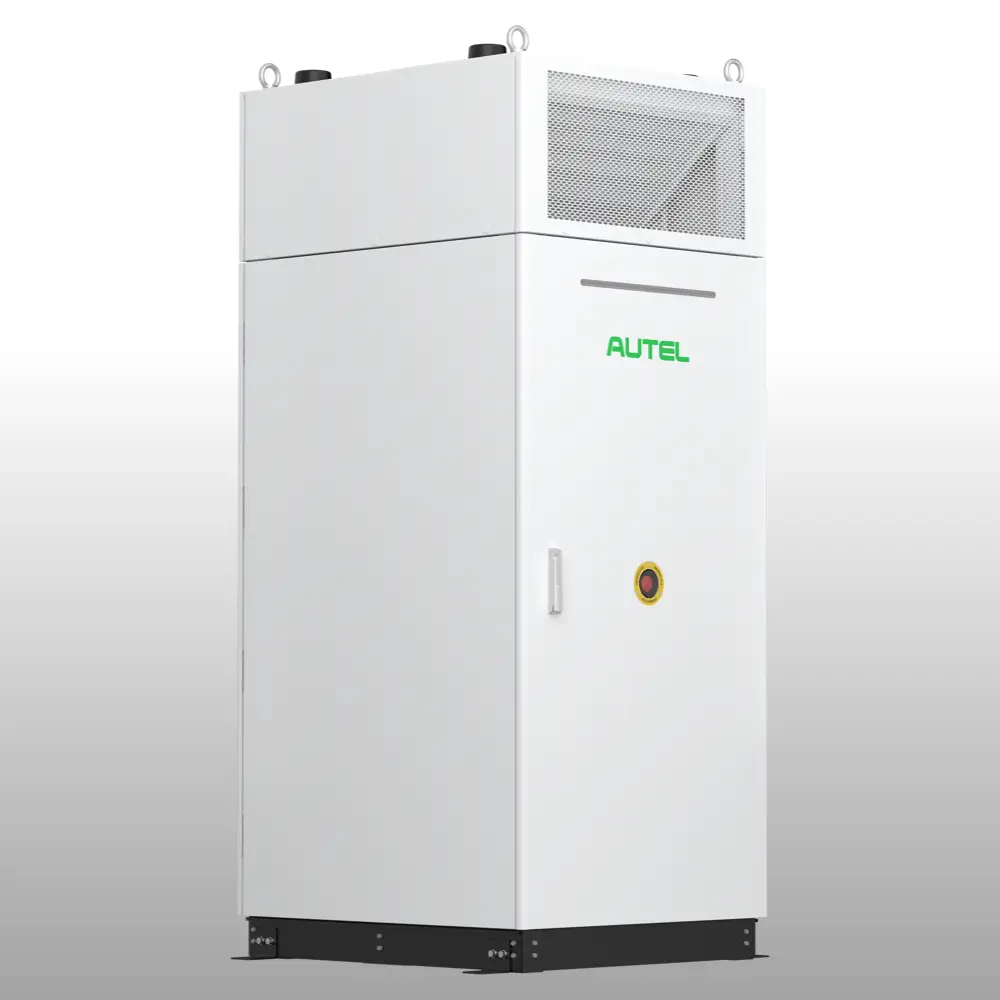

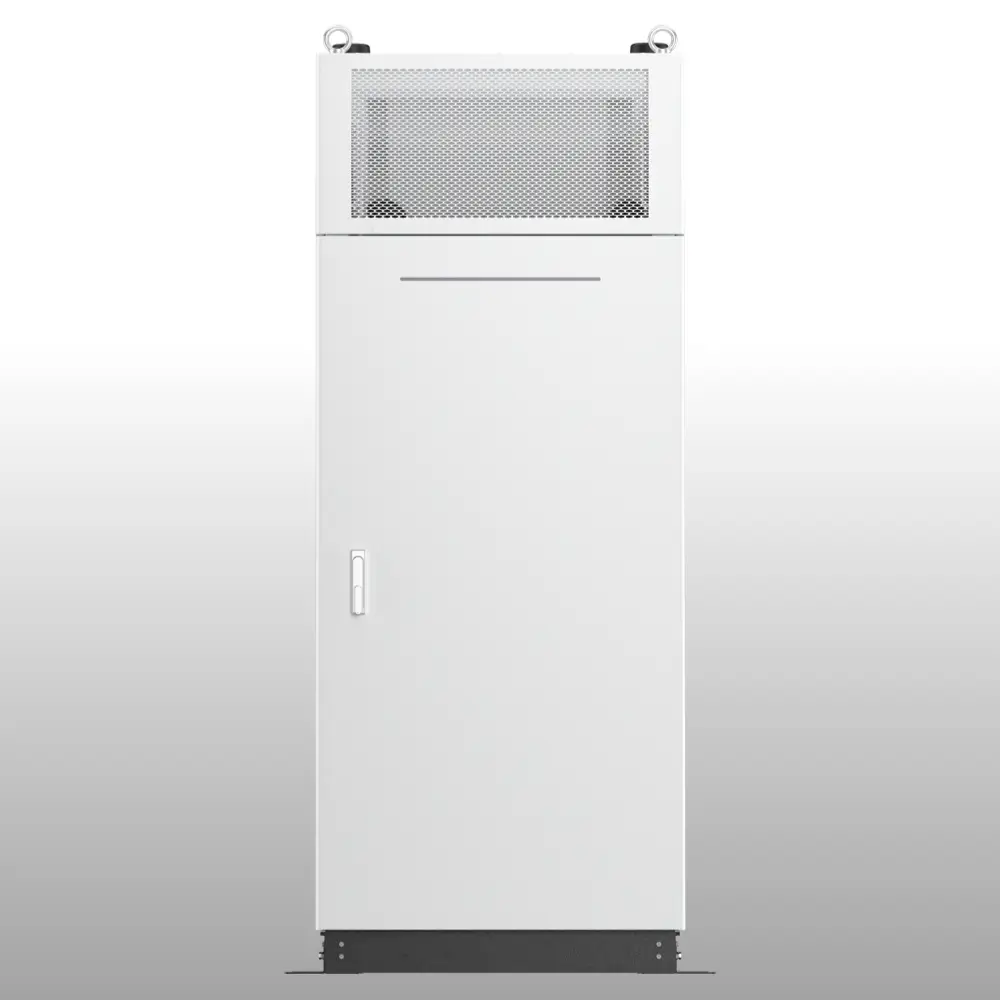

Autel MaxiCharger DS600L Distribution Cabinet.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The Autel MaxiCharger DS600L is a next-generation, liquid-cooled DC charging system designed for ultra-fast, high-power EV charging in demanding commercial and fleet environments. Delivering up to 600kW of output power, the DS600L enables vehicles to gain up to 600 km of range in around 10 minutes, making it ideal for motorway hubs, logistics depots, fleet operations, and large-scale charging sites where speed and uptime are critical.
Built around advanced SiC charging modules, AI-driven control, and a robust liquid-cooling architecture, the DS600L combines exceptional efficiency with long-term reliability. Its modular design supports scalable power expansion up to megawatt level, seamless integration with PV and energy storage systems, and intelligent operation that reduces energy costs while maximising charger availability and return on investment.
Power
- Manufacturer
- Autel
- Model
- DS600L
- Colour
- Ice White
- Warranty
- 24 months – extension available
Image Gallery
High-Efficiency Fast Charging.
Autel’s in-house, liquid-cooled 60 kW and 120 kW power modules deliver over 97% efficiency, combined with AI-driven full-matrix scheduling to maximise charging speed and energy utilisation.
Ultra-Fast All-in-One DC Charging

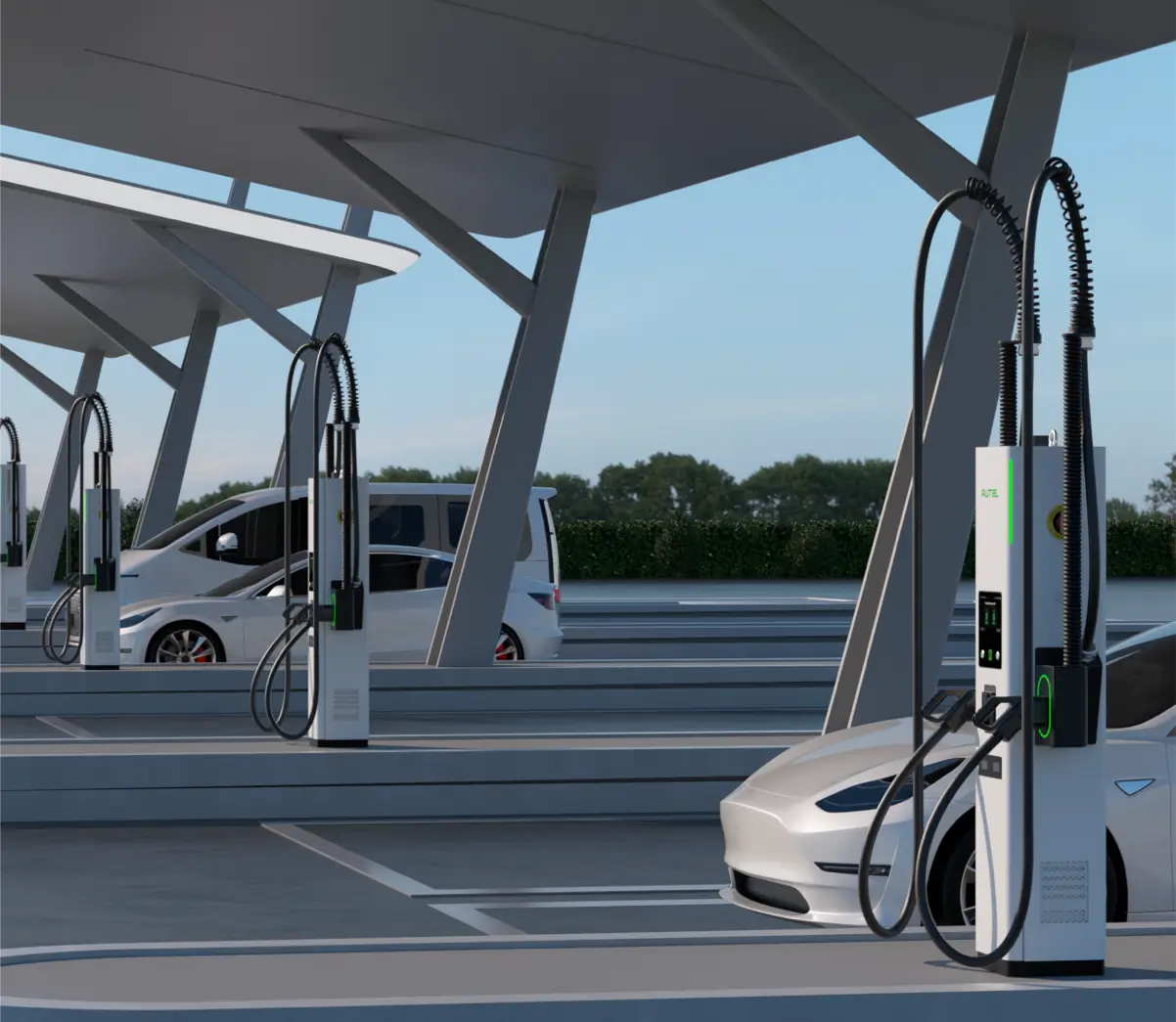

High-Power Performance for Demanding Sites.
The DH600L is part of Autel’s new-generation MaxiCharger DC Series, delivering an all-in-one ultra-fast charging solution with output power ranging from 300 kW to 600 kW. Designed for high-traffic commercial locations, fleets, and public charging hubs, it combines cutting-edge power electronics with intelligent charging algorithms to deliver consistently fast and reliable charging.
Built on a fully modular architecture, the DH600L supports high current delivery through liquid-cooled charging cables while maintaining peak system efficiency of up to 97%. This enables rapid energy transfer without compromising thermal stability, ensuring a smooth and dependable charging experience even under sustained heavy loads.
By integrating advanced vehicle-charger-cloud compatibility and charging curve prediction technology, the DH600L maximises charging speed across a wide range of EV models, helping operators increase throughput, reduce dwell times, and improve overall site utilisation.

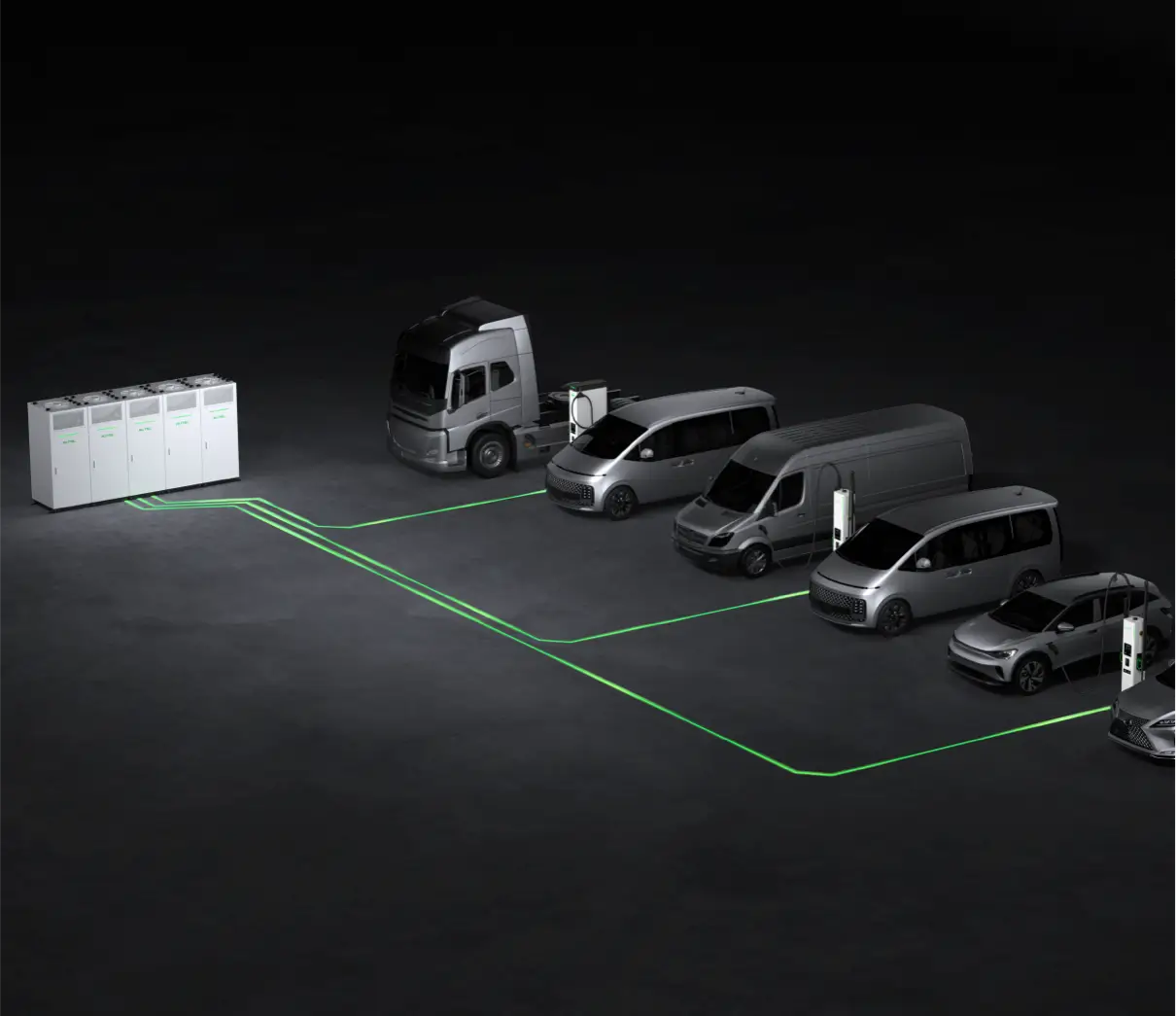

Massively Scalable Architecture.
The modular cluster design allows up to five cabinets to operate as a single 3 MW system, with each cabinet supporting up to 10 simultaneous charging points for high-throughput charging sites.
Intelligent Design & Operational Reliability
Engineered for Maximum Uptime and Ease of Operation.
The DH600L is engineered to deliver enterprise-grade reliability, supporting charger uptime above 98% and an online rate exceeding 99.9%. Its robust design includes site-level network hot backup and intelligent fault handling, ensuring continuous operation even in mission-critical environments.
Remote intelligent O&M capabilities allow operators to monitor, diagnose, and maintain the charger entirely online. Firmware updates are delivered over the air via secure web protocols, reducing on-site maintenance requirements and lowering long-term operating costs.
With support for industry standards such as ISO/IEC 15118 Plug & Charge, DIN 70121, and OCPP 1.6J (2.0.1 optional), the DH600L integrates seamlessly into modern charging networks while remaining future-proof as standards evolve.
Built-In Reliability & Redundancy.
A fully redundant system architecture across critical components ensures maximum uptime, delivering consistent, high-performance charging even in mission-critical environments.
Optimised Yield & Energy Efficiency
Designed to Reduce TCO and Increase Revenue.
The DH600L is built not just for power, but for profitability. End-to-end system efficiency of up to 97% ensures optimal power usage, while AI-driven charging optimisation improves overall charging efficiency by approximately 10%, directly increasing site revenue potential.
The system is fully prepared for PV and Battery Energy Storage (BESS) integration, enabling future energy optimisation strategies such as peak shaving, load balancing, and renewable energy utilisation. This makes the DH600L an ideal choice for operators looking to reduce energy costs while supporting sustainable charging infrastructure.
By combining high-power output, intelligent energy management readiness, and scalable deployment options, the DH600L delivers a compelling balance of maximum yield, lower total cost of ownership, and long-term operational flexibility.
Autel DS600L Distribution Cabinet Key Features.
From AI to full BESS-PV capabilities the Autel MaxiCharger DS600L is the next generation of distribution cabinets.
- Ultra-Fast 600kW Charging
-
Delivering up to 600kW of DC power, the DS600L enables rapid turnaround times for EVs, supporting high-throughput charging locations and reducing vehicle downtime.
- Liquid-Cooled High-Current Design
-
Advanced liquid-cooled power modules and cables support extremely high currents (up to 1500A), ensuring stable performance, quieter operation, and improved reliability even under continuous heavy loads.
- Scalable Modular Architecture
-
The system supports modular expansion up to 3MW, allowing operators to grow charging capacity as demand increases without major infrastructure changes or downtime.
- Exceptional Energy Efficiency
-
With up to 97% end-to-end charging efficiency, the DS600L minimises energy losses, reduces operating costs, and maximises the usable power delivered to vehicles.
- Intelligent PV-ESS-EV Integration
-
Designed for seamless integration with solar PV and energy storage systems, the DS600L enables peak shaving, load balancing, and energy optimisation, delivering savings of over 30% on energy costs in suitable deployments.
- Built for Reliability and Longevity
-
Featuring IP55 and C5-M corrosion protection, redundant system design, and AI-driven remote operation and maintenance, the DS600L achieves over 99% uptime and is engineered for a 15-year service life in harsh environments.
Autel MaxiCharger DS600L Distribution Cabinet Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35℃ to 55℃
- Storage Temperature Range
- -40℃ to 70℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- Yes
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- RFID Protocols
- ISO 14443 A/B, ISO/IEC 15693, MIFARE
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 900mm x 1050mm x 2250mm
- Colour
- Zinc Aluminum Magnesium Alloy
- Connectivity
- Double SIM 4G, 5G, Wi-Fi, Ethernet
- Current Type
- Mode 4 (DC)
- Standby Power
- < 85 W (Depending on configuration)
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC; DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- Yes
- Design Life
- 15 Years
- Warranty
- 24 months, warranty extension possible
- Mounting
- Floor Standing
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Anti-corrosion Degree
- C5-M
Output
- Output Power
- 360kW – 600kW
- Minimum Adjustable Power
- 60kW granularity
- Output Voltage
- 200 – 1000V
- Peak Efficiency
- 97%
- Number of Outputs
- 10
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50 Hz/60 Hz
- Earthing System
- TN-S, TN-C, TN-C-S, TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- < 3%
- Overvoltage Category
- AC side (Input) OVC: III
Autel MaxiCloud
One-Stop MaxiCloud Platform Management.
The Autel MaxiCloud Cloud supports OCPP 1.6 & 2.0, giving site hosts complete control and visibility across their entire charging network. Through our cloud platform, operators can efficiently manage energy costs, optimise revenue, oversee media assets, and much more.
|
Environmental Specifications
|
||
|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | ≤ 2000 m |
Operating Temperature Range
|
-35℃ to 55℃ | –35 °C to +55 °C (+40 °C to +55 °C with power de-rating, de-rating strategy TBD) |
Storage Temperature Range
|
-40℃ to 70℃ | –40 °C to +70 °C |
Noise
|
≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) |
EMC Compliance
|
EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht | IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht |
Certification
|
CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; T.V |
|
User Interface
|
||
|
Status Indication
|
Yes | Standard |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
RFID Protocols
|
ISO 14443 A/B, ISO/IEC 15693, MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
|
General Specifications
|
||
|
Dimensions (WxDxH)
|
900mm x 1050mm x 2250mm | 782 x 782 x 2150 mm |
Colour
|
Zinc Aluminum Magnesium Alloy | Zinc Aluminum Magnesium Alloy |
Connectivity
|
Double SIM 4G, 5G, Wi-Fi, Ethernet | 4G/5G (Dual SIM Card); Wi-Fi; Ethernet |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) |
Standby Power
|
< 85 W (Depending on configuration) | < 85 W (Depending on configuration) |
Enclosure Rating
|
IP54/IK10 | IP54/IK10 |
Communication to the EV
|
ISO/IEC 15118 with PnC; DIN 70121 | ISO/IEC 15118 with PnC; DIN 70121 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Emergency Button
|
Yes | Yes |
Design Life
|
15 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible |
Mounting
|
Floor Standing | Floor Standing |
Accessibility
|
Meets ADA requirements for height, reach, and user interface |
Anti-corrosion Degree
|
C5-M |
|
Output
|
||
|
Output Power
|
360kW – 600kW | 480 kW |
Minimum Adjustable Power
|
60kW granularity | 40 kW |
Output Voltage
|
200 – 1000V | 150-1000 V |
Peak Efficiency
|
97% | 96% |
Number of Outputs
|
10 | 8 |
Supply Configuration
|
3P+PE | 3P+PE |
|
Input
|
||
|
Input Voltage
|
3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) |
Input Frequency
|
50 Hz/60 Hz | 50 Hz/60 Hz |
Earthing System
|
TN-S, TN-C, TN-C-S, TT | TN-S, TN-C, TN-C-S, TT |
Power Factor
|
≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
< 3% | < 5% |
Overvoltage Category
|
AC side (Input) OVC: III | AC side (Input) OVC: III |
Input Capacity
|
520 kVA |
MaxiCharger DS600L
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35℃ to 55℃
- Storage Temperature Range
- -40℃ to 70℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- Yes
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- RFID Protocols
- ISO 14443 A/B, ISO/IEC 15693, MIFARE
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 900mm x 1050mm x 2250mm
- Colour
- Zinc Aluminum Magnesium Alloy
- Connectivity
- Double SIM 4G, 5G, Wi-Fi, Ethernet
- Current Type
- Mode 4 (DC)
- Standby Power
- < 85 W (Depending on configuration)
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC; DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- Yes
- Design Life
- 15 Years
- Warranty
- 24 months, warranty extension possible
- Mounting
- Floor Standing
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Anti-corrosion Degree
- C5-M
Output
- Output Power
- 360kW – 600kW
- Minimum Adjustable Power
- 60kW granularity
- Output Voltage
- 200 – 1000V
- Peak Efficiency
- 97%
- Number of Outputs
- 10
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50 Hz/60 Hz
- Earthing System
- TN-S, TN-C, TN-C-S, TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- < 3%
- Overvoltage Category
- AC side (Input) OVC: III
MaxiCharger DS480
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- ≤ 2000 m
- Operating Temperature Range
- –35 °C to +55 °C (+40 °C to +55 °C with power de-rating, de-rating strategy TBD)
- Storage Temperature Range
- –40 °C to +70 °C
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; T.V
User Interface
- Status Indication
- Standard
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 782 x 782 x 2150 mm
- Colour
- Zinc Aluminum Magnesium Alloy
- Connectivity
- 4G/5G (Dual SIM Card); Wi-Fi; Ethernet
- Current Type
- Mode 4 (DC)
- Standby Power
- < 85 W (Depending on configuration)
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC; DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Mounting
- Floor Standing
Output
- Output Power
- 480 kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000 V
- Peak Efficiency
- 96%
- Supply Configuration
- 3P+PE
- Number of Outputs
- 8
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50 Hz/60 Hz
- Earthing System
- TN-S, TN-C, TN-C-S, TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- < 5%
- Input Capacity
- 520 kVA
- Overvoltage Category
- AC side (Input) OVC: III
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
