Autel DT1500 1500A+500A Dispenser.
The DT1500 is Autel’s flagship megawatt-class DC charging dispenser, purpose-built for electric trucks, buses, and high-duty fleet operations. Designed to support the Megawatt Charging System (MCS) alongside CCS, the DT1500 enables ultra-high-current charging while maintaining a compact, site-friendly footprint.
Autel DT1500 1500A+500A Dispenser.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The DT1500 forms part of Autel’s Distribution Charging Unit architecture, where power is delivered from a centralised power cabinet to compact, high-performance dispensers. This approach allows charging sites to scale to megawatt-level outputs without placing bulky power electronics at each bay.
With support for 150–1000 V output voltage and ultra-high-current liquid-cooled cables, the DT1500 is engineered for next-generation electric HGVs and commercial vehicles. Its robust construction, open communication standards, and future-ready design make it an ideal solution for logistics depots, motorway truck charging hubs, and industrial fleet sites
POS
- Manufacturer
- Autel
- Model
- DT1500 MCS
- Colour
- Ice White
- Warranty
- 24 months – extension available
Image Gallery

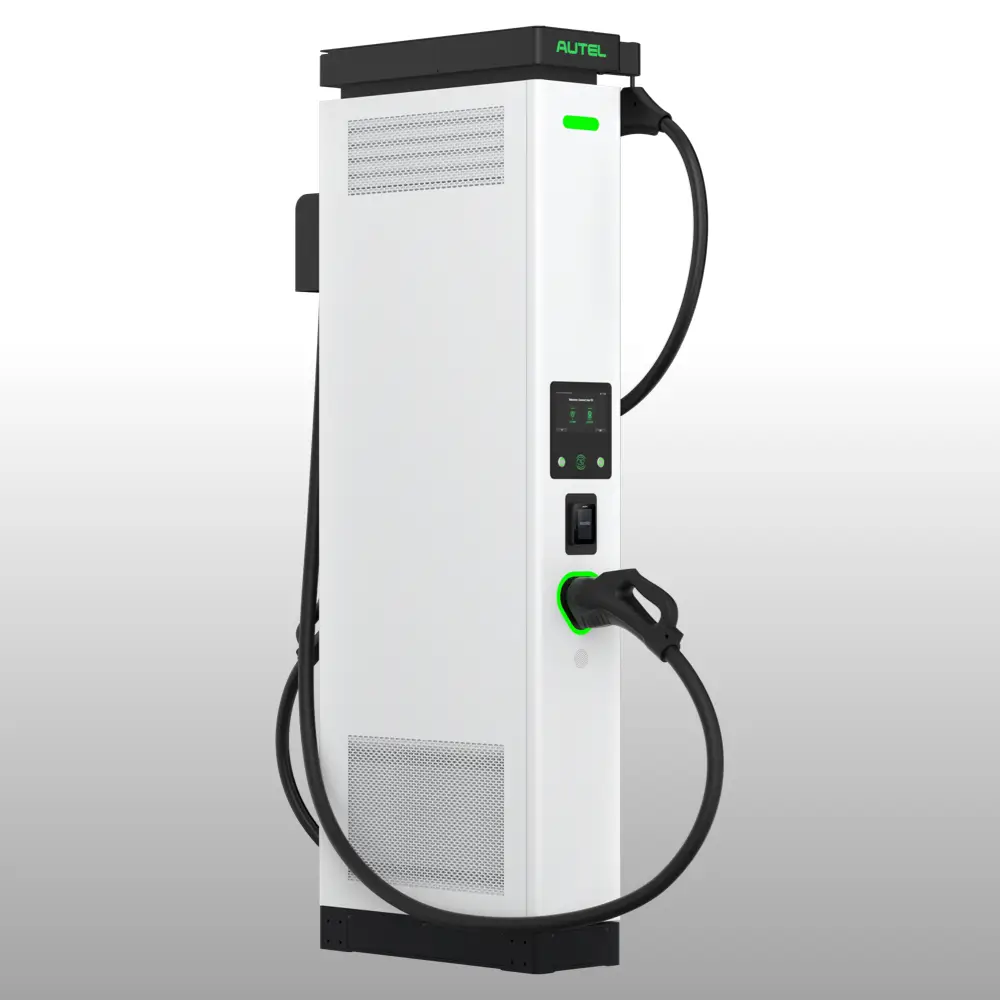

Autel MaxiCharger DT1500 Key Features.
Industry leading infrastructure for Megawatt-Class DC Charging. The DT1500 Dispenser is perfect for Heavy-Duty EVs.
- Megawatt Charging System (MCS) Support
-
Designed to support MCS configurations, enabling ultra-high-power charging for heavy-duty electric vehicles.
- Ultra-High Current Delivery
-
Supports liquid-cooled cables capable of extremely high current, ensuring rapid energy transfer for large battery packs.
- Dual-Standard Flexibility
-
Available in MCS + CCS configurations, allowing a single dispenser to serve both commercial fleets and passenger EVs.
- Wide Voltage Compatibility
-
Operates across 150–1000 V, ensuring compatibility with current and future high-voltage EV platforms.
- Compact Dispenser Design
-
High-power capability delivered in a slim form factor, reducing space requirements at each charging bay.
- Open & Network-Ready
-
Supports OCPP 1.6J (OCPP 2.0.1 optional) and ISO/IEC 15118 Plug & Charge, enabling seamless integration into intelligent charging networks.

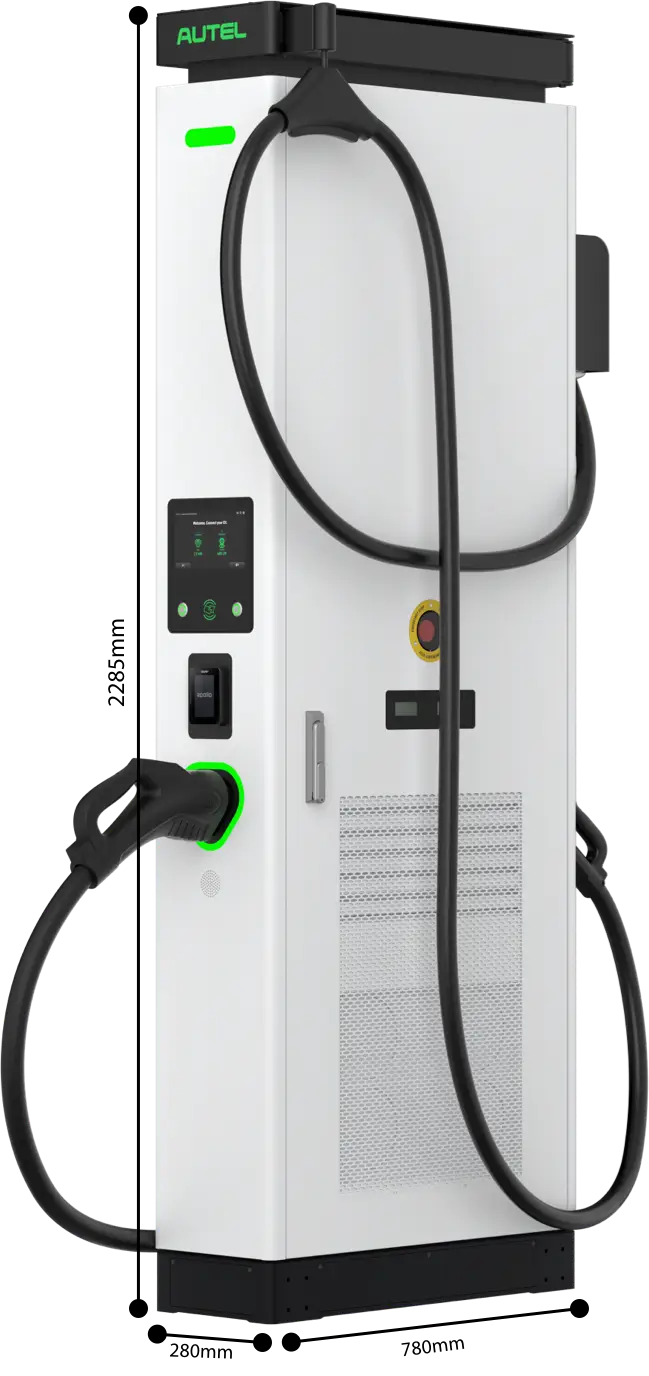

Autel DT1500 1500A+500A Dispenser Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 280mm x 780mm x 2285mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- MCS: 3m; CCS2: 5m
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Internal RCD
- –
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 1500A+500A (Max. 650A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 1*MCS+1*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
Megawatt-Scale Charging Capability

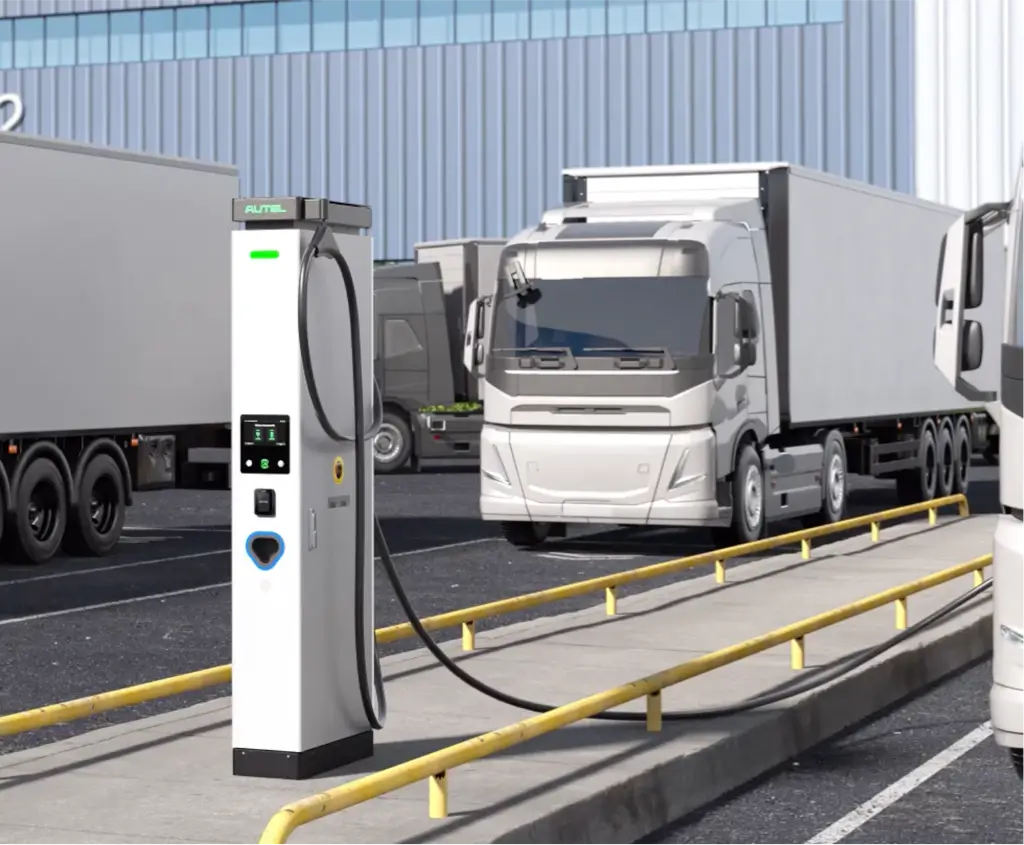

Built for Heavy-Duty Electric Transport.
The DT1500 is engineered specifically for the demands of electric trucks, buses, and industrial fleets. By supporting MCS alongside CCS, it enables charging at power levels far beyond traditional DC fast chargers, dramatically reducing dwell times for large commercial vehicles.
This capability makes the DT1500 a key enabler for the electrification of long-haul logistics and high-utilisation fleet operations, where charging speed and reliability are critical to operational efficiency.
Distributed Architecture for Scalable Sites
Centralised Power, Flexible Deployment.
By separating power cabinets from dispensers, the DT1500 allows operators to deploy multiple high-power charging points from a single central energy source. This reduces civil works, simplifies maintenance, and enables sites to scale capacity as fleet demand grows.
The result is a cleaner site layout, easier expansion, and a future-proof charging infrastructure capable of supporting megawatt-level charging as standards and vehicles evolve.
Network-Ready & Future-Proof

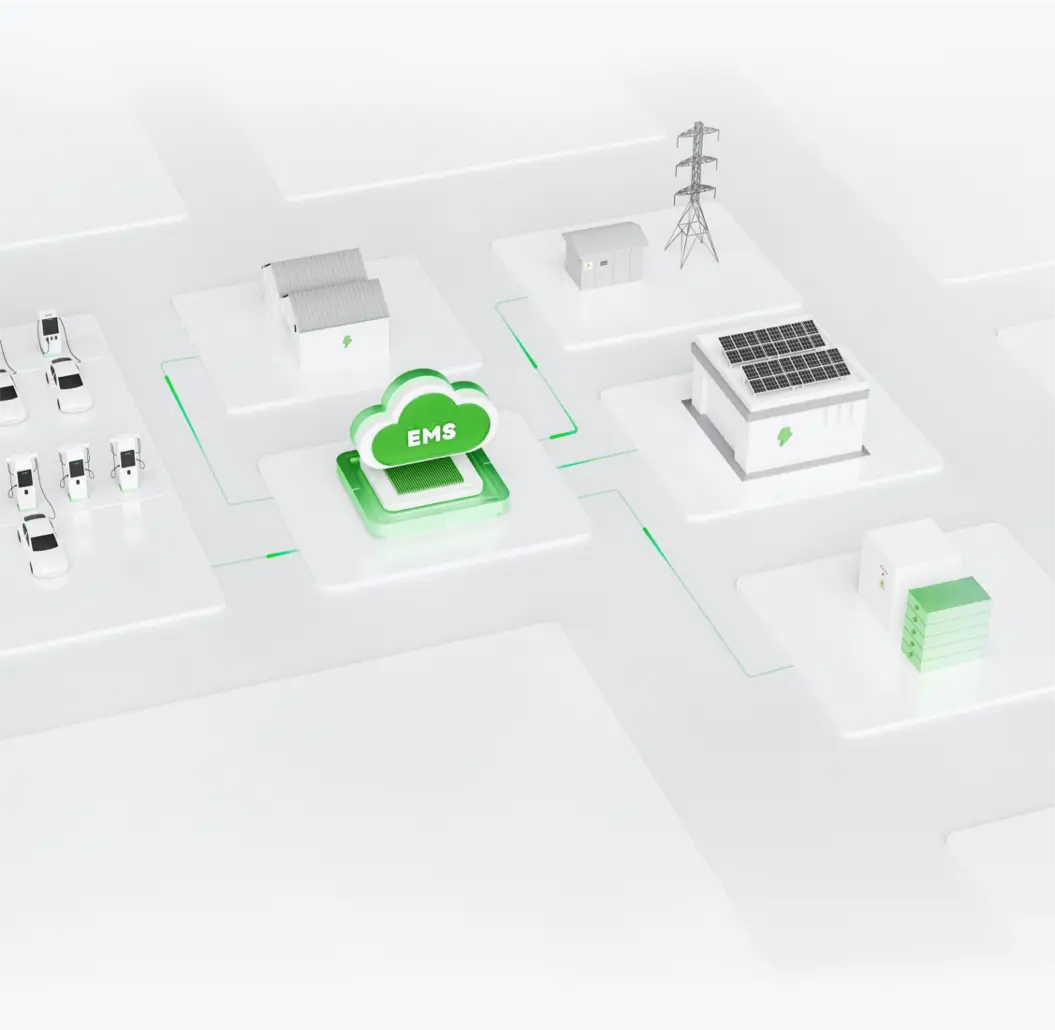

Designed for Long-Term Infrastructure Investment.
The DT1500 integrates seamlessly into modern EV charging ecosystems, supporting remote monitoring, OTA software updates, and advanced authentication and payment methods.
Built to comply with international safety and communication standards, the DT1500 protects long-term infrastructure investment while ensuring compatibility with next-generation vehicles, grid architectures, and intelligent energy management platforms
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | 2000m | 2000m |
Operating Temperature Range
|
-35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ |
Storage Temperature Range
|
-40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ |
Noise
|
≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) |
EMC Compliance
|
EMC Class A | EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht |
Certification
|
CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV |
|
User Interface
|
|||
|
Status Indication
|
APP; 8-inch LCD touchscreen; MaxiCloud Patform | APP; 8-inch LCD touchscreen; MaxiCloud Patform | APP; 8-inch LCD touchscreen; MaxiCloud Patform |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo |
RFID Protocols
|
ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE |
Payment Terminal
|
AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
Cable management System
|
Standard | Standard | Standard |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
280mm x 780mm x 2285mm | 322mm x 322mm x 1950mm | 322mm x 322mm x 1650mm |
Colour
|
White Galvanised Steel | White Galvanised Steel | White Galvanised Steel |
Connectivity
|
Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet |
Screen Type
|
8 inch LCD Touch Screen | 8 inch LCD Touch Screen | 8 inch LCD Touch Screen |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) | Mode 4 (DC) |
Cable Length
|
MCS: 3m; CCS2: 5m | 5m; 7.5m(Optional) | 5m; 7.5m(Optional) |
Standby Power
|
<65W | <65W | <65W |
Enclosure Rating
|
IP55; IK10 | IP55; IK10 | IP55; IK10 |
Communication to the EV
|
ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Accessibility
|
Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface |
Emergency Button
|
Yes | Yes | Yes |
Design Life
|
10 Years | 10 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible | 24 months, warranty extension possible |
Weight
|
160 kg | 160 kg | 160 kg |
Mounting
|
Floor Standing | Floor Standing | Floor Standing |
Protection
|
Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
|||
|
Output Voltage
|
150-1000v | 150-1000v | 150-1000v |
Output Current
|
Liquid-cooled Cable: 1500A+500A (Max. 650A) | Liquid-cooled Cable: 500A (Max. 780A) | Uncooled Cable:380A (Max. 500A) |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
2 | 2 or 1 | 2 |
Charging Mode
|
1*MCS+1*CCS2 | 2*CCS2; 1*CCS2 | 2*CCS2 |
Supply Configuration
|
3P+PE | 3P+PE | 3P+PE |
|
Input
|
|||
|
Input Voltage
|
3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) |
Input Frequency
|
50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
Earthing System
|
TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT |
Power Factor
|
≥ 0.99 | ≥ 0.99 | ≥ 0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
MaxiCharger DT1500
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 280mm x 780mm x 2285mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- MCS: 3m; CCS2: 5m
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 1500A+500A (Max. 650A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 1*MCS+1*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DT800
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 322mm x 322mm x 1950mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 500A (Max. 780A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2 or 1
- Charging Mode
- 2*CCS2; 1*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DT500
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 322mm x 322mm x 1650mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Uncooled Cable:380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
Autel MaxiCloud
One-Stop MaxiCloud Platform Management.
The Autel MaxiCloud Cloud supports OCPP 1.6 & 2.0, giving site hosts complete control and visibility across their entire charging network. Through our cloud platform, operators can efficiently manage energy costs, optimise revenue, oversee media assets, and much more.
Contact Us
Speak with an Expert.
Got a Project? Accelerate your EV charging business with Intelli EV - your trusted Autel partner. We deliver tailored charging solutions and the right Autel products to power your success with efficiency, reliability, and innovation.
