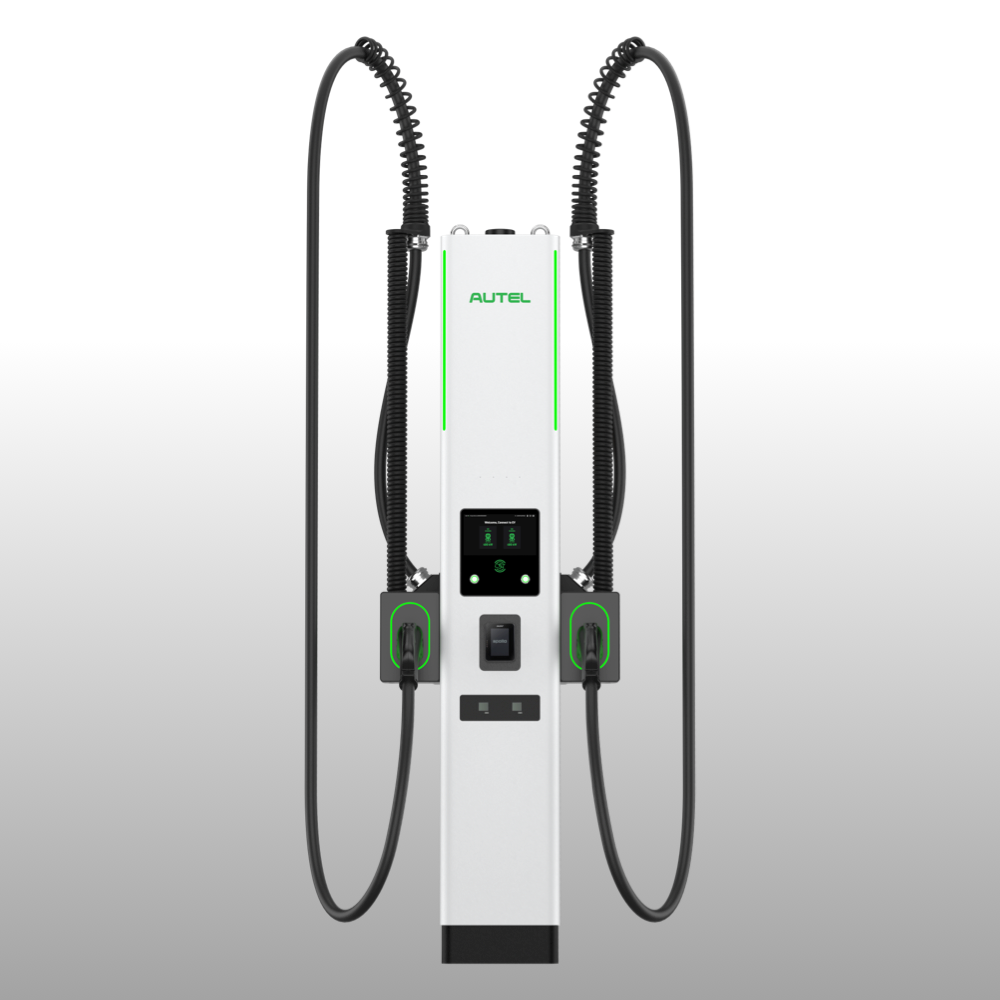

Autel DT800 500A Dispenser.
The DT800 is an ultra-high-power DC charging dispenser designed for next-generation EV charging hubs, fleet depots, and motorway locations. With support for CCS and MCS configurations, a compact footprint, and extremely high current capability, the DT800 enables future-proof charging without compromising space, reliability, or user experience.
Autel DT800 500A Dispenser.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The DT800 is part of Autel’s Distribution Charging Unit architecture, separating power cabinets from dispensers to deliver exceptional flexibility and scalability. By locating the power electronics centrally and using compact dispensers at the charging bay, operators can deploy ultra-high-power charging while minimising on-site congestion and civil works.
The DT800 is engineered for today’s modern EV platforms and tomorrow’s megawatt-class vehicles. Its robust enclosure, open communication standards, and seamless payment support make it an ideal choice for high-utilisation public and commercial charging environments
POS
- Manufacturer
- Autel
- Model
- DT800
- Colour
- Ice White
- Warranty
- 24 months – extension available

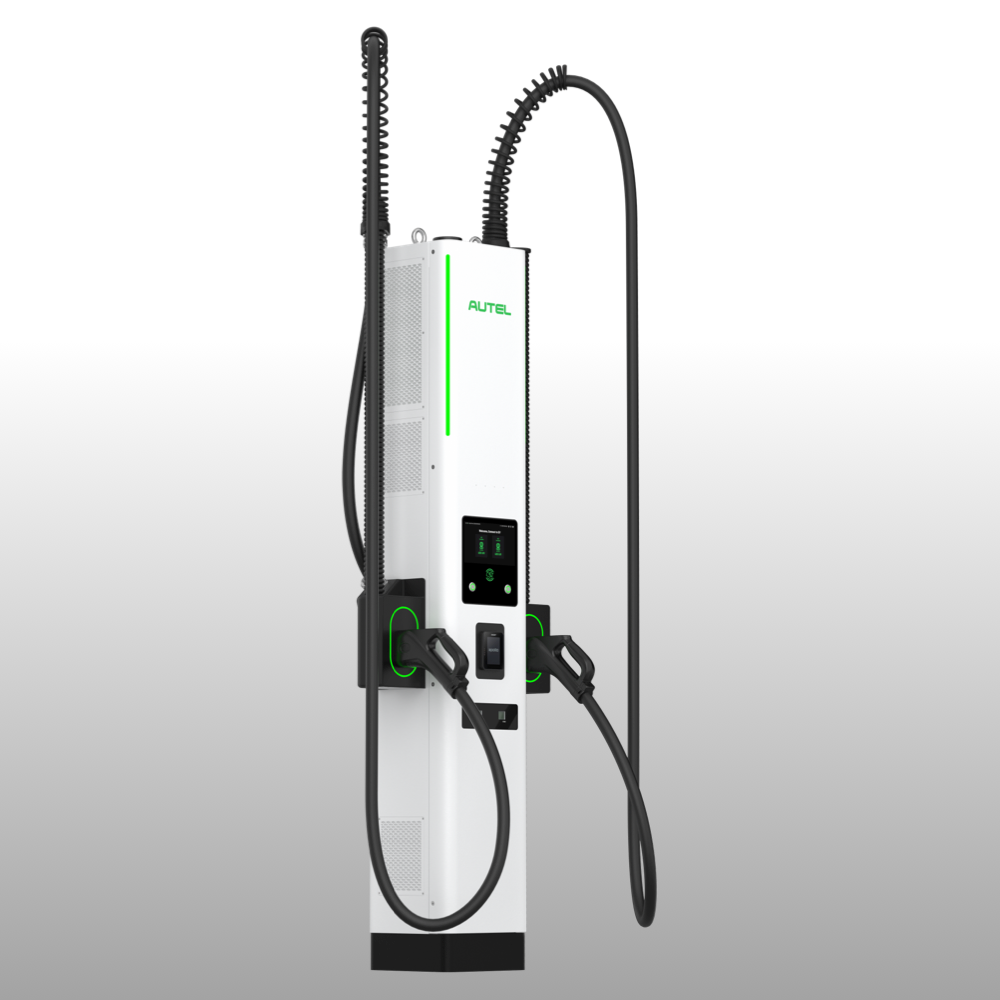

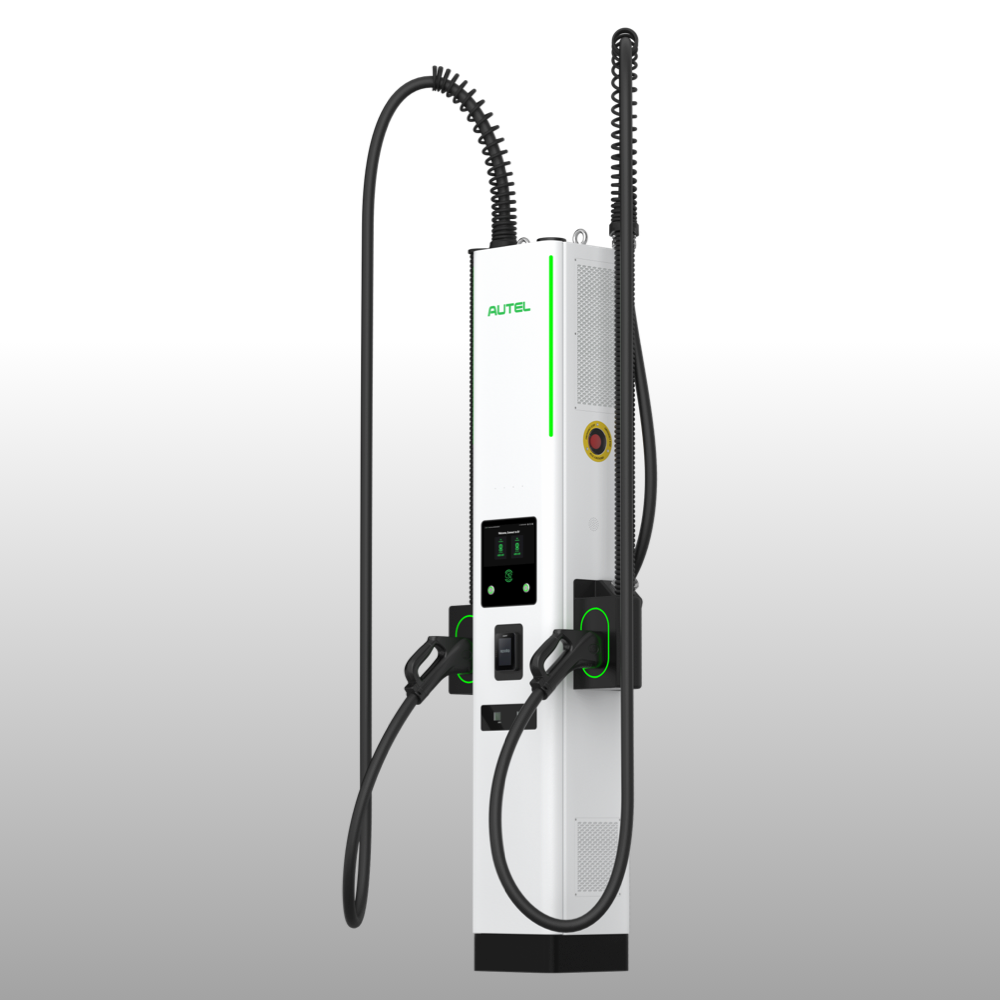

Image Gallery
Autel MaxiCharger DT800 Key Features.
- Ultra-High Current Capability
-
Supports liquid-cooled charging with extremely high current delivery, enabling ultra-fast charging for high-voltage EVs.
- CCS & MCS Ready
-
Available in CCS2 and mixed MCS + CCS configurations to support both passenger EVs and heavy-duty electric vehicles.
- Compact Footprint
-
Slim dispenser design minimises space requirements while maintaining full high-power capability.
- Wide Voltage Range
-
Operates across 150–1000 V, ensuring compatibility with current and next-generation EV architectures.
- Open Protocol Support
-
Fully compatible with OCPP 1.6J (OCPP 2.0.1 optional) and ISO/IEC 15118 Plug & Charge standards.
- Enterprise-Grade Durability
-
IP-rated enclosure with industrial-grade components designed for continuous outdoor operation in demanding environments.

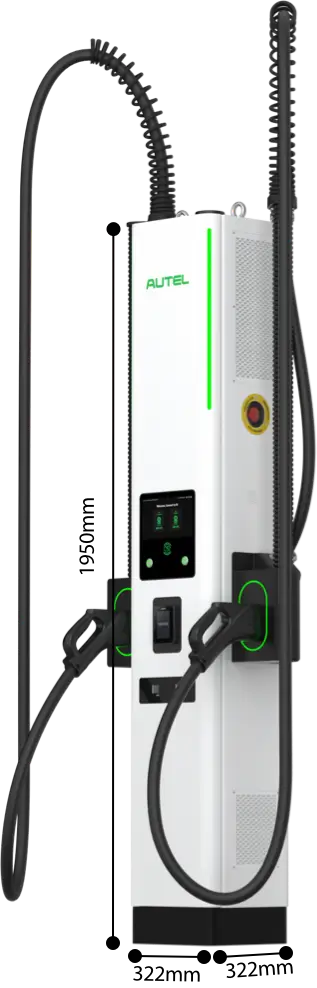

Autel DT800 650A Dispenser Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 322mm x 322mm x 1950mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Internal RCD
- –
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 500A (Max. 780A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2 or 1
- Charging Mode
- 2*CCS2; 1*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
Manuals and Datasheets
High-Power Charging Architecture
Built for Ultra-Fast and Megawatt-Scale Charging.
The DT800 is designed to operate as part of a distributed charging system, drawing power from a centralised power cabinet rather than housing power electronics locally. This architecture allows a single site to scale charging capacity efficiently while keeping dispensers compact and easy to deploy.
With support for extremely high current via liquid-cooled cables, the DT800 enables ultra-fast charging for 800 V vehicles and is fully prepared for megawatt-level applications, making it a long-term solution for evolving EV fleets and infrastructure demands.
Compact Design, Maximum Flexibility
High Power Without the Footprint.
Despite its high-power capability, the DT800 maintains a slim and space-efficient form factor. This allows charging operators to deploy multiple dispensers across a site without overcrowding bays or increasing construction complexity.
The reduced footprint makes the DT800 particularly well suited to motorway services, urban rapid-charging hubs, and fleet depots where space optimisation is critical to maximising charger availability and throughput.
Network-Ready & Future-Proof
Designed for Intelligent Charging Networks.
The DT800 integrates seamlessly into modern EV charging networks, supporting remote monitoring, OTA software updates, and intelligent energy management via standardised communication protocols.
With built-in support for advanced authentication, payment systems, and Plug & Charge functionality, the DT800 ensures a smooth user experience today while remaining adaptable to future regulatory, technological, and commercial requirements.
Autel MaxiCloud
One-Stop MaxiCloud Platform Management.
The Autel MaxiCloud Cloud supports OCPP 1.6 & 2.0, giving site hosts complete control and visibility across their entire charging network. Through our cloud platform, operators can efficiently manage energy costs, optimise revenue, oversee media assets, and much more.
|
Environmental Specifications
|
|||
|---|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | 2000m | 2000m |
Operating Temperature Range
|
-35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ | -35 ℃ to +55 ℃ |
Storage Temperature Range
|
-40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ | -40 ℃ to +70 ℃ |
Noise
|
≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) |
EMC Compliance
|
EMC Class A | EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht | IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht |
Certification
|
CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; TÜV |
|
User Interface
|
|||
|
Status Indication
|
APP; 8-inch LCD touchscreen; MaxiCloud Patform | APP; 8-inch LCD touchscreen; MaxiCloud Patform | APP; 8-inch LCD touchscreen; MaxiCloud Patform |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
Credit Card Readers
|
Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo | Nayax Onyx; Payter P66/Apollo |
RFID Protocols
|
ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE |
Payment Terminal
|
AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) | AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional) |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
Cable management System
|
Standard | Standard | Standard |
|
General Specifications
|
|||
|
Dimensions (WxDxH)
|
280mm x 780mm x 2285mm | 322mm x 322mm x 1950mm | 322mm x 322mm x 1650mm |
Colour
|
White Galvanised Steel | White Galvanised Steel | White Galvanised Steel |
Connectivity
|
Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet | Double SIM 4G; 5G; Wi-Fi; Ethernet |
Screen Type
|
8 inch LCD Touch Screen | 8 inch LCD Touch Screen | 8 inch LCD Touch Screen |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) | Mode 4 (DC) |
Cable Length
|
MCS: 3m; CCS2: 5m | 5m; 7.5m(Optional) | 5m; 7.5m(Optional) |
Standby Power
|
<65W | <65W | <65W |
Enclosure Rating
|
IP55; IK10 | IP55; IK10 | IP55; IK10 |
Communication to the EV
|
ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 | ISO/IEC 15118 with PnC, DIN 70121 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Accessibility
|
Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface | Meets ADA requirements for height, reach, and user interface |
Emergency Button
|
Yes | Yes | Yes |
Design Life
|
10 Years | 10 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible | 24 months, warranty extension possible |
Weight
|
160 kg | 160 kg | 160 kg |
Mounting
|
Floor Standing | Floor Standing | Floor Standing |
Protection
|
Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
|
Output
|
|||
|
Output Voltage
|
150-1000v | 150-1000v | 150-1000v |
Output Current
|
Liquid-cooled Cable: 1500A+500A (Max. 650A) | Liquid-cooled Cable: 500A (Max. 780A) | Uncooled Cable:380A (Max. 500A) |
Peak Efficiency
|
96% | 96% | 96% |
Number of Outputs (Max.)
|
2 | 2 or 1 | 2 |
Charging Mode
|
1*MCS+1*CCS2 | 2*CCS2; 1*CCS2 | 2*CCS2 |
Supply Configuration
|
3P+PE | 3P+PE | 3P+PE |
|
Input
|
|||
|
Input Voltage
|
3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) |
Input Frequency
|
50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
Earthing System
|
TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT | TN-S; TN-C; TN-C-S; TT |
Power Factor
|
≥ 0.99 | ≥ 0.99 | ≥ 0.99 |
Harmonic Distortion (THDi)
|
<5% | <5% | <5% |
MaxiCharger DT1500
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 280mm x 780mm x 2285mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- MCS: 3m; CCS2: 5m
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 1500A+500A (Max. 650A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 1*MCS+1*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DT800
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 322mm x 322mm x 1950mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Liquid-cooled Cable: 500A (Max. 780A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2 or 1
- Charging Mode
- 2*CCS2; 1*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
MaxiCharger DT500
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 322mm x 322mm x 1650mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Voltage
- 150-1000v
- Output Current
- Uncooled Cable:380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
Contact Us
Speak with an Expert.
Got a Project? Accelerate your EV charging business with Intelli EV - your trusted Autel partner. We deliver tailored charging solutions and the right Autel products to power your success with efficiency, reliability, and innovation.
