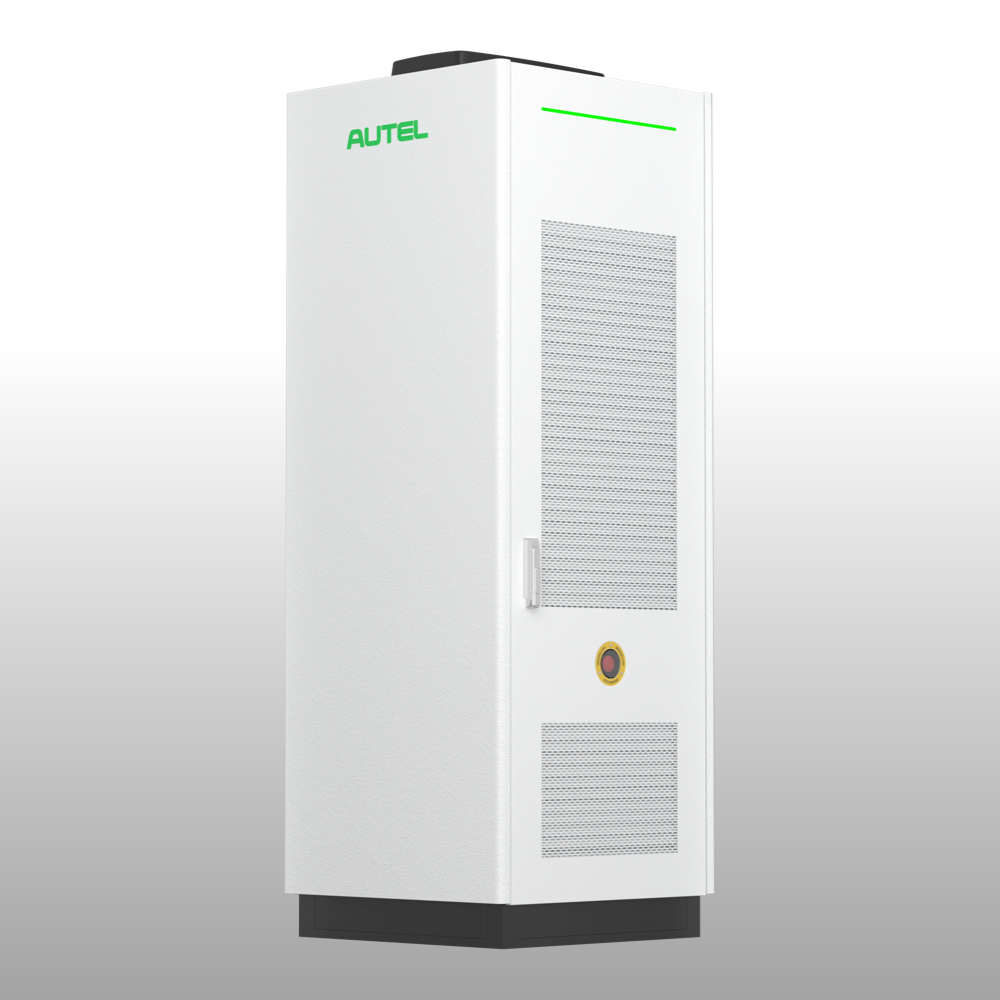

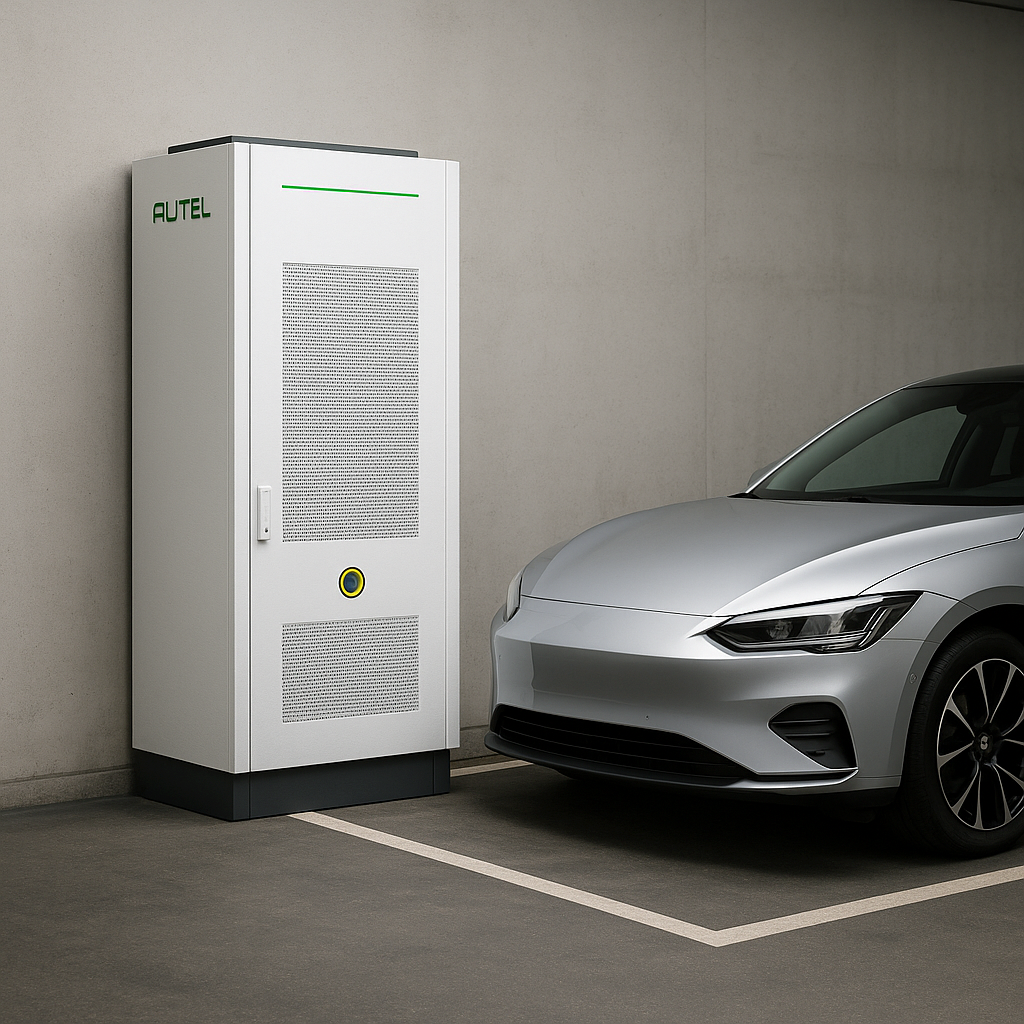

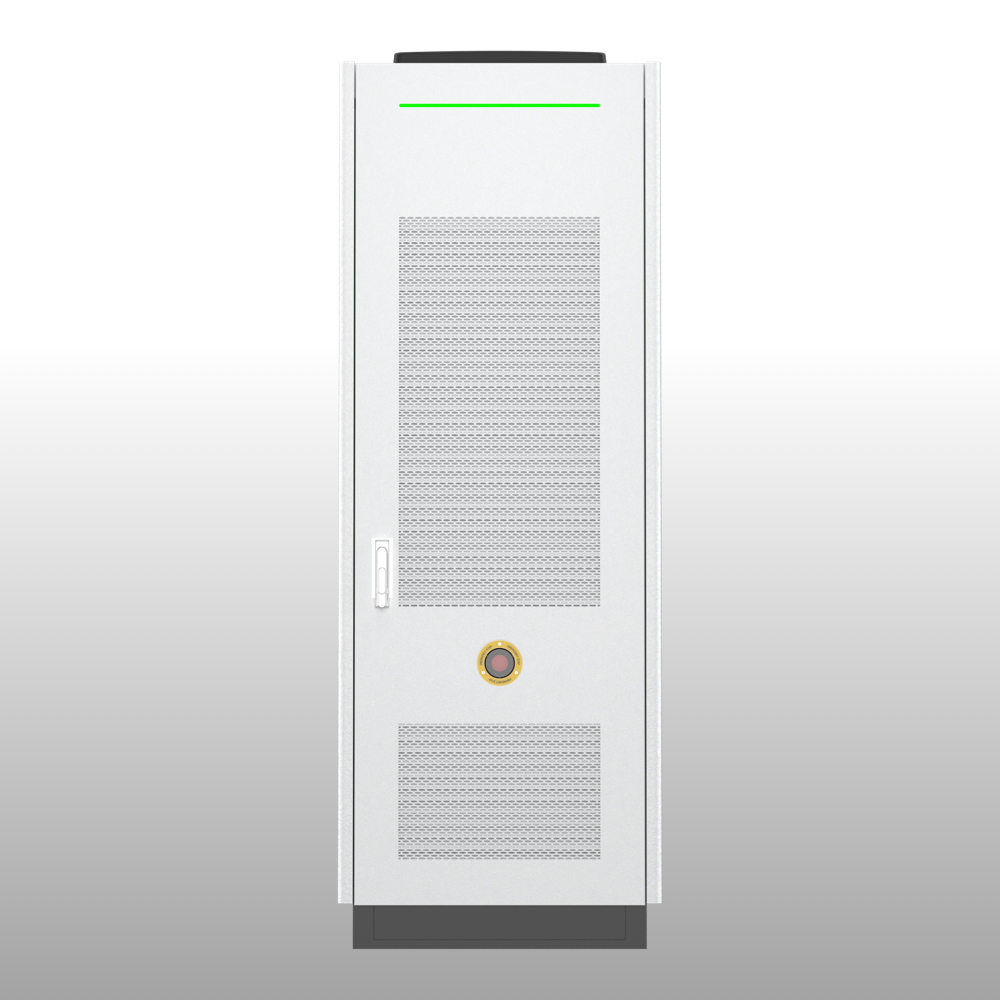

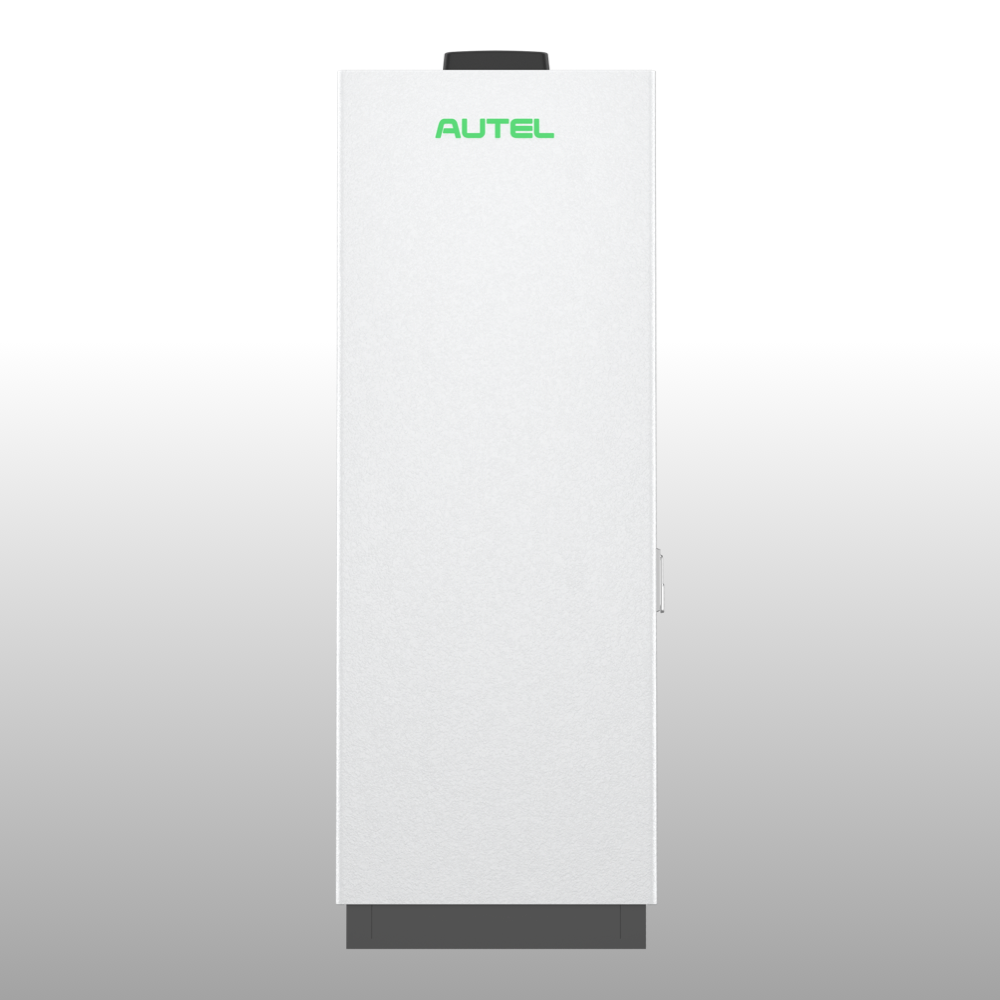

Autel DS480 Distribution Cabinet.
The Autel DS480 delivers ultra-fast, high-performance DC charging with power outputs up to 480 kW. Designed for maximum flexibility and efficiency, it supports up to eight CCS2 charging points, ensuring scalable, high-throughput energy delivery for demanding commercial and fleet environments.
Autel DS480 Distribution Cabinet.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The DS480 represents a new standard in fast charging, combining superior power with intelligent remote management. Its optimized design maximises available capacity while maintaining reliability and low operational noise. Through Autel Cloud connectivity, system performance and faults can be monitored and diagnosed remotely, minimising downtime and service interruptions.
With up to 480 kW of total output and modular power units of 40 kW each, this unit offers exceptional scalability for both existing and future charging needs. It is engineered with robust safety systems, advanced connectivity, and durable construction suitable for heavy-duty environments, delivering confidence and speed in every charge.
Power
- Manufacturer
- Autel
- Model
- DS480
- Colour
- Ice White
- Warranty
- 24 months – extension available
Image Gallery
Autel DS480 Distribution Cabinet Key Features.
- Ultra-High Power 480 kW Fast Charging
-
The DS480 delivers up to 480 kW of DC output power, enabling ultra-fast charging for modern EVs. With support for up to eight simultaneous outputs and peak efficiency of 96%, it maximizes site throughput while minimizing energy loss for operators.
- Flexible Multi-Dispenser Architecture
-
A single DS480 cabinet can power a wide range of dispenser configurations — including liquid-cooled DT800 and air-cooled DT500 dispensers, with both single and dual CCS2 charging handles. This modularity allows operators to scale from 1 to 8 charge points from a single cabinet.
- Advanced Cooling for Extreme Performance
-
The system supports liquid-cooled charging handles capable of delivering up to 780 A peak, as well as high-performance air-cooled dispensers. Its engineered airflow channels ensure optimal thermal management, enabling safe operation from –35°C to +55°C.
- Smart Connectivity & OCPP Compatibility
-
DS480 integrates seamlessly with backend systems through Ethernet, 4G/5G, Wi-Fi, and supports OCPP 1.6J with optional OCPP 2.0.1, enabling remote diagnostics, OTA updates, monitoring, and billing integrations through Autel’s cloud or third-party platforms.
- Robust Safety, Reliability & Protection
-
Engineered for high-uptime environments, the DS480 includes built-in protection features such as overcurrent, over-temperature, surge, undervoltage, tilt, access protection, and optional internal RCDs. The cabinet meets IP54/IK10 for harsh outdoor conditions and includes an emergency stop.
- Intuitive User Experience & Payment Options
-
With an 8-inch full-HD touchscreen, RFID reader, optional credit-card terminals, and support for AutoCharge, Plug & Charge, QR code payments, app control, the system offers a seamless and accessible user experience for both public and private charging environments.

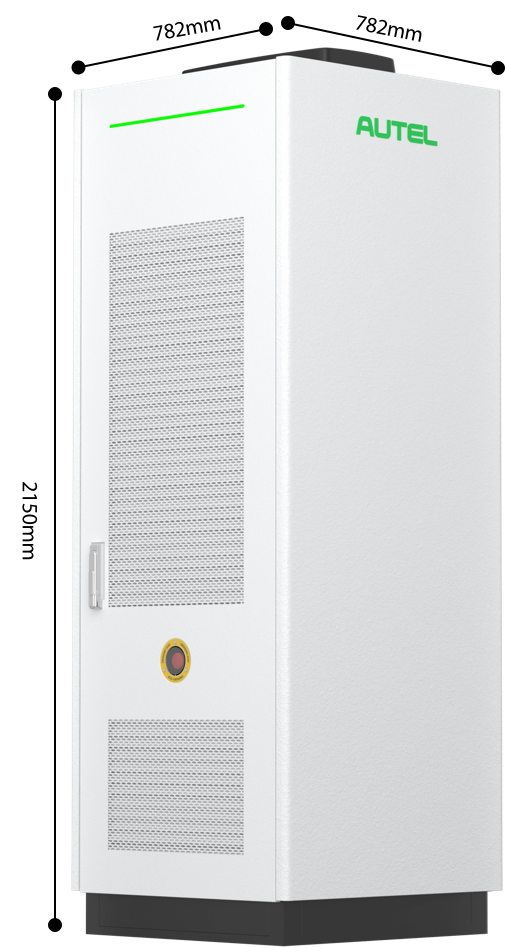

Autel DS480 Distribution Cabinet Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- ≤ 2000 m
- Operating Temperature Range
- –35 °C to +55 °C (+40 °C to +55 °C with power de-rating, de-rating strategy TBD)
- Storage Temperature Range
- –40 °C to +70 °C
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; T.V
User Interface
- Status Indication
- Standard
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 782 x 782 x 2150 mm
- Colour
- Zinc Aluminum Magnesium Alloy
- Connectivity
- 4G/5G (Dual SIM Card); Wi-Fi; Ethernet
- Current Type
- Mode 4 (DC)
- Standby Power
- < 85 W (Depending on configuration)
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC; DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Mounting
- Floor Standing
Output
- Output Power
- 480 kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000 V
- Peak Efficiency
- 96%
- Supply Configuration
- 3P+PE
- Number of Outputs
- 8
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50 Hz/60 Hz
- Earthing System
- TN-S, TN-C, TN-C-S, TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- < 5%
- Input Capacity
- 520 kVA
- Overvoltage Category
- AC side (Input) OVC: III

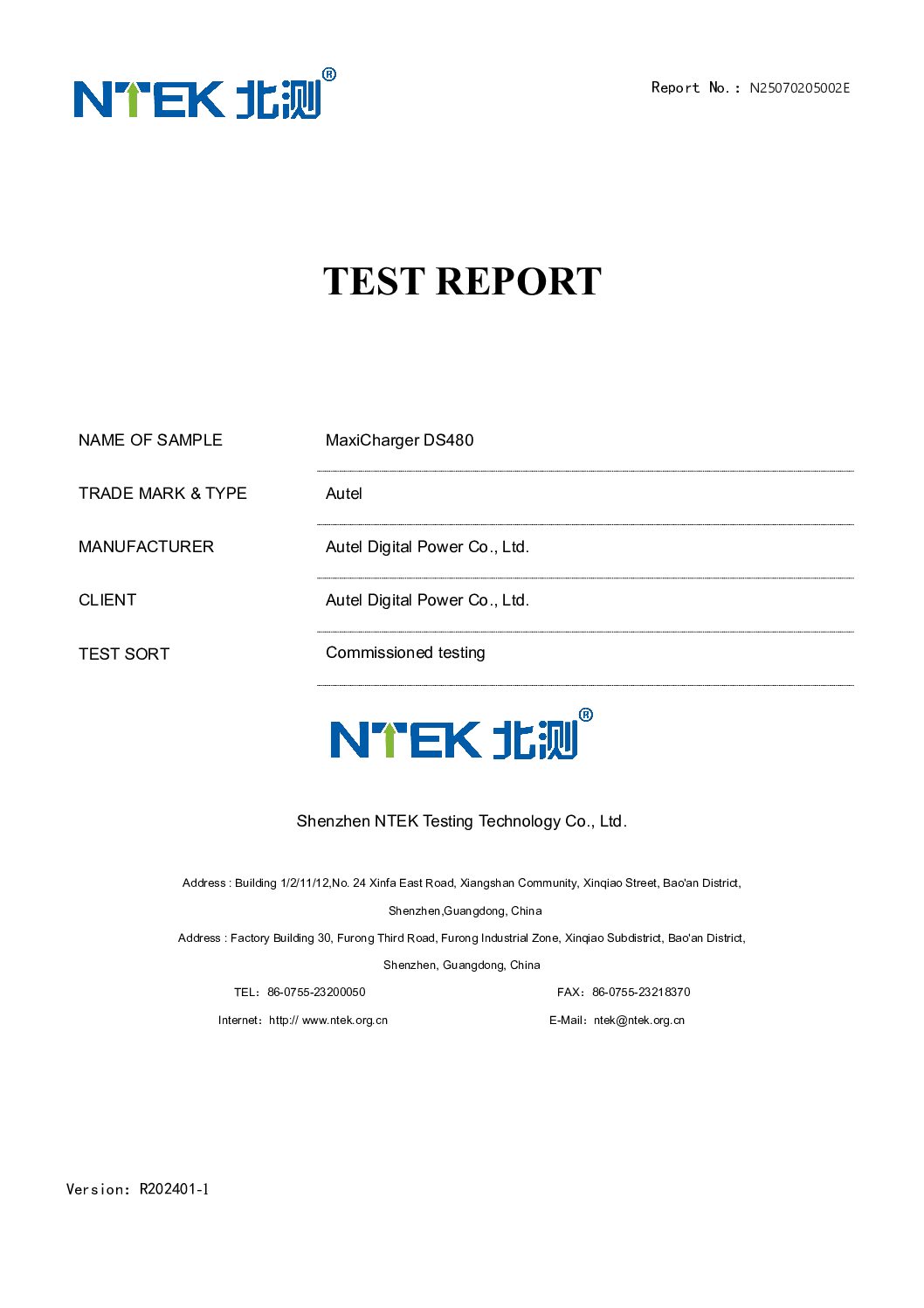

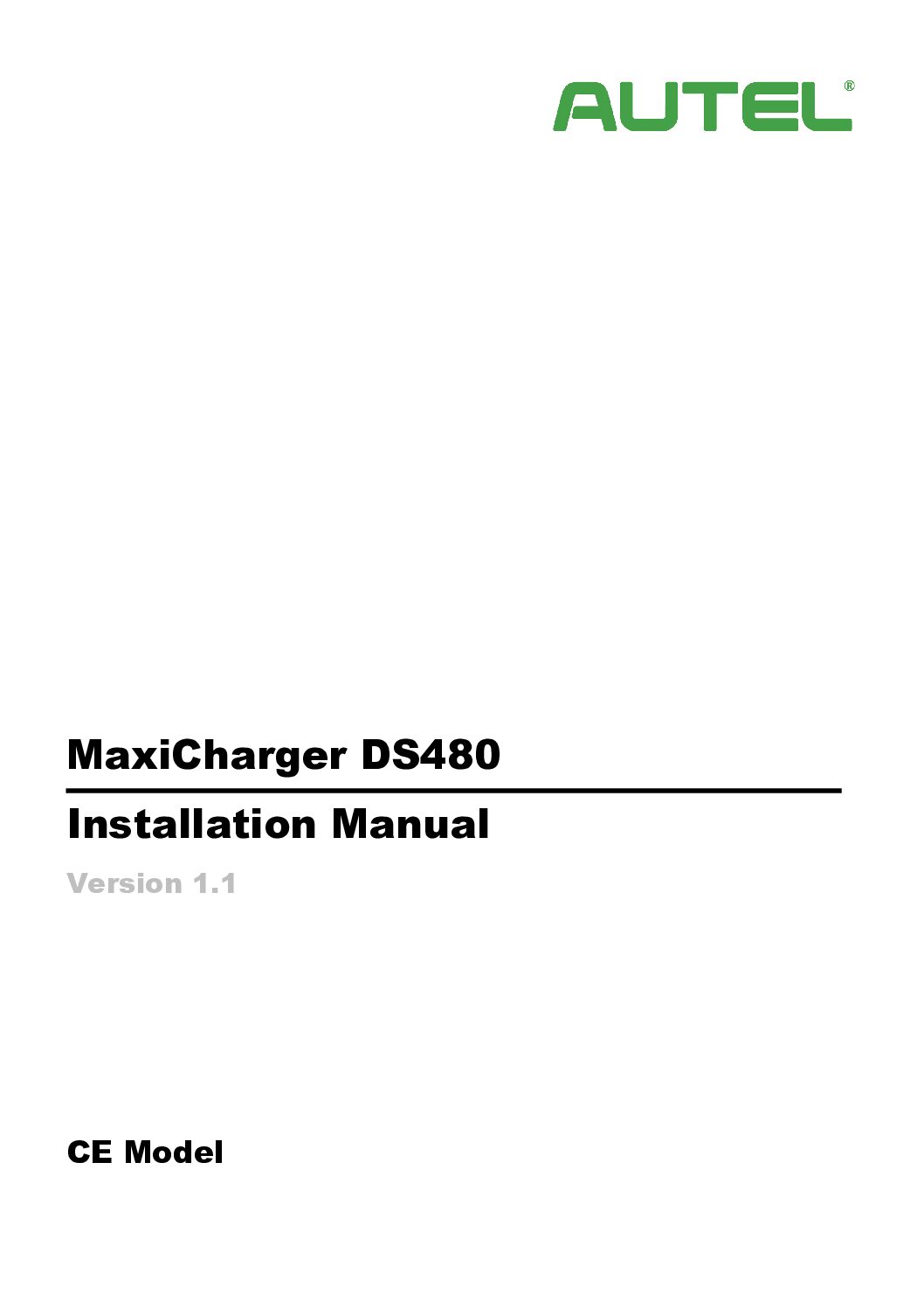

Manuals and Datasheets
Autel DS480 Distribution Cabinet

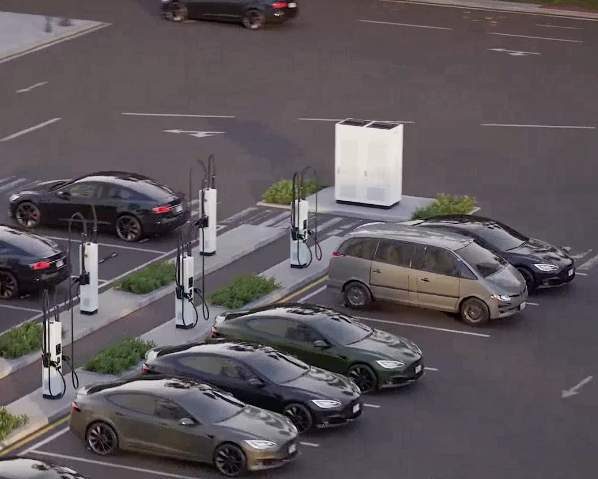

High-Power Flexibility.
The DS480’s modular design allows operators to scale charging power according to demand. Each 40 kW module contributes to a total capacity of up to 480 kW, enabling configurations that meet diverse site requirements – from small fleet operations to high-capacity public charging hubs.
Its dual 500 A/630 A outputs ensure consistent, powerful performance even under heavy load. With the ability to serve up to eight CCS2 connectors, the DS480 offers true flexibility for multi-vehicle operations without compromising charging speed.
Autel DS480 Distribution Cabinet

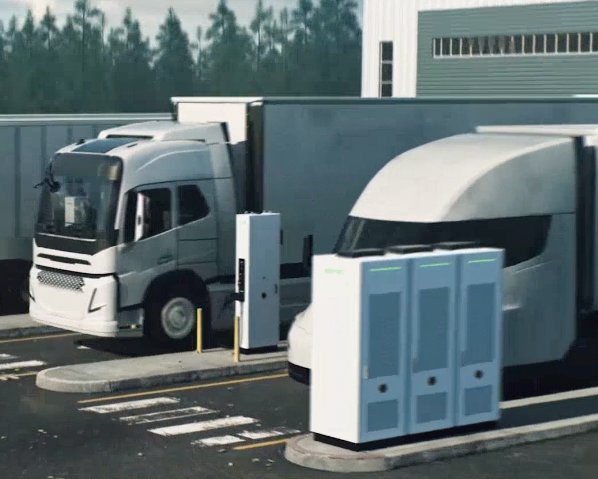

Built for Efficiency and Reliability.
Beyond raw power, the DS480 stands out for its operational intelligence and robust design. Through Autel Cloud, performance data and potential faults are analysed remotely, reducing the need for on-site maintenance. This connectivity ensures maximum uptime and smooth operation across all locations.
Constructed with air-cooling technology, MCCB + RCD protection, and a sturdy 500 kg frame, the DS480 meets IP54 and IK10 standards for safety and durability. Its quiet operation and advanced connectivity make it an ideal solution for modern charging infrastructures that prioritise both performance and reliability.
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
|
Environmental Specifications
|
||
|---|---|---|
|
Humidity
|
≤95 % RH, non-condensing | ≤95 % RH, non-condensing |
Operating Altitude
|
2000m | ≤ 2000 m |
Operating Temperature Range
|
-35℃ to 55℃ | –35 °C to +55 °C (+40 °C to +55 °C with power de-rating, de-rating strategy TBD) |
Storage Temperature Range
|
-40℃ to 70℃ | –40 °C to +70 °C |
Noise
|
≤ 55d dB(A) (Silent Model) | ≤ 55d dB(A) (Silent Model) |
EMC Compliance
|
EMC Class A | EMC Class A |
Compliance and Safety
|
IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht | IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht |
Certification
|
CE; UKCA; TR25; ETSI EN 303645; TÜV | CE; UKCA; TR25; ETSI EN 303645; T.V |
|
User Interface
|
||
|
Status Indication
|
Yes | Standard |
Languages
|
English, French, Spanish, German, Italian (others available via software upgrade) | English, French, Spanish, German, Italian (others available via software upgrade) |
RFID Protocols
|
ISO 14443 A/B, ISO/IEC 15693, MIFARE | ISO 14443 A/B; ISO/IEC 15693; MIFARE |
Communication Protocols
|
OCPP 1.6 & OCPP 2.0.1 | OCPP 1.6 & OCPP 2.0.1 |
|
General Specifications
|
||
|
Dimensions (WxDxH)
|
900mm x 1050mm x 2250mm | 782 x 782 x 2150 mm |
Colour
|
Zinc Aluminum Magnesium Alloy | Zinc Aluminum Magnesium Alloy |
Connectivity
|
Double SIM 4G, 5G, Wi-Fi, Ethernet | 4G/5G (Dual SIM Card); Wi-Fi; Ethernet |
Current Type
|
Mode 4 (DC) | Mode 4 (DC) |
Standby Power
|
< 85 W (Depending on configuration) | < 85 W (Depending on configuration) |
Enclosure Rating
|
IP54/IK10 | IP54/IK10 |
Communication to the EV
|
ISO/IEC 15118 with PnC; DIN 70121 | ISO/IEC 15118 with PnC; DIN 70121 |
Software Update
|
OTA updates via web portal, FTP, FTPS, HTTPS | OTA updates via web portal, FTP, FTPS, HTTPS |
Emergency Button
|
Yes | Yes |
Design Life
|
15 Years | 10 Years |
Warranty
|
24 months, warranty extension possible | 24 months, warranty extension possible |
Mounting
|
Floor Standing | Floor Standing |
Accessibility
|
Meets ADA requirements for height, reach, and user interface |
Anti-corrosion Degree
|
C5-M |
|
Output
|
||
|
Output Power
|
360kW – 600kW | 480 kW |
Minimum Adjustable Power
|
60kW granularity | 40 kW |
Output Voltage
|
200 – 1000V | 150-1000 V |
Peak Efficiency
|
97% | 96% |
Number of Outputs
|
10 | 8 |
Supply Configuration
|
3P+PE | 3P+PE |
|
Input
|
||
|
Input Voltage
|
3-phase 400V AC ±10% (2 Routes) | 3-phase 400V AC ±10% (2 Routes) |
Input Frequency
|
50 Hz/60 Hz | 50 Hz/60 Hz |
Earthing System
|
TN-S, TN-C, TN-C-S, TT | TN-S, TN-C, TN-C-S, TT |
Power Factor
|
≥0.99 | ≥0.99 |
Harmonic Distortion (THDi)
|
< 3% | < 5% |
Overvoltage Category
|
AC side (Input) OVC: III | AC side (Input) OVC: III |
Input Capacity
|
520 kVA |
MaxiCharger DS600L
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35℃ to 55℃
- Storage Temperature Range
- -40℃ to 70℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- Yes
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- RFID Protocols
- ISO 14443 A/B, ISO/IEC 15693, MIFARE
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 900mm x 1050mm x 2250mm
- Colour
- Zinc Aluminum Magnesium Alloy
- Connectivity
- Double SIM 4G, 5G, Wi-Fi, Ethernet
- Current Type
- Mode 4 (DC)
- Standby Power
- < 85 W (Depending on configuration)
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC; DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- Yes
- Design Life
- 15 Years
- Warranty
- 24 months, warranty extension possible
- Mounting
- Floor Standing
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Anti-corrosion Degree
- C5-M
Output
- Output Power
- 360kW – 600kW
- Minimum Adjustable Power
- 60kW granularity
- Output Voltage
- 200 – 1000V
- Peak Efficiency
- 97%
- Number of Outputs
- 10
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50 Hz/60 Hz
- Earthing System
- TN-S, TN-C, TN-C-S, TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- < 3%
- Overvoltage Category
- AC side (Input) OVC: III

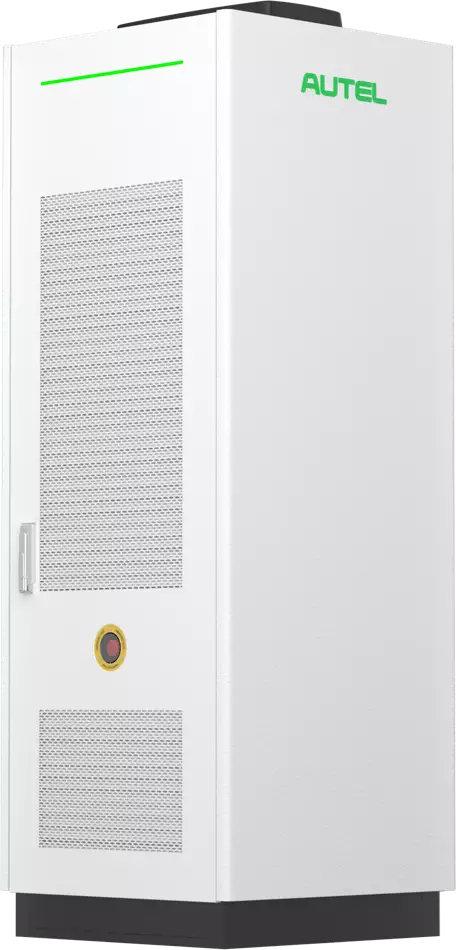

MaxiCharger DS480
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- ≤ 2000 m
- Operating Temperature Range
- –35 °C to +55 °C (+40 °C to +55 °C with power de-rating, de-rating strategy TBD)
- Storage Temperature Range
- –40 °C to +70 °C
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; T.V
User Interface
- Status Indication
- Standard
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
General Specifications
- Dimensions (WxDxH)
- 782 x 782 x 2150 mm
- Colour
- Zinc Aluminum Magnesium Alloy
- Connectivity
- 4G/5G (Dual SIM Card); Wi-Fi; Ethernet
- Current Type
- Mode 4 (DC)
- Standby Power
- < 85 W (Depending on configuration)
- Enclosure Rating
- IP54/IK10
- Communication to the EV
- ISO/IEC 15118 with PnC; DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Mounting
- Floor Standing
Output
- Output Power
- 480 kW
- Minimum Adjustable Power
- 40 kW
- Output Voltage
- 150-1000 V
- Peak Efficiency
- 96%
- Supply Configuration
- 3P+PE
- Number of Outputs
- 8
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50 Hz/60 Hz
- Earthing System
- TN-S, TN-C, TN-C-S, TT
- Power Factor
- ≥0.99
- Harmonic Distortion (THDi)
- < 5%
- Input Capacity
- 520 kVA
- Overvoltage Category
- AC side (Input) OVC: III
Autel MaxiCloud
One-Stop MaxiCloud Platform Management.
The Autel MaxiCloud Cloud supports OCPP 1.6 & 2.0, giving site hosts complete control and visibility across their entire charging network. Through our cloud platform, operators can efficiently manage energy costs, optimise revenue, oversee media assets, and much more.
