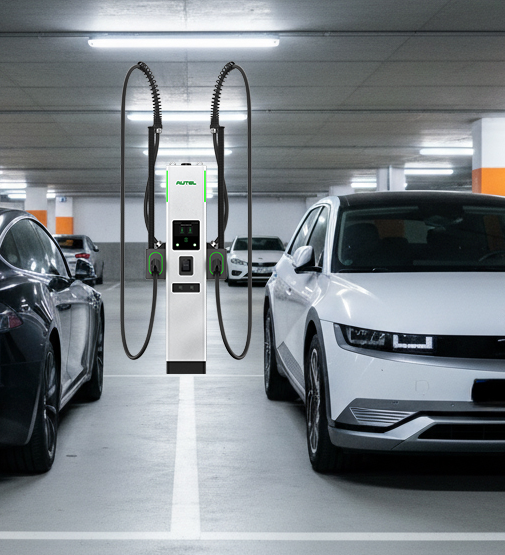

Autel DT500 400kW Dispenser.
Part of the new-generation MaxiCharger DC series, the Autel DT500 is a one-stop intelligent charging solution powered by cutting-edge, AI-driven innovations. The DT500 is a powerful 400kW Distribution Charging Unit designed for high-performance, user-friendly EV charging with dual-vehicle capabilities.
Autel DT500 400kW Dispenser.
Product information
£{{ getActivePrice }}0.00 excl. VAT (RRP)
Description
The Autel MaxiCharger DT500 is a 400kW distribution charging unit with two CCS2 outputs and a liquid-cooled cable that delivers an output current of 500A.

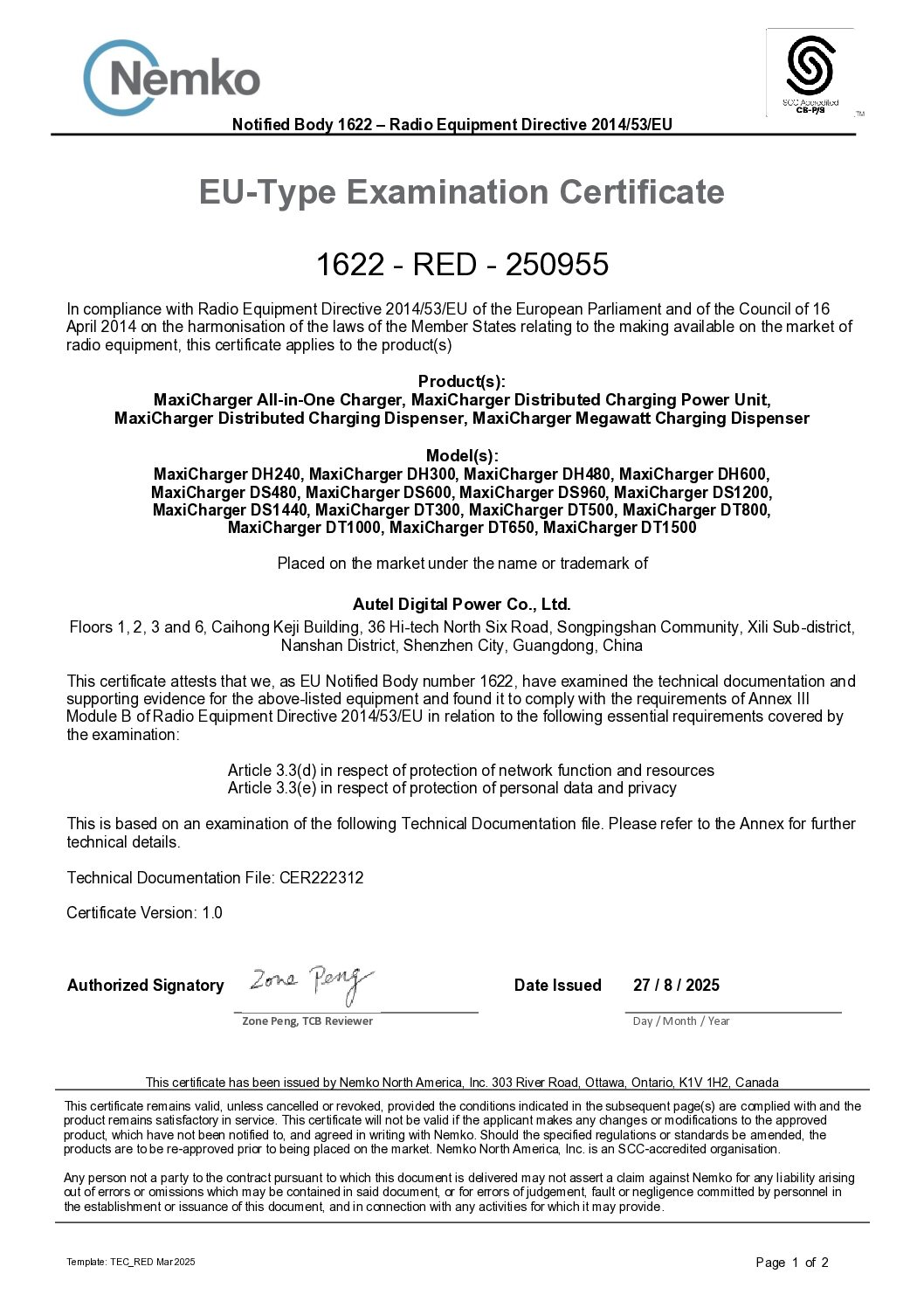

Furthermore, the unit is fully certified (CE, UKCA, TR25, ETSI EN 303645, TÜV) and complies with essential safety standards such as IEC 61851-1 and IEC 61851-21-2, ensuring reliable and regulated operation.
POS
- Manufacturer
- Autel
- Model
- DT500 400kW
- Colour
- Ice White
- Warranty
- 24 months – extension available

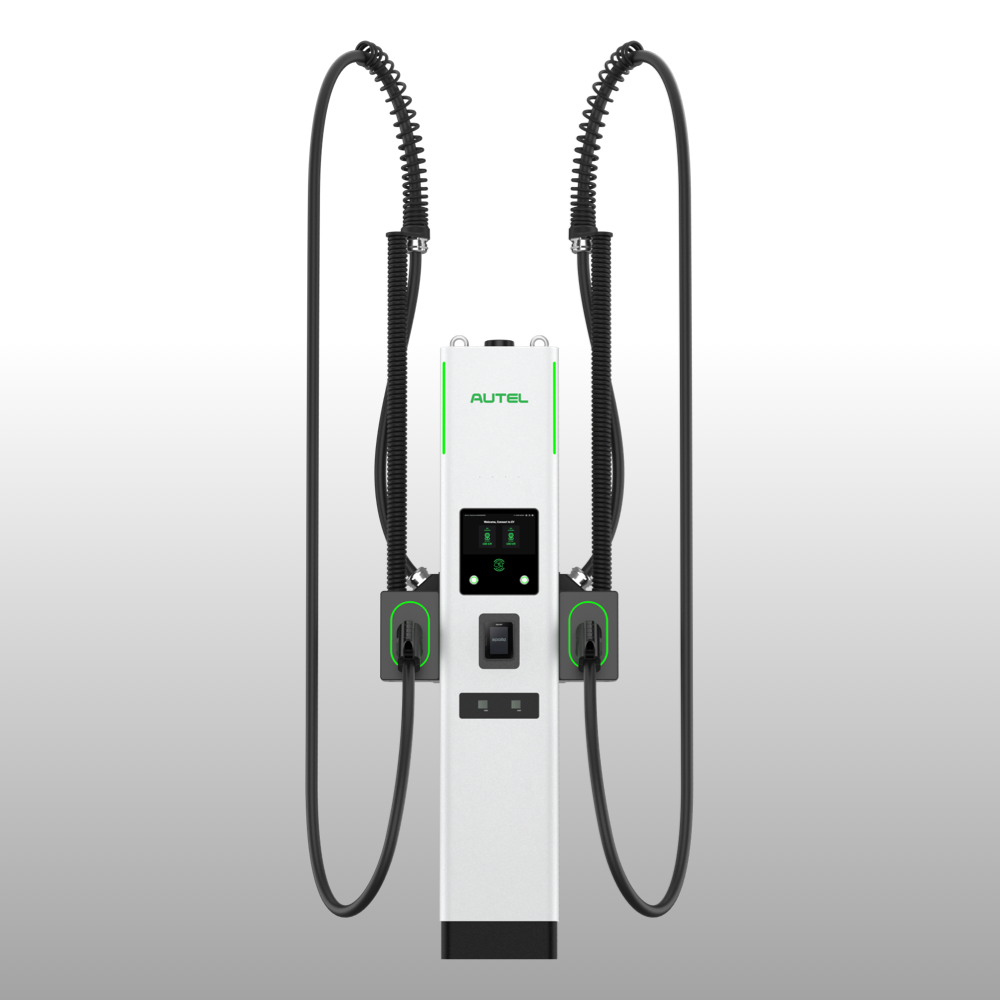

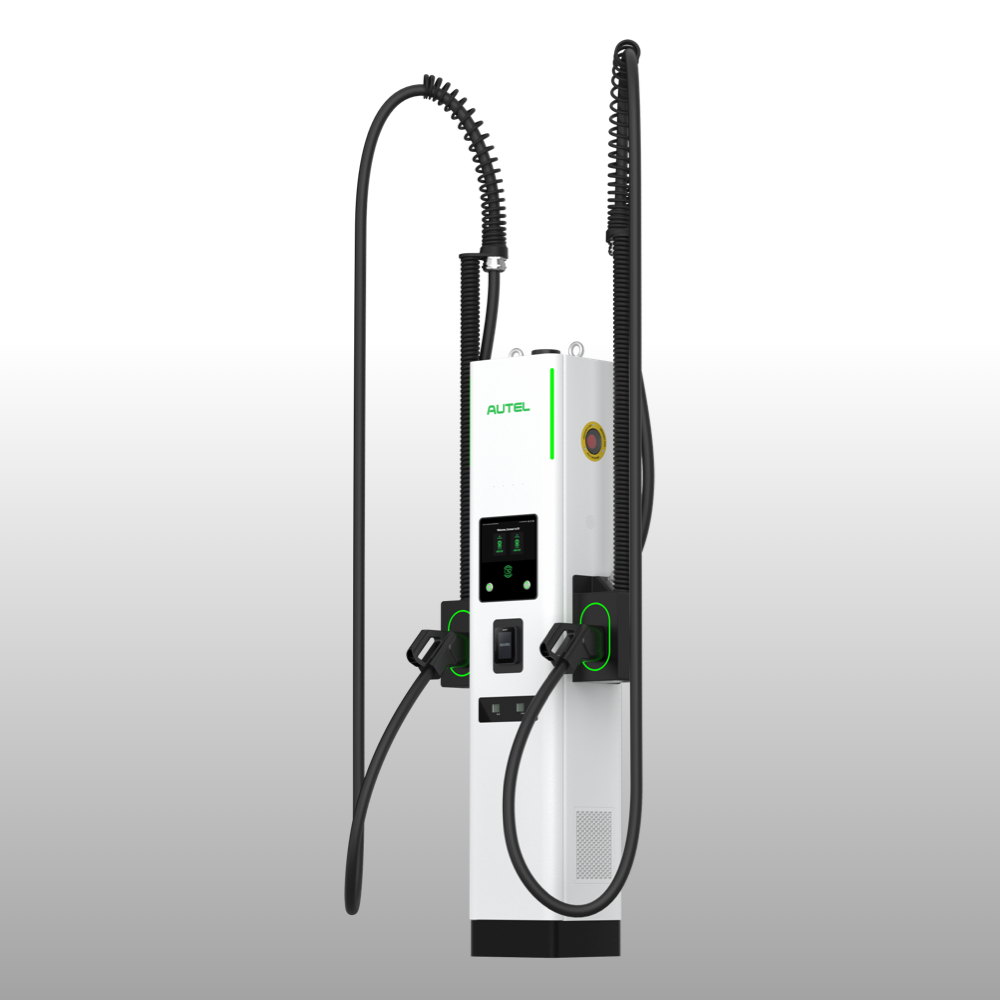

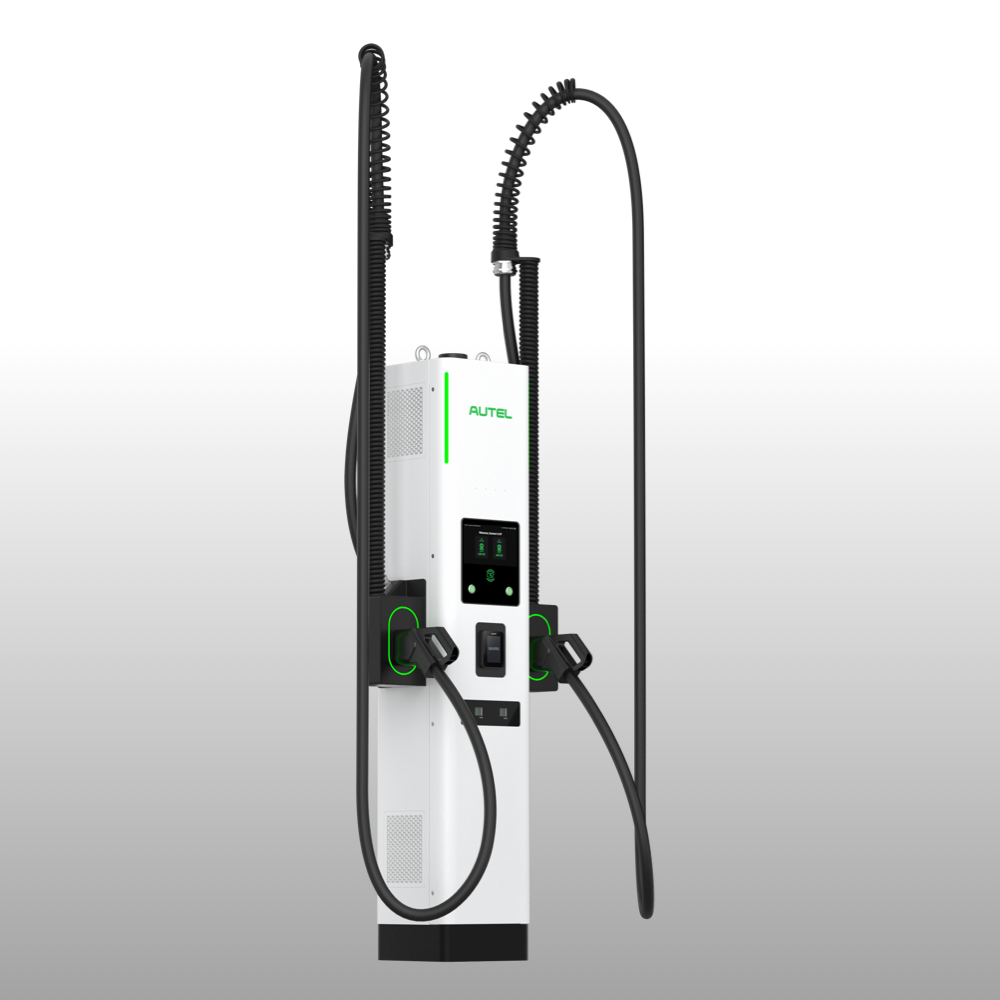

Image Gallery
Autel DT500 Dispenser Key Features.
- Powerful DC Output
-
The unit delivers a substantial 400kW of output power with a voltage range of 150-1000V. It utilises a liquid-cooled cable to provide an output current of 500A, with a maximum of 650A.
- Dual Charging Capability
-
Equipped with a maximum of two outputs, the DT500 features two CCS2 charging modes, allowing for simultaneous charging of two vehicles.
- Intuitive User Interface
-
An 8-inch LCD Touch Screen provides a clear and accessible interface for users. The unit supports a wide array of payment options, including AutoCharge, Plug & Charge, APP, RFID card, QR code, and optional credit card readers.
- Durable and Weather-Resistant
-
Built to last, the DT500 has an enclosure rating of IP55/IK10, protecting it against dust, water, and impacts. It is designed to function in a wide operating temperature range from -35°C to 55°C.
- Advanced Communication and Management
-
The charger supports remote Over-the-Air (OTA) software updates via web portal, FTP, FTPS, and HTTPS. It uses OCPP 1.6J as its standard communication protocol, with an option to upgrade to OCPP 2.0.1.
- Accessible Design
-
The design meets ADA requirements for height, reach, and user interface, ensuring it is accessible to all users.
Autel DT500 400kW Dispenser Technical Specifications.
Environmental Specifications
- Humidity
- ≤95 % RH, non-condensing
- Operating Altitude
- 2000m
- Operating Temperature Range
- -35 ℃ to +55 ℃
- Storage Temperature Range
- -40 ℃ to +70 ℃
- Noise
- ≤ 55d dB(A) (Silent Model)
- EMC Compliance
- EMC Class A
- Compliance and Safety
- IEC 61851-1; IEC 61851-21-2; IEC 61000; Eichrecht
- Certification
- CE; UKCA; TR25; ETSI EN 303645; TÜV
User Interface
- Status Indication
- APP; 8-inch LCD touchscreen; MaxiCloud Patform
- Languages
- English, French, Spanish, German, Italian (others available via software upgrade)
- Credit Card Readers
- Nayax Onyx; Payter P66/Apollo
- RFID Protocols
- ISO 14443 A/B; ISO/IEC 15693; MIFARE
- Payment Terminal
- AutoCharge; Plug & Charge; APP; RFID card; QR code; Credit Card (Optional)
- Communication Protocols
- OCPP 1.6 & OCPP 2.0.1
- Cable management System
- Standard
General Specifications
- Dimensions (WxDxH)
- 322mm x 322mm x 1650mm
- Colour
- White Galvanised Steel
- Connectivity
- Double SIM 4G; 5G; Wi-Fi; Ethernet
- Screen Type
- 8 inch LCD Touch Screen
- Current Type
- Mode 4 (DC)
- Cable Length
- 5m; 7.5m(Optional)
- Standby Power
- <65W
- Enclosure Rating
- IP55; IK10
- Communication to the EV
- ISO/IEC 15118 with PnC, DIN 70121
- Software Update
- OTA updates via web portal, FTP, FTPS, HTTPS
- Accessibility
- Meets ADA requirements for height, reach, and user interface
- Emergency Button
- Yes
- Design Life
- 10 Years
- Warranty
- 24 months, warranty extension possible
- Weight
- 160 kg
- Mounting
- Floor Standing
- Internal RCD
- –
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection
Output
- Output Power
- 400kW
- Minimum Adjustable Power
- 40KW
- Output Voltage
- 150-1000v
- Output Current
- Uncooled Cable:380A (Max. 500A)
- Peak Efficiency
- 96%
- Number of Outputs (Max.)
- 2
- Charging Mode
- 2*CCS2
- Supply Configuration
- 3P+PE
Input
- Input Voltage
- 3-phase 400V AC ±10% (2 Routes)
- Input Frequency
- 50Hz/60Hz
- Earthing System
- TN-S; TN-C; TN-C-S; TT
- Power Factor
- ≥ 0.99
- Harmonic Distortion (THDi)
- <5%

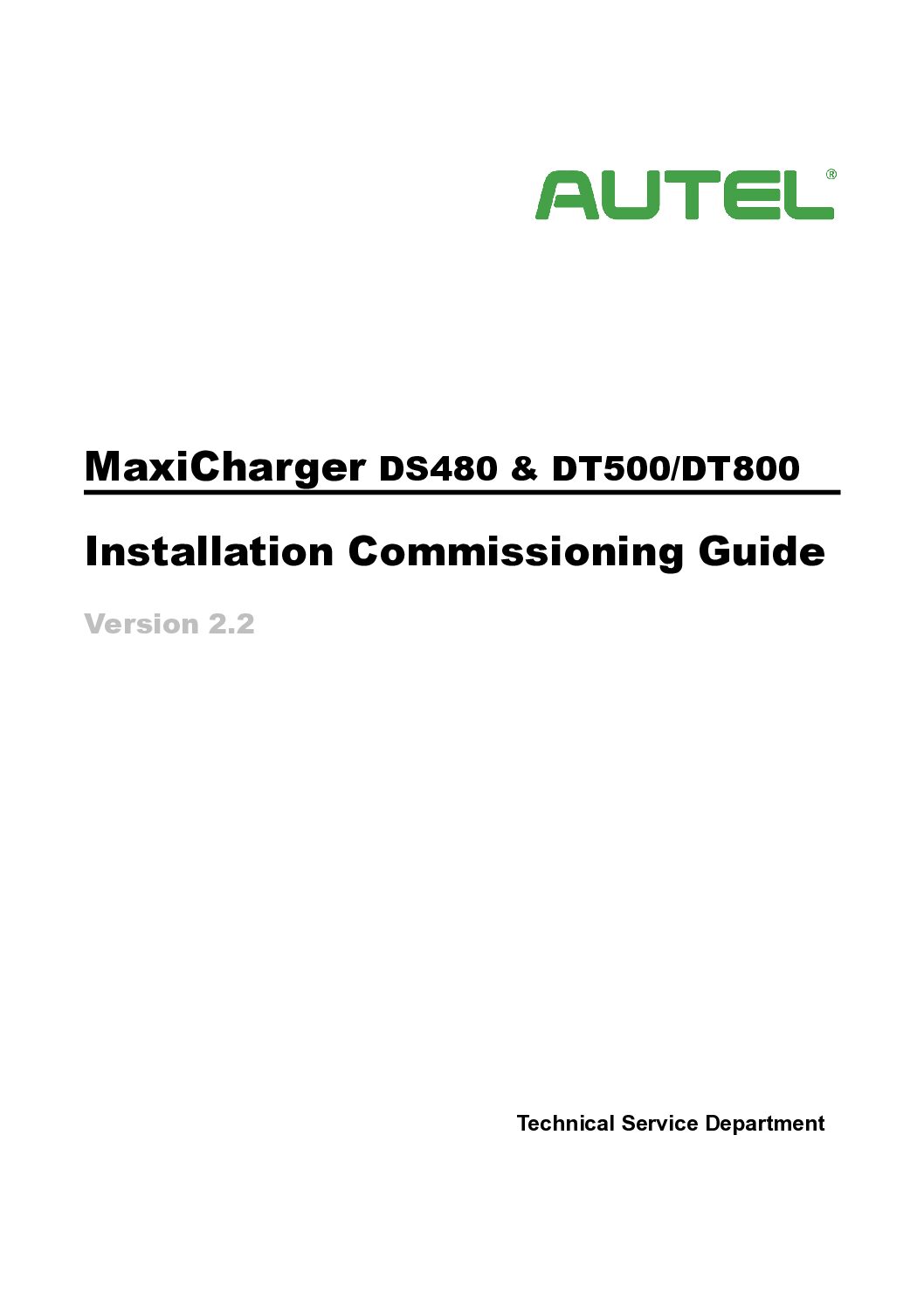

Manuals and Datasheets
Autel DT500 Dispenser
Seamless and Convenient Charging.
Designed with the user in mind, the DT500 ensures a seamless and convenient charging experience. It is equipped with an 8-inch LCD touch screen and a standard cable management system.
The unit offers a comprehensive range of payment terminals, from RFID and QR codes to an optional credit card reader, without requiring any downloads or registration. Built for durability, it has an IP55/IK10 enclosure rating and can operate at altitudes of up to 2000m.
The DT500 adheres to key communication standards, including ISO/IEC 15118 with PnC and DIN 70121, while supporting remote management and OTA updates through the OCPP 1.6J protocol.
Autel DT500 Dispenser
Redefining efficiency in charging Management.
The Autel MaxiCharger DT500 is a Distribution Charging Unit engineered for superior performance and reliability. As a core component of Autel’s intelligent charging network, it provides 400kW of DC output power, supporting the demanding needs of modern electric vehicles. The unit’s output voltage spans from 150-1000V, and its liquid-cooled cables can handle a current of 500A.
Featuring two CCS2 outputs, the DT500 is capable of charging two vehicles at once, maximizing throughput and efficiency at any charging station. Its compact dimensions of allow for flexible installation.
Dynamic Power Sharing
Autel MaxiCloud Digital Load Balancing.
Autel’s Dynamic Load Balancing (DLB) ensures chargers can dynamically share power according to demand. If two vehicles are using the same charger, power output is cut in half for each vehicle, ensuring safe power management for the network. If more than two vehicles are charging, power is shared further among the chargers in use.
Autel MaxiCloud
One-Stop MaxiCloud Platform Management.
The Autel MaxiCloud Cloud supports OCPP 1.6 & 2.0, giving site hosts complete control and visibility across their entire charging network. Through our cloud platform, operators can efficiently manage energy costs, optimize revenue, oversee media assets, and much more.
Fully 1.6 & 2.0 OCPP Compliant
Bring your own OCCP Provider
Autel MaxiChargers are fully OCCP 1.6 & 2.0 compliant menaing they work with all of the leading OCCP providers
